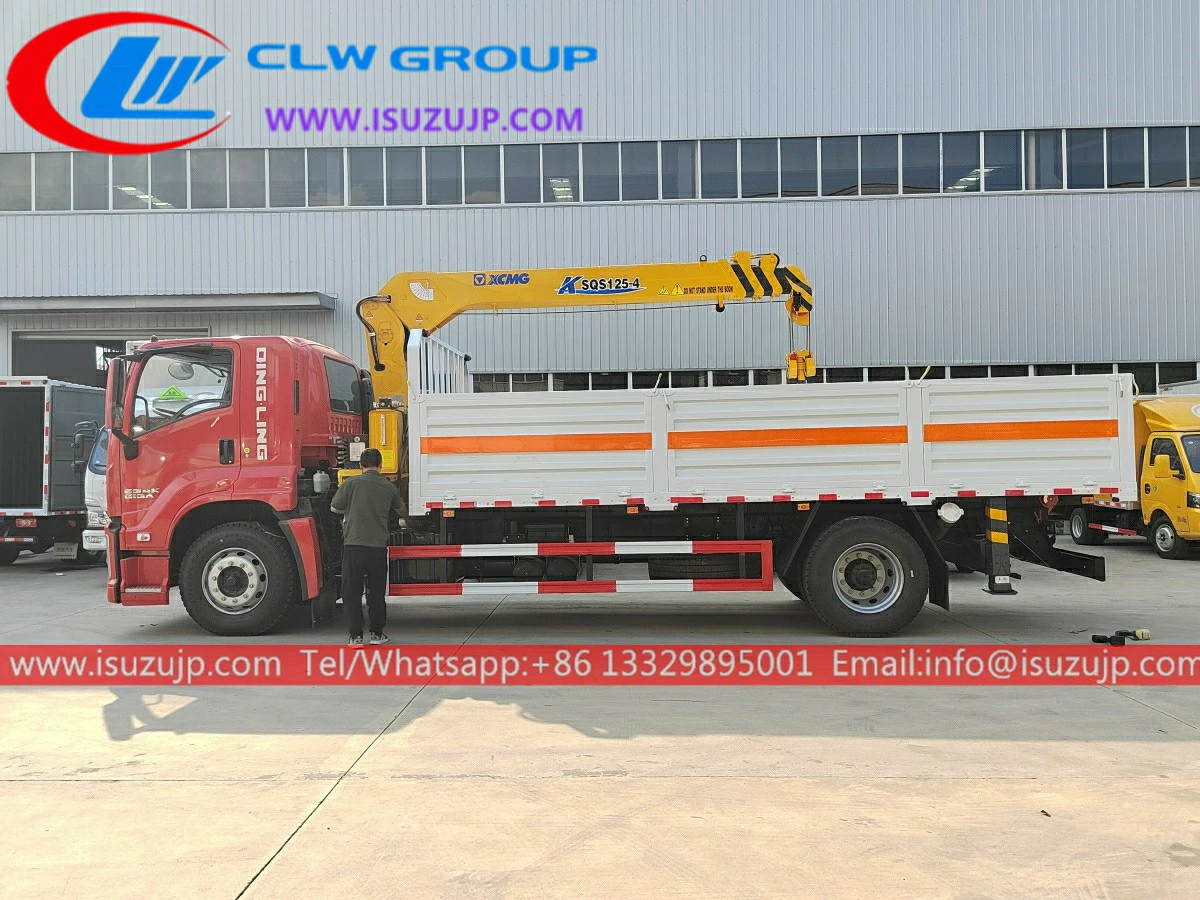

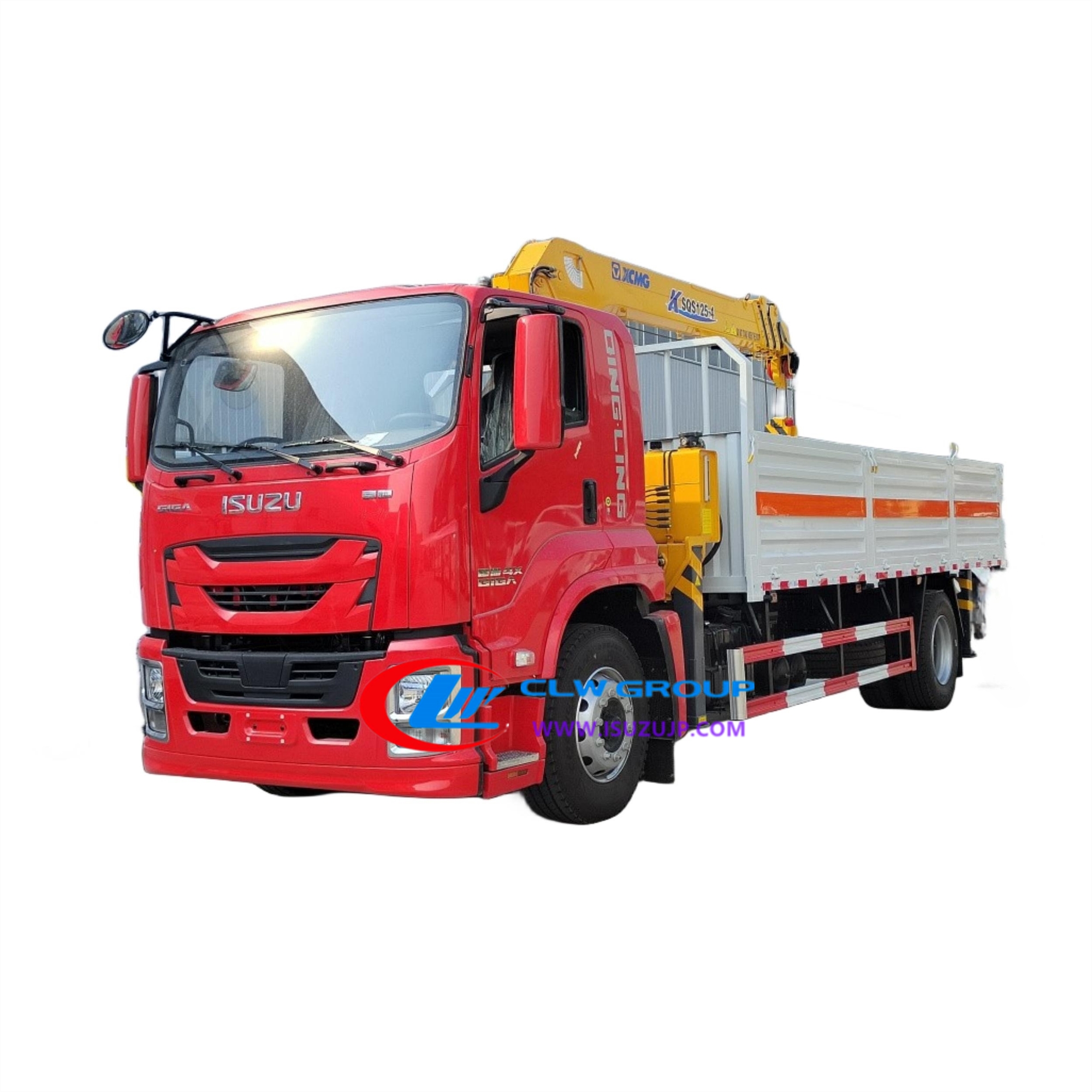

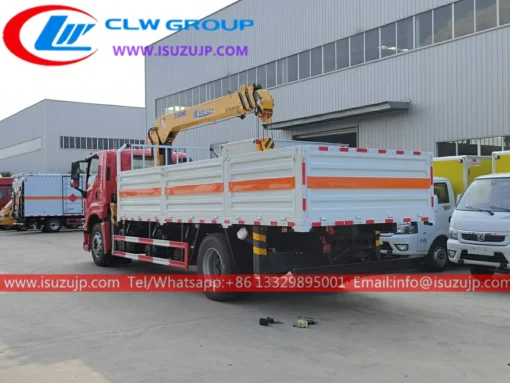

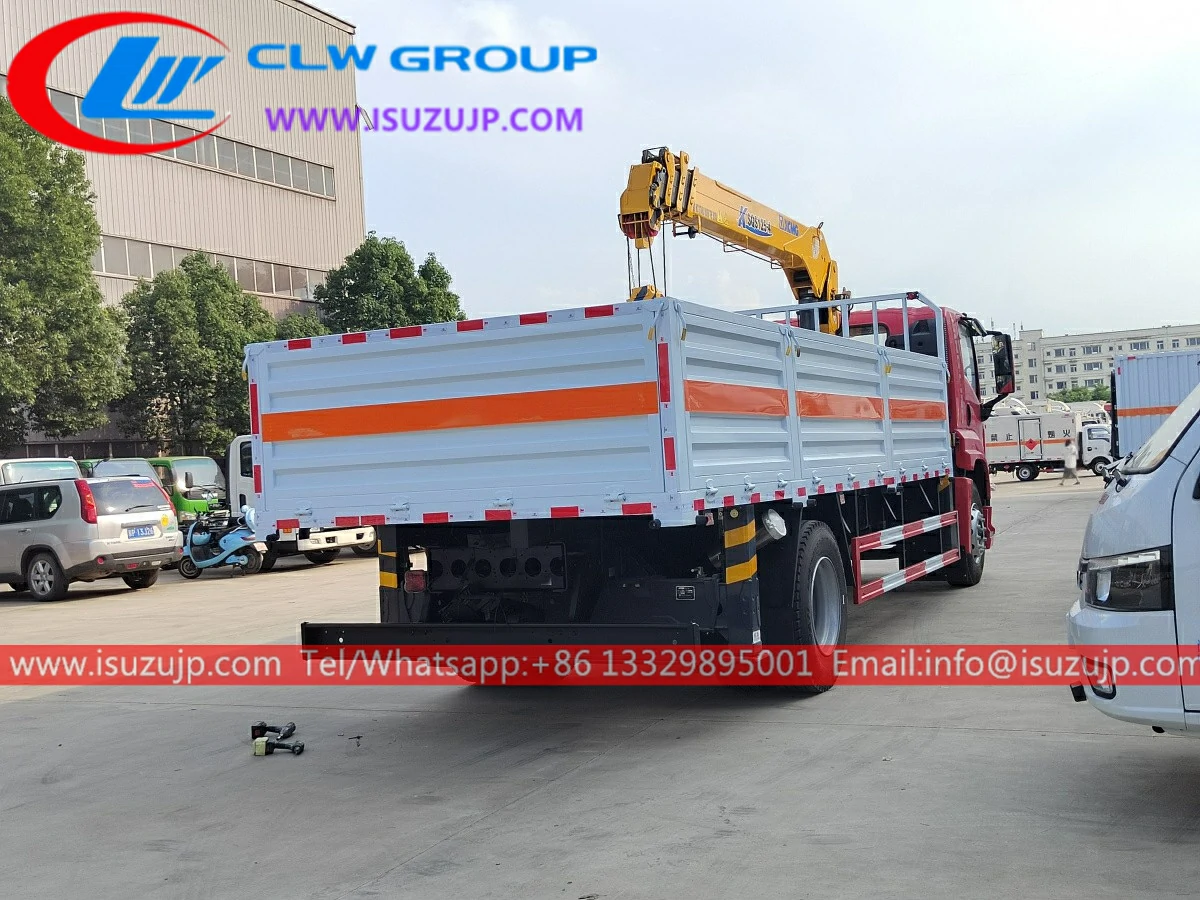

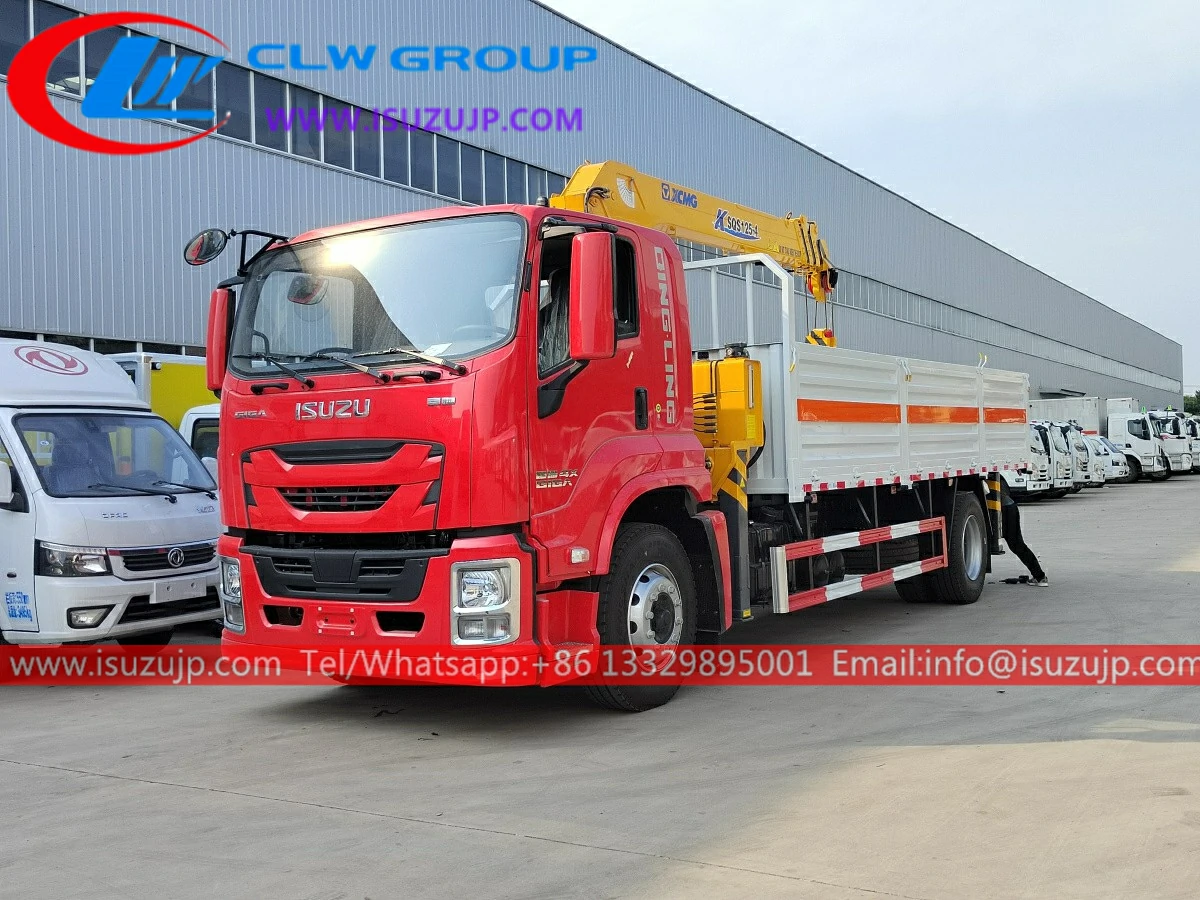

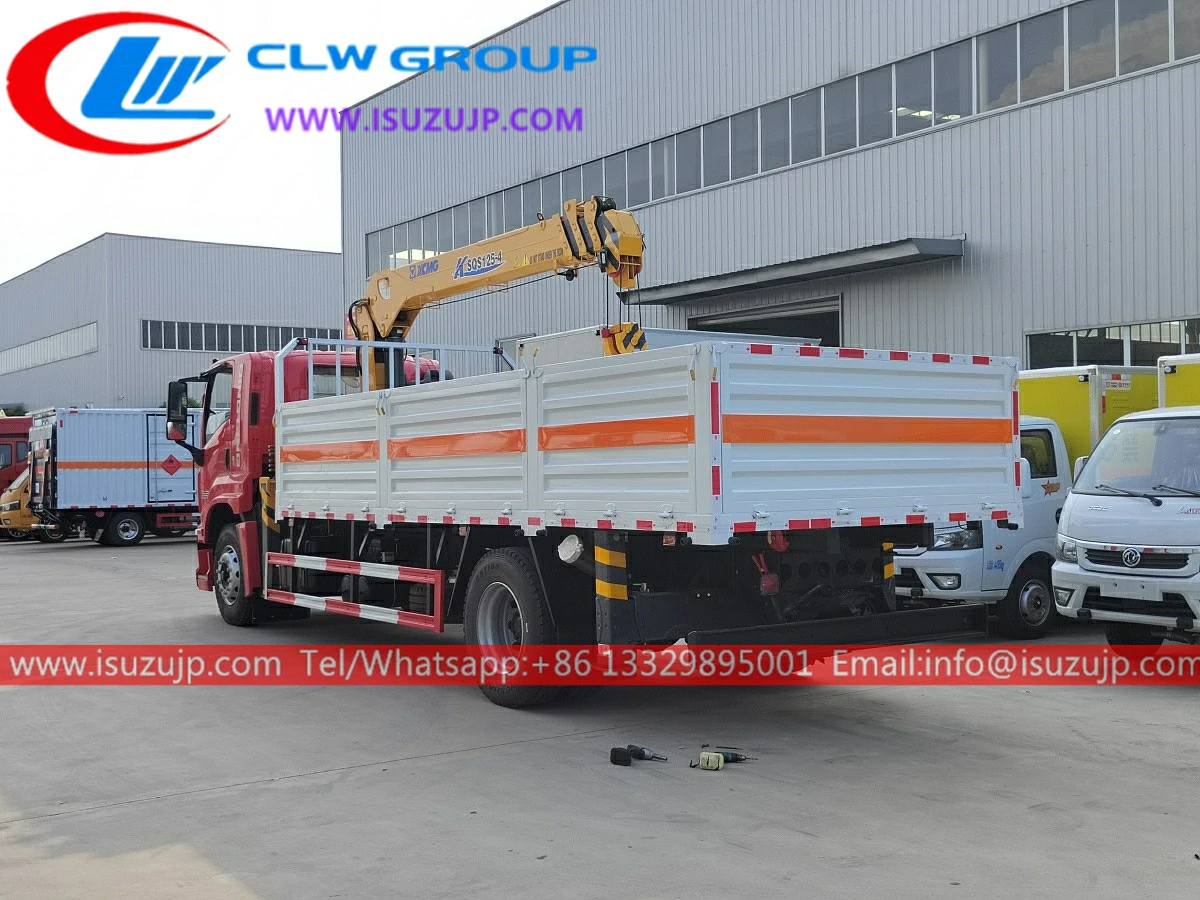

ISUZU GIGA cargo lorry truck with 6 tons XCMG boom crane Description:
- ISUZU GIGA cargo lorry truck with 6 tons XCMG boom crane also called as construction crane trucks, Isuzu truck loder vehicle, truck mounted crane, Lorry with crane, Folding boom truck crane is a type of machine can carry heavy weights and transport them.
- crane mounted can load and unload the freight itself and don’t need to employ another crane.
- The loader crane can freely route in 360 degrees, raise and extend, make the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective.
Advantage:
- 4X2 ISUZU GIGA chassis ensures perfect performance on driving
- ISUZU technology engine, super-powerful, no overhaul within 500,000 km.
- High strength cargo body, nice shape and rational structure.
- Easy operation and easy maintenance.
- Premium cranes Palfinger, XCMG or Chengli (China top brand),etc.
Crane Features:
- Single cylinder synchronization guy cable technology makes work efficiency much higher than before.
- Advanced development means make sure that the design is very reliable.
- The more symmetrical center design of pentagon & hexagon boom make it has bigger anti-bending capacity.
- Compact hinge point design take up smaller space
- The work is more safety after fitted over-winds alarm equipment.
- The integer lifting winch improved the work efficiency greatly and prolonged work lift of hydraulic system.
- Float three-point bridge structure design can lower the accessional stress on the chassis when traveling.
- Self-designed & developed slewing machine with greater drive force can meet varied requirements of working situation.
- Anti-slewing impulse equipment that make vehicle running safely
- All Structural made of High Strength Steel
- Optional Crane type: Telescopic boom crane or knuckled boom crane
- Radio Remote Control Available as an Optional Fitment
- Top Seat Control are optional (where the Operator Seat is attached to the Main Boom)
Specification:
| Manufacturer | CHENG LI | |||
| Product Name | ISUZU GIGA cargo lorry truck with 6 tons XCMG crane | |||
| Vehicle Brand Series | ISUZU | |||
| Vehicle Model | CLW5180TDA6 | |||
| Production Time | 35 days | |||
| Chassis parameters | Overall dimensions | mm | 9200*2500*3200 | |
| Gross weight | kg | 18,000 | ||
| Kerb weight | 8,500 | |||
| Wheelbase | mm | 5600 | ||
| Driving type | 4*2 | |||
| Chassis model | ISUZU GIGA/FTR | |||
| Tire size | 315/80R22.5 | |||
| Number of Tires | 10+1 | |||
| Passengers in cab | 3 | |||
| Engine | Engine model | 4HK1-TCG60 | ||
| Type of fuel | Diesel | |||
| Power | 205HP | |||
| Max speed | Km/h | 110 | ||
| Emission standard | EURO 5,6 | |||
| Cargo Body | Platform | 4500x2300mm | ||
| Loading capacity | 10~15 Tons | |||
| Standard | Equipped with double spring ladder | |||
| Equipped with rear landing leg | ||||
| Crane | 6.3 tons XCMG knuckle boom crane | |||
| Color & LOGO | According to wish | |||
| Factory standard | “U” shape Sub Frame, Rotating Lamp, Hand holds, Mudguards and rubber flaps… | |||
| Documents | English operation manual, Spare parts list, and all necessary export docs. | |||
| Optional equipment | 1, Palfinger, HIAB, XCMG, UNIC or Chinese brand 2, Rear vision camera 3, Optional stainless steel tool box | |||
crane Working parameter:
Boom Truck crane New craft:
Truck loader crane Optional configuration:
Hydraulic crane truck details:
Lorry truck mounted crane Optional model style：
Factory Advantage:
- 17 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
