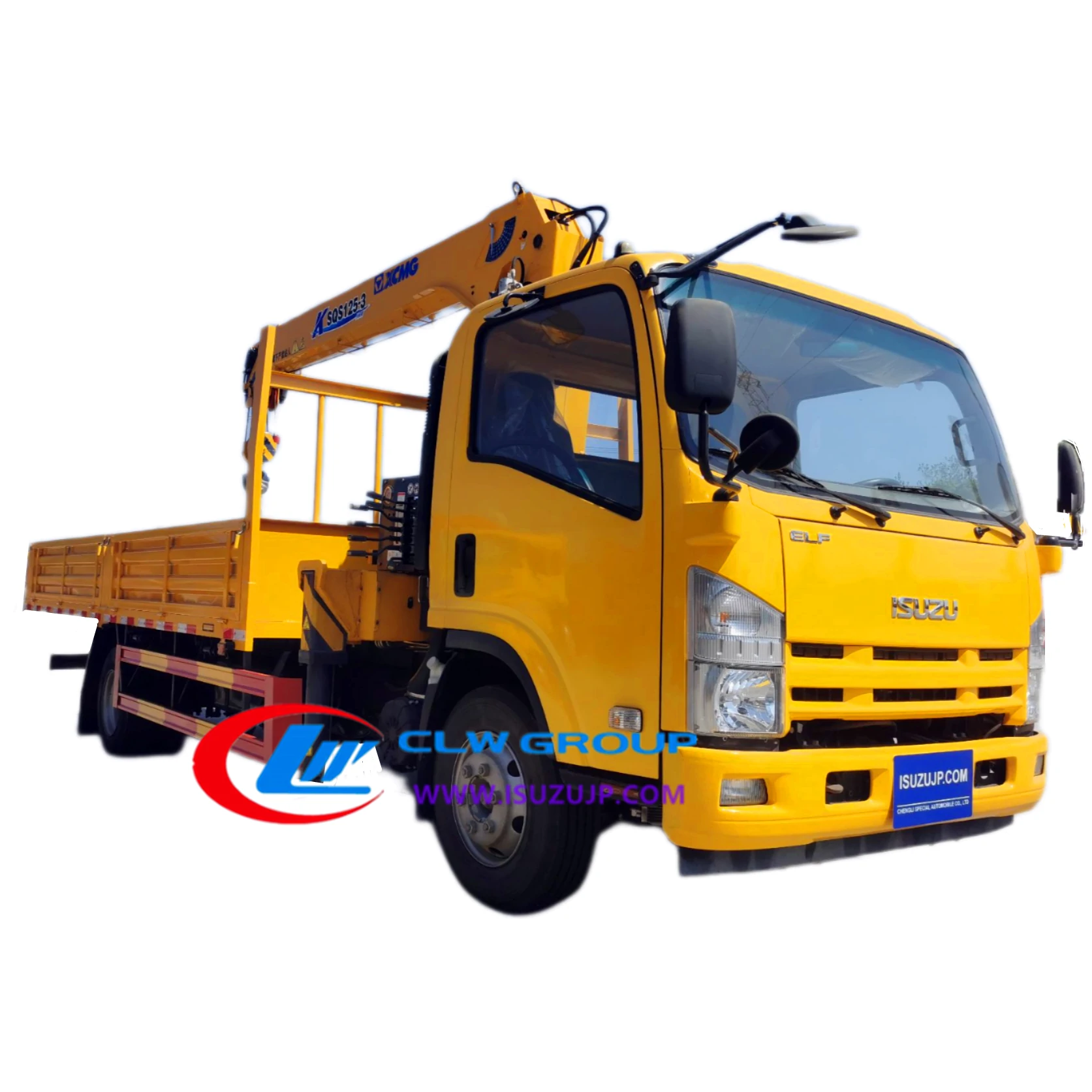

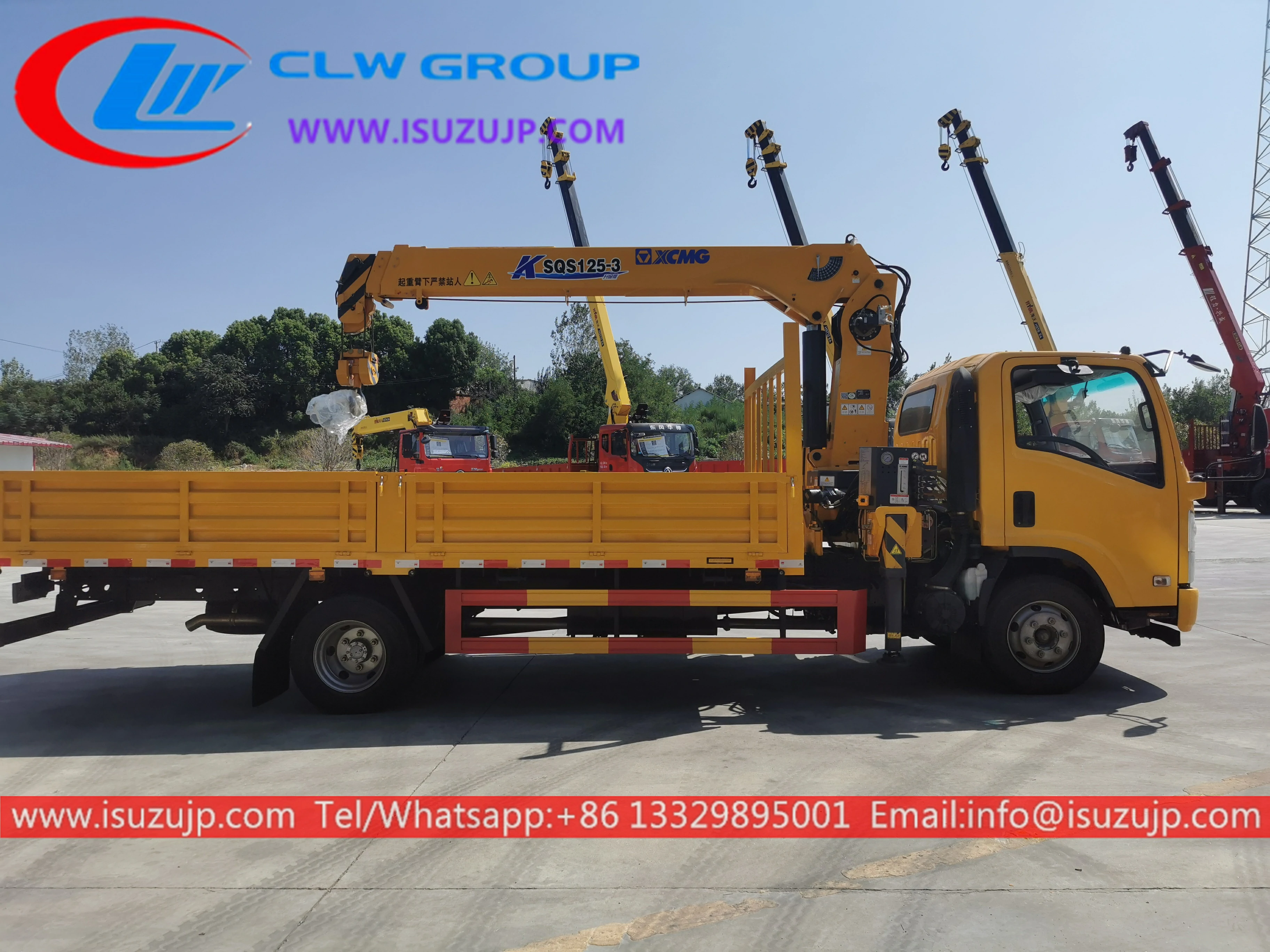

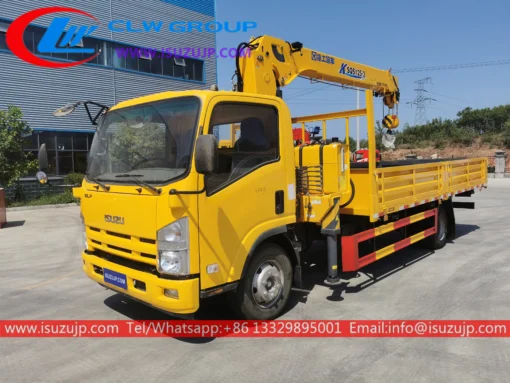

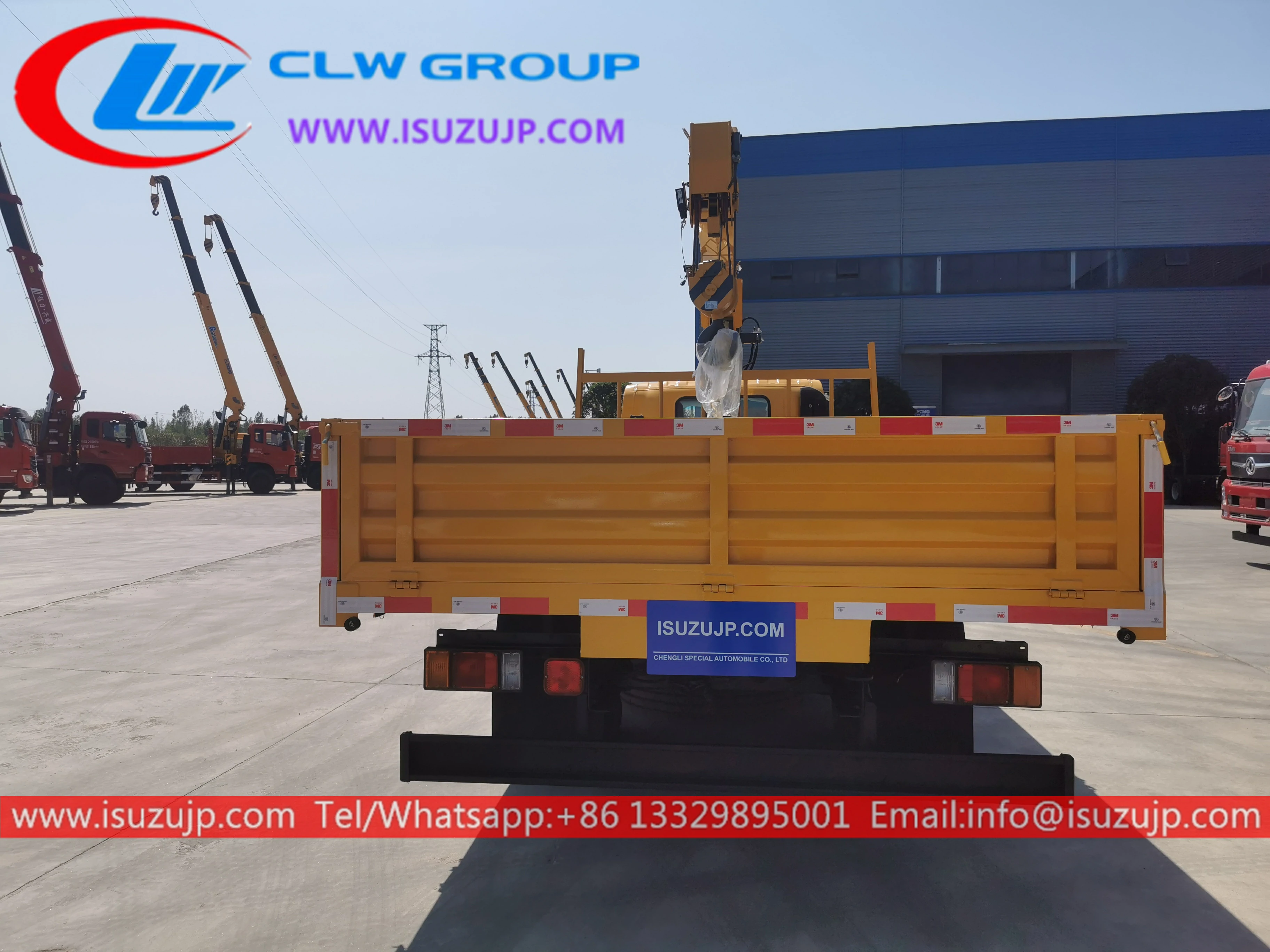

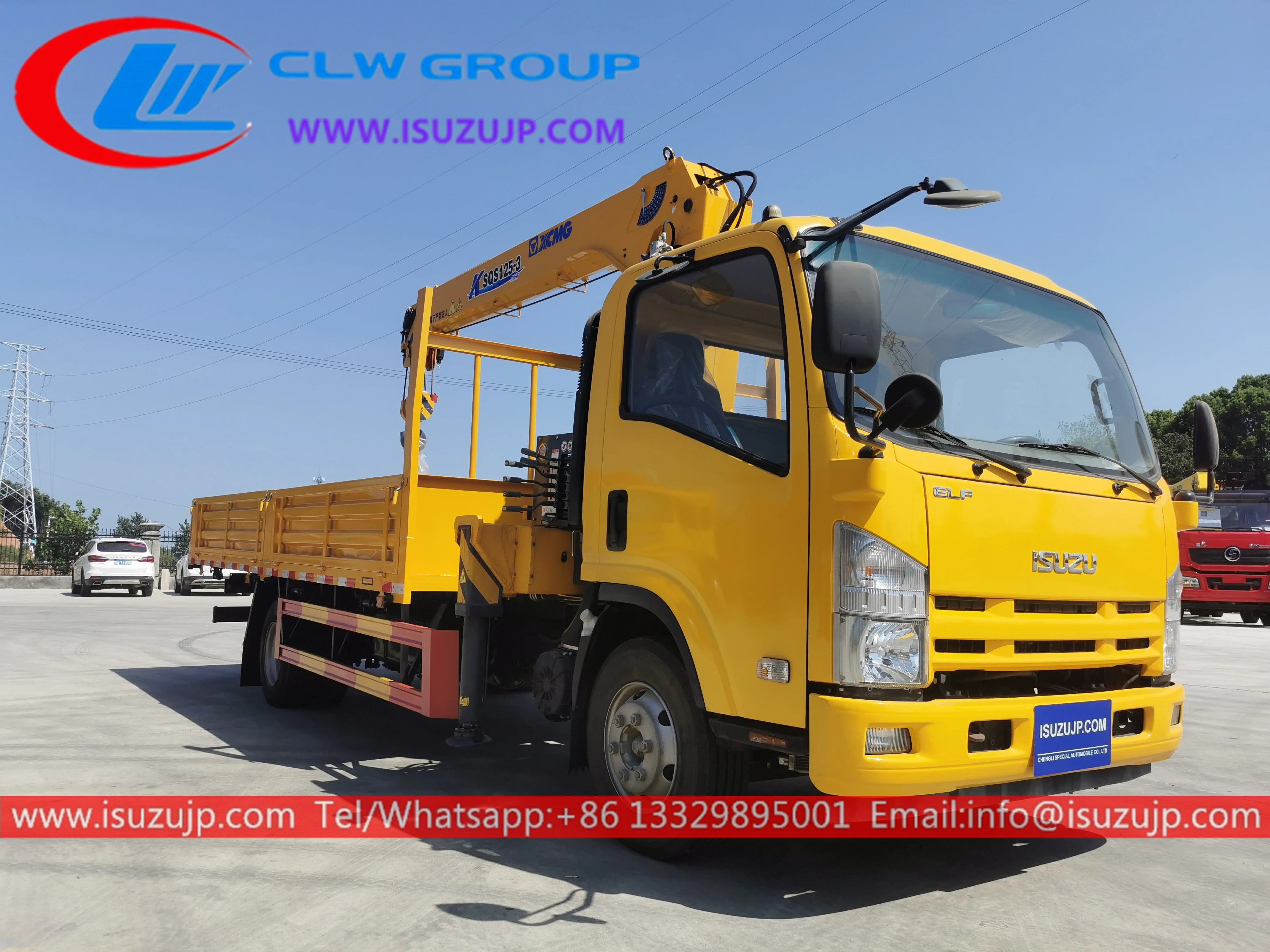

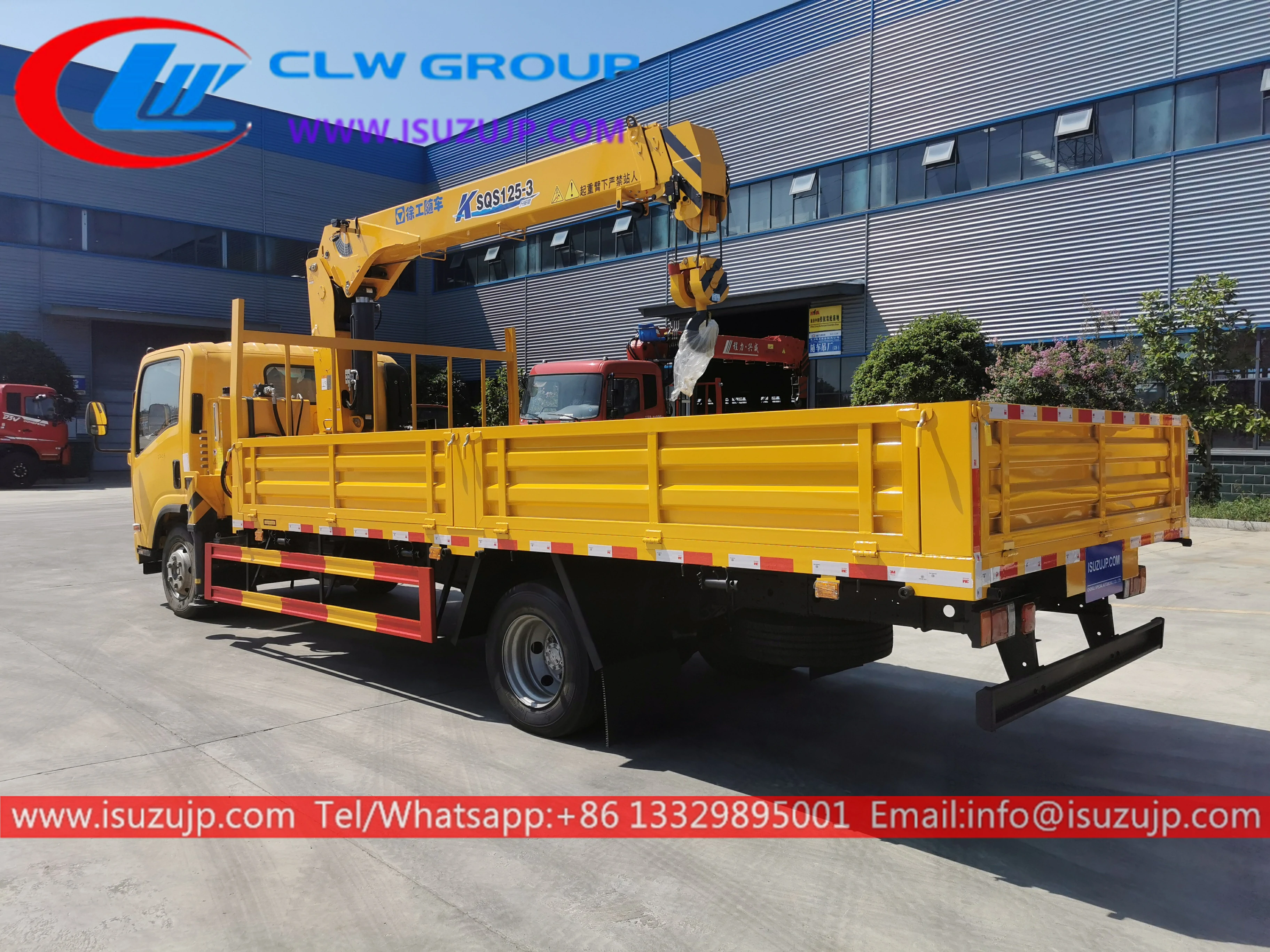

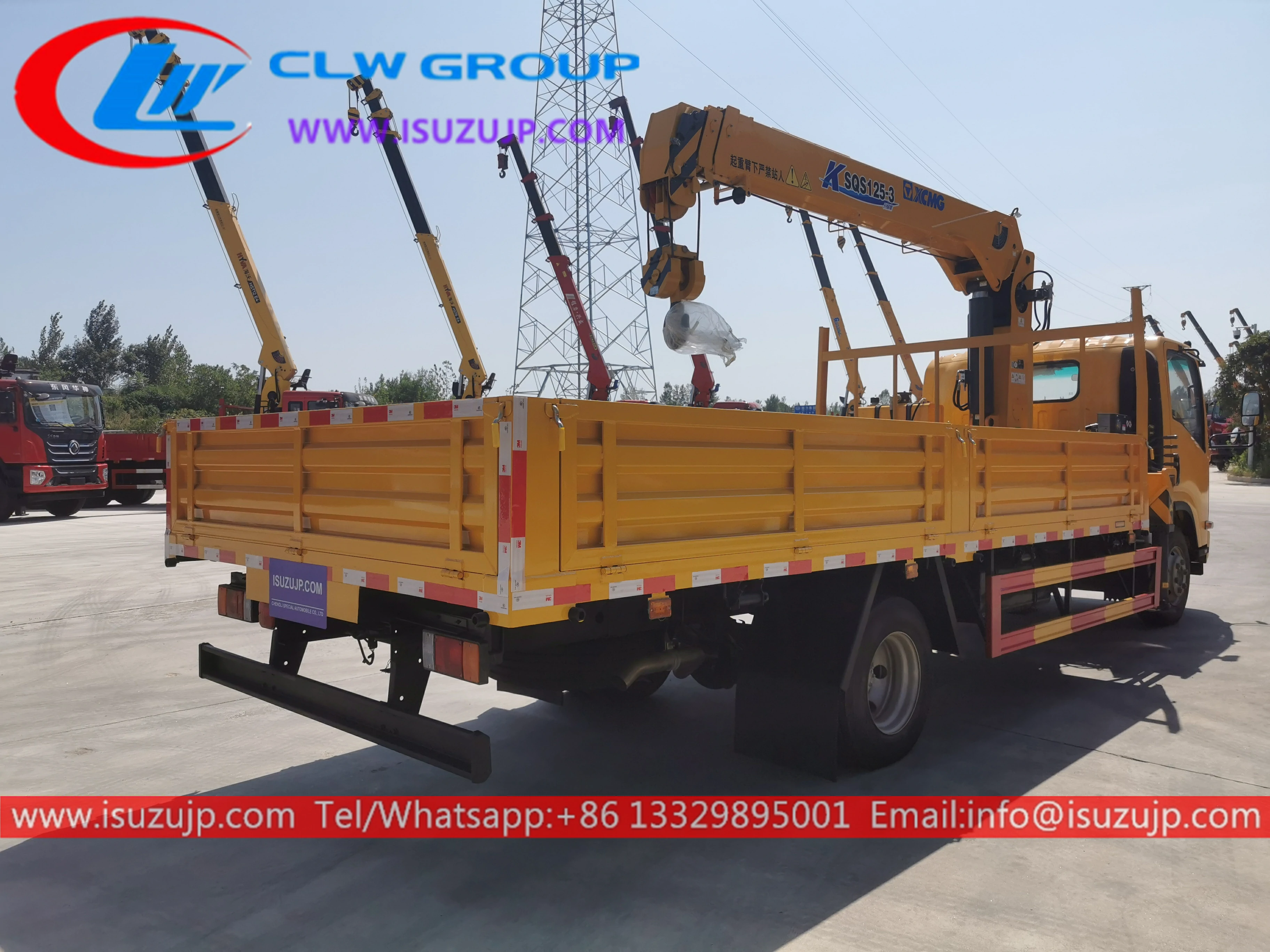

Isuzu NQR 190hp 5 ton lorry crane Description:
- ISUZU NQR 190hp 5 ton lorry crane also called as construction crane trucks, Isuzu truck loader vehicle, truck mounted crane, Lorry with crane, Folding boom truck crane is a type of machine can carry heavy weights and transport them.
- crane mounted can load and unload the freight itself and don’t need to employ another crane.
- The loader crane can freely route in 360 degrees, raise and extend, making the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective.
Advantage:
- ISUZU NPR chassis ensures perfect performance in driving
- ISUZU technology engine, super powerful, no overhaul within 500,000 km.
- High-strength cargo body, nice shape, and rational structure.
- Easy operation and easy maintenance.
- Premium cranes Palfinger, XCMG, or Chengli (China’s top brand), etc.
Crane Features:
- Single cylinder synchronization guy cable technology makes work efficiency much higher than before.
- Advanced development means making sure that the design is very reliable.
- The more symmetrical center design of the pentagon & hexagon boom makes it a bigger anti-bending capacity.
- A compact hinge point design takes up smaller space
- The work is more safety after fitting over-wind alarm equipment.
- The integer lifting winch improved the work efficiency greatly and prolonged the work lift of the hydraulic system.
- Float three-point bridge structure design can lower the accessional stress on the chassis when traveling.
- Self-designed & developed slewing machines with greater drive force can meet varied requirements of working situations.
- Anti-slewing impulse equipment that makes vehicles run safely
- All Structural made of High Strength Steel
- Optional Crane type: Telescopic boom crane or knuckle boom crane
- Radio Remote Control Available as an Optional Fitment
- Top Seat Control is optional (where the Operator Seat is attached to the Main Boom)
Specification:
| Vehicle Parameters | Vehicle Model: | Isuzu NQR 190hp 5 ton lorry crane | ||||
| Overall Dimension(L x W x H) | 8000x2500x3300mm | |||||
| Dropside body (L x W x H) | 5100x2300x500mm | |||||
| Curb Weight: | 6500Kg | |||||
| GVW: | 10055Kg | |||||
| Wheelbase: | 4175mm | |||||
| Drive Type: | 4×2 | |||||
| Engine | Engine Model: | 4HK1-TCG51 | ||||
| Cylinder NO. | 4 | |||||
| Engine Power: | 141(kW) | |||||
| Displacement: | 5193(ml) | |||||
| Horsepower: | 191PS | |||||
| Max torque: | 510N.M | |||||
| Emission standard: | Euro5 | |||||
| Transmission | Transmission: | ISUZU MLD-6Q | ||||
| Forward Gear: | 6 Speed Gear | |||||
| Backward Gear: | 1 Speed Gear | |||||
| Max speed | 110km/h | |||||
| Seats | Front Seat: | 3 | ||||
| Cabin | ISUZU 700P, tilting cabin | |||||
| Chassis | Front Wheel Distance: | 1680mm | ||||
| Rear Wheel Distance: | 1650mm | |||||
| Number of spring | 8/10+6 | |||||
| Approach/departure angle | 21/13 | |||||
| Front/rear overhang | 1110/2055mm | |||||
| Axle Loads: | Double Axles | |||||
| Rear Axle Ratio: | 4.1 | |||||
| Tires: | 7 | |||||
| Tire Model: | 8.25-20 16PR | |||||
| Configuration: | 1 | Power Steering | ||||
| 2 | AC | |||||
| 3 | Retro-reflective Marking | |||||
| 4 | ABS | |||||
| 5 | Free Maintenance Battery | |||||
| Crane specs | ITEM | UNITS | Crane model | |||
| SQ5SK2Q, Straight | ||||||
| Max lifting capacity | KG | 5000 | ||||
| Max lifting capacity | T.M | 12.5 | ||||
| Recommend power | KW | 18 | ||||
| Max oil flow | L/MIN | 32 | ||||
| Max pressure | MPA | 20 | ||||
| Oil Tank Capacity | L | 90 | ||||
| Crane weight | KG | 2074 | ||||
| Installation space | MM | 900 | ||||
| Rotation angle | DEGREE | 360 | ||||
| Extension length | MM | 8500 | ||||
| Lifting height | MM | 10500 | ||||
| Max elevation | DEGREE | 75 | ||||
crane Working parameter:
Boom Truck crane New craft:
Truck loader crane Optional configuration:
Hydraulic crane truck details:
Lorry truck mounted crane Optional model style：
Factory Advantage:
- 17 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
