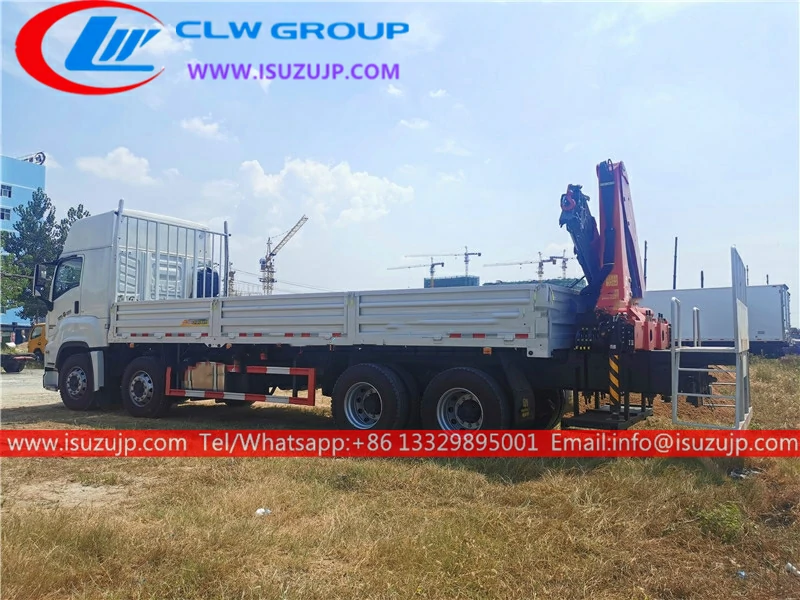

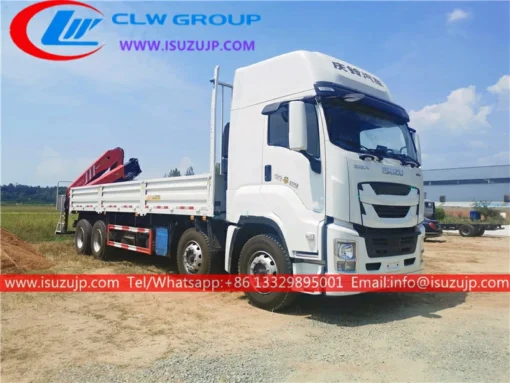

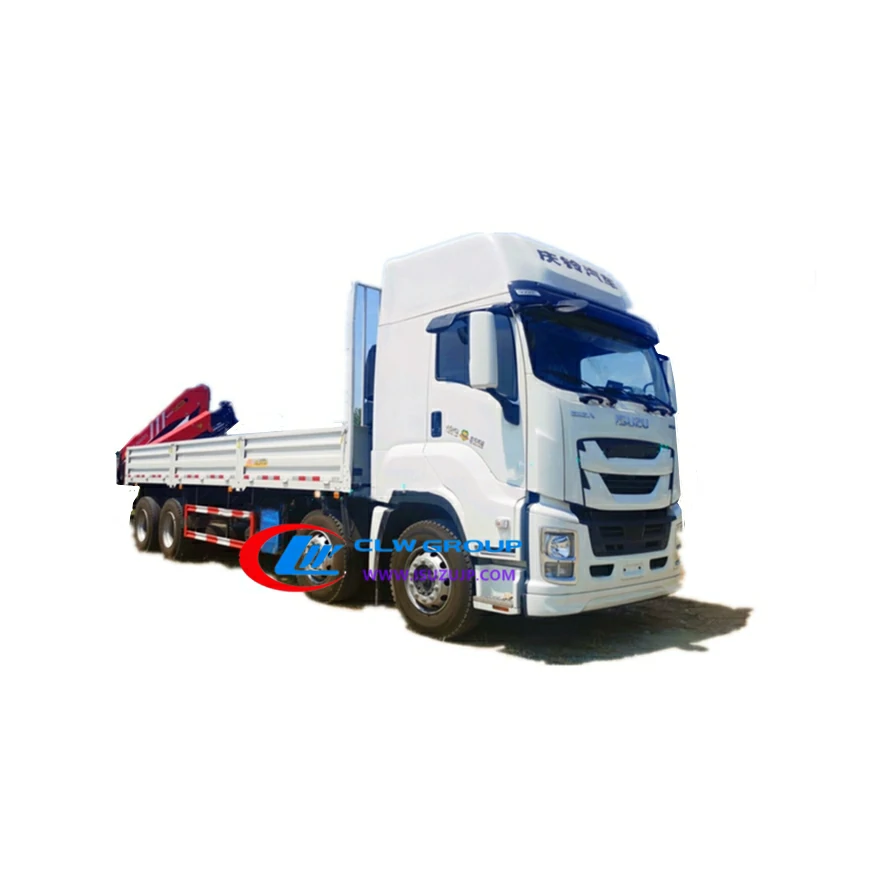

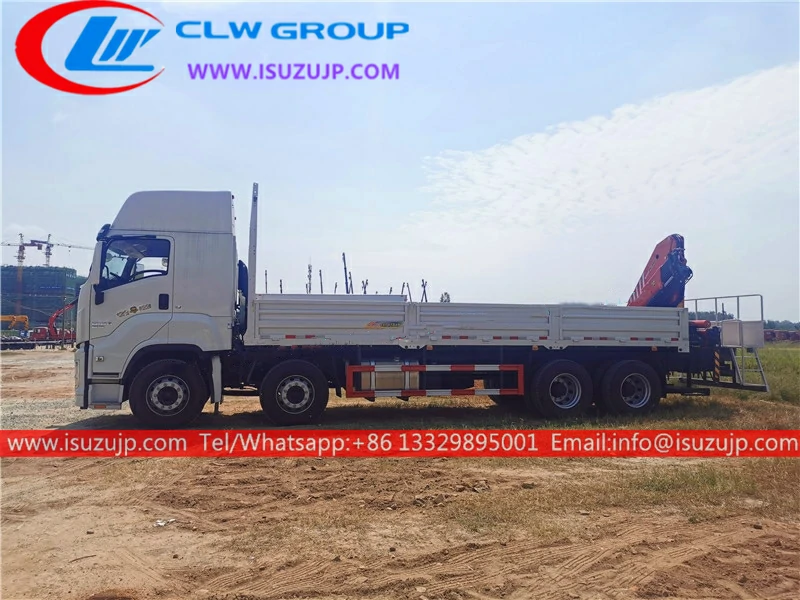

12 wheel ISUZU GIGA palfinger knuckle crane lorry Description:
- ISUZU palfinger knuckle crane lorry also called as construction crane trucks, Isuzu truck loder vehicle, truck mounted crane, Lorry with crane, Folding boom truck crane is a type of machine can carry heavy weights and transport them.
- crane mounted can load and unload the freight itself and don’t need to employ another crane.
- The loader crane can freely route in 360 degrees, raise and extend, make the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective.
Advantage:
- 12 wheel ISUZU GIGA chassis ensures perfect performance on driving
- ISUZU technology engine, super powerful, no overhaul within 500,000 km.
- High strength cargo body, nice shape and rational structure.
- Easy operation and easy maintenance.
- Premium cranes Palfinger, XCMG or Chengli (China top brand),etc.

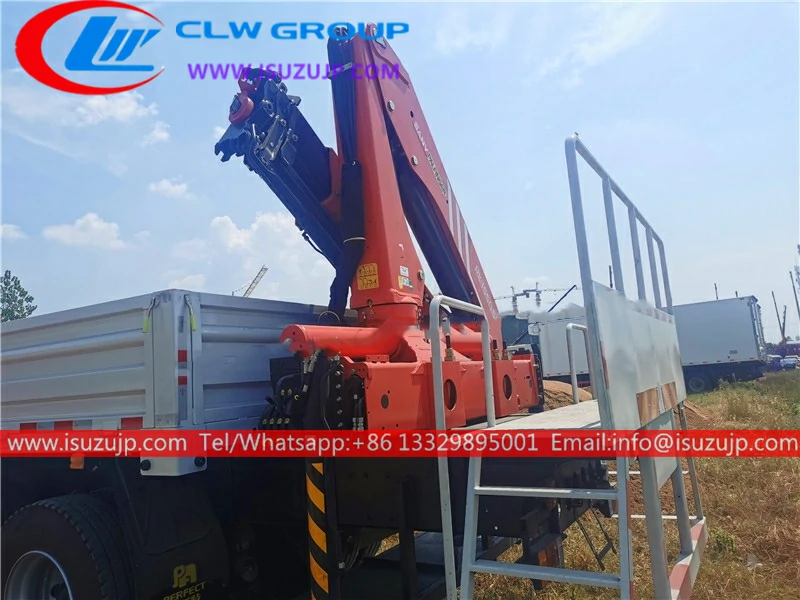

Crane Features:
- Single cylinder synchronization guy cable technology makes work efficiency much higher than before.
- Advanced development means make sure that the design is very reliable.
- The more symmetrical center design of pentagon & hexagon boom make it has bigger anti-bending capacity.
- Compact hinge point design take up smaller space
- The work is more safety after fitted over-winds alarm equipment.
- The integer lifting winch improved the work efficiency greatly and prolonged work lift of hydraulic system.
- Float three-point bridge structure design can lower the accessional stress on the chassis when traveling.
- Self-designed & developed slewing machine with greater drive force can meet varied requirements of working situation.
- Anti-slewing impulse equipment that make vehicle running safely
- All Structural made of High Strength Steel
- Optional Crane type: Telescopic boom crane or knuckled boom crane
- Radio Remote Control Available as an Optional Fitment
- Top Seat Control are optional (where the Operator Seat is attached to the Main Boom)
Specification:
| Specifications of 12 wheel ISUZU GIGA palfinger knuckle crane lorry for sale | |
| Model | CLW5310TPBQL5 |
| Chassis brand & Year | Japan 1SUZU, condition new |
| Wheel Drive | 8×4, LHD |
| Overall Dimension | 12000*2550*3750mm |
| Cargo Box Dimension | 8200*2500*550mm, 3mm side wall, 4mm bottom plate |
| Gross Weight | 34000kg |
| Curb Weight | 13400kg |
| Rated Weight | 20600kg |
| Engine | Qingling 350HP/380HP/460HP options, TurboCharged, High pressure common-rail, direct injection |
| Wheelbase | 1850+4585+1370mm |
| Tires | 12+1, 315/80R22.5 |
| Axle | Front axle: 2x 7 ton front driving axle Rear axle: 26 ton double mounted rear axle |

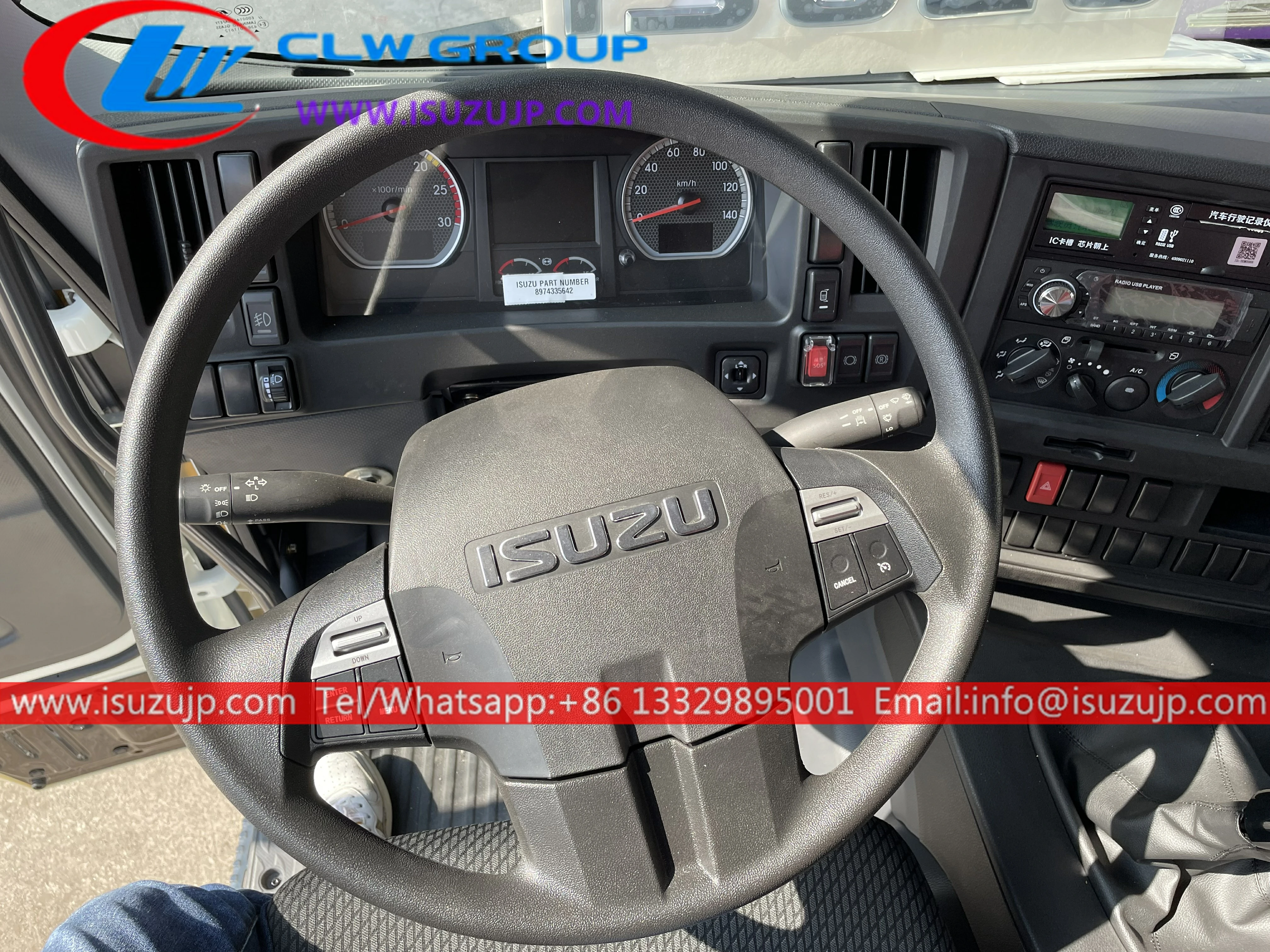

| Cabin | Japan GIGA VC61 luxury cab, 3 seats, with a sleeper bed, with A/C, multi-function steering wheel, dashboard, etc |
| Transmission | Manual, 12 front gears and 2 rear gear |
| Brake | Air brake |
| Max Speed | 90km/h |
| Main Technical Parameters | ||

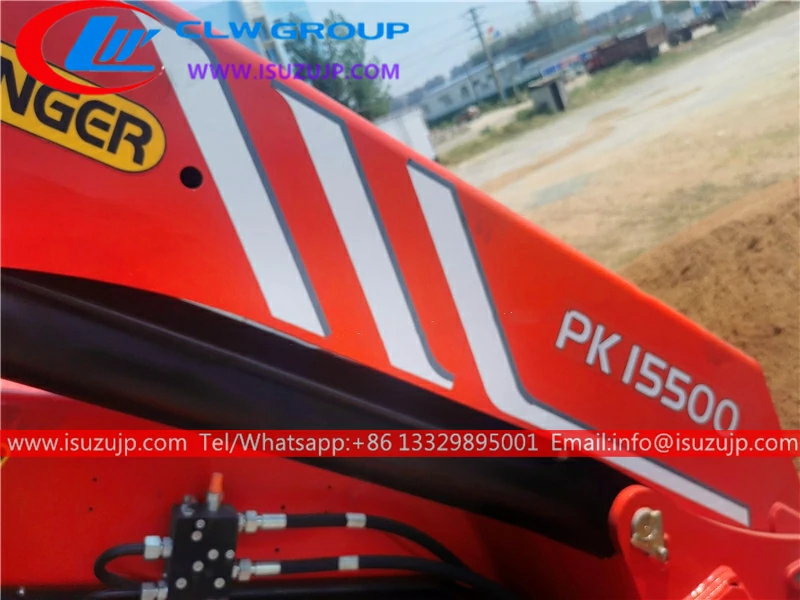

| Item | UOM | SPK15500 |
| Max lifting weight | Kg | 6200 |
| Lifting moment | T.m | 14.6 |
| Max hydraulic outreach | m | 12.4 |
| Slewing angle | . | 420 |
| Slewing torque | kNm | 17.7 |
| Operating pressure | Mpa | 30 |
| Pump capacity | L/min | 40-60 |
| Crane Moment(dynamic) | kNm | 193.7 |
| Weight of the crane(dynamic) | kNm | 23.9 |
| SPK15500 | ||||
| hydr.boom extensions | 1 | 2(A) | 3(B) | 4(C) |
| Max outreach | 6.2m | 8.1M | 10.3M | 12.4M |
| Crane weight | 1619KG | 1769KG | 1904KG | 2029KG |
crane Working parameter:
Boom Truck crane New craft:
Truck loader crane Optional configuration:
Hydraulic crane truck details:
Lorry truck mounted crane Optional model style：
Factory Advantage:
- 17 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
