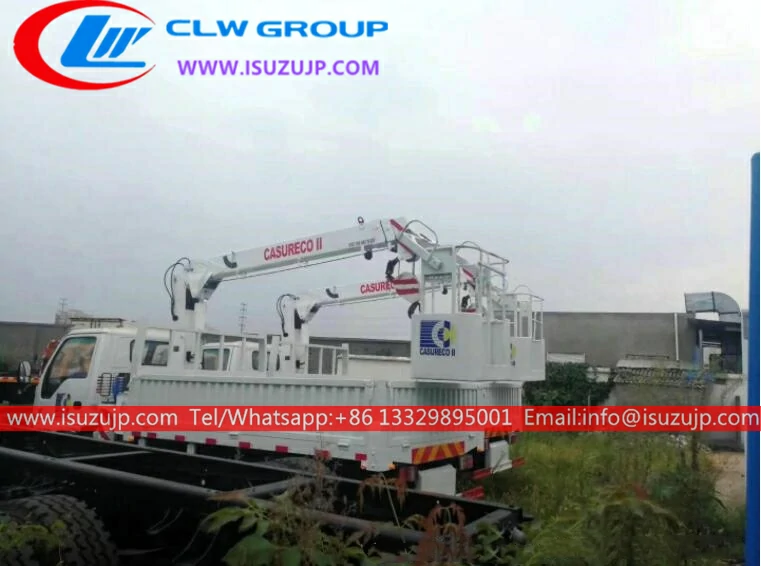

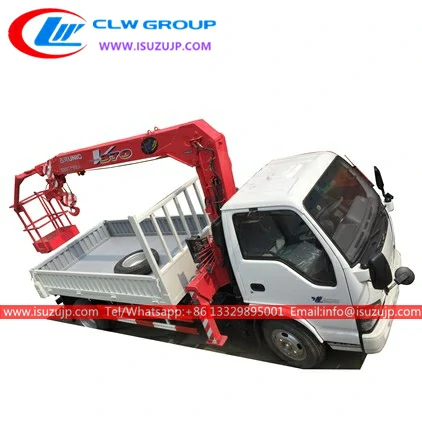

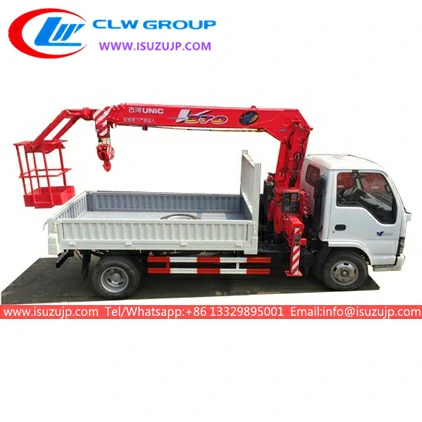

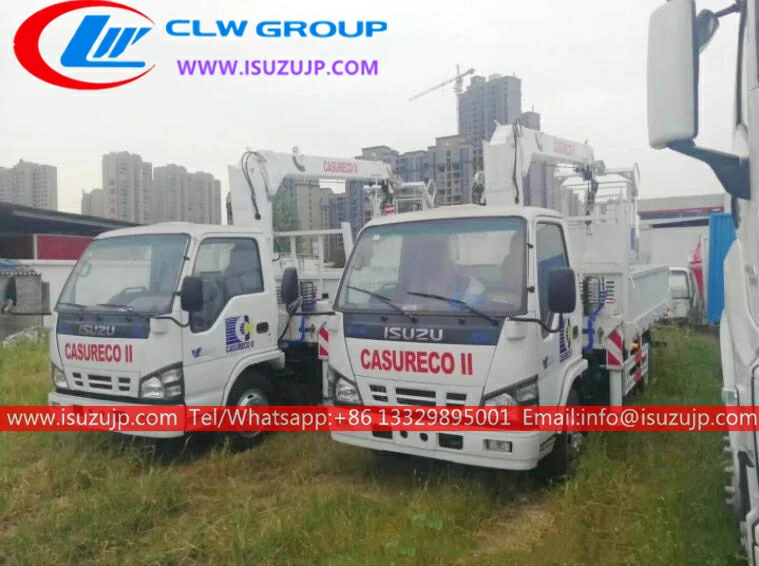

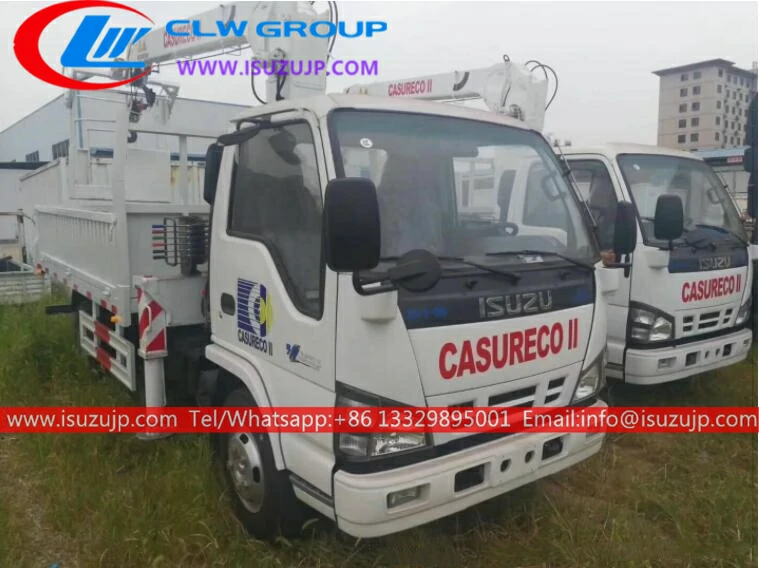

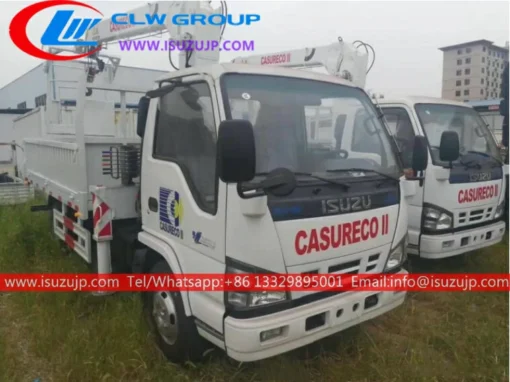

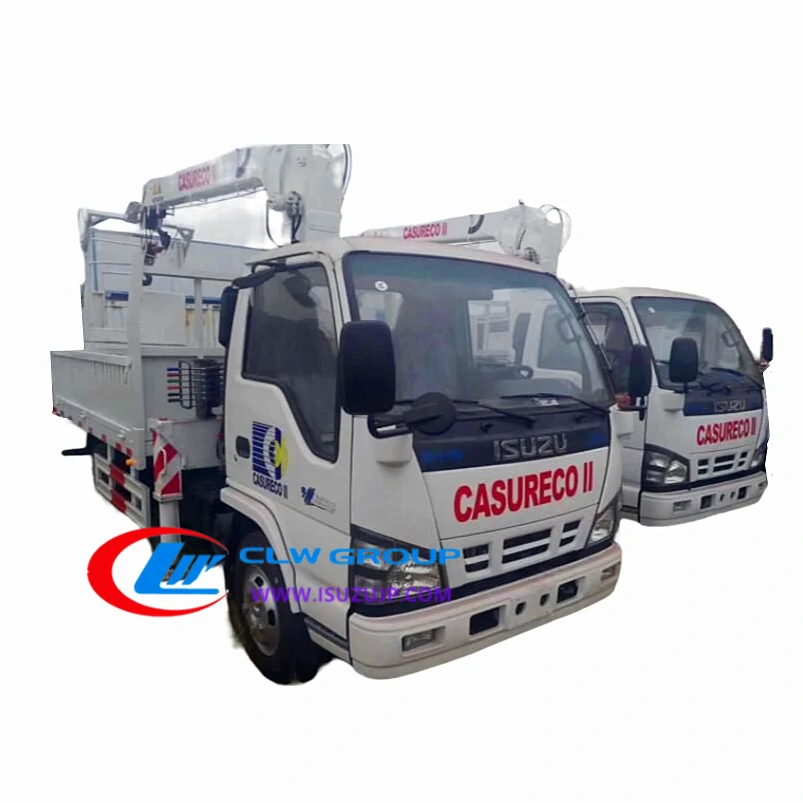

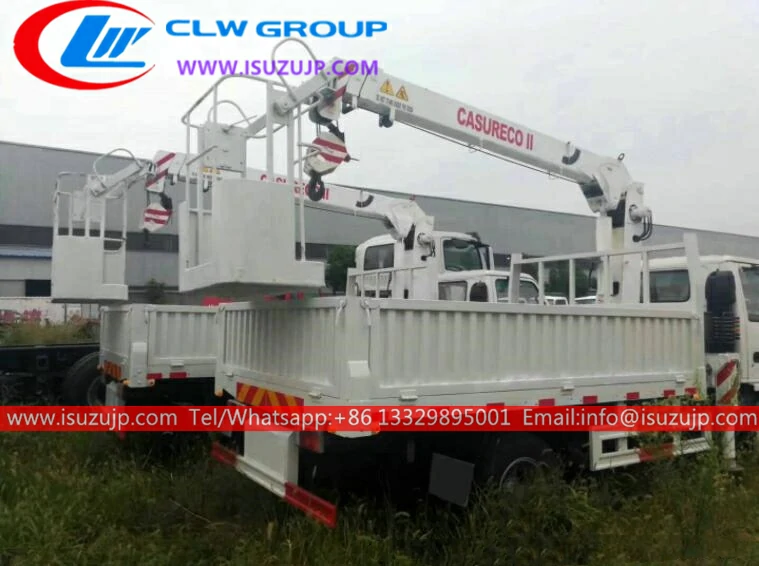

ISUZU 600P 4 ton telescopic truck crane with basket Description:
- ISUZU telescopic truck crane with basket also called as construction crane trucks, Isuzu truck loder vehicle, truck mounted crane, Lorry with crane, Folding boom truck crane is a type of machine can carry heavy weights and transport them.
- crane mounted can load and unload the freight itself and don’t need to employ another crane.
- The loader crane can freely route in 360 degrees, raise and extend, make the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective.
- ISUZU NKR 600P chassis ensures perfect performance on driving
- ISUZU technology engine, super powerful, no overhaul within 500,000 km.
- High strength cargo body, nice shape and rational structure.
- Easy operation and easy maintenance.
- Premium cranes Palfinger, XCMG or Chengli (China top brand),etc.
- Single cylinder synchronization guy cable technology makes work efficiency much higher than before.
- Advanced development means make sure that the design is very reliable.
- The more symmetrical center design of pentagon & hexagon boom make it has bigger anti-bending capacity.
- Compact hinge point design take up smaller space
- The work is more safety after fitted over-winds alarm equipment.
- The integer lifting winch improved the work efficiency greatly and prolonged work lift of hydraulic system.
- Float three-point bridge structure design can lower the accessional stress on the chassis when traveling.
- Self-designed & developed slewing machine with greater drive force can meet varied requirements of working situation.
- Anti-slewing impulse equipment that make vehicle running safely
- All Structural made of High Strength Steel
- Optional Crane type: Telescopic boom crane or knuckled boom crane
- Radio Remote Control Available as an Optional Fitment
- Top Seat Control are optional (where the Operator Seat is attached to the Main Boom)
|ISUZU 600P 4 ton telescopic truck crane with basket|
|Overall Dimension||6500X2100X3100 mm|
|GVW / Kerb Weight||7,300kg / 4,000kg|
|Cab||Cab Capacity||2 persons allowed|
|Air Conditioner||Heating/cooling air conditioner|
|Power||120 HP (88 KW)|
|Emission Standard||Euro 4 or 5|
|Chassis||Drive Type||4X2, (Left hand drive ONLY)|
|Transmission||Manual MSB 5 speed levers with 1 reverse|
|Wheelbase/No. of axle||3360 mm / 2|
|Tire Number||6 tires and 1 spare tire|
|Max Speed||90 km/h|
|Superstructure||Cargo Box Dimension||4000X1900X500 mm|
|Crane Type||Telescopic boom crane|
|Bucket Max Lifting Capacity||200 kg at maximum|
|Slewing Angle||360° All rotation|
|Crane Weight||1271 kg|
|Installation Space||850 mm|
|Control panel||English or Your language|
|All standard accessories: Basic tool kit, English manual……|
|Optional||Knuckle boom crane.|
Hydraulic tipper box.
Box thickness according to requirement.
Box height could be nominated
crane Working parameter:
Boom Truck crane New craft:
Truck loader crane Optional configuration:
Hydraulic crane truck details:
Lorry truck mounted crane Optional model style：
