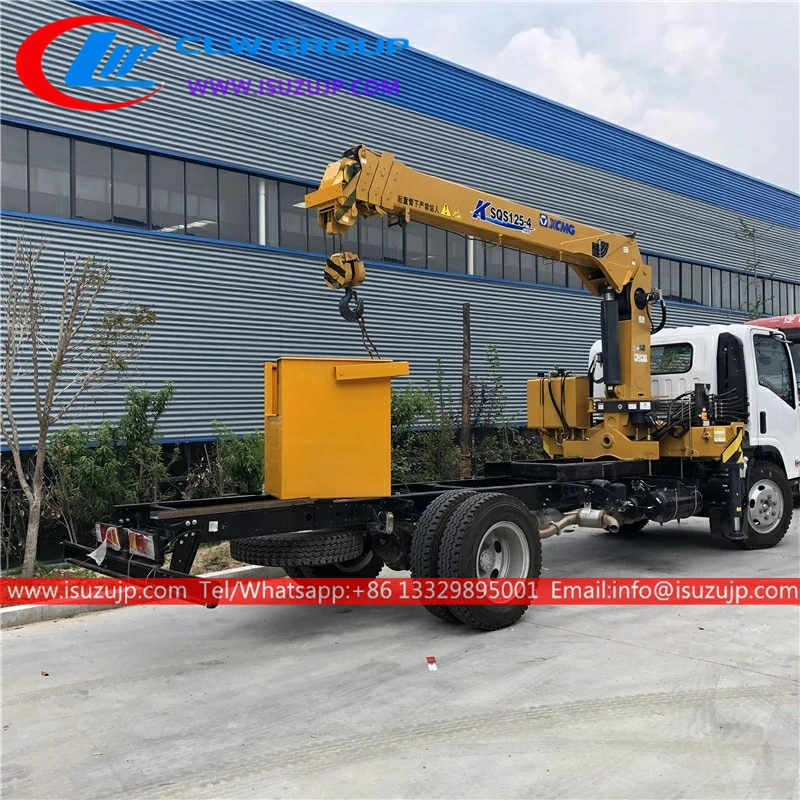

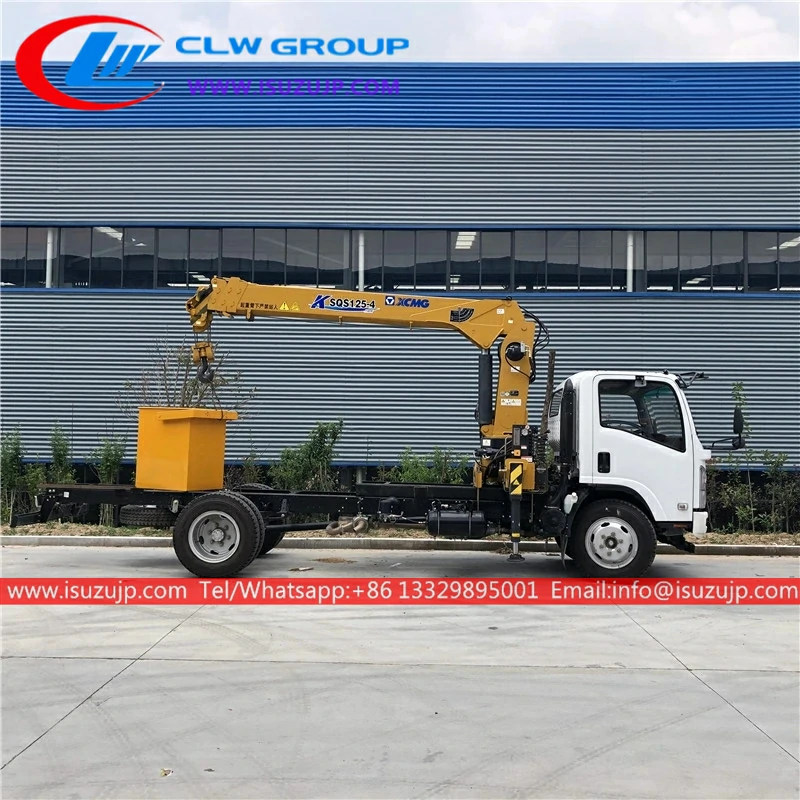

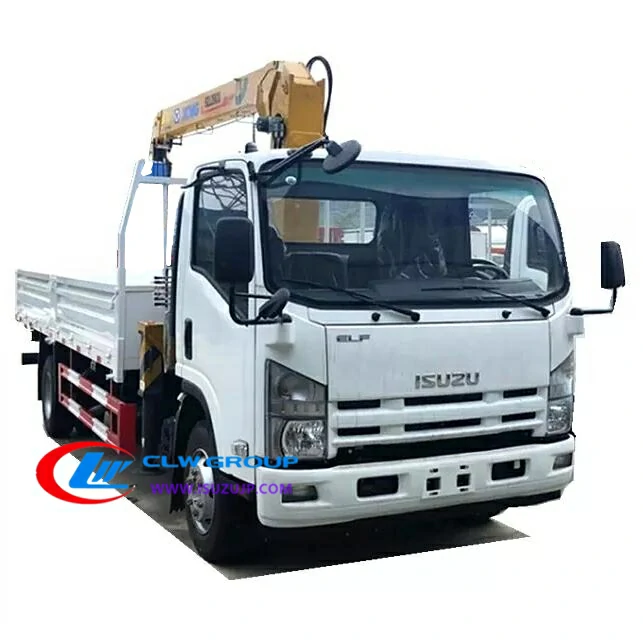

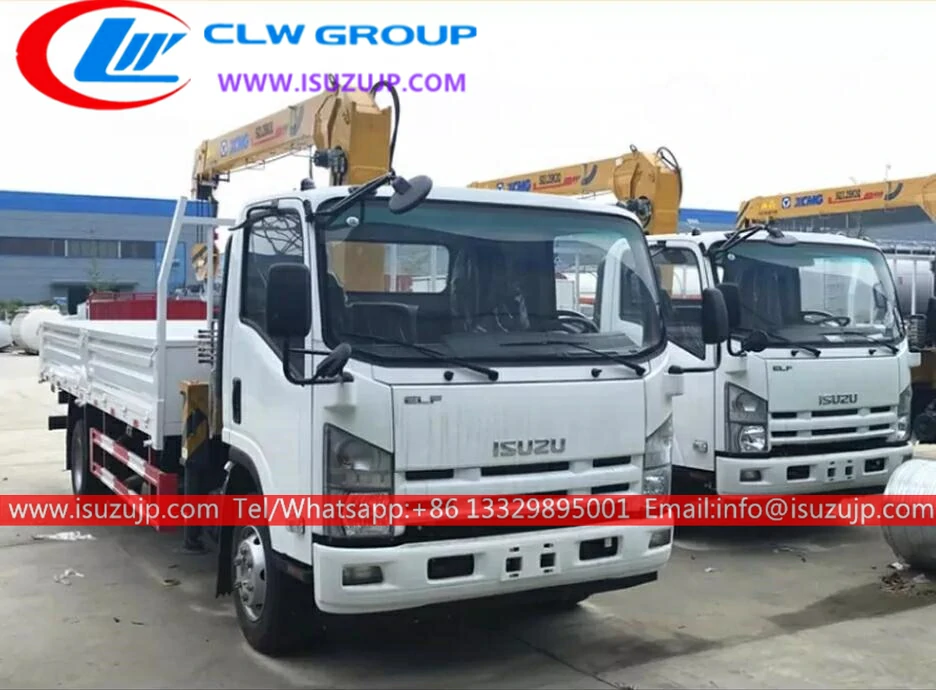

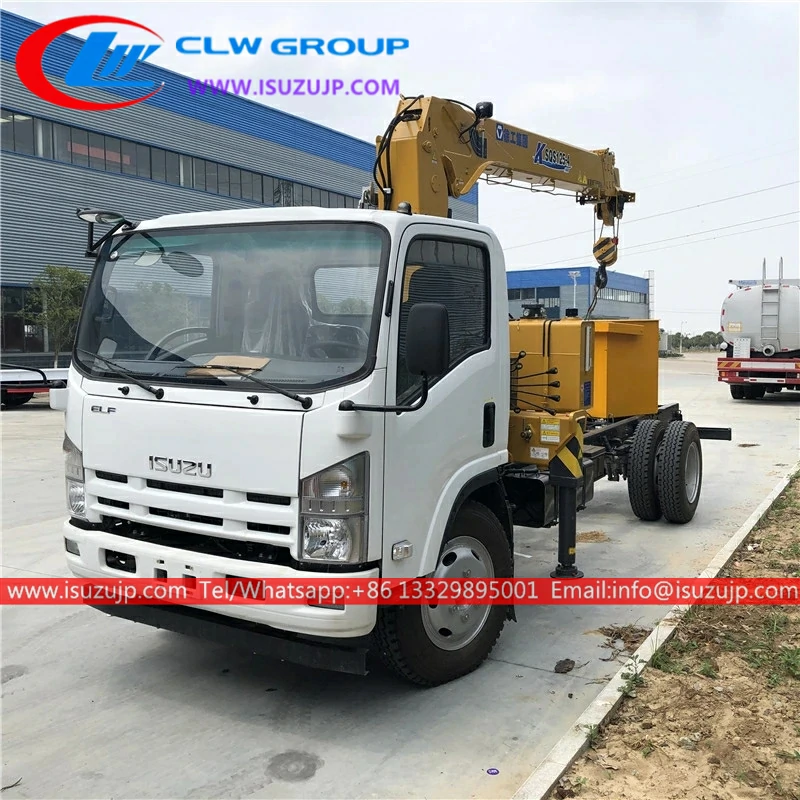

ISUZU ELF Double cabin 3000kg mini truck crane Description:
- ISUZU mini truck crane also called as construction crane trucks, Isuzu truck loder vehicle, truck mounted crane, Lorry with crane, Folding boom truck crane is a type of machine can carry heavy weights and transport them.
- crane mounted can load and unload the freight itself and don’t need to employ another crane.
- The loader crane can freely route in 360 degrees, raise and extend, make the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective.
Advantage:
- ISUZU KV600 chassis ensures perfect performance on driving
- ISUZU technology engine, super powerful, no overhaul within 500,000 km.
- High strength cargo body, nice shape and rational structure.
- Easy operation and easy maintenance.
- Premium cranes Palfinger, XCMG or Chengli (China top brand),etc.
Crane Features:
- Single cylinder synchronization guy cable technology makes work efficiency much higher than before.
- Advanced development means make sure that the design is very reliable.
- The more symmetrical center design of pentagon & hexagon boom make it has bigger anti-bending capacity.
- Compact hinge point design take up smaller space
- The work is more safety after fitted over-winds alarm equipment.
- The integer lifting winch improved the work efficiency greatly and prolonged work lift of hydraulic system.
- Float three-point bridge structure design can lower the accessional stress on the chassis when traveling.
- Self-designed & developed slewing machine with greater drive force can meet varied requirements of working situation.
- Anti-slewing impulse equipment that make vehicle running safely
- All Structural made of High Strength Steel
- Optional Crane type: Telescopic boom crane or knuckled boom crane
- Radio Remote Control Available as an Optional Fitment
- Top Seat Control are optional (where the Operator Seat is attached to the Main Boom)
Specification:
| ISUZU ELF Double cabin 3000kg mini truck crane | ||
| General | Vehicle Brand | CHENGLI |
| Chassis Brand | ISUZU | |
| Overall Dimension | 7000X2300X2900 mm | |
| GVW / Kerb Weight | 9,800kg / 4,200kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | Heating/cooling air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU | |
| Power | 120 HP (88 KW) | |
| Displacement | 2999 ml | |
| Emission Standard | Euro 4 or 5 | |
| Chassis | Drive Type | 4X2, (Left hand drive ONLY) |
| Transmission | Manual MSB 5 speed levers with 1 reverse | |
| Wheelbase/No. of axle | 3815 mm / 2 | |
| Tire Specification | 750-16 | |
| Tire Number | 6 tires and 1 spare tire | |
| Max Speed | 90 km/h | |
| Paint | Metallic paint | |
| Superstructure | Cargo Box Dimension | 3500X2000X500 mm |
| Crane Type | Telescpoic boom crane | |
| Max Lifting Capacity | 3000 kg | |
| Slewing Angle | 360° All rotation | |
| Crane Weight | 1360 kg | |
| Installation Space | 900 mm | |

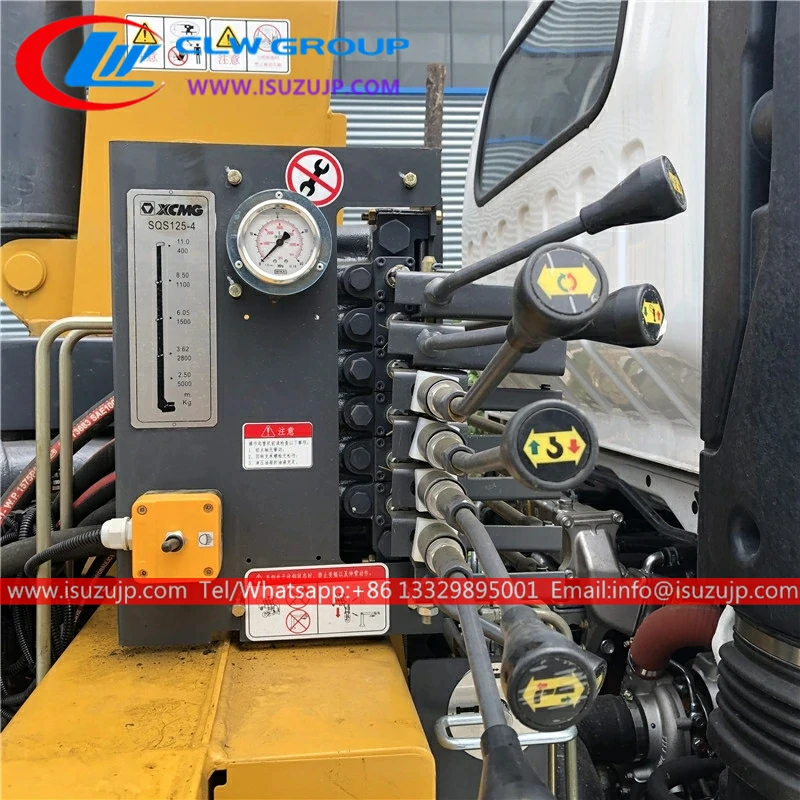

| Control panel | English or Your language | |
| All standard accessories: Basic tool kit, English manual | ||
| Optional | Knuckle boom crane. Hydraulic tipper box. Box thickness according to requirement. Box height could be nominated | |
crane Working parameter:
Boom Truck crane New craft:
Truck loader crane Optional configuration:
Hydraulic crane truck details:
Lorry truck mounted crane Optional model style：
Factory Advantage:
- 17 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
