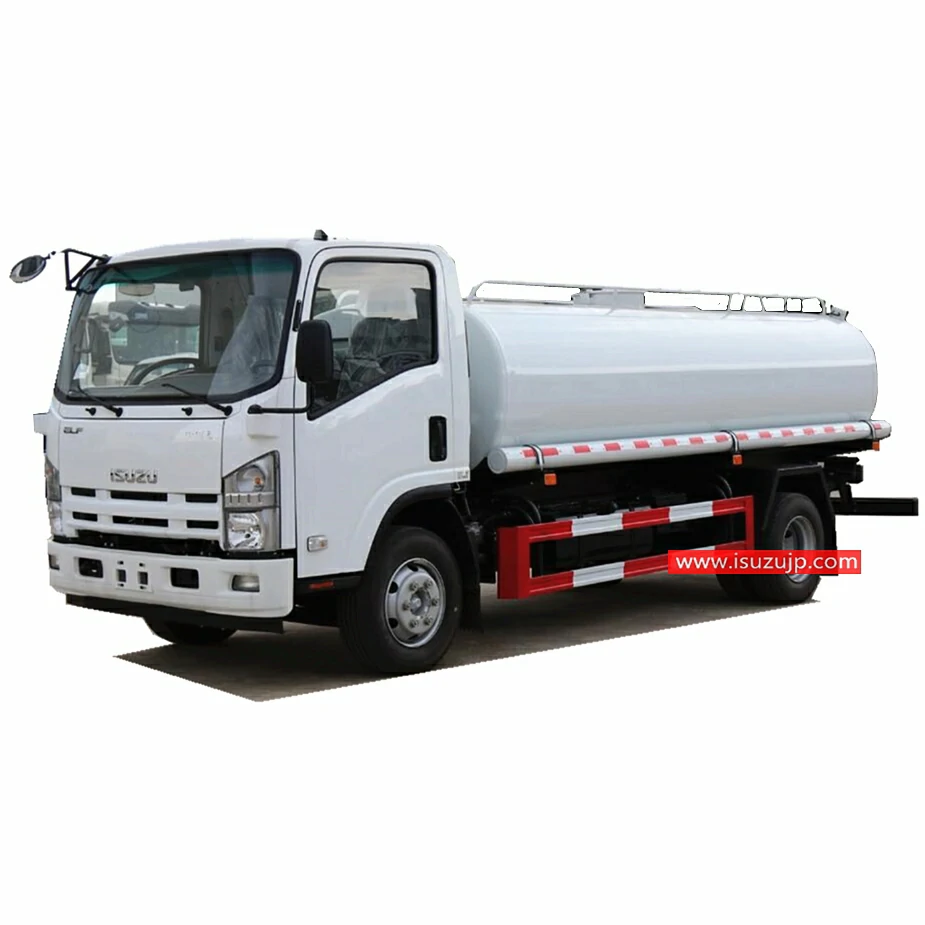

ISUZU NMR 8 ton fresh water tankers Application:
- Isuzu fresh water tankers (also called water tank truck, water spray truck, water transport truck, water hauling truck, truck tanker for a drinkable water tanker, water tanker for the truck) is used to transport and supply water, whatever industrial or agriculture water, widely used in construction engineering, farm irrigation, drought relief, etc.
- With non-toxic treatment inside tank or tank made of stainless steel, the water tank truck can be suitable for transporting drinking water, called a potable water tanker, drinking water tanker, stainless steel water tanker, agua potable, safe to the human body.
- Water tankers can also be equipped with special sprayers to achieve front flush, rear sprinkle, side spray to sprinkle and clean the roads, streets for environmental sanitation and protection, called a water sprinkler, water spray truck.
- With a rear working platform and high cannon, the Water lorry can also be used to water the plants, even high trees in virescence, called a watering truck.
- Water bowser can be also equipped with a pesticide spraying machine, to be used to spray pesticide in agriculture pest control field.
Advantage:
- ISUZU NMR chassis, perfect performance
- ISUZU engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Nice shape, rational structure
- Water pump super powerful, efficient pump in and out
- The strong, durable, perfect performance
- Prolonged service life
Specification:
| Vehicle parameters | |||
| Vehicle | ISUZU NMR 8 ton fresh water tankers | Vehicle Brand | Cheng Li |
| Overall dimensions | 7000x2200x2600mm | Curb weight | 4800 kg |
| Tank dimensions | 4000x2250x1200mm | Tank volume | 8000L |
| Chassis parameters | |||||
| Chassis model | QL1100A8KAY | Chassis brand | ISUZU | ||
| Overall dimensions | 6645x1880x2160mm | Wheelbase | 3815mm | ||
| Front/rear wheel track | 1504/1425mm | Front/rear suspension | 1015/1815mm | ||
| Approach/departure angle | 24/14° | Maximum speed | 105km/h | ||
| Chassis Manufacturer | Qing Ling Motors (Group) Co., Ltd. | ||||
| Cab | Configuration | 700P,single row cab,allowable 3passengers,car interior, air conditioner, USB radio interface, ABS | |||
| Color | White, other color is optional | ||||
| Engine | Model | 4HK1-TC51 | |||
| Emission | Euro 5 | ||||
| Type | 4 cylinders, in-line, 4-stroke,water-cooled,turbo inter-cooling,4-valve ,diesel engine | ||||
| Rated power | 190hp rated power speed 2600rpm | ||||
| Displacement | 5193ml | ||||
| Manufacturer | Isuzu Engine (Chongqing) Co., Ltd. | ||||
| Tire | Size | 235/75R17.5 | |||
| Number | 6+1 nos | ||||
| Front axle | 4 tons | ||||
| Rear axle | 7 tons | ||||
| Brake | Air brake | ||||
| No. Of axle | 2 | ||||
| Drive form | 4X2 | ||||
| Suspension | Multi-leaf springs | ||||
| Rated voltage | 24V, DC | ||||
| Transmissions | Isuzu MLD 6 speed transmission,6 speed forward 1 reverse. | ||||
| Steering device | Power-assisted steering | ||||
| Steering wheel | Left-hand drive | ||||
| Selective configuration | |||||
| If there is a slight change in the chassis parameters above, please take the actual product as the standard | |||||
| Water tank structure parameters | |||
| Tank dimensions | 4000×2250×1200mm | Tank volume | 8000L |
| Filling | Manhole | Tank thickness | 5mm |
| Hose | High quality, wearable, strengthened hose | Tank inside coating | Anti-corrosion coating inside the tank |
| Tank | Made of carbon steel, cylindrical shape, Inner baffles inside the tank for prevention of longitudinal surge during moving | ||
| Standard configuration | Chassis, subframe, carbon steel water tank, manhole, Honda gasoline water pump | ||
Working parameter:
| Front nozzle | 15 meters hedge, optional duckbill forward | Tank material | Carbon steel Q345/stainless steel 304 |
| Rear sprinkler | Fan-shaped sprinkler, more than 20 square | Thickness of tank | 4-6 mm |
| Car side nozzle | Sprinkler water, more than 6 meters | Tank shape | Square, square, oval |
| Green anti-aircraft gun | Water column 28 meters, adjustable large, medium and light rain | In-tank treatment | Standard anti-rust coating, can be used for anti-acid alkali polyurea epoxy treatment |
| Water pump brand | International well-known brand pump | Waterway | Self-priming water, fire water injection, tank topwater injection |
| Optional configuration | Cab electrical control, cab display cursor level gauge, sprayer, detachable snow shovel and snow roll device, front guardrail cleaning device | ||

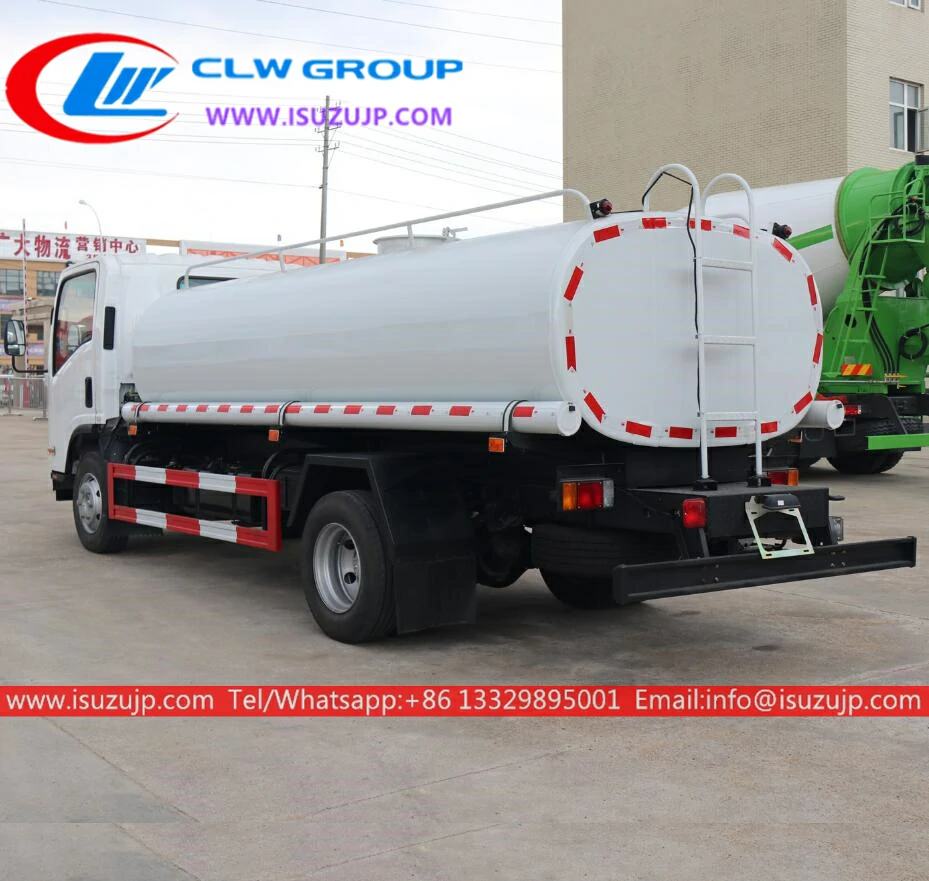

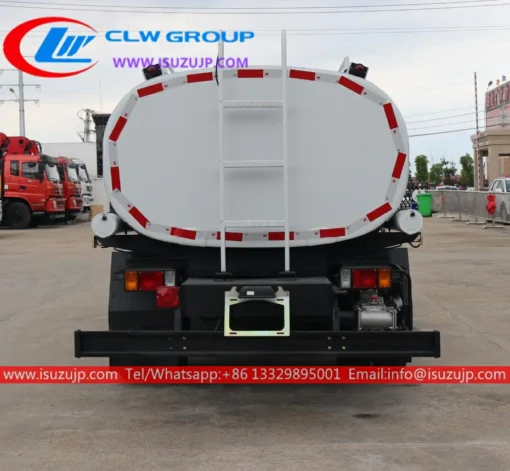

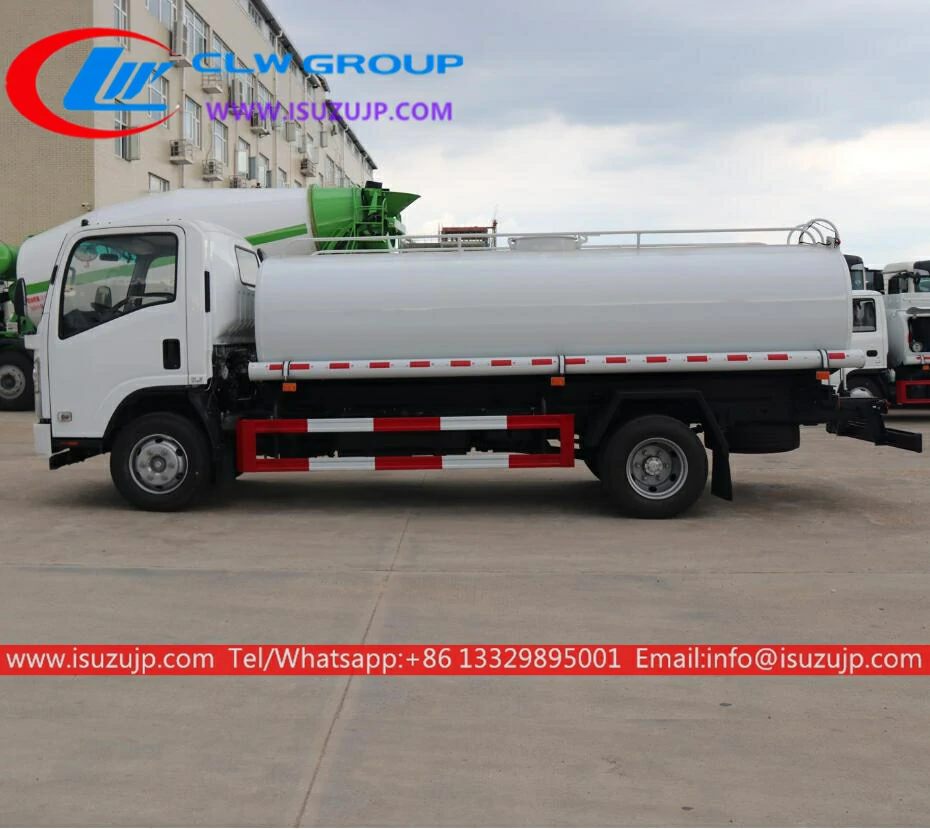

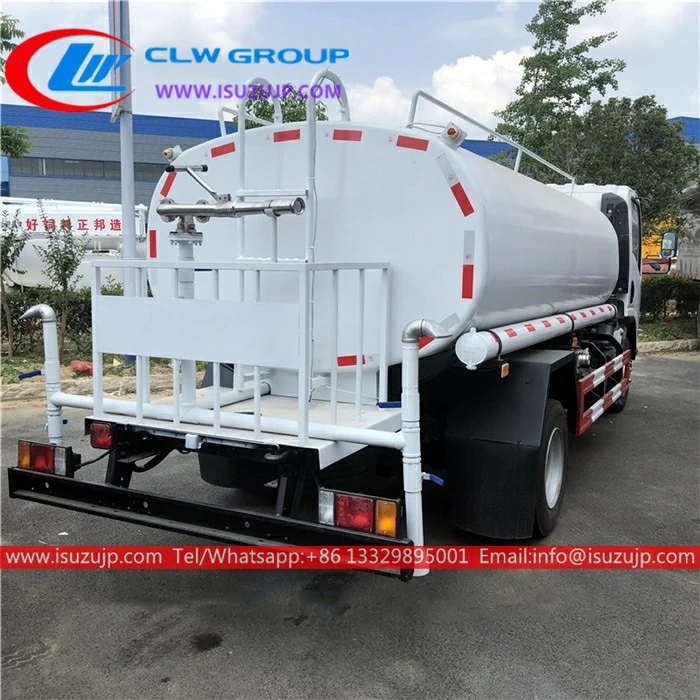

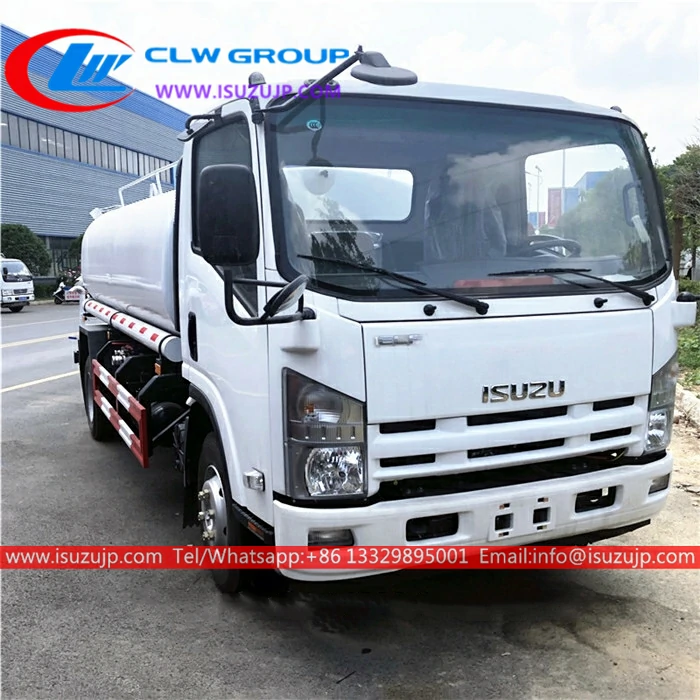

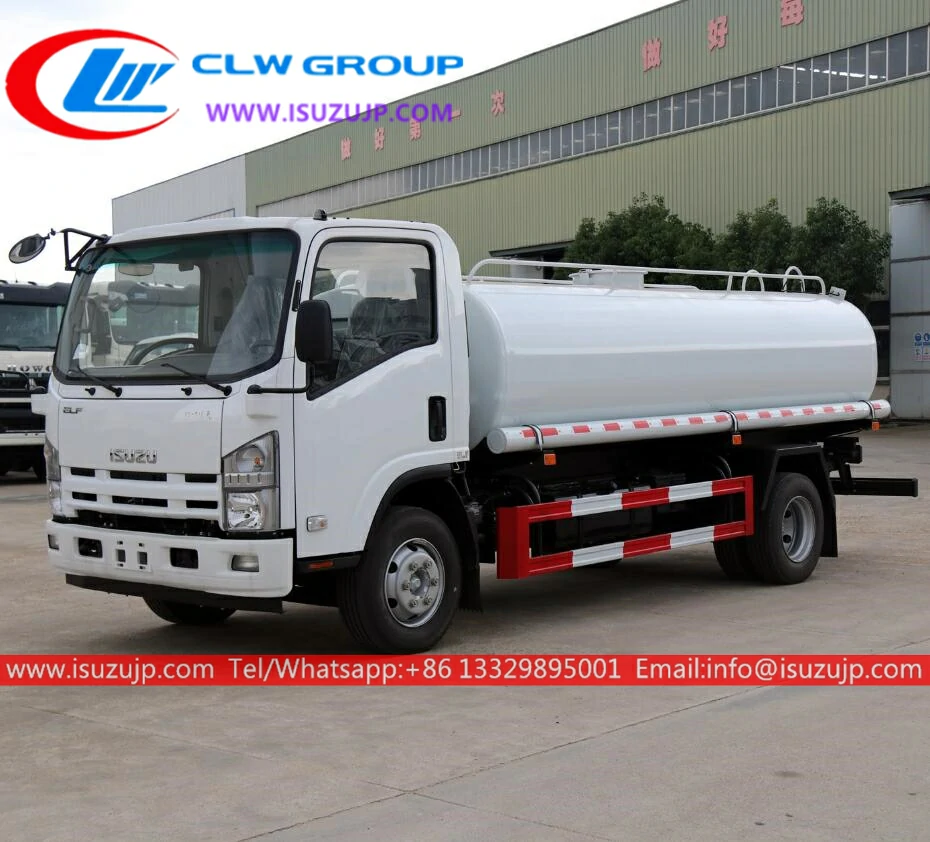

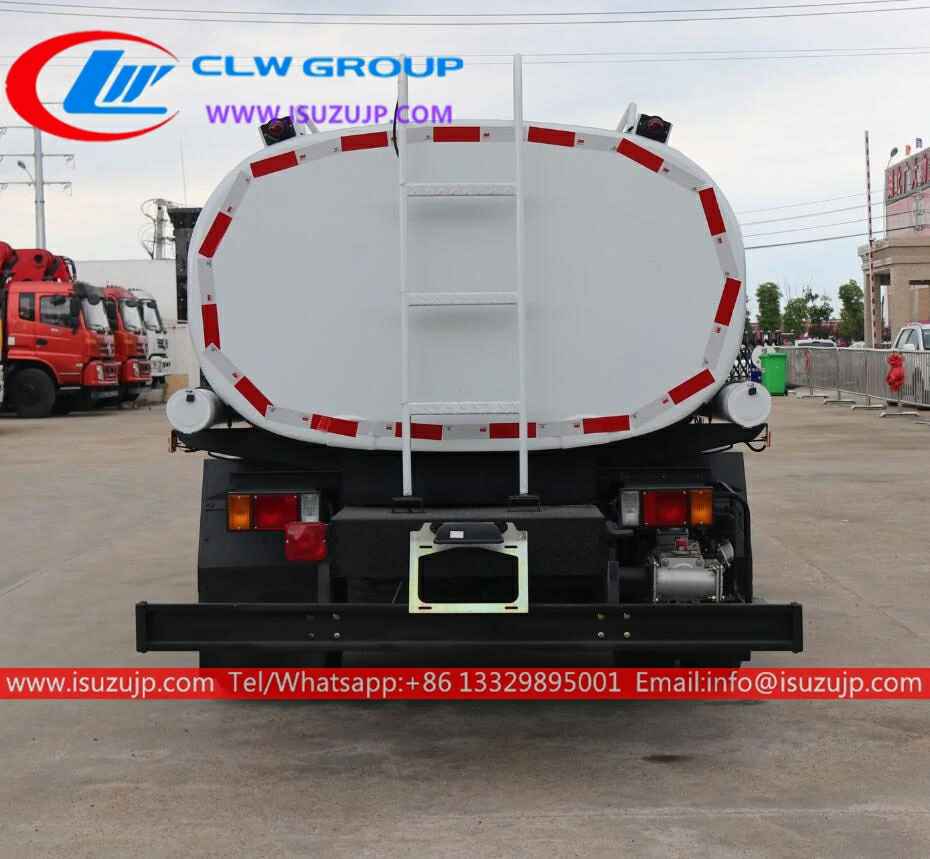

Isuzu water tanker truck structure picture:
water tank truck Optional configuration:
Water bowser technical training support:
Truck parts：
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
water sprinkler truck Factory Advantage:
- 16 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Export Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
water carrier truck shipping：
- Maximize your shipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
Bulk order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
