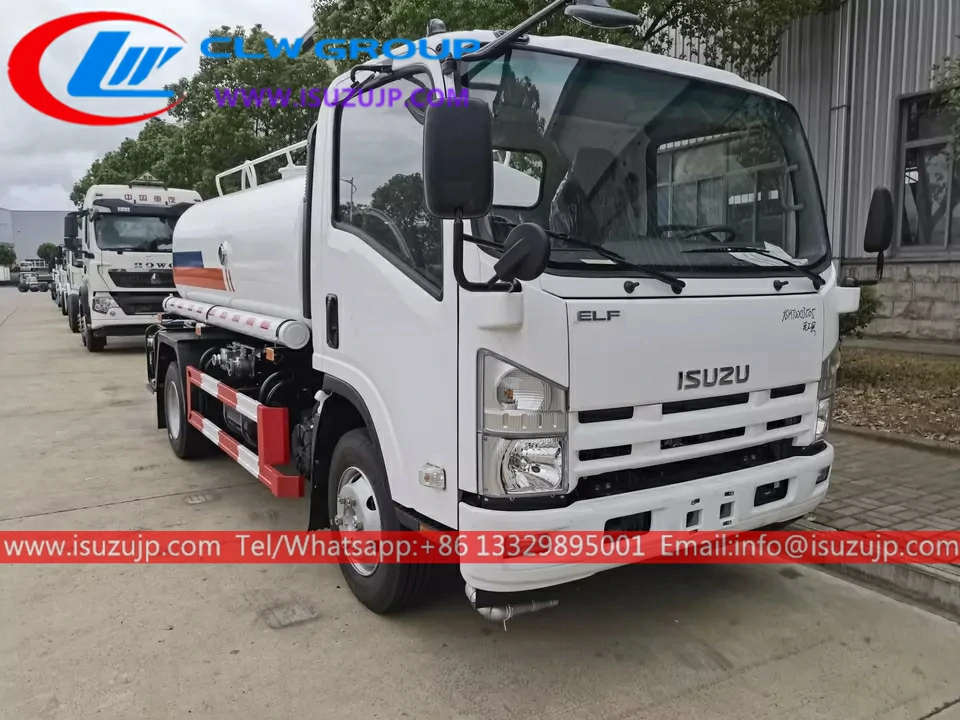

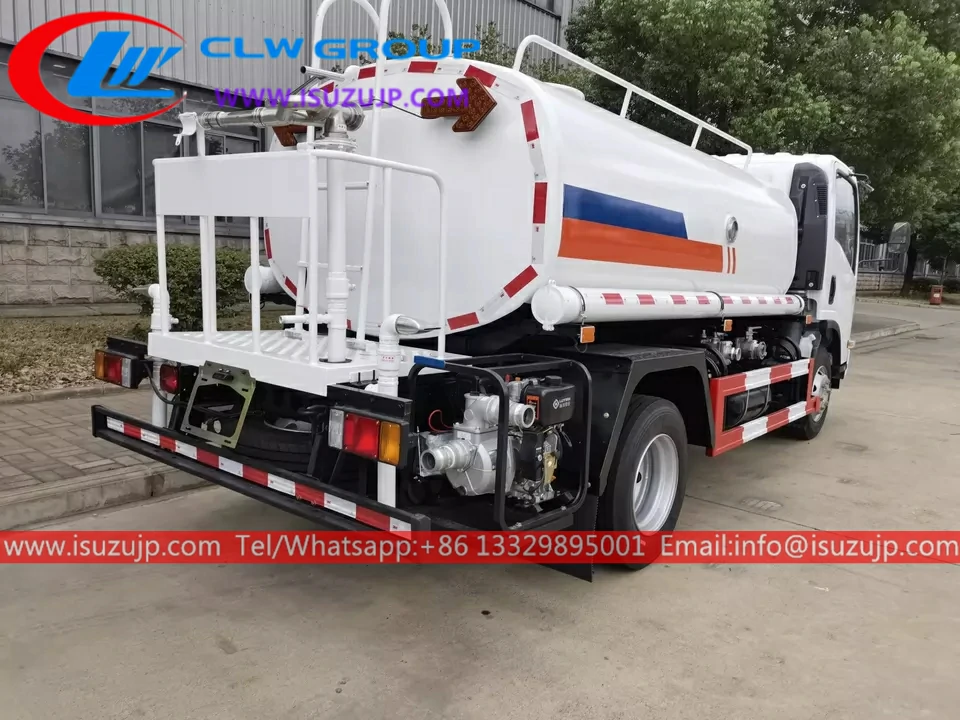

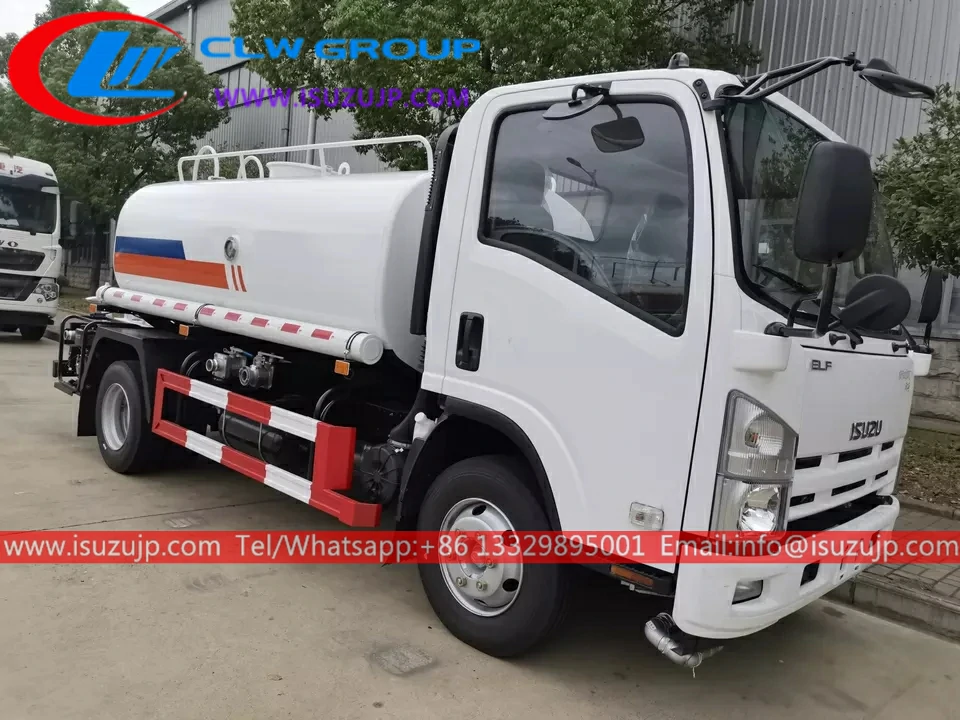

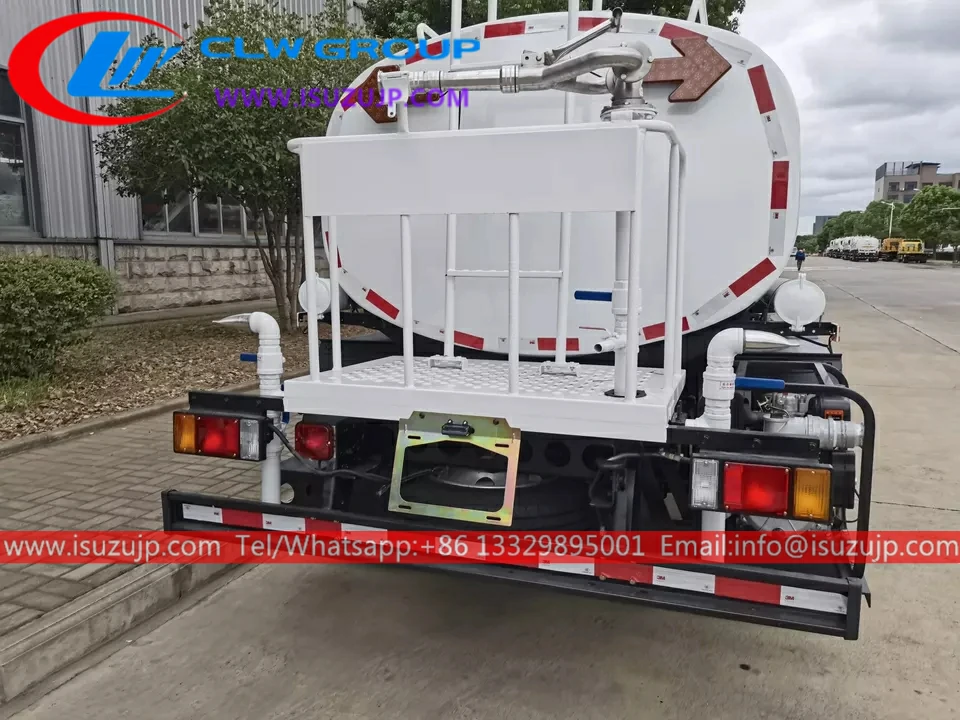

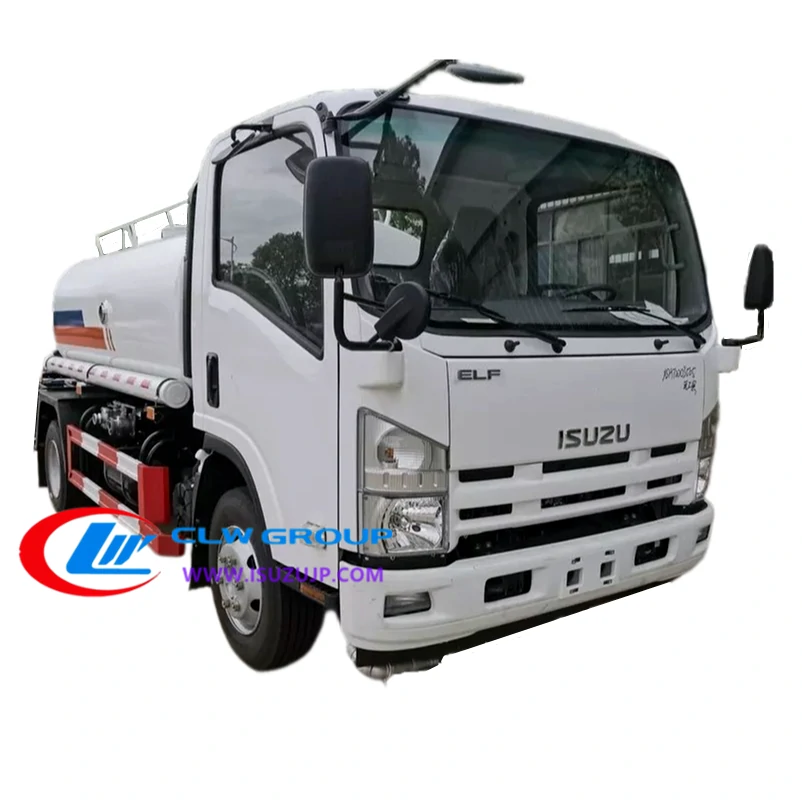

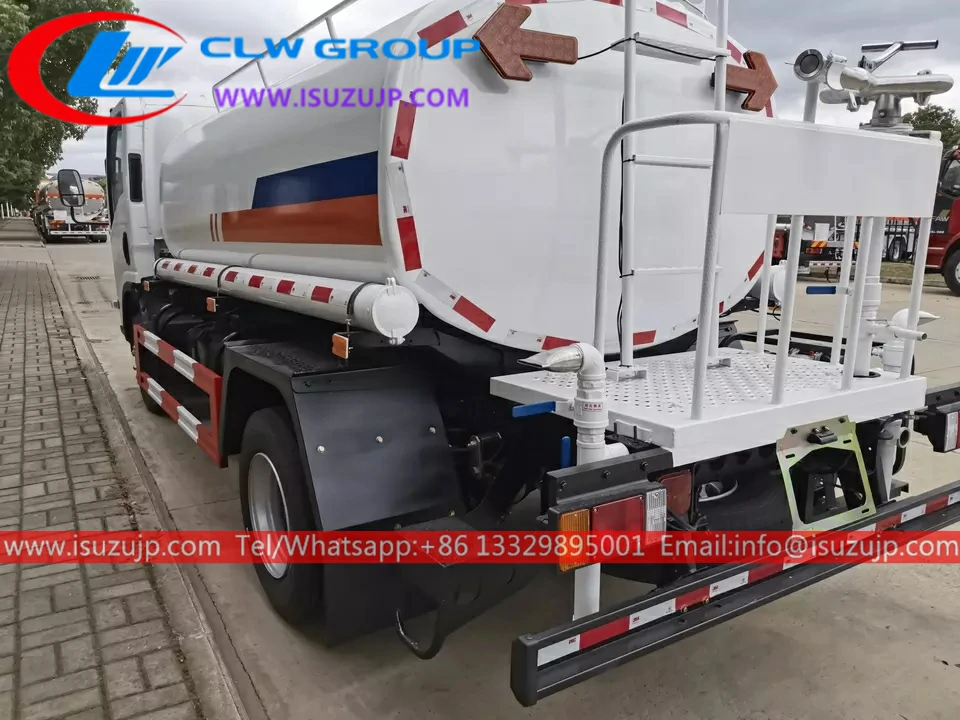

ISUZU ELF 6000liters emergency water supply truck Application:
- Isuzu emergency water supply truck (also called water tank truck, water spray truck, water transport truck, water hauling truck, truck tanker for a drinkable water tanker, water tanker for the truck) is used to transport and supply water, whatever industrial or agriculture water, widely used in construction engineering, farm irrigation, drought relief, etc.
- With non-toxic treatment inside a tank or tank made of stainless steel, the water tank truck can be suitable for transporting drinking water, called a potable water tanker, drinking water tanker, stainless steel water tanker, agua potable, safe to the human body.
- Water tankers can also be equipped with special sprayers to achieve front flush, rear sprinkle, and side spray to sprinkle and clean the roads, and streets for environmental sanitation and protection, called a water sprinkler, or water spray truck.
- With a rear working platform and high cannon, the Water lorry can also be used to water plants, even high trees in virescence, called a watering truck.
- Water bowser can be also equipped with a pesticide spraying machine, to be used to spray pesticides in the agriculture pest control fields.
Advantage:
- ISUZU ELF 700P chassis, perfect performance
- ISUZU engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Nice shape, rational structure
- Water pump super powerful, efficient pump in and out
- The strong, durable, perfect performance
- Prolonged service life
Specification:
| Vehicle parameters | |||
| Vehicle | ISUZU ELF 6000liters emergency water supply truck | Vehicle Brand | Cheng Li |
| Overall dimensions | 6500x2200x2500mm | Curb weight | 4000 kg |
| Tank dimensions | 3700x1700x1100mm | Tank volume | 6000L |
| Chassis parameters | |||||
| Chassis model | QL1100A8KAY | Chassis brand | ISUZU | ||
| Overall dimensions | 6500x220x2500mm | Wheelbase | 3815mm | ||
| Front/rear wheel track | 1504/1425mm | Front/rear suspension | 1015/1815mm | ||
| Approach/departure angle | 24/14° | Maximum speed | 105km/h | ||
| Chassis Manufacturer | Qing Ling Motors (Group) Co., Ltd. | ||||
| Cab | Configuration | 700P,single row cab,allowable 3passengers,car interior, air conditioner, USB radio interface, ABS | |||
| Color | White and other color is optional | ||||
| Engine | Model | 4HK1-TC51 | |||
| Emission | Euro 5 | ||||
| Type | 4 cylinders, in-line, 4-stroke,water-cooled,turbo inter-cooling,4-valve ,diesel engine | ||||
| Rated power | 190hp rated power speed 2600rpm | ||||
| Displacement | 5193ml | ||||
| Manufacturer | Isuzu Engine (Chongqing) Co., Ltd. | ||||
| Tire | Size | 235/75R17.5 | |||
| Number | 6+1 nos | ||||
| Front axle | 4 tons | ||||
| Rear axle | 7 tons | ||||
| Brake | Air brake | ||||
| No. Of axle | 2 | ||||
| Drive form | 4X2 | ||||
| Suspension | Multi-leaf springs | ||||
| Rated voltage | 24V, DC | ||||
| Transmissions | Isuzu MLD 6-speed transmission, 1 reverse. | ||||
| Steering device | Power-assisted steering | ||||
| Steering wheel | Left-hand drive | ||||
| Selective configuration | |||||
| If there is a slight change in the chassis parameters above, please take the actual product as the standard | |||||
| Water tank structure parameters | |||
| Tank dimensions | 3700×1700×1100mm | Tank volume | 6000L |
| Filling | Manhole | Tank thickness | 4mm |
| Hose | High-quality, wearable, strengthened hose | Tank inside coating | Anti-corrosion coating inside the tank |
| Tank | Made of 304-2B Stainless steel, cylindrical shape, Inner baffles inside the tank for prevention of longitudinal surge during moving | ||
| Standard configuration | Chassis, subframe, carbon steel water tank, manhole, Honda gasoline water pump | ||
Working parameter:
| Front nozzle | 15 meters hedge, optional duckbill forward | Tank material | Carbon steel Q345/stainless steel 304 |
| Rear sprinkler | Fan-shaped sprinkler, more than 20 square | Thickness of tank | 4-6 mm |
| Car side nozzle | Sprinkler water, more than 6 meters | Tank shape | Square, square, oval |
| Green anti-aircraft gun | Water column 28 meters, adjustable large, medium and light rain | In-tank treatment | Standard anti-rust coating, can be used for anti-acid alkali polyurea epoxy treatment |
| Water pump brand | International well-known brand pump | Waterway | Self-priming water, fire water injection, tank topwater injection |
| Optional configuration | Cab electrical control, cab display cursor level gauge, sprayer, detachable snow shovel and snow roll device, front guardrail cleaning device | ||
Isuzu water tanker truck structure picture:
water tank truck Optional configuration:
Water bowser technical training support:
Truck parts：
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
water sprinkler truck Factory Advantage:
- 16 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Export Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
water carrier truck shipping：
- Maximize your shipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
Bulk order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
