Application:

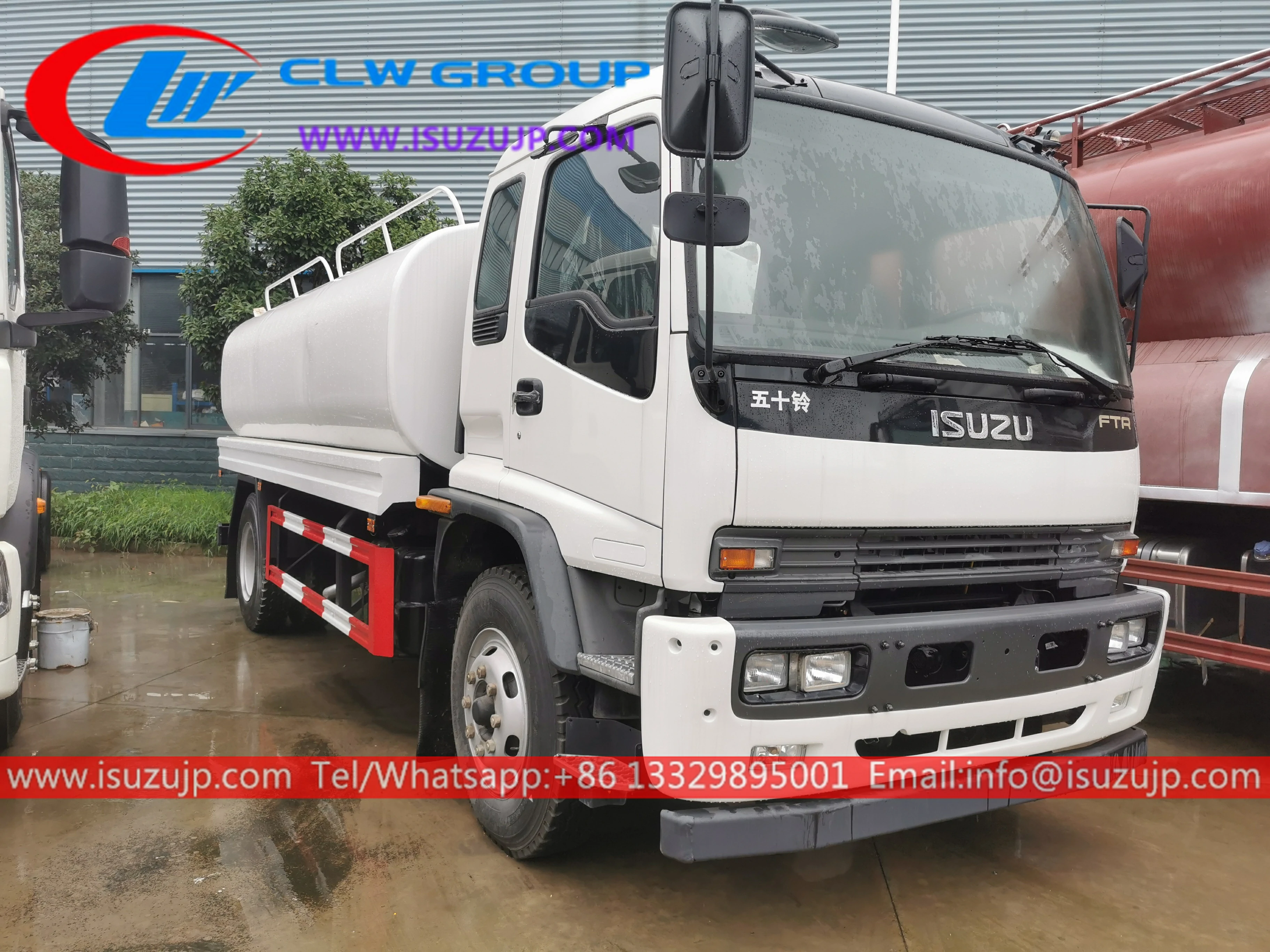

- ISUZU FTR 3000 gallons stainless steel water hauler for drinking water also called Potable Water Service Truck, Potable water bowser, Stainless steel drinking water truck are used to deliver potable drinking water .
- Our tanks transport water that is dispensed through a pumping system either through a hose reel for delivery or through a series of spray heads and nozzles to spray the water in different directions.
- The water tanker volume can be from 2,000liters to 35,000liters
Advantage:
- 4X2 ISUZU FTR chassis, perfect performance
- 100% custom-made
- ISUZU engine, super powerful; reliable performance, no overhaul within 500,000 km.
- stainless steel Water pump super powerful, efficient pump in and out

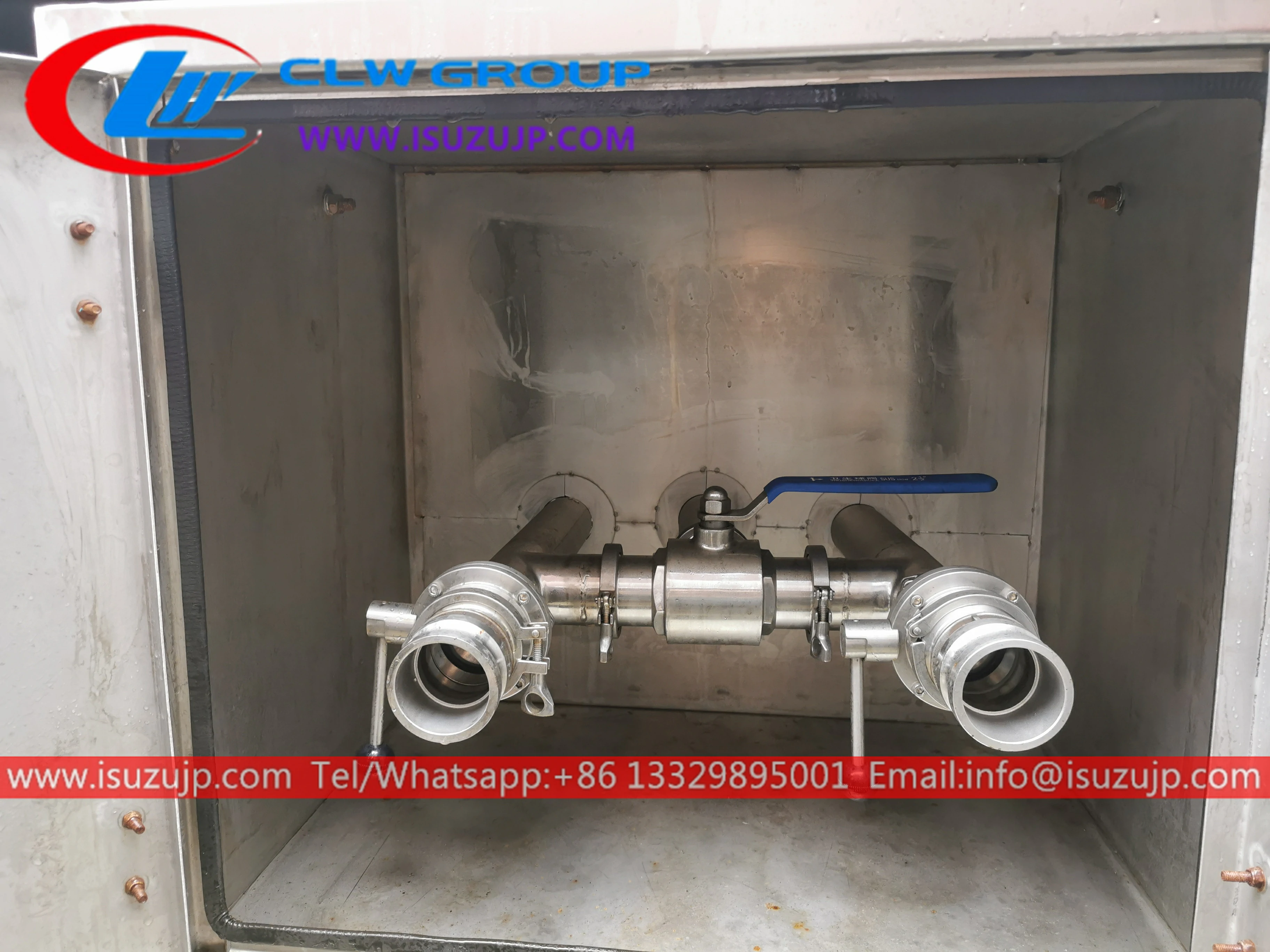

- Stainless steel pipes, longer service life
- Easy operation & Easy maintenance
- 2,000L to 35,000L available
- Short delivery time 7~30 days
- 15 years spare parts & Technical support
Specification:
| ITEM | UNIT | PARAMETER | ||

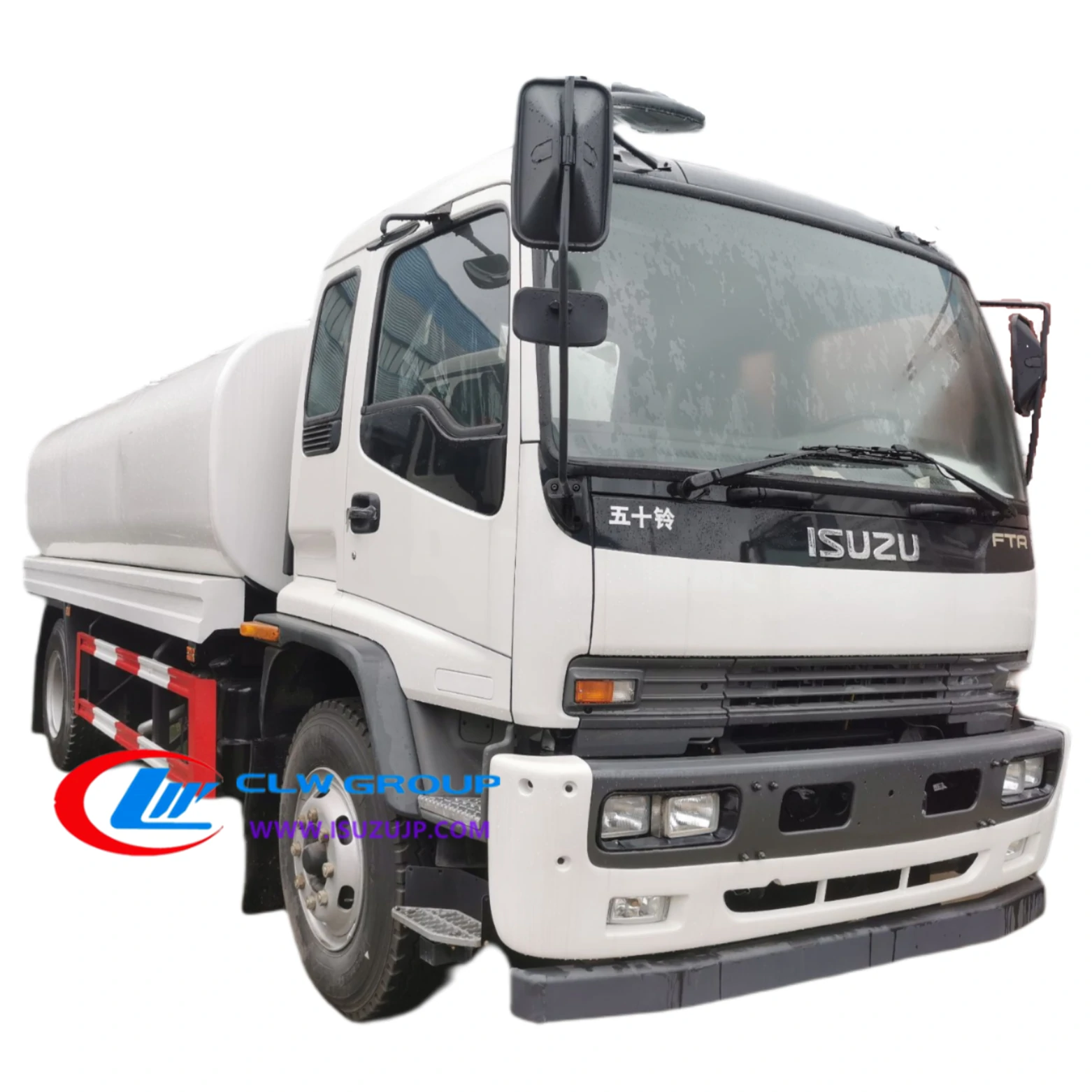

| Vehicle | Isuzu FTR 3000 gallons stainless steel water hauler for sale | |||
| Overall dimensions | mm | 8500×2500×3250 | ||
| Tank volume | m3 | 3,000 gallons | ||
| GVW | kg
| 18000 | ||
| Curb weight | 8000 | |||
| Payload | 10000 | |||
| Wheel base | mm
| 4500 | ||
| Suspension | 1130/1890 | |||
| F/R track base | 1745/1630 | |||
| Approach/departure angle | ° | 21/13 | ||
| Max speed | km/h | 95 | ||
| Axle Load | kg | 4350/7645 | ||
| Tire specification | 235/75R17.5/ 7 Units | Number of axles | 2 | |
| Engine parameters
| Manufacturer | Qingling Isuzu (Chongqing) Engine Co., LTD | ||
| Model | 4HK1-TC50 | |||
| Performance | 5193ml/151Kw, 205Hp | |||
| type | Diesel, 4 cylinder , direct-line, turbocharge and water cooling | |||
| Rated speed | 2600 rpm | |||
| Maximum torque/speed | 510N.m at 1600rpm | |||
| Steering | Power | Transmission | MLD 6 | |
| Standard configuration | Tank material: 304-2B Food grade stainless steel plate thickness 4mm, welded by argon arc welding, with 304 stainless steel pump, the pipeline valve is made of food grade stainless steel, the inside of the tank is passivated, and the outside of the tank is painted. | |||
Standard configuration:
Optional configuration:
Technical training support:
Truck Tools：
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Factory Advantage:
- 16 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Export Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
Truck shipping：
- Maximize your shipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
Bulk order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
