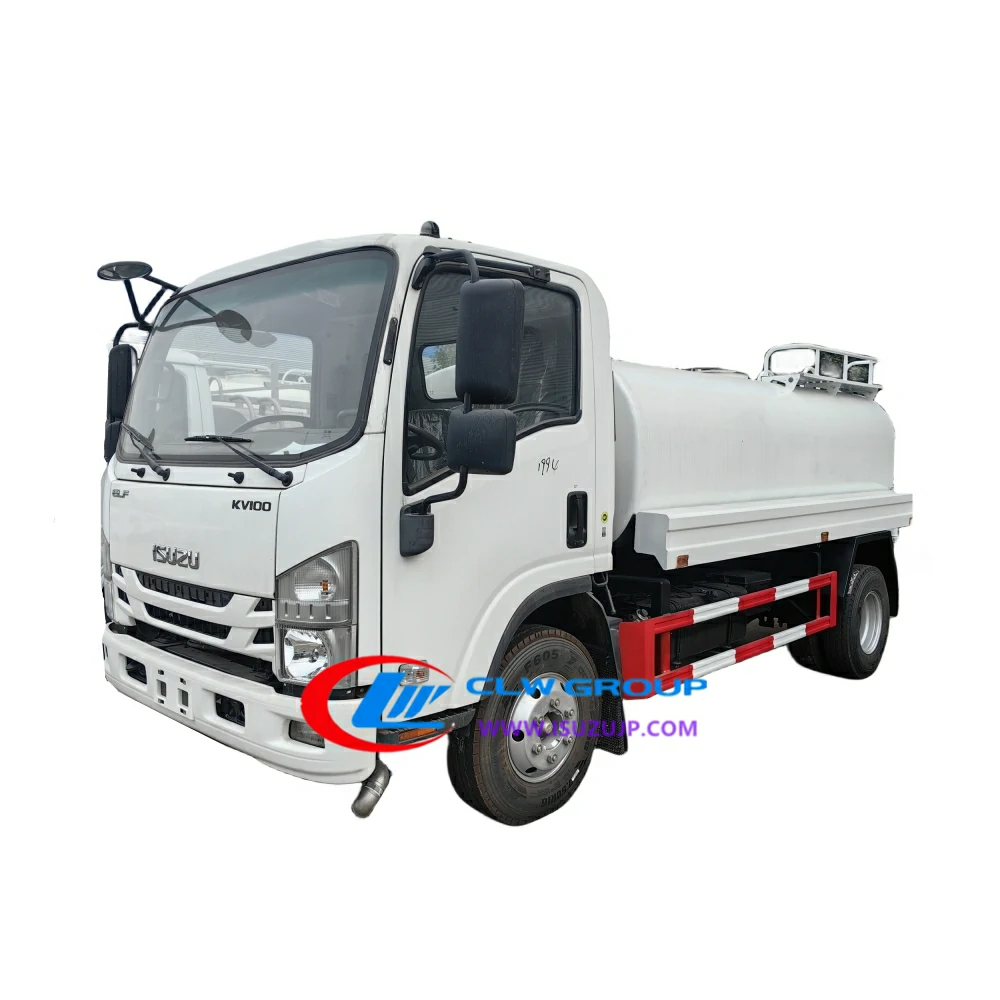

ISUZU NMR 5000liters potable water hauler truck Application:
- ISUZU NMR 5000liters potable water hauler truck (also called water tank truck, water spray truck, water transport truck, water hauling truck, truck tanker for a drinkable water tanker, water tanker for the truck) is used to transport and supply water, whatever industrial or agriculture water, widely used in construction engineering, farm irrigation, drought relief, etc.
- With non-toxic treatment inside tank or tank made of stainless steel, the water tank truck can be suitable for transporting drinking water, called a potable water tanker, drinking water tanker, stainless steel water tanker, agua potable, safe to the human body.
- Water tankers can also be equipped with special sprayers to achieve front flush, rear sprinkle, and side spray to sprinkle and clean the roads, and streets for environmental sanitation and protection, called a water sprinkler, or water spray truck.
- With a rear working platform and high cannon, the Water lorry can also be used to water the plants, even high trees in virescence, called a watering truck.
- Water bowser can be also equipped with a pesticide spraying machine, to be used to spray pesticides in agriculture pest control fields.
Advantage:
- ISUZU ELF chassis, perfect performance
- ISUZU engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Nice shape, rational structure
- Water pump super powerful, efficient pump in and out
- The strong, durable, perfect performance
- Prolonged service life
Specification:
| Manufacturer | Chengli Trucks | |
| Item | ISUZU NMR 5000liters potable water hauler truck for sale in Ghana | |
| Brand | ISUZU | |
| Model | CLW5040GSSD3 | |
| Production Time | 25 days | |
| Truck Chassis | ||
| Specification | Overall dimensions | 5990*2000*2450 mm |
| Gross weight | 7,300 kg | |
| Kerb weight | 3,200 kg | |
| Wheelbase | 3,360 mm | |
| Driving type | 4*2 | |
| Chassis model | QINGLING NQR Light-duty | |
| Tire size | 7.00-16 | |
| Passengers in cab | 3 | |
| Engine | Engine model | 4KH1CN6LB |
| Type of fuel | Diesel | |
| Power | 120HP | |
| Gearbox | MSB 5-shift gearbox | |
| Upper Structure | ||
| Water Tanker performance | Tank Capacity | 5,000L |
| Tank Material | 4mm food grade stainless steel 304-2B material | |
| Water Pump | Top Chinese brand | |
| 65QZB-40/50 model stainless steel water pump, flow rate 40m³/h | ||
| Suction Time | 180 s | |
| Tank Shape | Ellipse as standard | |
| Pipeline | 3m food grade hose DN65 mm | |
| Function | Standard Pump In and Pump Out | |
| Discharge Valve | Rear platform with water canon and water spraying nozzles | |
| Control Panel | English | |
| Discharging system | Gravity discharge or pump out from tank body. | |
| Painting | Two primers, and one final paint coating | |
| Color & LOGO | According to wish | |
| Factory standard | “U” shape Sub Frame, Hydraulic system, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards, and rubber flaps… | |
| Documents | English operation manual, Spare parts list, and all necessary export docs. | |
| Optional equipment | 1, Stainless steel tank, Aluminum alloy tank 2, Wider platform and Fire Cannon 3, Electricity controlled separately sprinkler 4, Spreading salt water Snow-melting agent | |
Working parameter:
| Front nozzle | 15 meters hedge, optional duckbill forward | Tank material | Carbon steel Q345/stainless steel 304 |
| Rear sprinkler | Fan-shaped sprinkler, more than 20 square | Thickness of tank | 4-6 mm |
| Car side nozzle | Sprinkler water, more than 6 meters | Tank shape | Square, square, oval |
| Green anti-aircraft gun | Water column 28 meters, adjustable large, medium and light rain | In-tank treatment | Standard anti-rust coating, can be used for anti-acid alkali polyurea epoxy treatment |
| Water pump brand | International well-known brand pump | Water way | Self-priming water, fire water injection, tank top water injection |
| Optional configuration | Cab electrical control, cab display cursor level gauge, sprayer, detachable snow shovel and snow roll device, front guardrail cleaning device | ||

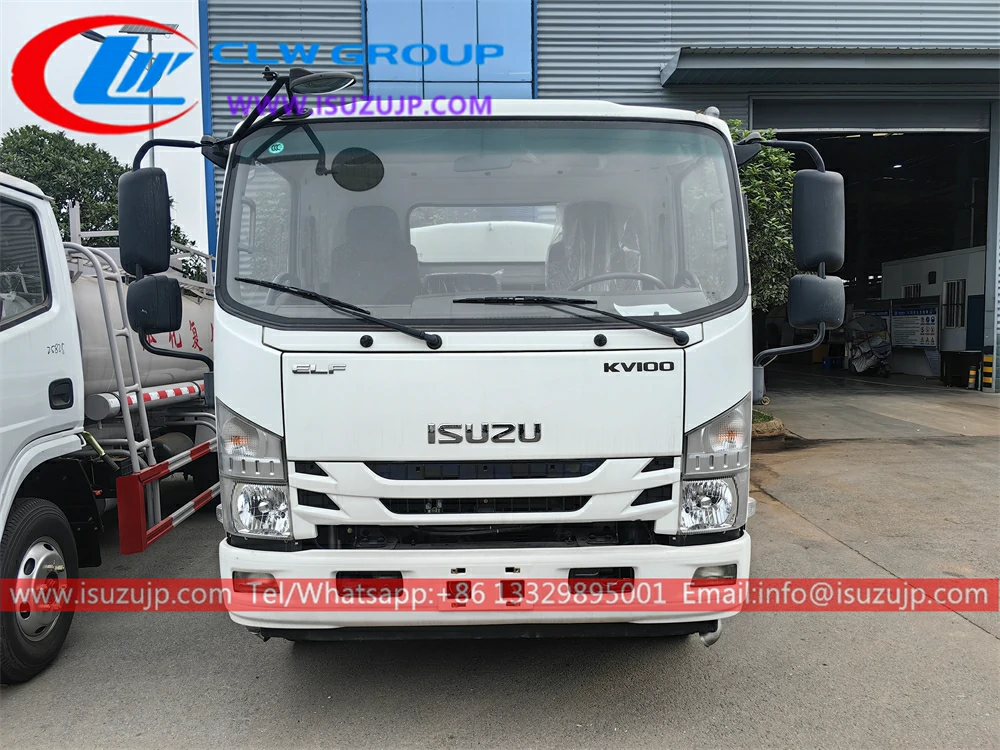

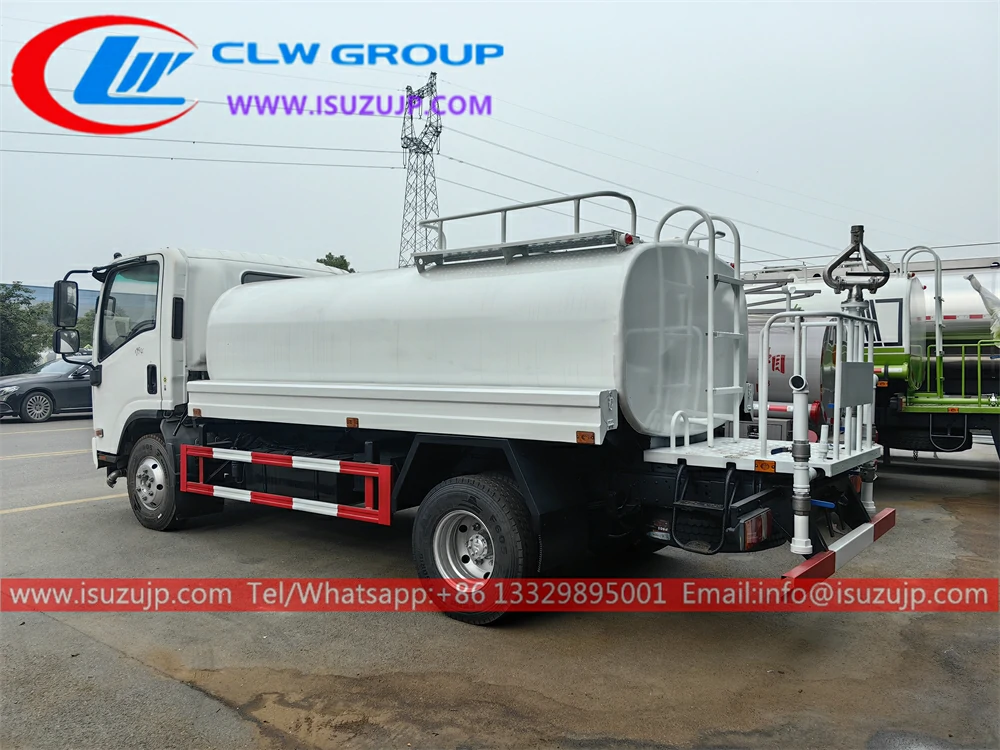

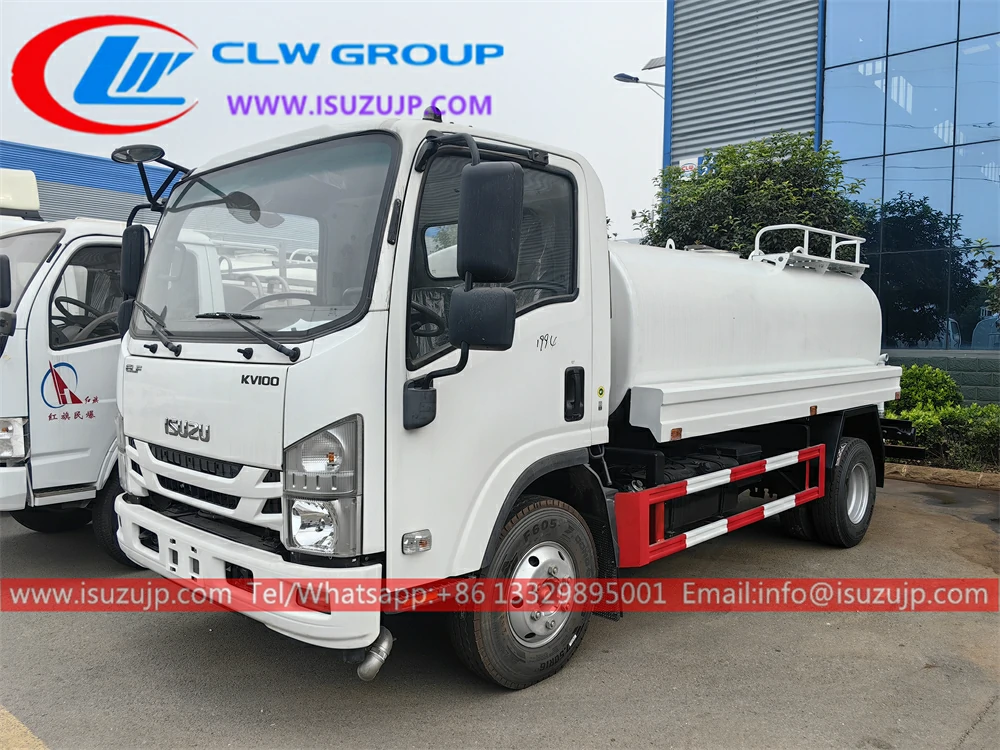

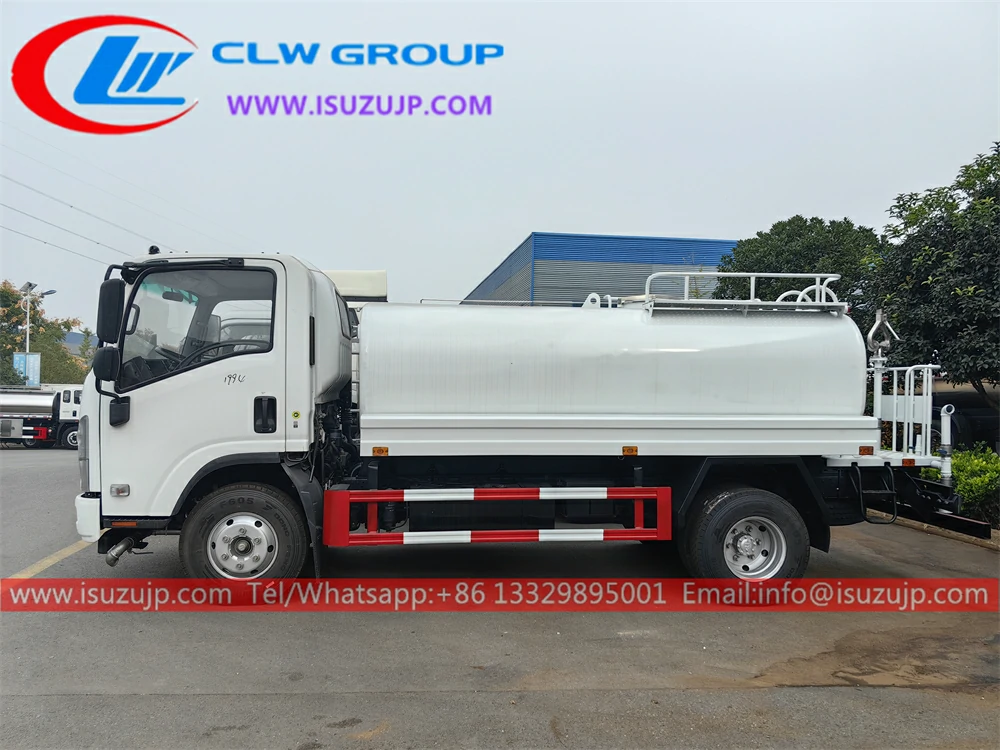

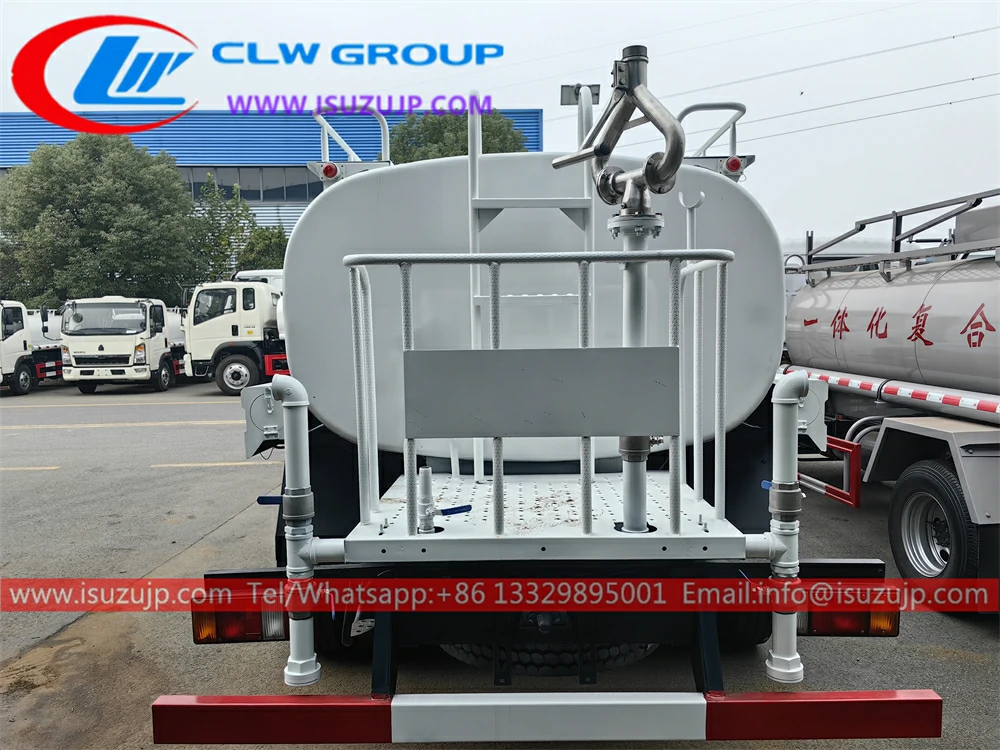

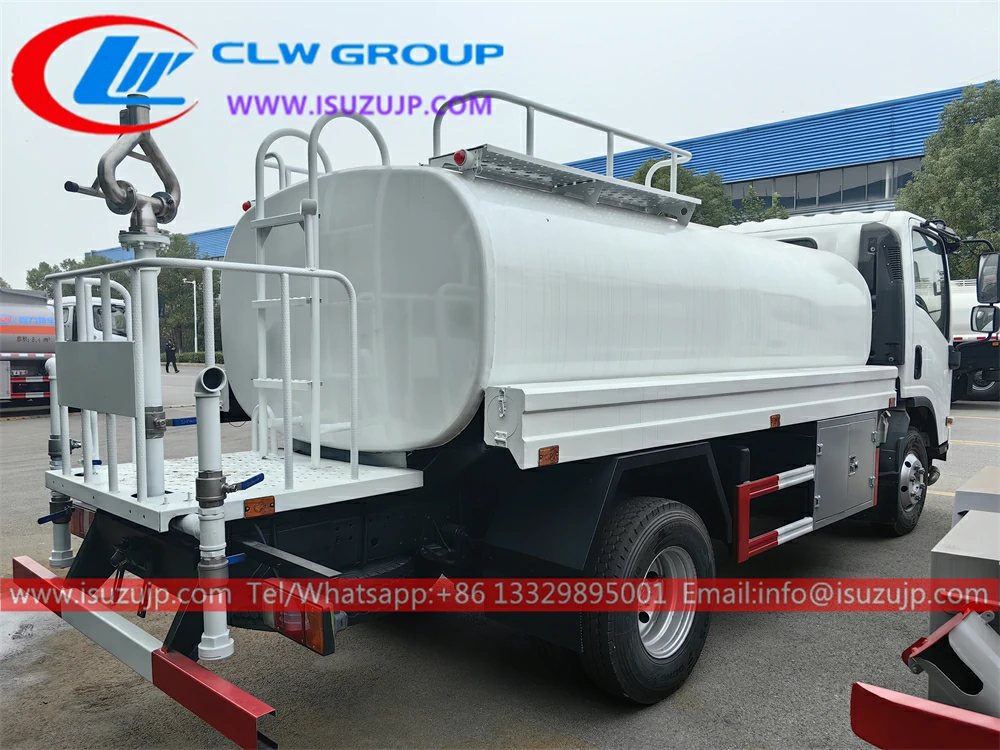

Isuzu water tanker truck structure picture:
Optional configuration:
technical training support:
parts：
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
water sprinkler truck Factory Advantage:
- 16 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
water supply truck Export Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
shipping：
- Maximize your shipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
