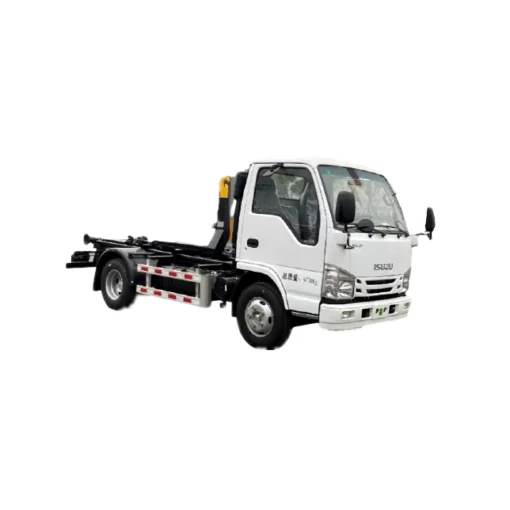

ISUZU NJR small 3m3 hook lift dump truck Description:
- Isuzu hook lift dump truck is designed to collect and transport municipal solid waste, widely used in residence community, hospital, municipal environmental section, garbage collection and transportation station, etc.
- loading capacity can range from 1ton to 22tons, etc.
Advantage:
- ISUZU ELF 100P chassis, perfect performance
- ISUZU engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Rational design of hook boom and locking structure make the action of hook lift much more reliable;
- Safety devices: loading balance valve, double hydraulic lock valve, safety controlling valve, and locking structure of container by hydraulic;
- A rear support device is available.
- Hook loader garbage container body capacity from 1 to 22 Cubic meters.
- Rational design of hook and locking structure, and truck more reliable.
- Optional Electrical Control in the cabin, easy operation, and easy maintenance.
- Various types of refuse container lifters are available.
Specification:
| ISUZU NJR small 3m3 hook lift dump truck | ||
| General | Vehicle Brand | CHENGLI |
| Chassis Brand | ISUZU ELF 100P | |
| Overall Dimension | 4810X1900X2200 mm | |
| GVW / Kerb Weight | 6,380kg / 2,600kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | Heating/cooling air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU | |
| Power | 98 HP (72 KW) | |
| Displacement | 2999 ml | |
| Emission Standard | Euro 4 or 5 | |
| Chassis | Drive Type | 4X2, (left hand drive) |
| Transmission | 6 speed levers with 1 reverse | |
| Wheelbase/No. of axle | 2765 mm / 2 | |
| Tire Specification | 650-16 | |
| Tire Number | 6 tires and 1 spare tire | |
| Max Speed | 90 km/h | |
| Paint | Metallic paint | |
| Superstructure | Lift Capacity | 2 Tons |
| Max dump angle | 51° | |
| Garbage bin volume | 3 cubic meters | |
| Hydraulic system pressure | 16 MPa | |
| Garbage bin material | Carbon steel | |
| Control | Hydraulic Manual | |
| Discharge method | Rear dumping | |
| All standard accessories: Warning lights, music alarm, basic tool kit, English manual | ||
| Optional | The backup alarm can be equipped. Other vacuum pumps can be equipped. Operation language can be English or Appointed language. | |
Working parameter:
| Box time | Less than 15 seconds | Roller material | Cast iron or forged steel |
| Unboxing time | Less than 15 seconds | Control method | Electronic control + manual |
| Dump time | Less than 10 seconds | Operating position | Cab + car side |
New craft:
Roll on roll off garbage truck Optional configuration:

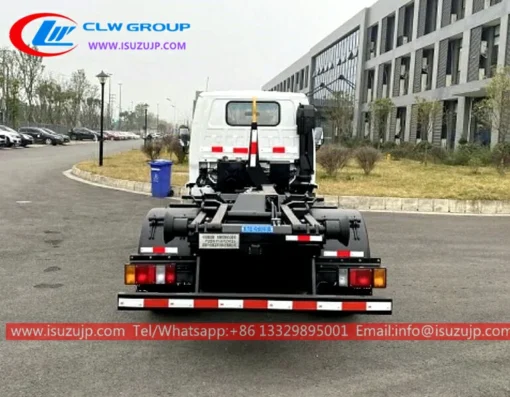

detachable garbage truck detailed images:
