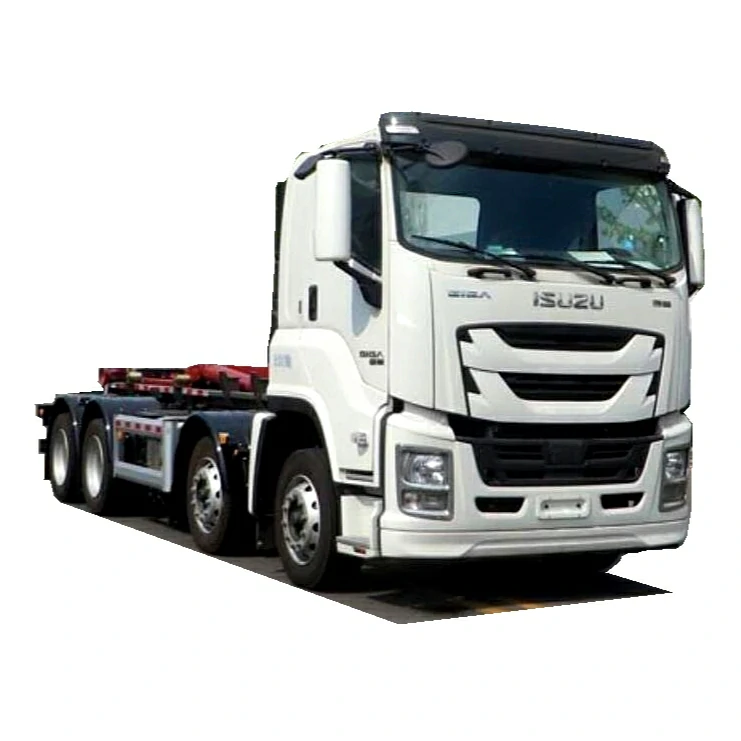

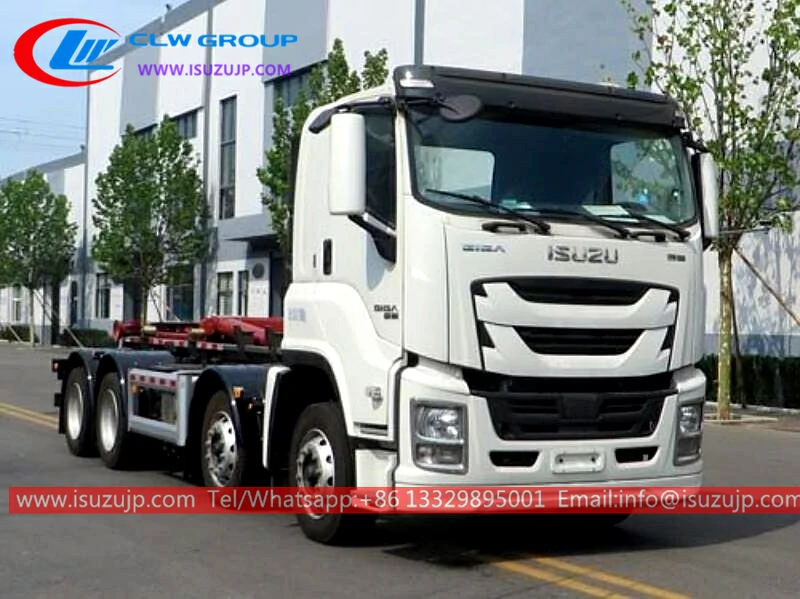

12 wheel ISUZU GIGA 25ton roll on roll off dump truck Description:
- Isuzu roll on roll off dump truck is designed to collect and transport municipal solid waste, widely used in residence community, hospital, municipal environmental section, garbage collection and transportation station, etc.
- loading capacity can range from 1ton to 22tons, etc.
Advantage:
- ISUZU GIGA chassis, perfect performance
- ISUZU engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Rational design of hook boom and locking structure make the action of hook lift much more reliable;
- Safety devices: loading balance valve, double hydraulic lock valve, safety controlling valve, and locking structure of container by hydraulic;
- A rear support device is available.
- Hook loader garbage container body capacity from 1 to 22 Cubic meters.
- Rational design of hook and locking structure, and truck more reliable.
- Optional Electrical Control in the cabin, easy operation, and easy maintenance.
- Various types of refuse container lifters are available.
Specification:
| 12 wheel ISUZU GIGA 25ton roll on roll off dump truck | ||
| General | Vehicle Brand | CHENGLI |
| Chassis Brand | ISUZU GIGA | |
| Overall Dimension | 10500X2500X3200 mm | |
| GVW / Kerb Weight | 31,800kg / 12,200kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | Heating/cooling air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU | |
| Power | 380 HP (279 KW) | |
| Displacement | 12200 ml | |
| Emission Standard | Euro 5 | |
| Chassis | Drive Type | 6×4, (left hand drive) |
| Transmission | 12 speed levers with 1 reverse | |
| Wheelbase/No. of axle | 1850+3000+1370 mm / 4 | |
| Tire Specification | 1200-20 | |
| Tire Number | 12 tires and 1 spare tire | |
| Max Speed | 90 km/h | |
| Paint | Metallic paint | |
| Superstructure | Lift Capacity | 25 Tons |
| Max dump angle | 51° | |
| Garbage bin volume | 4 cubic meters | |
| Hydraulic system pressure | 16 MPa | |
| Garbage bin material | Carbon steel | |
| Control | Hydraulic Manual | |
| Discharge method | Rear dumping | |
| All standard accessories: Warning lights, music alarm, basic tool kit, English manual | ||
| Optional | The backup alarm can be equipped. Other vacuum pumps can be equipped. Operation language can be English or Appointed language. | |
Working parameter:
| Box time | Less than 15 seconds | Roller material | Cast iron or forged steel |
| Unboxing time | Less than 15 seconds | Control method | Electronic control + manual |
| Dump time | Less than 10 seconds | Operating position | Cab + car side |
New craft:
Roll on roll off garbage truck Optional configuration:

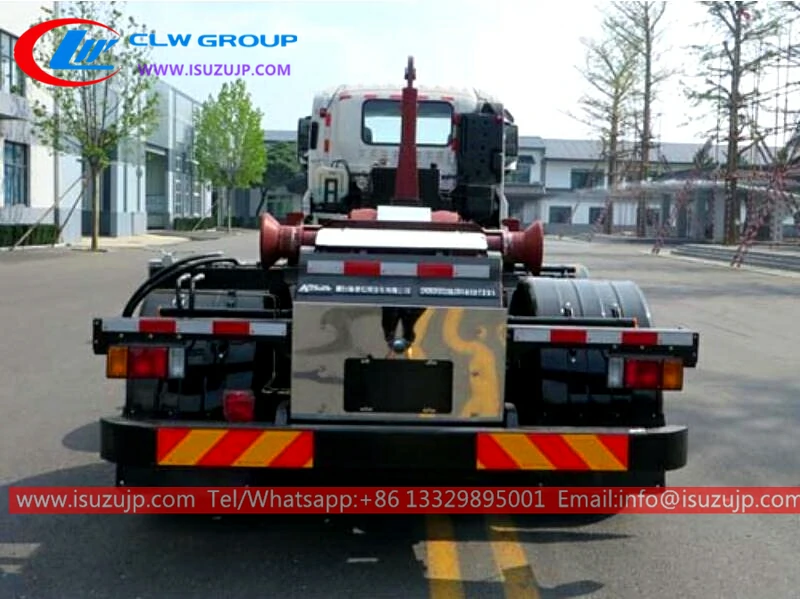

detachable garbage truck detailed images:
carriage removable garbage truck Structure diagram:
Detail drawing:
Common garbage truck style:
Operating procedures:
Garbage collection vehicle tools and instructions：
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
rubbish collection vehicle Factory Advantage:
- 16 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
refuse transfer truck Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
refuse compactor truck shipping：
- Maximize your shipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
Isuzu Truck order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
