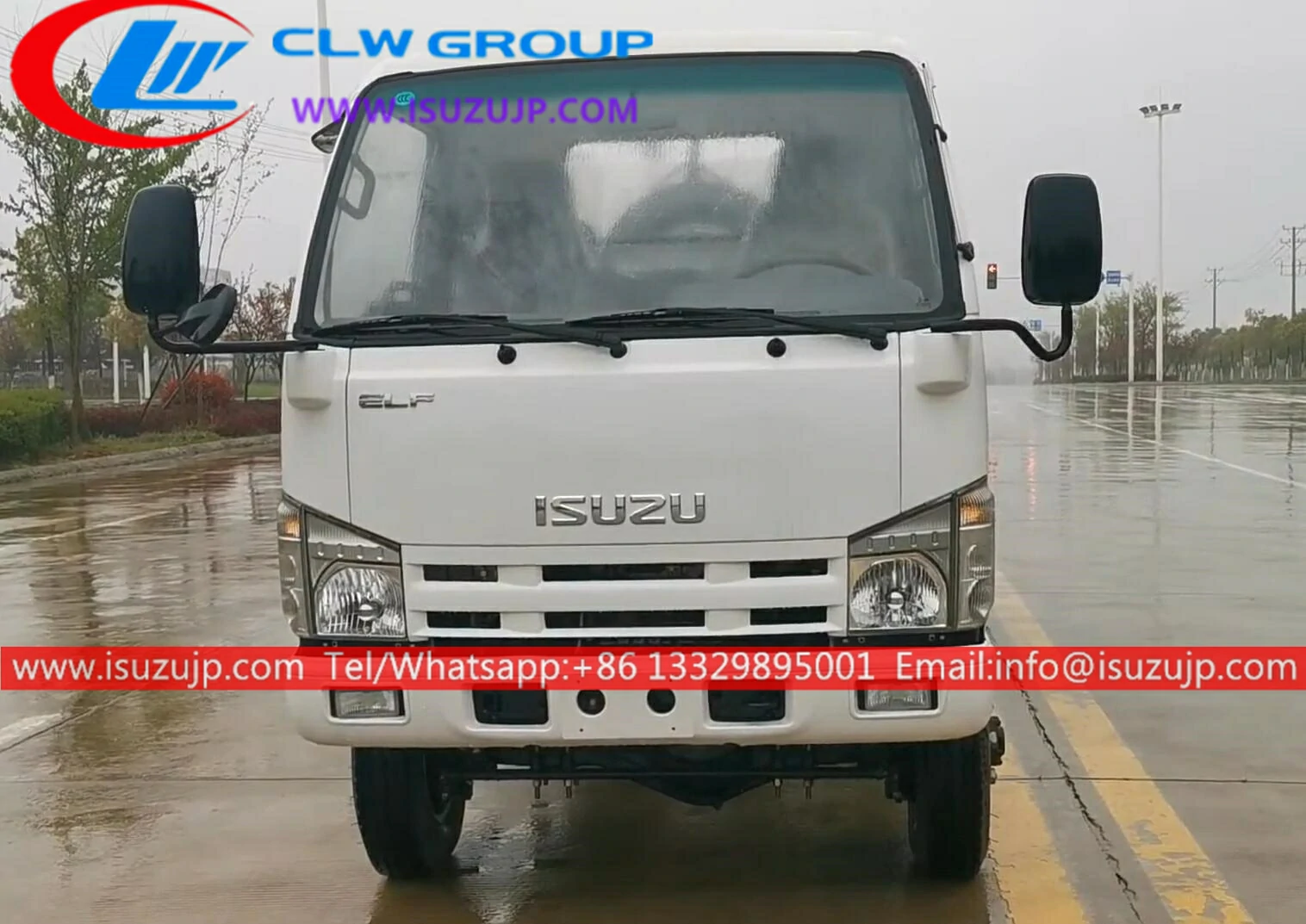

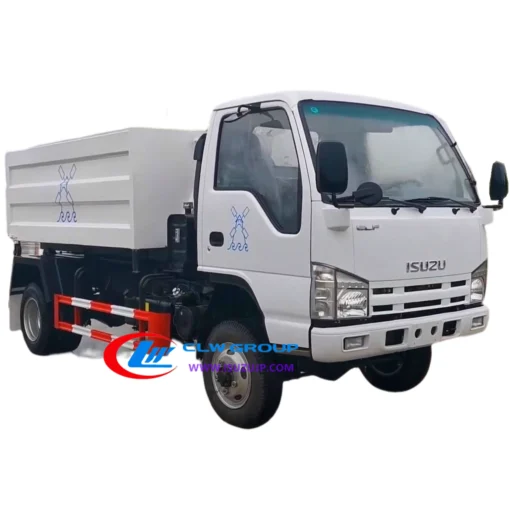

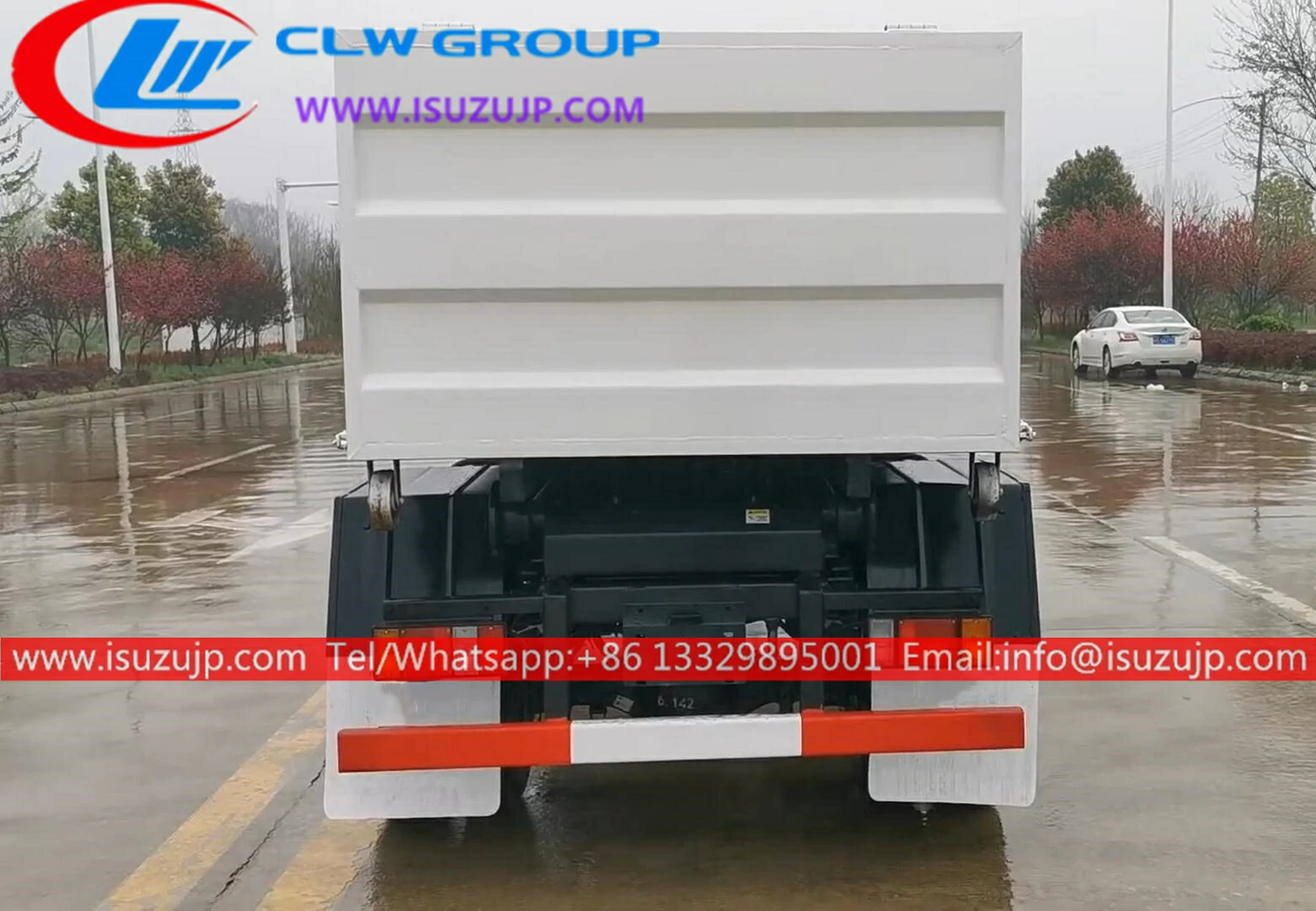

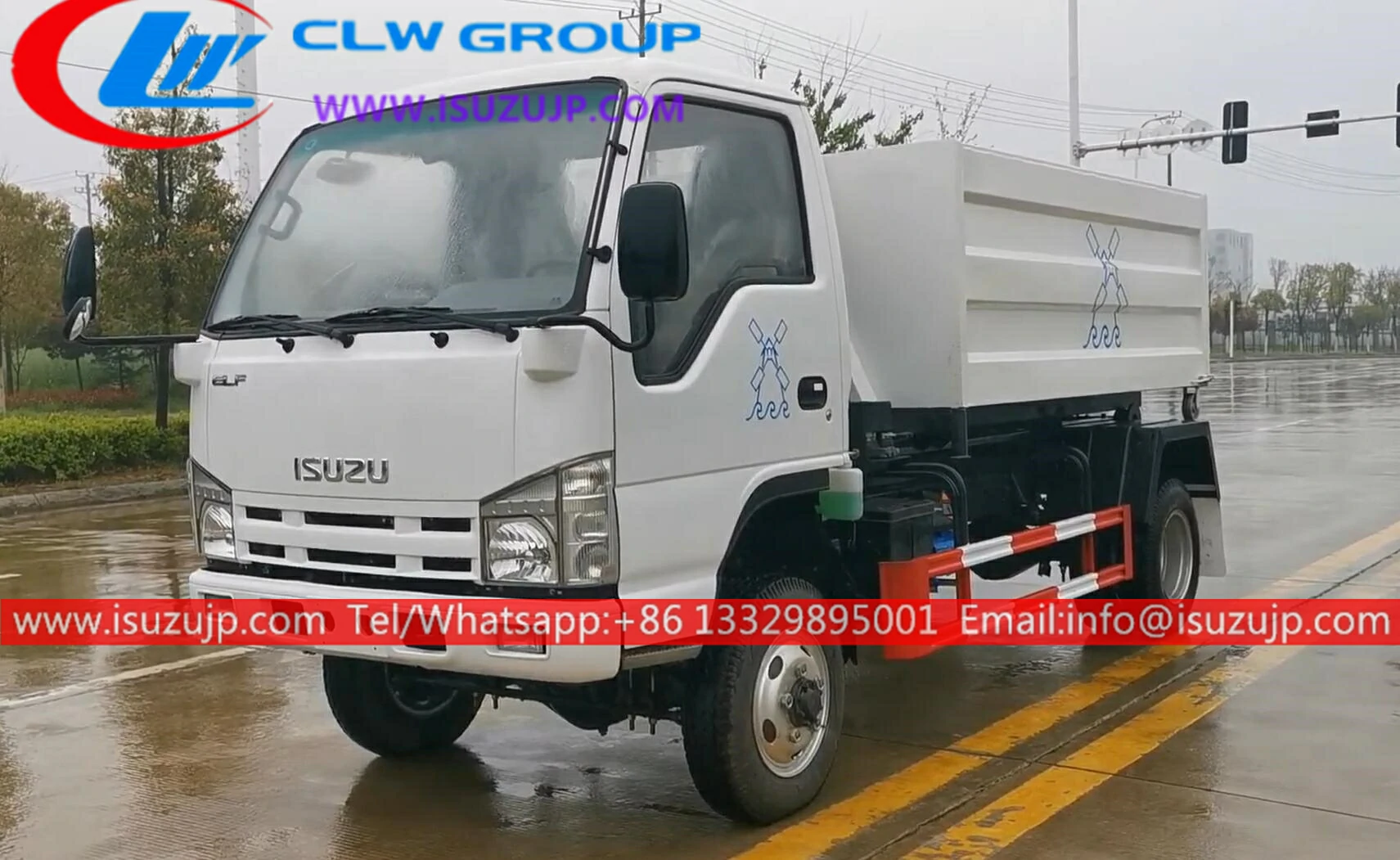

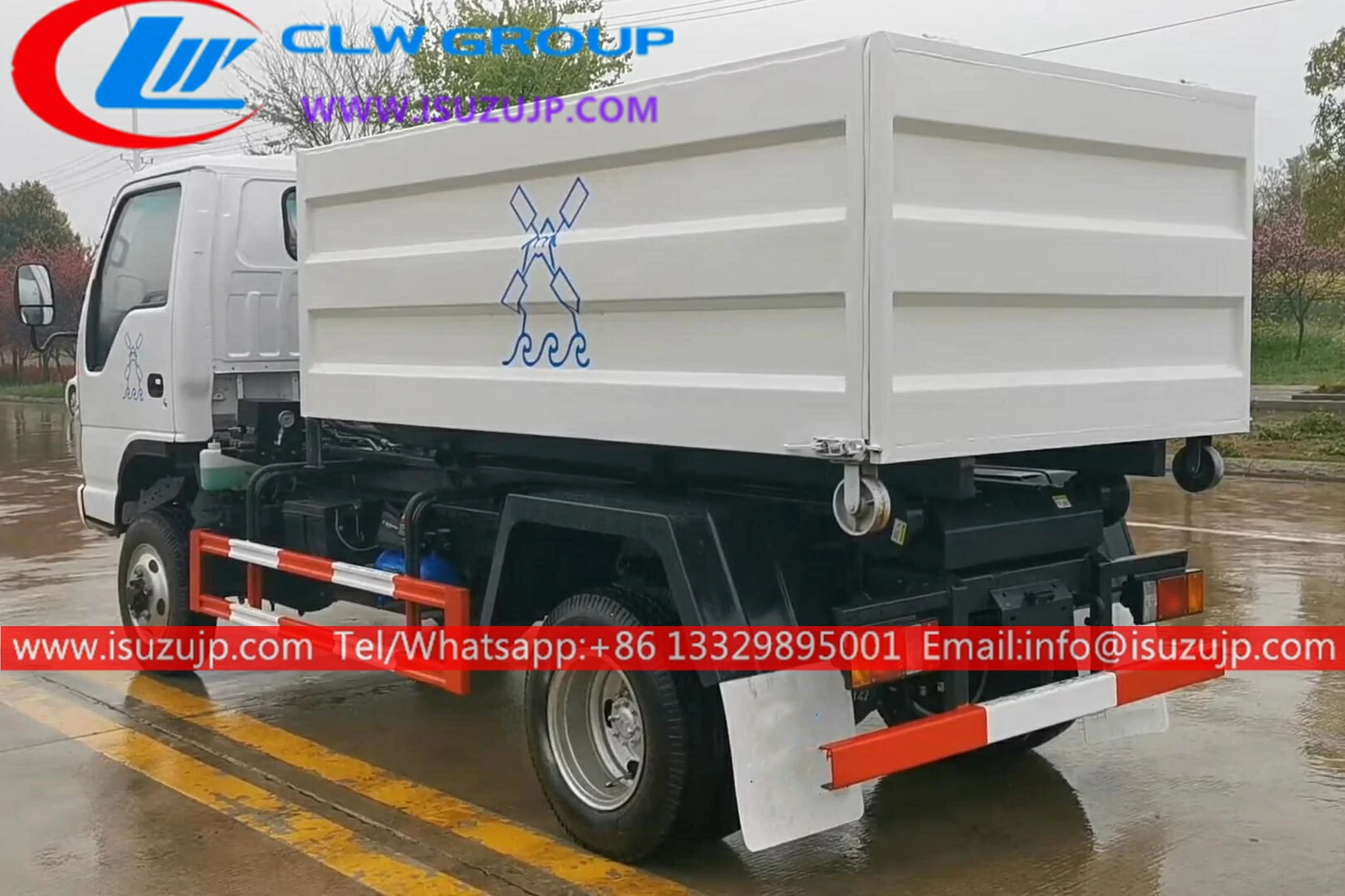

4×4 ISUZU ELF Offroad hooklift truck and bins Description:
- 4X4 Isuzu Offroad hooklift truck is designed to collect and transport municipal solid waste, widely used in residence community, hospital, municipal environmental section, garbage collection and transportation station, etc.
- loading capacity can range from 1ton to 22tons, etc.
Advantage:
- ISUZU ELF 100P chassis, perfect performance
- ISUZU engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Rational design of hook boom and locking structure make the action of hook lift much more reliable;
- Safety devices: loading balance valve, double hydraulic lock valve, safety controlling valve, and locking structure of container by hydraulic;
- A rear support device is available.
- Hook loader garbage container body capacity from 1 to 22 Cubic meters.
- Rational design of hook and locking structure, and truck more reliable.
- Optional Electrical Control in the cabin, easy operation, and easy maintenance.
- Various types of refuse container lifters are available.
Specification:
| 4×4 ISUZU ELF Off road 3 ton hooklift truck and bins for sale (4M3) | ||
| General | Vehicle Brand | CHENGLI |
| Chassis Brand | ISUZU | |
| Overall Dimension | 5300X1900X2300 mm | |
| GVW / Kerb Weight | 73,000kg / 5,000kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | Heating/cooling air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU | |
| Power | 98 HP (72 KW) | |
| Displacement | 2999 ml | |
| Emission Standard | Euro 4 or 5 | |
| Chassis | Drive Type | 4X2, (left hand drive) |
| Transmission | MSB 5 speed levers with 1 reverse | |
| Wheelbase/No. of axle | 3360 mm / 2 | |
| Tire Specification | 7.50R16 | |
| Tire Number | 6 tires and 1 spare tire | |
| Max Speed | 90 km/h | |
| Paint | Metallic paint | |
| Superstructure | Body capacity | 4CBM capacity detachable container |
| Container material | Anti-corrosive steel | |
| Hydraulic system | Chinese top brand cylinders and matched valves | |
| Control Box | 1. Electric Control Box in Cabin 2. Hydraulic control valve at rear | |

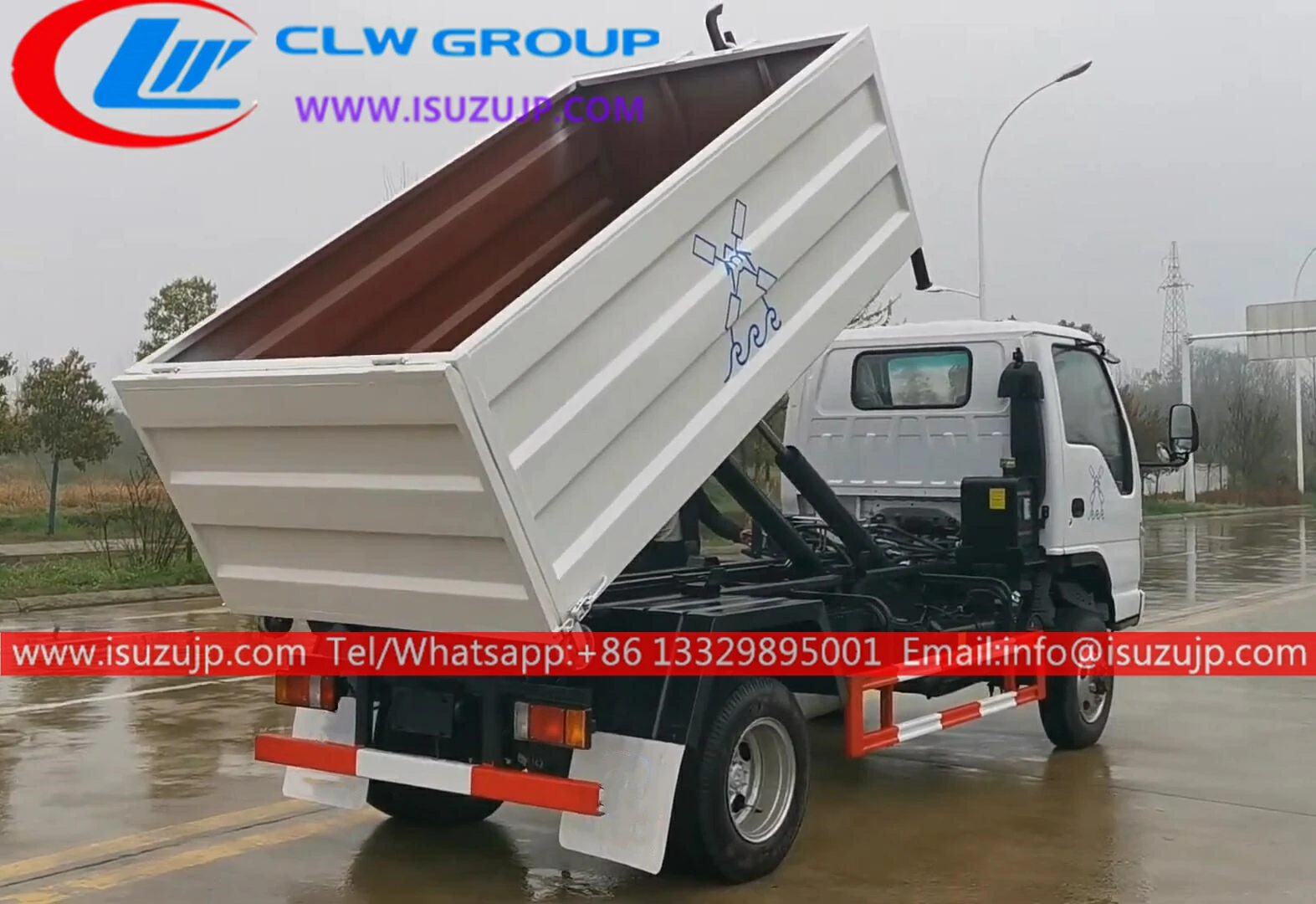

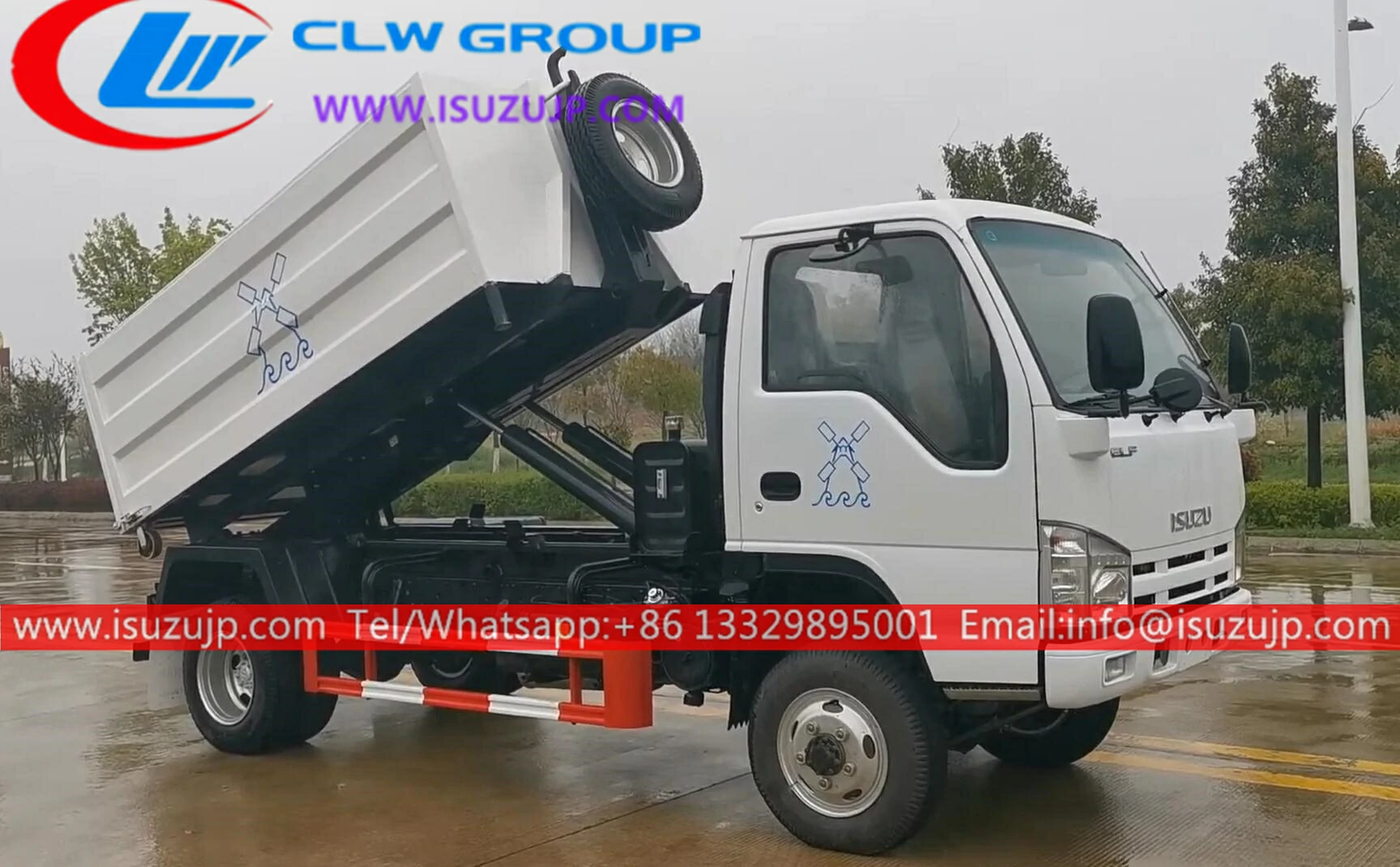

| Self-discharge angle | ≥45 ° | |
| Discharging time | ≤45 s | |
| Lifting time | ≤45 s | |
| All standard accessories: Warning lights, music alarm, basic tool kit, English manual | ||
| Optional | Back alarm and Camera can be equipped. Remote Control Box can be optional. Garbage container can be of stainless steel | |
Working parameter:
| Box time | Less than 15 seconds | Roller material | Cast iron or forged steel |
| Unboxing time | Less than 15 seconds | Control method | Electronic control + manual |
| Dump time | Less than 10 seconds | Operating position | Cab + car side |
New craft:
Roll on roll off garbage truck Optional configuration:
detachable garbage truck detailed images:
carriage removable garbage truck Structure diagram:
Detail drawing:
Common garbage truck style:
Operating procedures:
Garbage collection vehicle tools and instructions：
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
rubbish collection vehicle Factory Advantage:
- 16 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
refuse transfer truck Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
refuse compactor truck shipping：
- Maximize your shipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
Isuzu Truck order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
