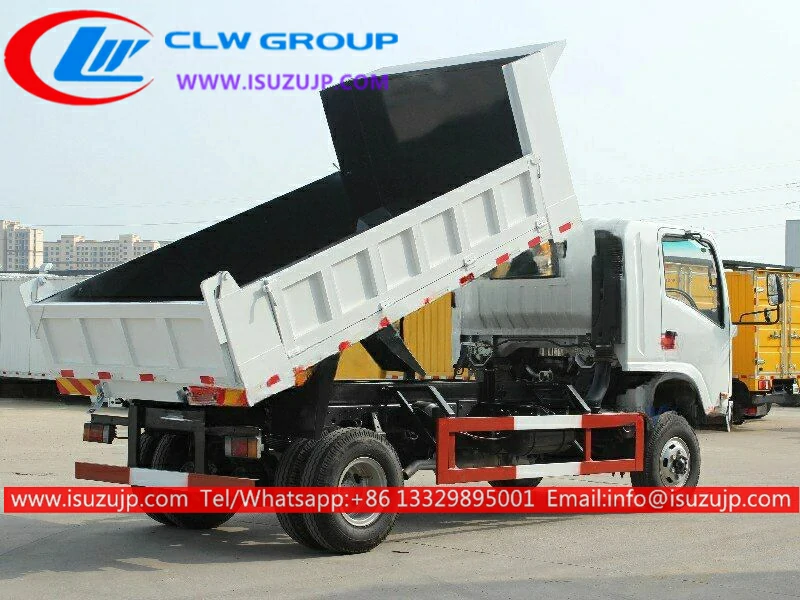

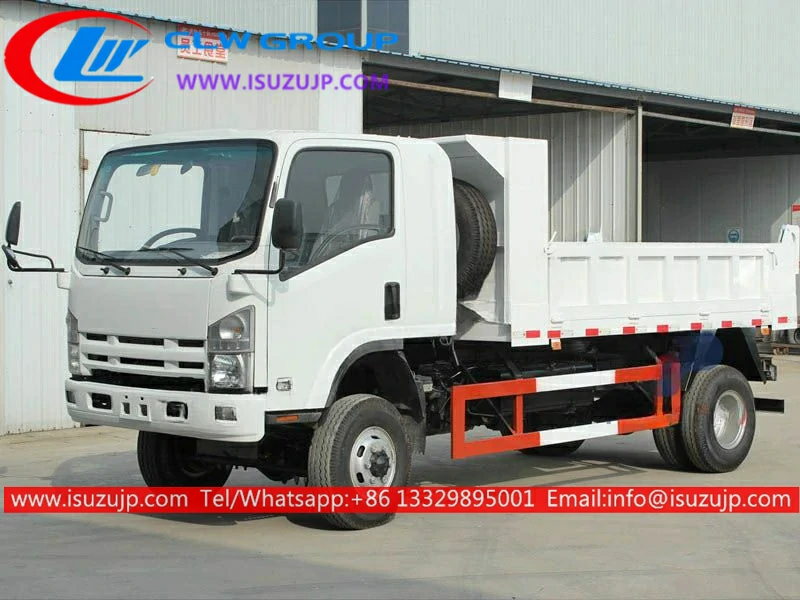

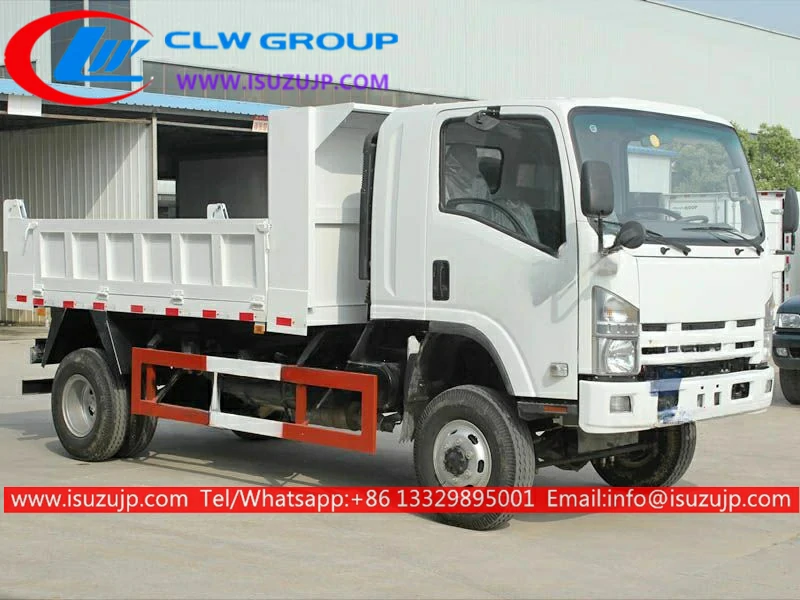

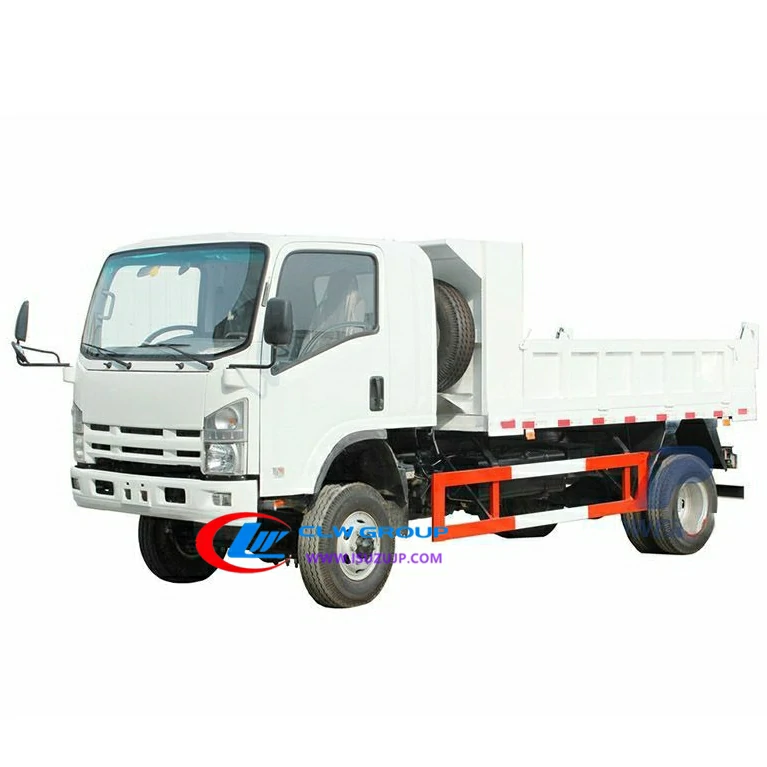

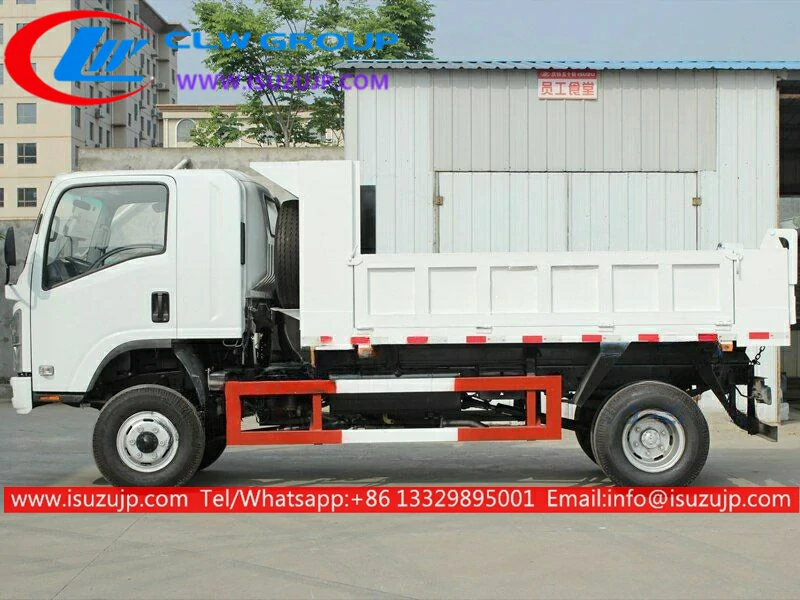

4 wheel drive ISUZU NQR 6 tons military dump truck with sleeping cabin Description:
- 4 wheel drive ISUZU NQR 6 tons military dump truck also called dump truck, dump tipper, side-turn tipper, dump truck tipping, dumper, tip truck, tipper lorry.
- is a truck used for transporting loose material, such as sand, gravel, coal, dirt, etc.
- ISUZU dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front.
- Or hinged at side with hydraulic pistons to lift the side.
Advantage:
- ISUZU ELF 700P light duty chassis, perfect performance
- 4HK1 engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Pay loading from 2ton to 100 tons.
- Easy operation and easy maintenance.
- Virious types of tipper body are available.
- High strength box body
- Excellent Chinese brand hydraulic piston
- Strong, durable, perfect performance
Specification:
| Manufacturer | ISUZU Trucks | |
| Item | 4 wheel drive ISUZU NQR 6 tons military dump truck with sleeping cabin for sale | |
| Brand | ISUZU | |
| Model | CLW1060TSDL | |
| Production Time | 30 days | |
| Truck Chassis | ||
| Specification | Overall dimensions | 5900*2200*2550 mm |
| Gross weight | 10,000 kg | |
| Kerb weight | 3,300 kg | |
| Wheelbase | 3,815 mm | |
| Driving type | 4*4 | |
| Chassis model | 700P Medium-duty | |
| Tire size | 8.25-16 | |
| Passengers in cab | 3 | |
| Engine | Engine model | 4HK1-TC51 |
| Type of fuel | Diesel | |
| Power | 190 HP | |
| Gearbox | MLD 6-shift gearbox | |
| Upper Structure | ||

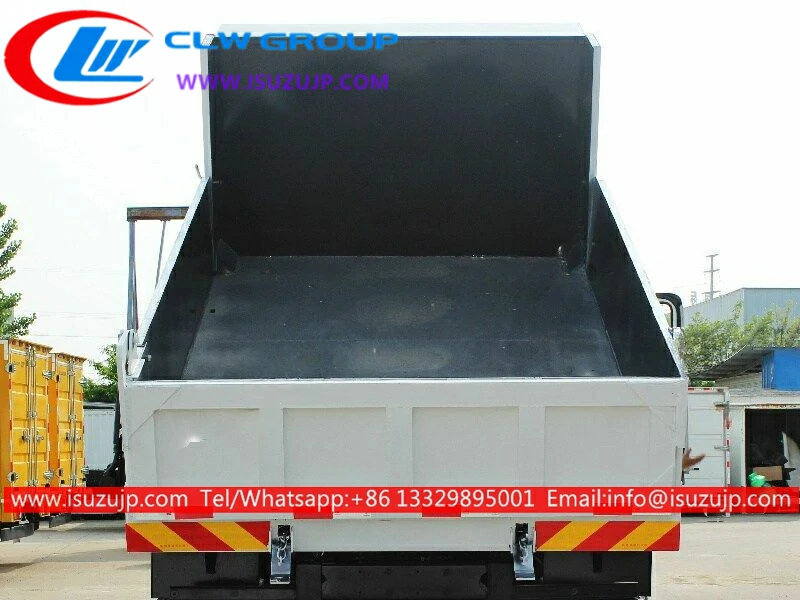

| Tipper Body performance | Body Size | 4,000*2000*550 mm |
| Body Material | Carbon steel, with inside and outside antirust treatment | |
| Body Thickness | Side 4 mm | |
| Floor 5mm | ||

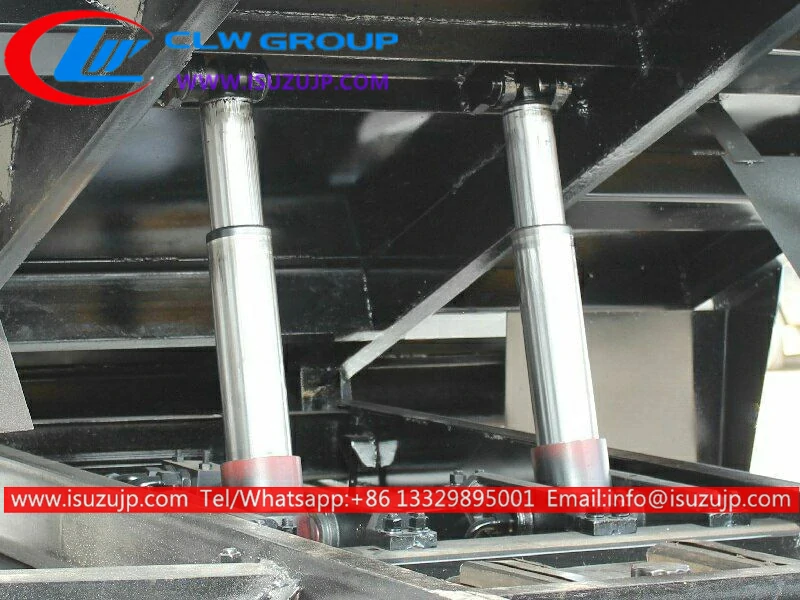

| Hydraulic Cylinder | Double Hydraulic cylinders with balance valve | |
| Body Shape | Square with drop side | |
| Control Panel | English | |
| Spare Tire | One set equipped in front of dump body | |
| Painting | Two primers, and one final paint coating | |
| Color & LOGO | According to wish | |
| Factory standard | “U” shape Sub Frame, Hydraulic system, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards, and rubber flaps… | |
| Documents | English operation manual, Spare parts list, and all necessary export docs. | |
| Optional equipment | 1, Stainless steel body, Aluminum alloy body 2, Road cleaning device in the front of cabin 3, Towing Winch | |
ISUZU Dumper truck Structure:
ISUZU tipper truck parts tools and instructions:
Factory Advantage:
- 17 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
construction sand rock transport truck shipping：
- Maximize save your sea freight.
- Professional guidance on your importing documents.
- Safe, fast and timely
Front lifting dump truck bulk order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
