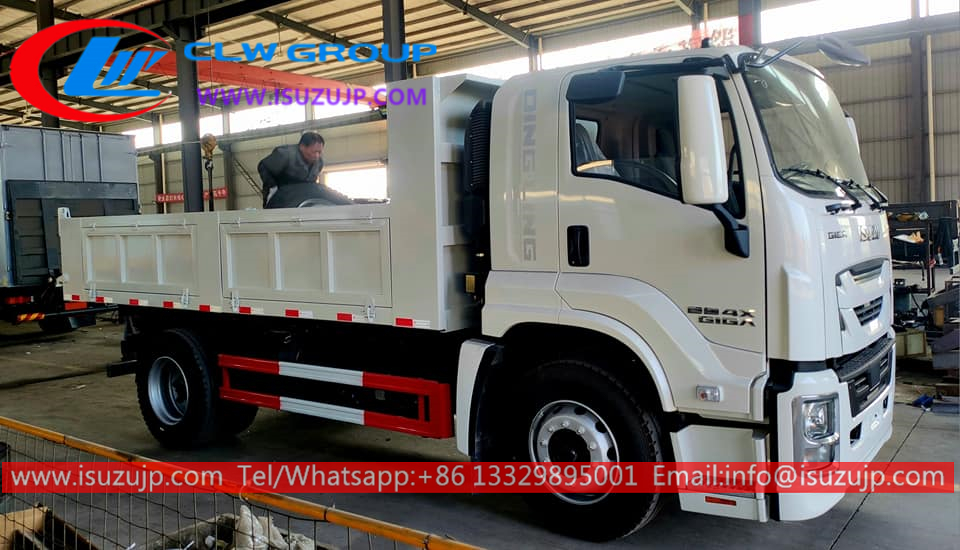

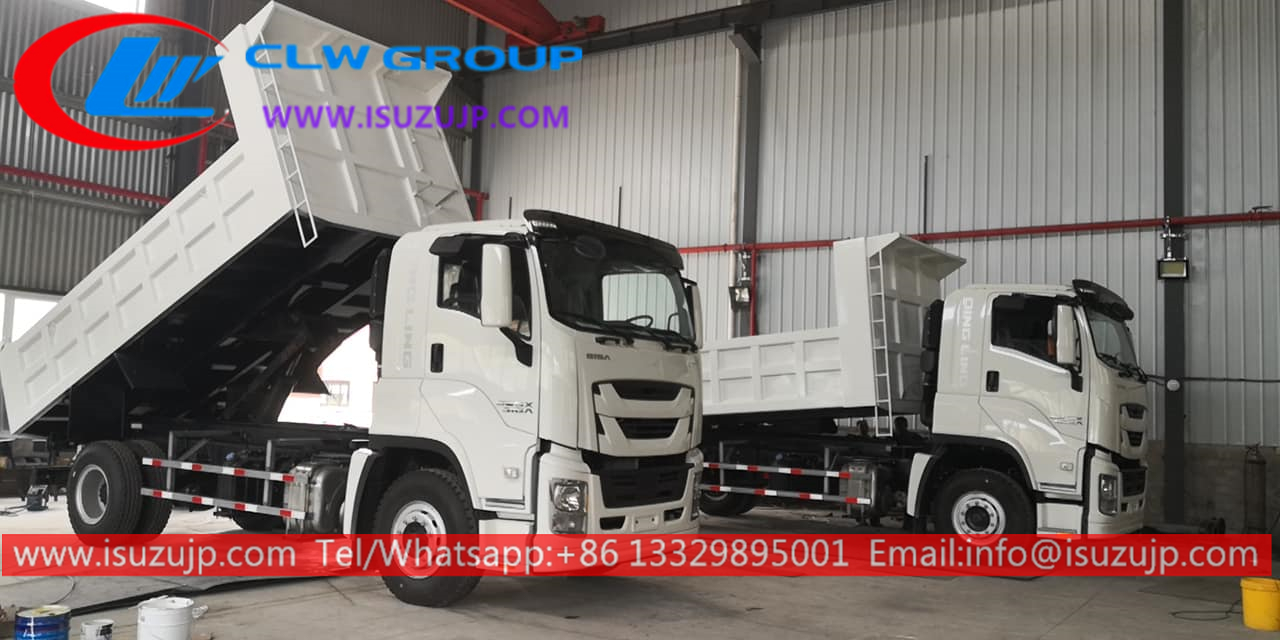

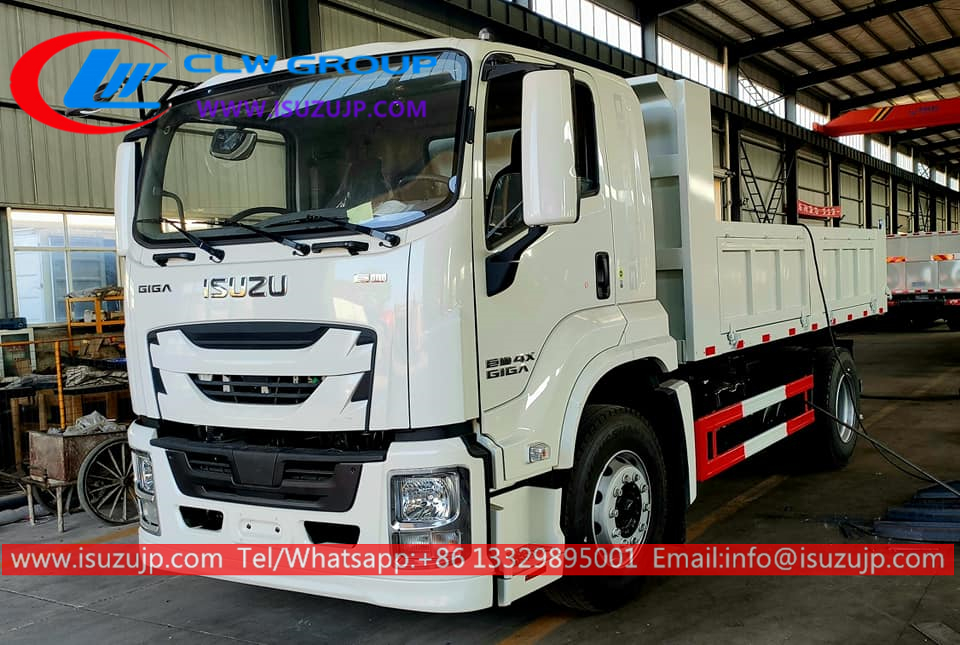

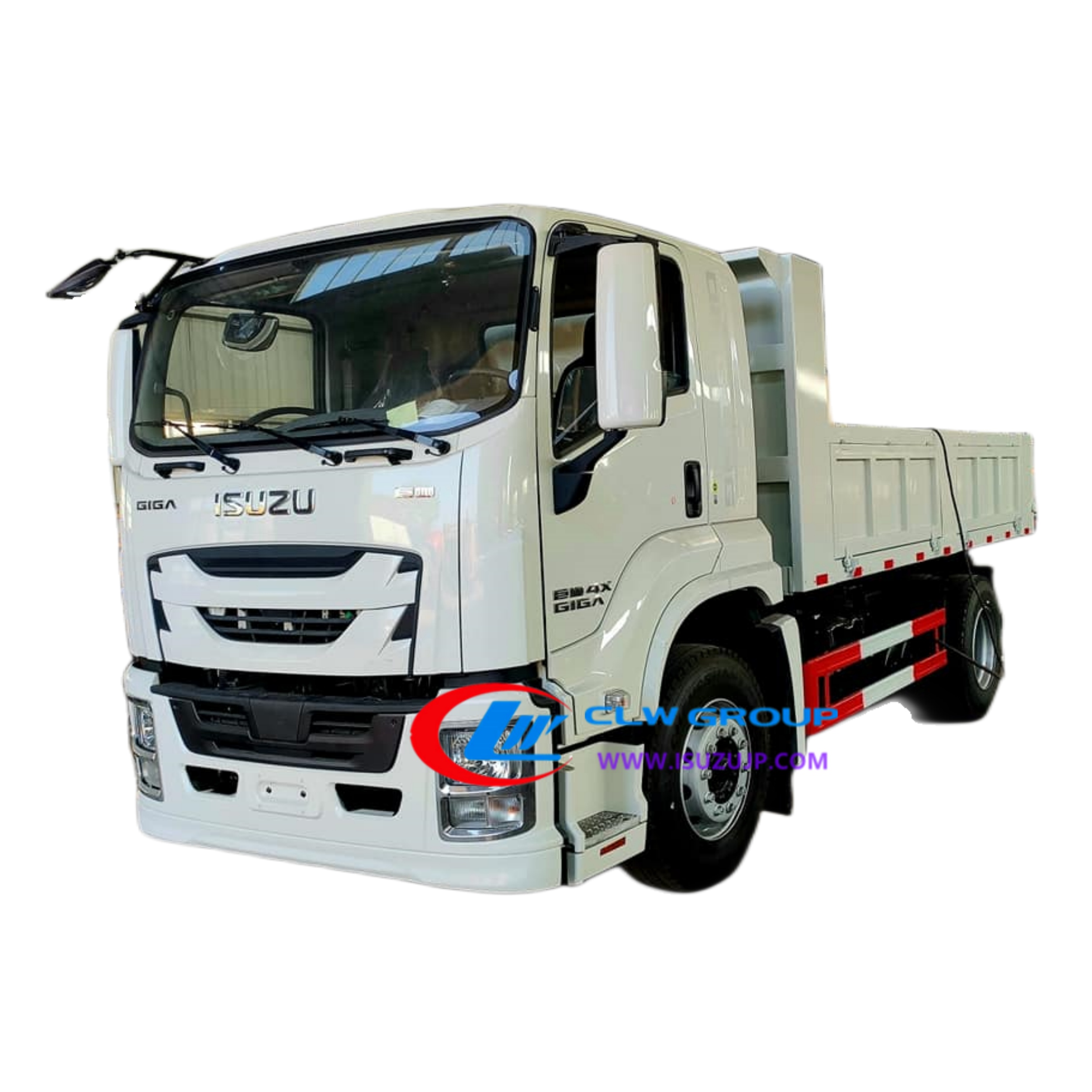

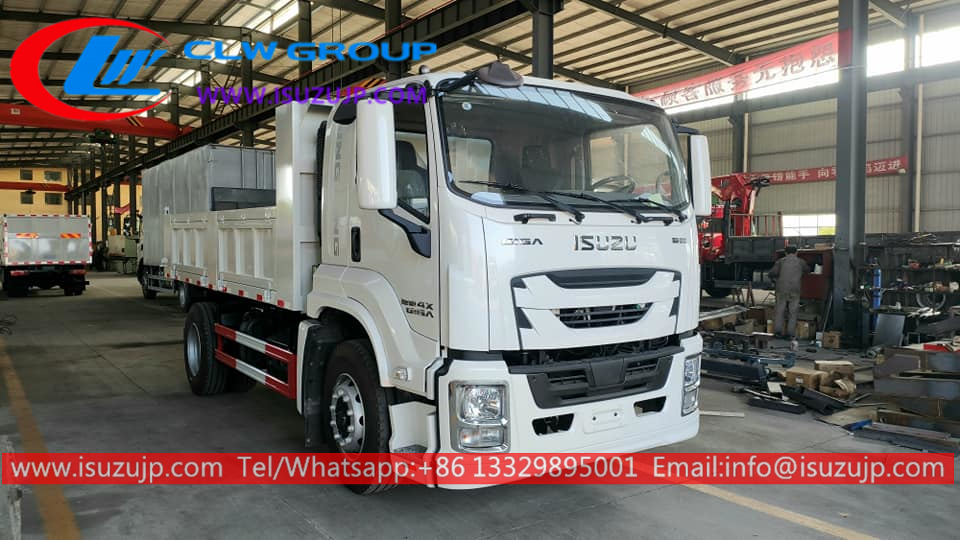

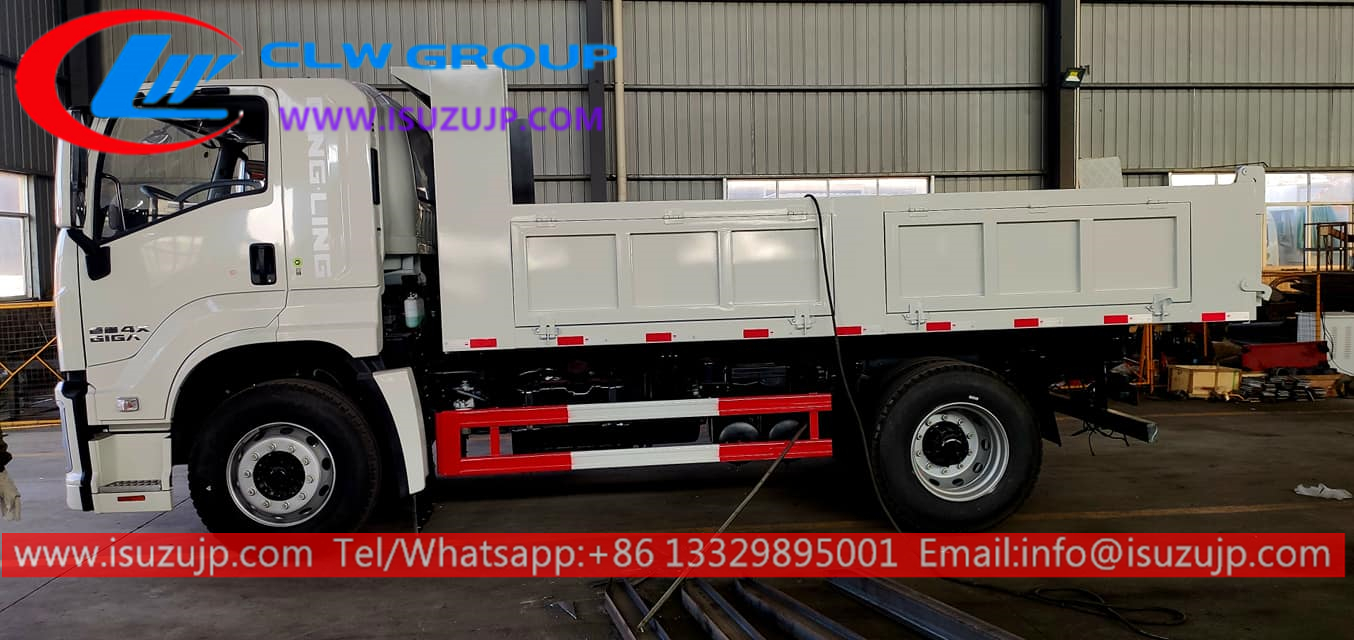

ISUZU GIGA 12mt 3 way dump tipper truck Description:
- Isuzu 12mt 3 way dump tipper truck also called dump truck, dump tipper, side-turn tipper, dump truck tipping, dumper, tip truck, tipper lorry.
- is a truck used for transporting loose material, such as sand, gravel, coal, dirt, etc.
- ISUZU dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front.
- Or hinged at side with hydraulic pistons to lift the side.
Advantage:
- ISUZU GIGA heavy duty chassis, perfect performance
- 6HK1 engine, super powerful; reliable performance, no overhaul within 100,000 km.
- Payloading from 20ton to 100 tons.
- Easy operation and easy maintenance.
- Virious types of tipper body are available.
- High strength box body
- Excellent Chinese brand hydraulic piston
- Strong, durable, perfect performance
ISUZU dump truck Specification:
| Chassis Dimensions and Parameters | ITEM | ISUZU GIGA 12mt 3 way dump tipper truck |
| Overall Dimension(L x W x H) | 7200×2500x3200mm | |
| Wheelbase: | 4500mm | |
| Front/ Rear Wheel Distance: | 2060/1855mm | |
| Front/Rear Suspension | 1335/1735mm | |
| Rear Axle Ratio: | 5.571 | |
| Approach/Departure angle: | 17/22° | |
| Leaf Spring: | 7+6/8 | |
| Weights and Capacities | Curb Weight: | 7500kg |
| GVW: | 18000kg | |
| Axle Loads: | 6500/13000kg | |
| Engine | Engine Model: | 4HK1 EURO VI |
| Cylinder: | 4 | |
| Max output: | 151Kw | |
| Displacement: | 5193ml | |
| Horsepower: | 205Ps | |
| Exhaust Gas Treatment Technology： | DPF+SCR | |
| With VGT | ||
| Transmission | Transmission: | MLD |
| Forward Gear: | 6 Speed Gear | |
| Backward Gear: | 1 Speed Gear | |
| Brake | Air Brake | |
| Front Drum Back Drum | ||
| With Exhaust Brake | ||
| Cab | Number of Seats: | 2 |
| Chassis | Drive Type: | 4×2 |
| Tires: | 7(Including Spare Tire) | |
| Tire Model: | 295/80R20.5 | |
| Fuel Tank | Number: | 1 |
| Capacity: | 200L | |
| Top Parameters | Box Volume: | 12m³ |
| Box Dimension: | 4500*2300*1200mm | |
| Lifting Type: | Middle Lifting | |
| Thickness: | Bottom 6mm, Side 4mm | |
| Configurations: | Power Steering System | |
| Air Conditioning | ||
| Speed Light & Large Indoor Light | ||
| ABS | ||
ISUZU Dumper truck Structure:
ISUZU tipper truck parts tools and instructions:
Factory Advantage:
- 17 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
construction sand rock transport truck shipping：
- Maximize save your sea freight.
- Professional guidance on your importing documents.
- Safe, fast and timely
Front lifting dump truck bulk order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
