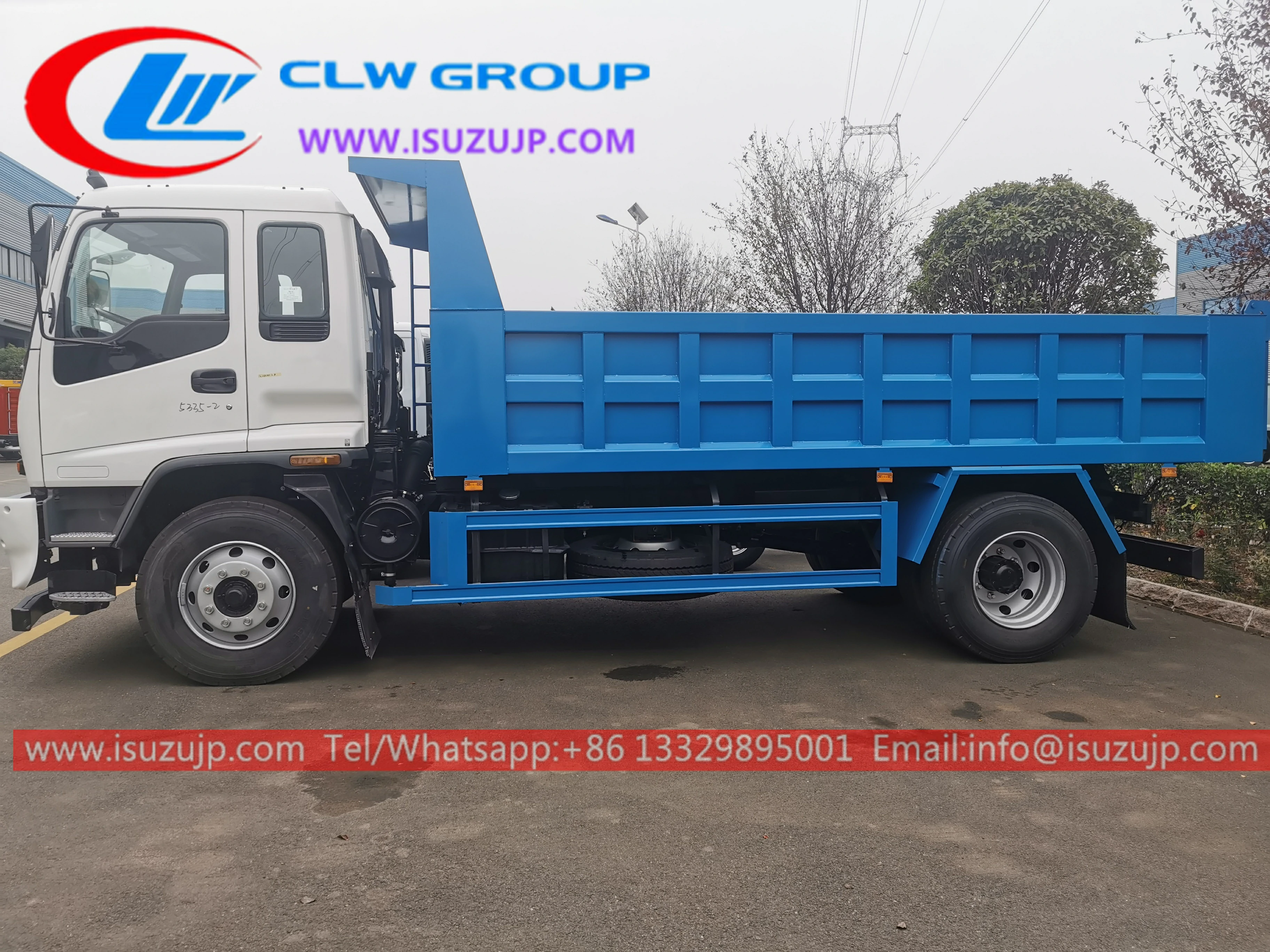

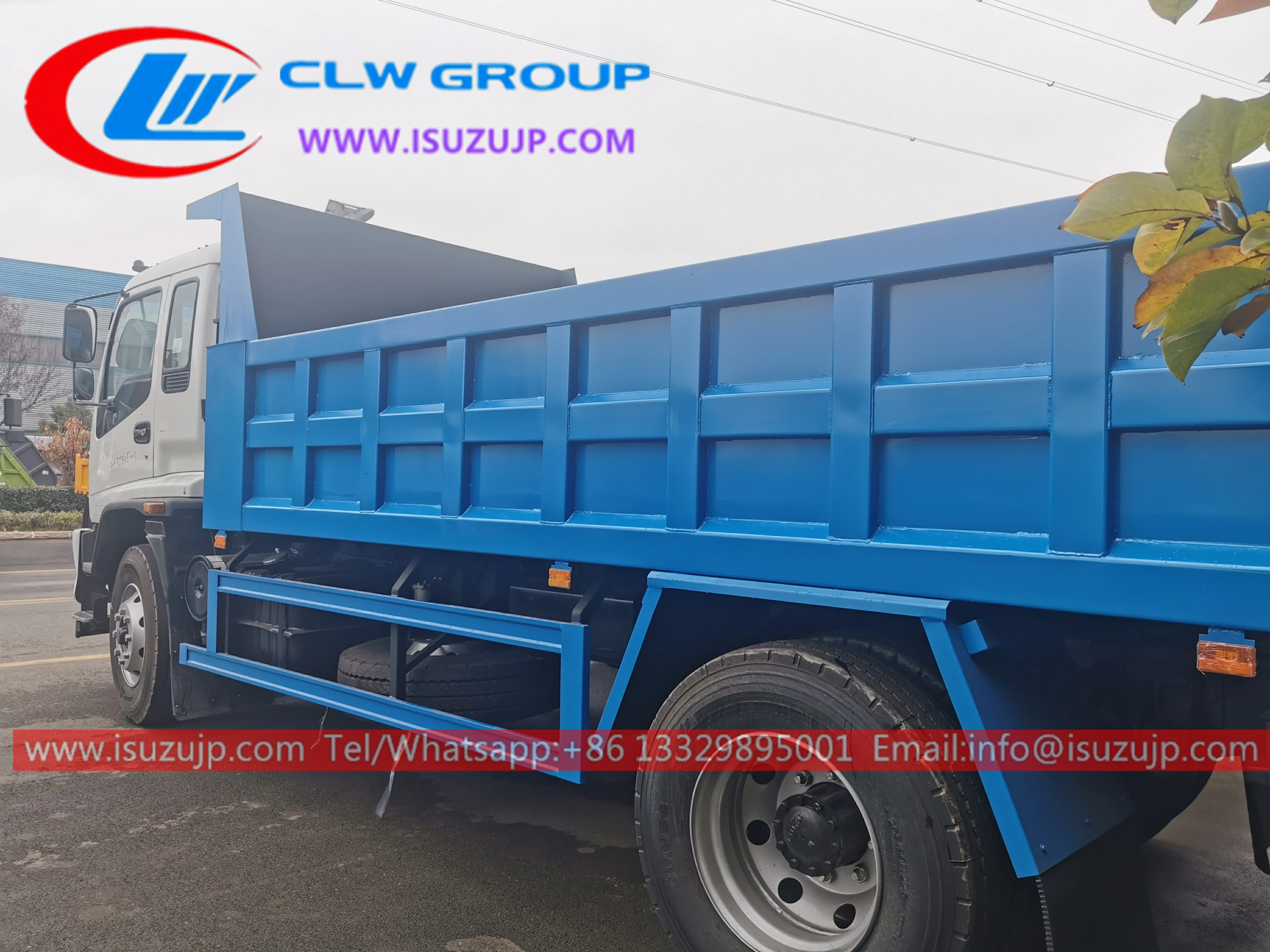

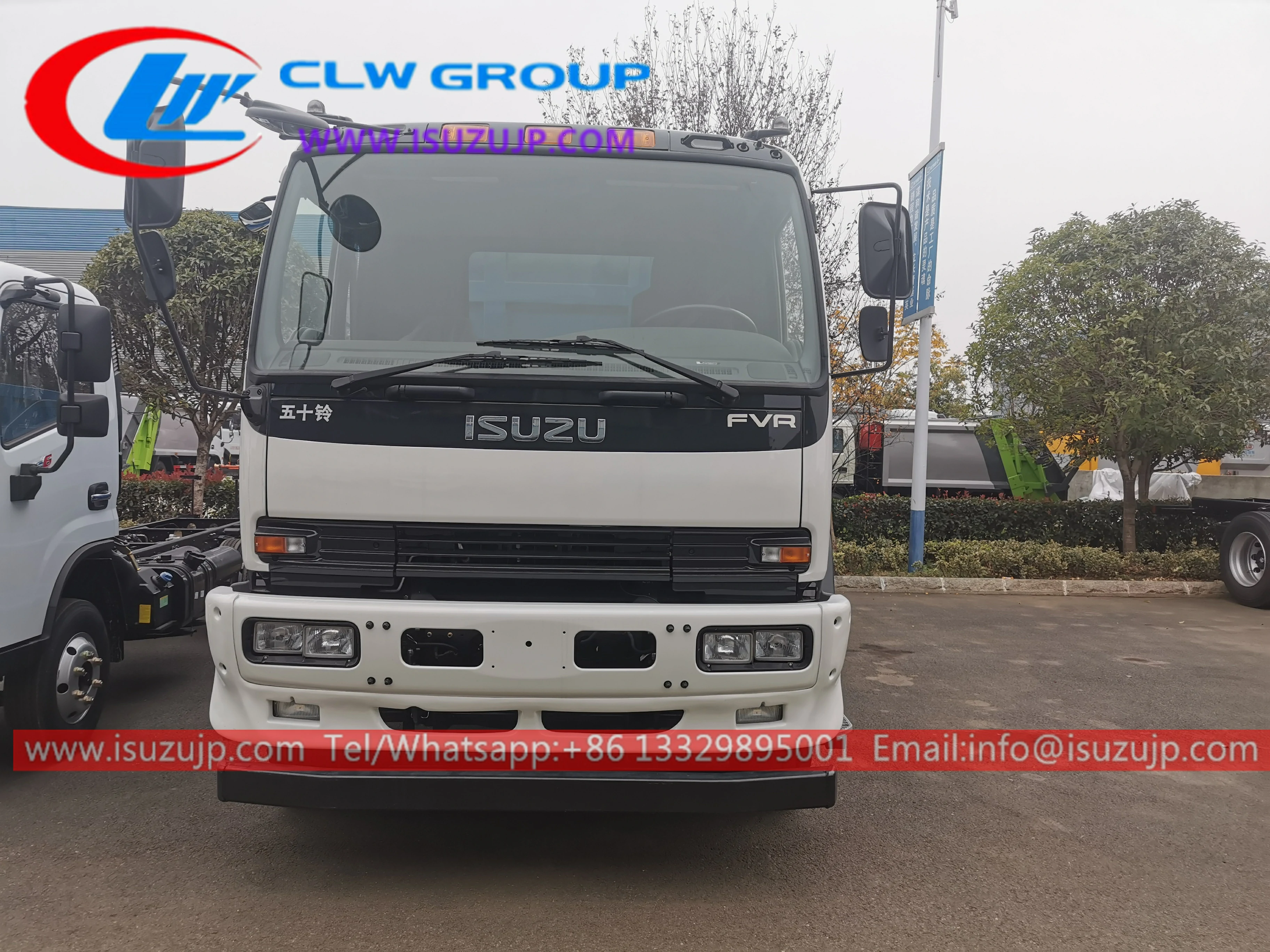

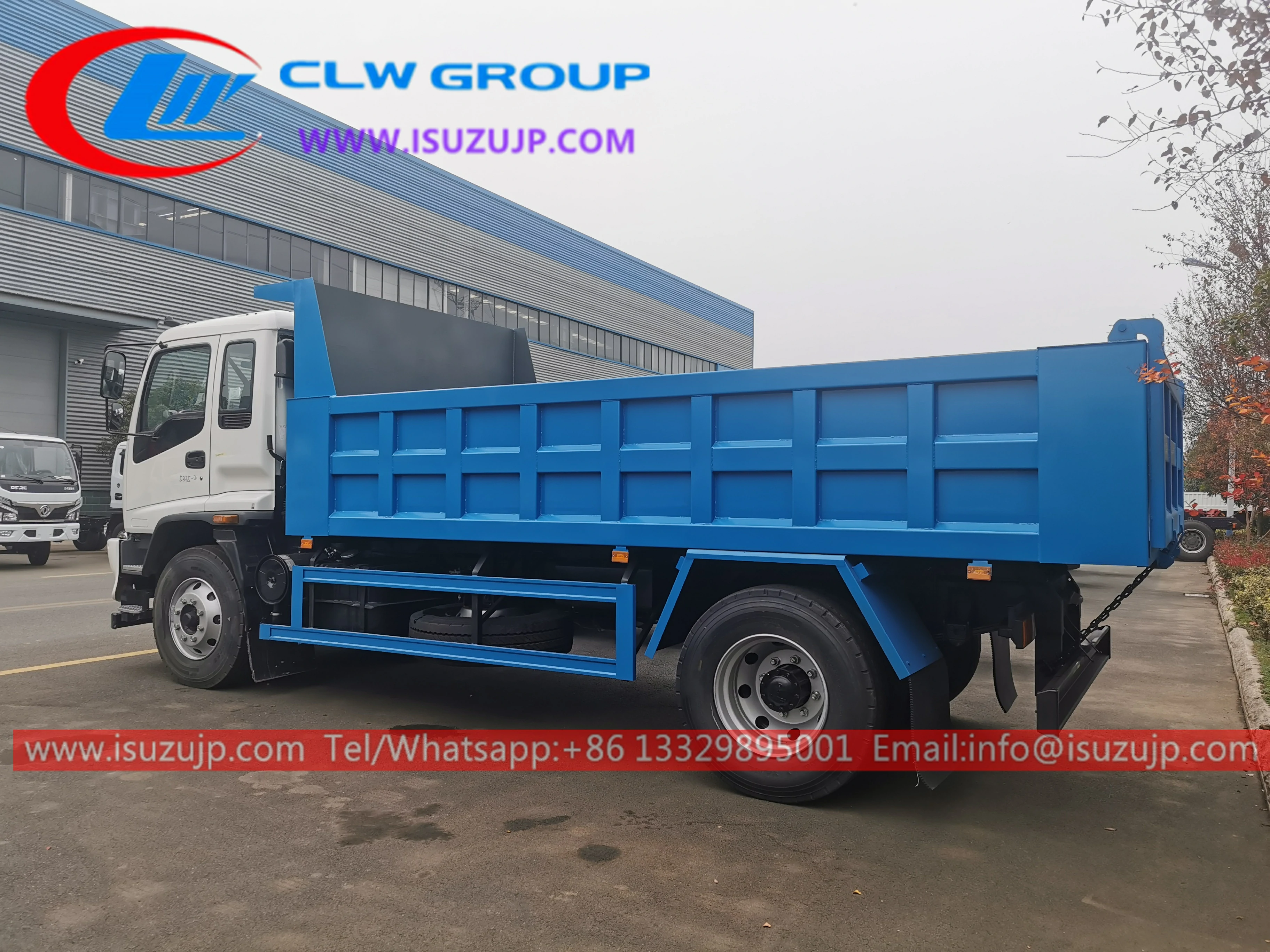

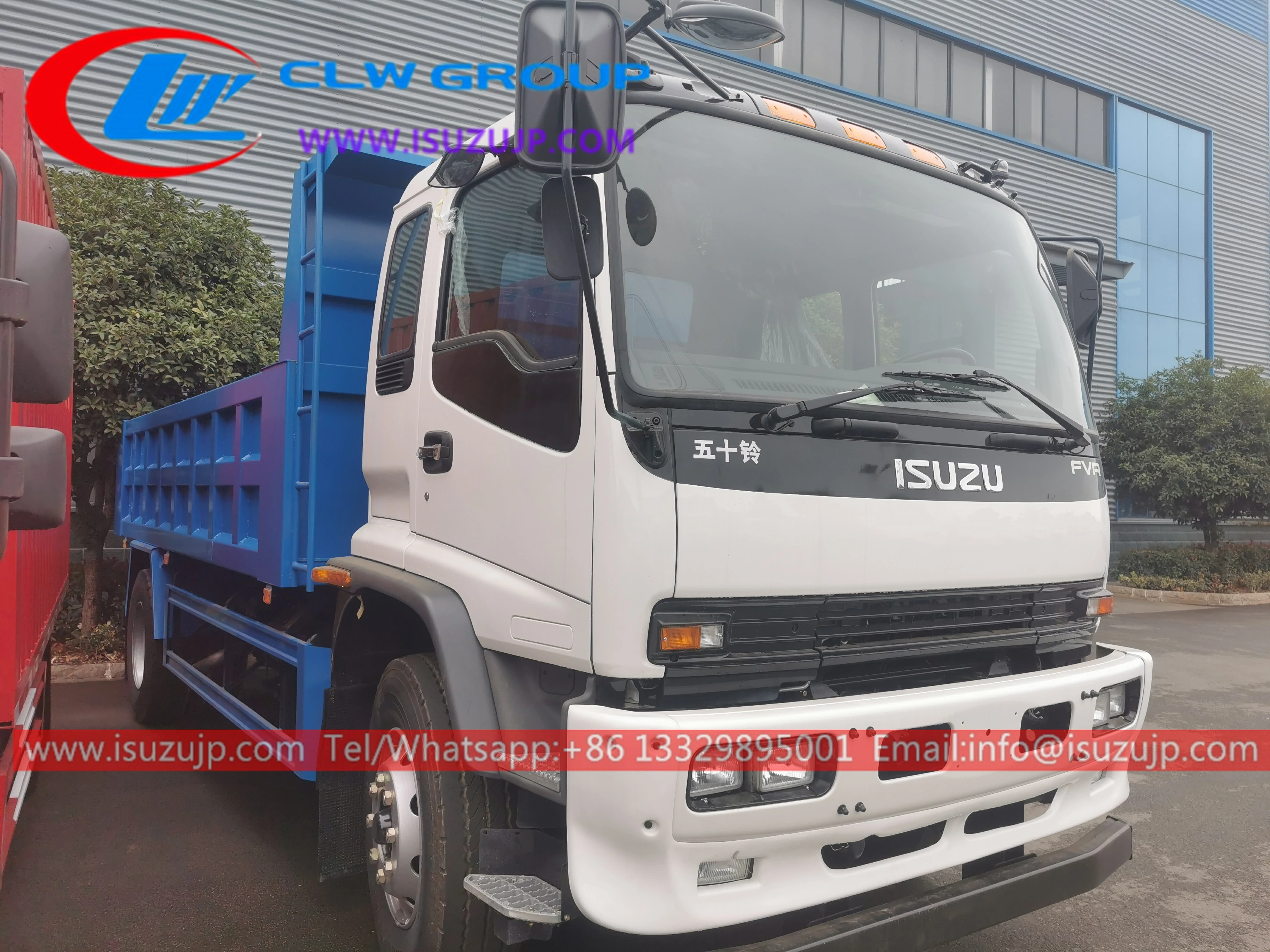

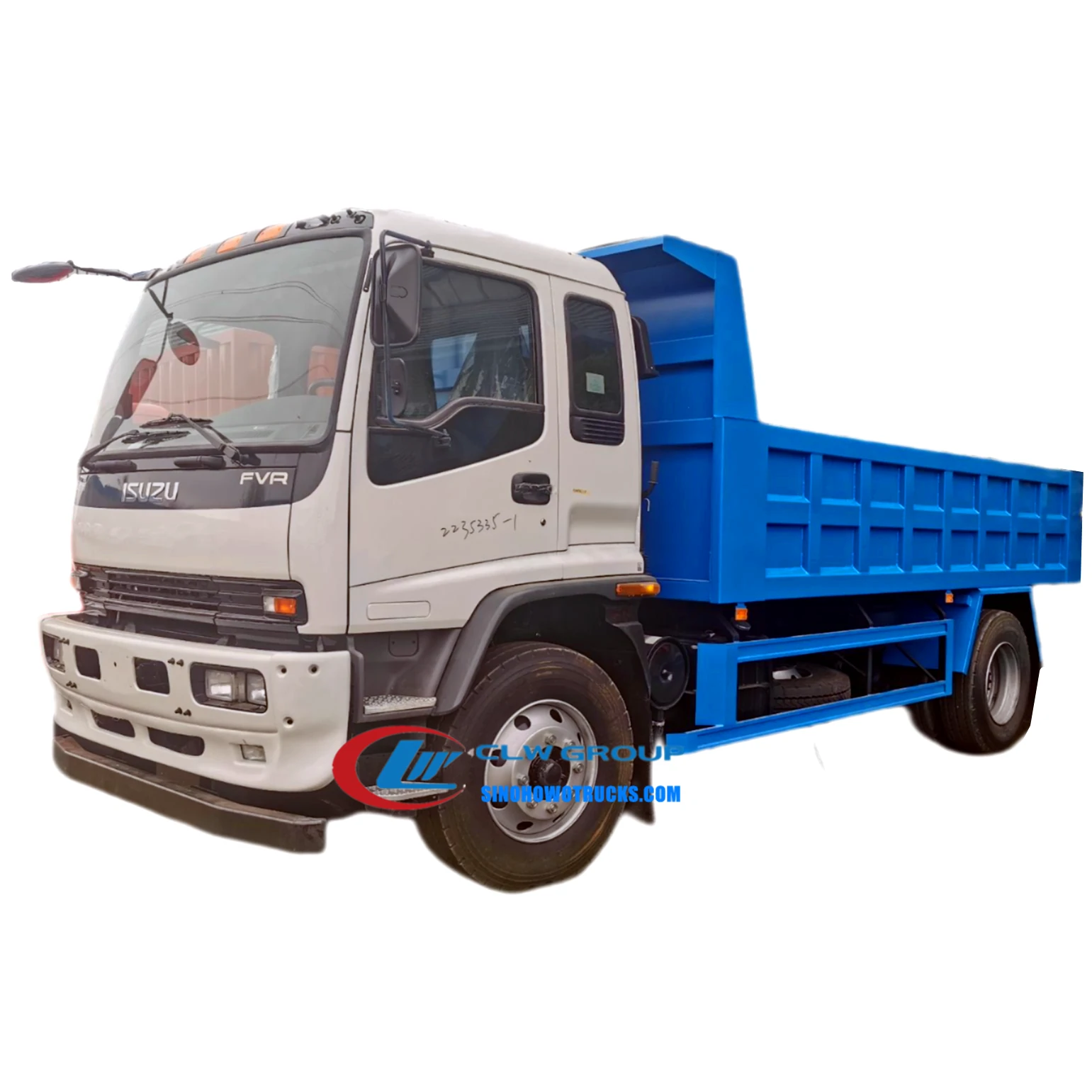

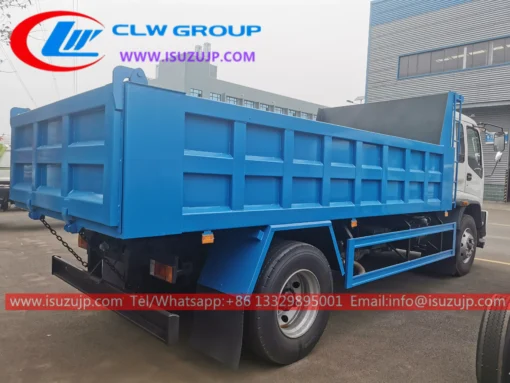

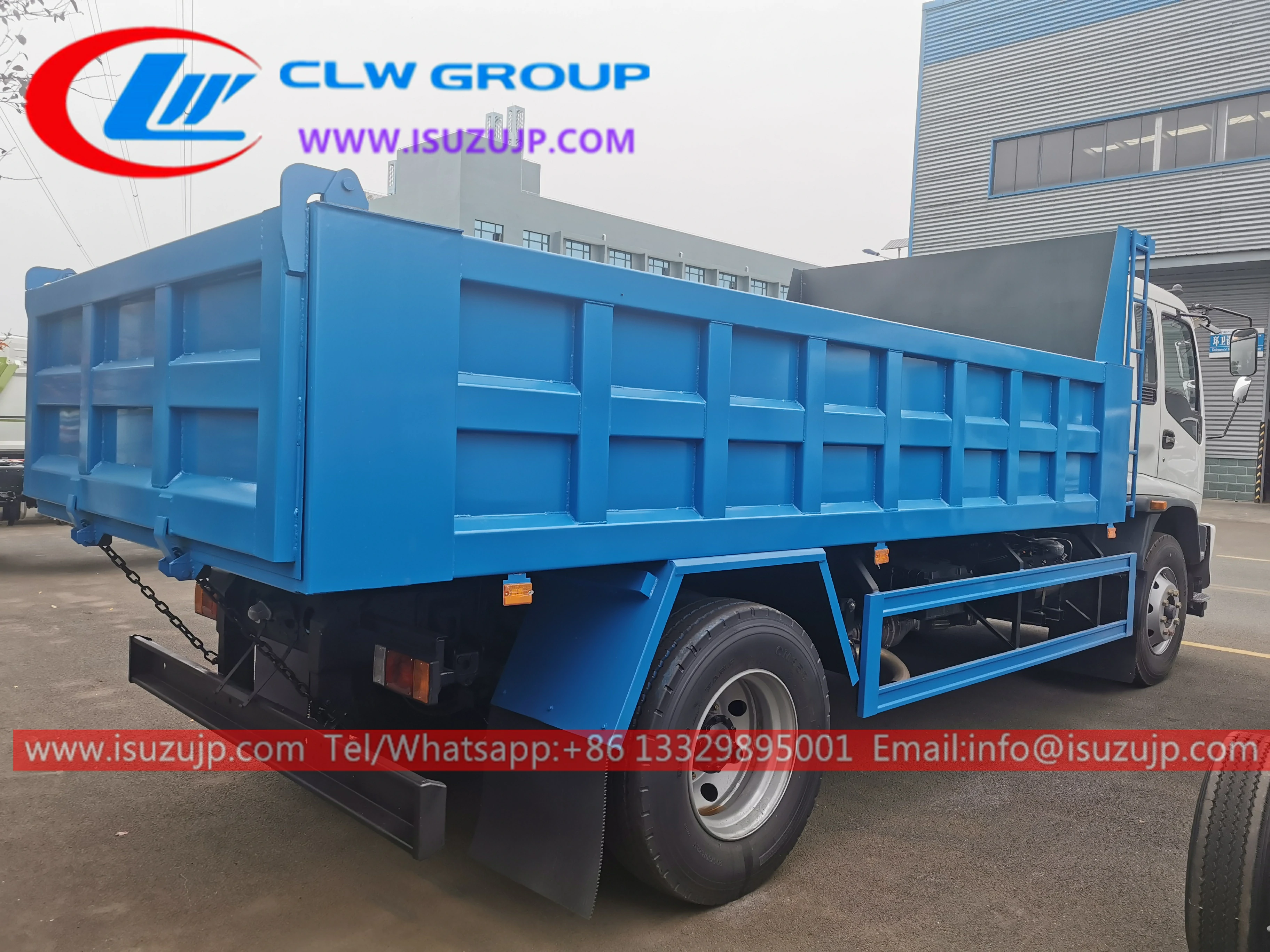

ISUZU FVR medium duty dump truck Description:
- ISUZU FVR medium duty dump truck also called dump truck, dump tipper, side-turn tipper, dump truck tipping, dumper, tip truck, tipper lorry.
- is a truck used for transporting loose material, such as sand, gravel, coal, dirt, etc.
- ISUZU dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front.
- Or hinged at side with hydraulic pistons to lift the side.
Advantage:
- ISUZU FVR heavy-duty chassis, perfect performance
- 6HK1 engine, super powerful; reliable performance, no overhaul within 100,000 km.
- Payload from 20ton to 100 tons.
- Easy operation and easy maintenance.
- Virious types of tipper bodies are available.
- High strength box body
- Excellent Chinese brand hydraulic piston
- The strong, durable, perfect performance
Specification:
| Model Name | ISUZU FVR medium duty dump truck for sale Philippines |
| Driving Type | 4×2,left hand drive |
| Weights | |
| Rated payload weight(kg) | 12000 |
| Curb weight(kg) | approx.6900 |
| Dimensions | |
| Wheelbase(mm) | 4500 |
| Overall Dimension(mm) | apprxo.7800×2500×2700 |
| Box dimension (mm) | 5200×2300×1200 |
| Max speed(km/h) | 95 |
| Engine | |
| Engine model | 4HK1-TC50 |
| Engine type | Inter-cooling,water-cooling,electrical control high-pressure , |
| No. of cylinders | straight-6 cylinders |
| Displacement(L)/power(kw) | 5.193L/151kw |
| Drive Line | |
| Transmission | MLD,6 forwards,1 reverse gear,manual operation |
| Brake | Oil brake with vacuum booster pump |
| Cab | |
| Air container | Have |
| Standard configuration | With power steering,cental lock,air brake.With A/C.electrical window. |
| Axle | |
| Front axle | 6.3 tons |
| Rear axle | 13 tons |
| Tire specification | |
| Tire specification | 9.00-20 standard tire,6 tires+1 spare tire |
| Tipper box | |
| Box valume(mm) | 5200×2300×1200 |
| Box material | reinforced Iron plate |
| box thickness(mm) | Bottom 8 mm,side 6 mm |
| Box lifting model | middle lifting |
| Other | |
| Electric system | 12V |
| Equipment | A tool box |
ISUZU Dumper truck Structure:
ISUZU tipper truck parts tools and instructions:
Factory Advantage:
- 17 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
construction sand rock transport truck shipping：
- Maximize save your sea freight.
- Professional guidance on your importing documents.
- Safe, fast and timely
Front lifting dump truck bulk order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
