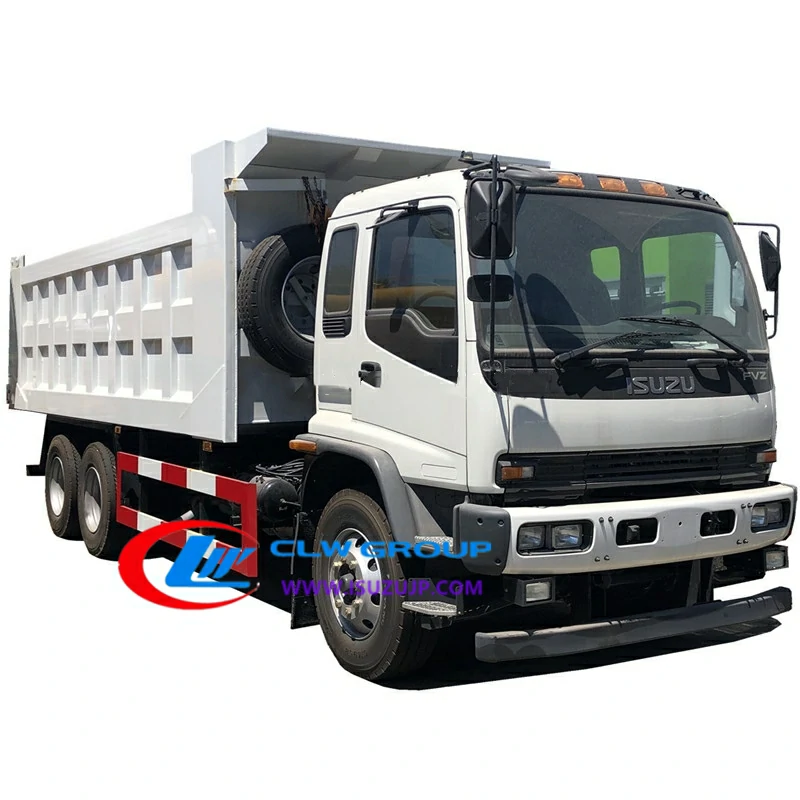

6X4 ISUZU FVZ 20 ton sand dump truck tipper Description:
- Isuzu 20m3 dump truck tipper also called dump truck, dump tipper, side-turn tipper, dump truck tipping, dumper, tip truck, tipper lorry, construction sand rock dump truck.
- is a truck used for transporting loose material, such as sand, gravel, coal, dirt, etc.
- ISUZU dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front.
- Or hinged at side with hydraulic pistons to lift the side.
- ISUZU FTR chassis, perfect performance
- 4HK1 engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Pay loading from 2ton to 100 tons.
- Easy operation and easy maintenance.
- Virious types of tipper body are available.
- High strength box body
- Excellent Chinese brand hydraulic piston
- Strong, durable, perfect performance
|6X4 ISUZU FVZ 20 ton sand dump truck tipper(18M3-24M3)|
|Chassis Brand||ISUZU FVZ|
|Overall Dimension||8500X2500X3500 mm|
|GVW / Kerb Weight||25,000kg / 12,250kg|
|Cab||Cab Capacity||3 persons allowed|
|Air Conditioner||Heating/cooling air conditioner|
|Power||300 HP (220 KW)|
|Emission Standard||Euro 5|
|Chassis||Drive Type||6X4, (left hand drive)|
|Transmission||FAST 9 speed levers with 1 reverse|
|Wheelbase/No. of axle||4000+1300 mm / 3|
|Tire Number||10 tires and 1 spare tire|
|Max Speed||95 km/h|
|Superstructure||Pay loading capacity||20 Tons|
|Thickness of cargo body||Bottom 8mm|
|Cylinder type||T Type or Domestic 180 or HYVA 150|
|Lifting system||Middle or Front|
|Control||in the cabin|
|Color & LOGO||According to wish|
|All standard accessories: All steel body with drop sides. Auto release removable trilgate.|
Ladder, warning lights, PTO
fire extinguisher, basic tool kit, English manual……
** Back alarm and Camera can be equipped.
** Other tipper body can be choose.
** Other material and plate thickness can be choose.
ISUZU Dumper truck Structure:
ISUZU tipper truck parts tools and instructions:
- 17 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
construction sand rock transport truck shipping：
- Maximize save your sea freight.
- Professional guidance on your importing documents.
- Safe, fast and timely
Front lifting dump truck bulk order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
