ISUZU FVR 15 ton dump truck Description:
- Isuzu tipper truck also called dump truck, dump tipper, side-turn tipper, dump truck tipping, dumper, tip truck, tipper lorry.
- is a truck used for transporting loose material, such as sand, gravel, coal, dirt, etc.

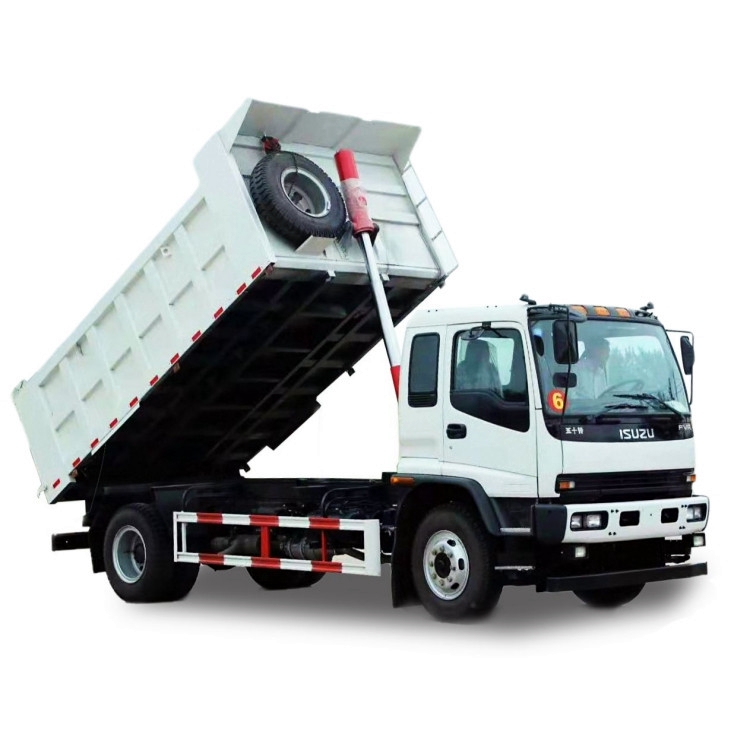

- ISUZU dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front.
- Or hinged at side with hydraulic pistons to lift the side.
Advantage:
- ISUZU FVR heavy duty chassis, perfect performance
- 6HK1 engine, super powerful; reliable performance, no overhaul within 100,000 km.
- Payloading from 20ton to 100 tons.
- Easy operation and easy maintenance.
- Virious types of tipper body are available.
- High strength box body
- Excellent Chinese brand hydraulic piston
- Strong, durable, perfect performance
ISUZU FVR 15 ton dump truck Specification:
| ISUZU FVR 15 ton dump truck | ||
| General | Vehicle Brand | CHENGLI |
| Chassis Brand | ISUZU | |
| Overall Dimension | 7800X2500X2980 mm | |
| GVW / Kerb Weight | 18,000kg /7,800kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | Heating/cooling air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | HINO P11C-UJ | |
| Power | 300 HP (220 KW)/240HP(176KW) | |
| Displacement | 7199 ml | |
| Emission Standard | Euro 5 or 6 | |
| Chassis | Drive Type | 4X2, (left hand drive) |
| Transmission | FAST 9 speed levers with 1 reverse | |
| Wheelbase/No. of axle | 4500 mm / 2 | |
| Tire Specification | 10.00-20 | |
| Tire Number | 6 tires and 1 spare tire | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure | Pay loading capacity | 10 Tons~15Tons |
| Cargo body | 4500*2300*1200 | |
| Thickness of cargo body | Bottom 6mm Side 5mm | |
| Cylinder type | T Type or Domestic 180 or HYVA 150 | |
| Lifting system | Front | |
| Control | in the cabin | |
| Color & LOGO | Accroding to wish | |
| All standard accessories: All steel body with drop sides. Auto release removable trilgate. Ladder, warning lights, PTO fire extinguisher, basic tool kit, English manual…… | ||
| Optional | ** Back alarm and Camera can be equipped. ** Other tipper body can be choose. ** Other material and plate thickness can be choose. | |
ISUZU Dumper truck Structure:
ISUZU tipper truck parts tools and instructions:
Factory Advantage:
- 17 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
construction sand rock transport truck shipping：
- Maximize save your sea freight.
- Professional guidance on your importing documents.
- Safe, fast and timely
Front lifting dump truck bulk order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
