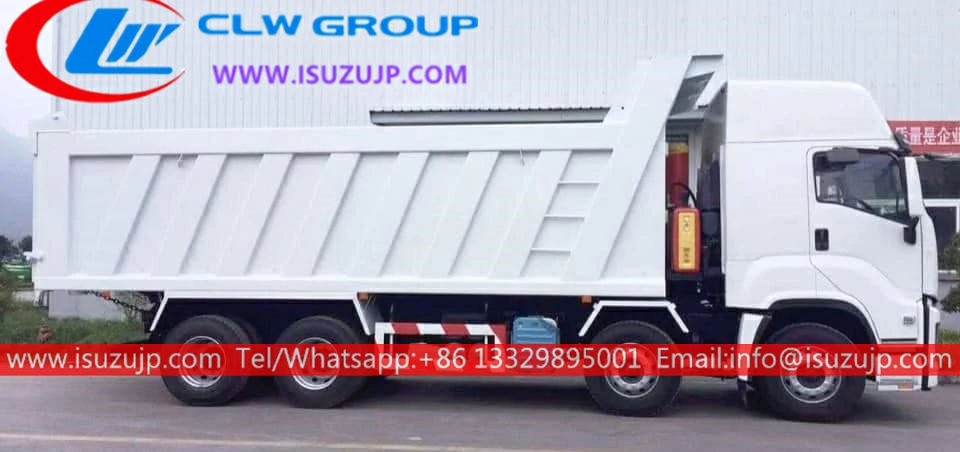

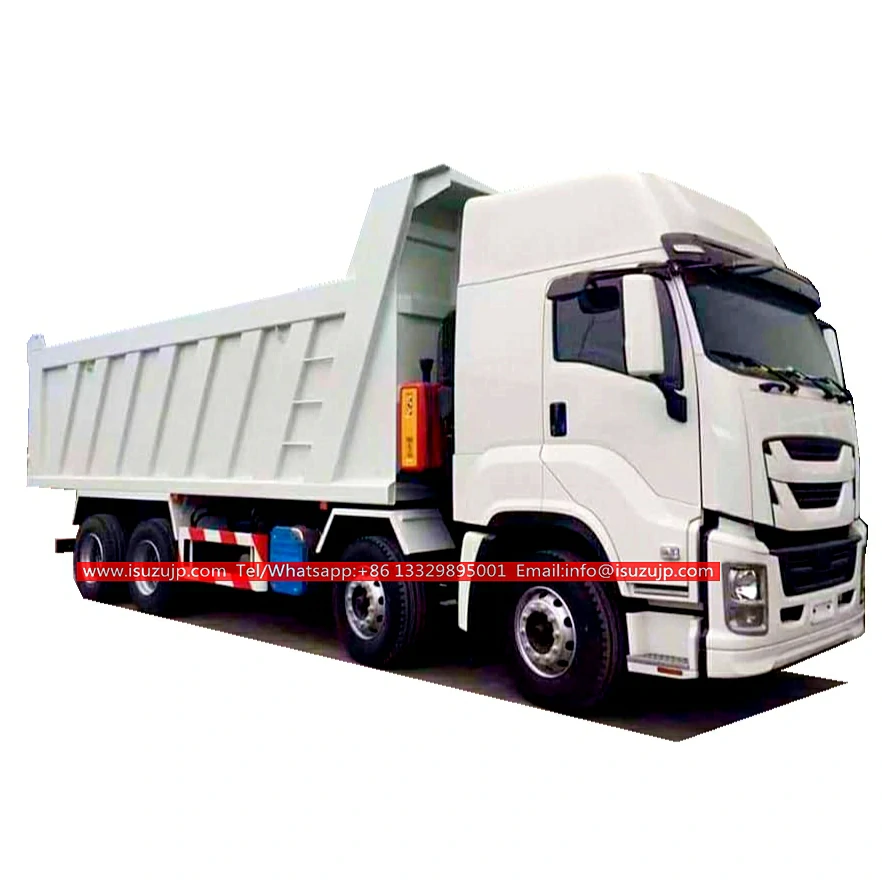

12 wheel Isuzu Giga 40T tipper lorry Description:
- Isuzu 40T tipper lorry also called dump truck, dump tipper, side-turn tipper, dump truck tipping, dumper, tip truck, tipper lorry, construction sand rock dump truck.
- is a truck used for transporting loose material, such as sand, gravel, coal, dirt, etc.
- ISUZU dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front.
- Or hinged at the side with hydraulic pistons to lift the side.
Advantage:
- 8X4 ISUZU GIGA chassis, perfect performance
- 6HK1 engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Pay loading from 2ton to 100 tons.
- Easy operation and easy maintenance.
- Various types of tipper bodies are available.
- High strength box body
- Excellent Chinese brand hydraulic piston
- The strong, durable, perfect performance
Specification:
| 12 wheel Isuzu Giga 40T tipper lorry for sale | ||
| General | Vehicle Brand | CHENG LI |
| Chassis Brand | ISUZU | |
| Overall Dimension | 9900x2550x3600mm | |
| GVW / Kerb Weight | 35,000 kg / 16,800 kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | With air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine | |
| Power | 450 Hp (331 KW) | |
| Displacement | 12089 ml | |
| Emission Standard | Euro V | |
| Chassis | Drive Type | 8X4 left-hand drive |
| Transmission | 12-speed front, 1 reverse | |
| Wheelbase/No. of axle | 1800+3320+1300 mm / 4 | |
| Tyre Specification | 11.00R20 | |
| Tire Number | 12 tires and 1 spare tire | |
| Max Speed | 90 km/h | |
| Paint | Metallic paint | |
| Superstructure | Box Volume | 30 m³ |
| Box Dimension | 6500X2300X1400 mm | |
| Box Thickness | Sideboard: 8 mm; Floor: 10 mm | |
| All other standard accessories: Tool kit, English manual… | ||
| Optional | Box thickness could be nominated. Box height could be nominated. Tip way: back or side. | |
ISUZU Dumper truck Structure:
ISUZU tipper truck parts tools and instructions:
Factory Advantage:
- 17 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
construction sand rock transport truck shipping：
- Maximize save your sea freight.
- Professional guidance on your importing documents.
- Safe, fast and timely
Front lifting dump truck bulk order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
