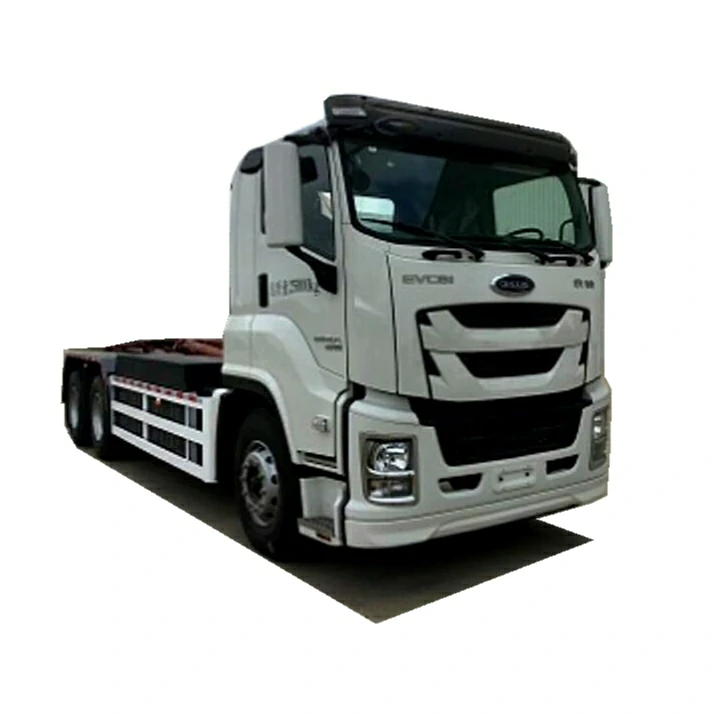

ISUZU GIGA 18m3 roll off dumpster truck Description:
- Isuzu roll off dumpster truck is designed to collect and transport municipal solid waste, widely used in residence community, hospital, municipal environmental section, garbage collection and transportation station, etc.
- loading capacity can range from 1ton to 22tons, etc.
Advantage:
- ISUZU GIGA chassis, perfect performance
- ISUZU engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Rational design of hook boom and locking structure make the action of hook lift much more reliable;
- Safety devices: loading balance valve, double hydraulic lock valve, safety controlling valve, and locking structure of container by hydraulic;
- A rear support device is available.
- Hook loader garbage container body capacity from 1 to 22 Cubic meters.
- Rational design of hook and locking structure, and truck more reliable.
- Optional Electrical Control in the cabin, easy operation, and easy maintenance.
- Various types of refuse container lifters are available.
Specification:
| ISUZU GIGA 18m3 roll off dumpster truck for sale | ||
| General | Vehicle Brand | CHENGLI |
| Chassis Brand | ISUZU GIGA | |
| Overall Dimension | 9500X2400X3000 mm | |
| GVW / Kerb Weight | 25,800kg / 10,200kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | Heating/cooling air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU | |
| Power | 350 HP (257 KW) | |
| Displacement | 9899 ml | |
| Emission Standard | Euro 5 | |
| Chassis | Drive Type | 6×4, (left hand drive) |
| Transmission | 12 speed levers with 1 reverse | |
| Wheelbase/No. of axle | 4350+1300 mm / 2 | |
| Tire Specification | 1100-20 | |
| Tire Number | 6 tires and 1 spare tire | |
| Max Speed | 90 km/h | |
| Paint | Metallic paint | |
| Superstructure | Lift Capacity | 18 Tons |
| Max dump angle | 51° | |
| Garbage bin volume | 4 cubic meters | |
| Hydraulic system pressure | 16 MPa | |
| Garbage bin material | Carbon steel | |
| Control | Hydraulic Manual | |
| Discharge method | Rear dumping | |
| All standard accessories: Warning lights, music alarm, basic tool kit, English manual | ||
| Optional | The backup alarm can be equipped. Other vacuum pumps can be equipped. Operation language can be English or Appointed language. | |
Working parameter:
| Box time | Less than 15 seconds | Roller material | Cast iron or forged steel |
| Unboxing time | Less than 15 seconds | Control method | Electronic control + manual |
| Dump time | Less than 10 seconds | Operating position | Cab + car side |
New craft:
Roll on roll off garbage truck Optional configuration:
detachable garbage truck detailed images:
carriage removable garbage truck Structure diagram:
Detail drawing:
Common garbage truck style:
Operating procedures:
Garbage collection vehicle tools and instructions：
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
rubbish collection vehicle Factory Advantage:
- 16 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
refuse transfer truck Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
refuse compactor truck shipping：
- Maximize your shipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
Isuzu Truck order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
