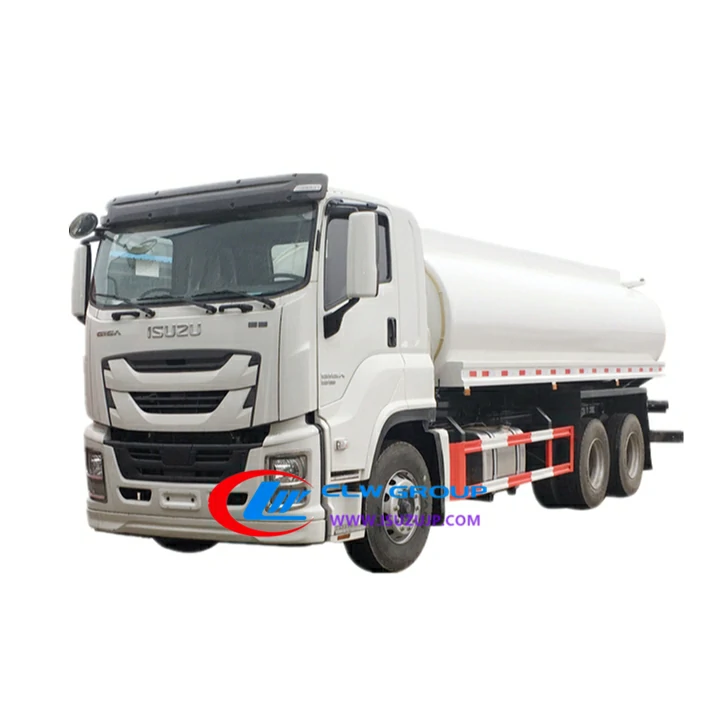

ISUZU GIGA 25000liters water tank lorry Application:
- Isuzu water tank lorry (also called water tank truck, water spray truck, water transport truck, water hauling truck, truck tanker for drinkable water tanker, water tanker for truck) is used to transport and supply water, whatever industrial or agriculture water, widely used in construction engineering, farm irrigation, drought relief, etc.
- With non-toxic treatment inside tank or tank made of stainless steel, the water tank truck can be suitable for transporting drinking water, called as potable water tanker, drinking water tanker, stainless steel water tanker, aqua potable, safe to human body.
- Water tanker can also be equipped with special sprayers to achieve front flush, rear sprinkle, side spray to sprinkle and clean the roads, streets for environmental sanitation and protection, called as water sprinkler, water spray truck.
- With rear working platform and high cannon, the water lorry can also be used to water the plants, eve high trees in virescence, called as watering truck.
- Water bowser can be also equipped with pesticide spraying machine, to be used to spray pesticide in agriculture pest control field.
Advantage:
- 10 wheel ISUZU GIGA chassis, perfect performance
- ISUZU engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Nice shape, rational structure
- Water pump super powerful, efficient pump in and out
- Strong, durable, perfect performance
- Prolonged service life
Specification:
| ISUZU GIGA 25000liters water tank lorry (25,000L) | ||
| General | Vehicle Brand | CHENGLI |
| Chassis Brand | ISUZU | |
| Overall Dimension | 10900X2500X3250 mm | |
| GVW / Kerb Weight | 28,000kg / 12,800kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | Heating/cooling air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU | |
| Power | 380 HP (279 KW) | |
| Displacement | 9839 ml | |
| Emission Standard | Euro V | |
| Chassis | Drive Type | 6X4, (left hand drive) |
| Transmission | FAST 12 speed levers with 1 reverse | |
| Wheelbase/No. of axle | 4350+1300 mm / 3 | |
| Tire Specification | 11.00-20 | |
| Tire Number | 10 tires and 1 spare tire | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure | Tank Capacity | 25,000 Liters |
| Tank shape | Ellipse or Square | |
| Material | Carbon steel, 5mm | |
| Body Material | Whether resisting steel | |
| Water pump | China famous brand | |
| Loading type | Self loading | |
| Front spray bar | YES | |
| Rear spray bar | YES | |
| Water Canon | 28 meters | |
| Fire coupling | Standard | |
| Control | Manual (Optional air operated) | |
| Control panel | English or Your language | |
| All standard accessories: Warning lights, music alarm, basic tool kit, English manual…… | ||
| Optional | Backup alarm can be equipped. Camera can be equipped. Operation language can be English or Appointed language. | |
Working parameter:
| Front nozzle | 15 meters hedge, optional duckbill forward | Tank material | Carbon steel Q345/stainless steel 304 |
| Rear sprinkler | Fan-shaped sprinkler, more than 20 square | Thickness of tank | 4-6 mm |
| Car side nozzle | Sprinkler water, more than 6 meters | Tank shape | Square, square, oval |
| Green anti-aircraft gun | Water column 28 meters, adjustable large, medium and light rain | In-tank treatment | Standard anti-rust coating, can be used for anti-acid alkali polyurea epoxy treatment |
| Water pump brand | International well-known brand pump | Water way | Self-priming water, fire water injection, tank top water injection |
| Optional configuration | Cab electrical control, cab display cursor level gauge, sprayer, detachable snow shovel and snow roll device, front guardrail cleaning device | ||

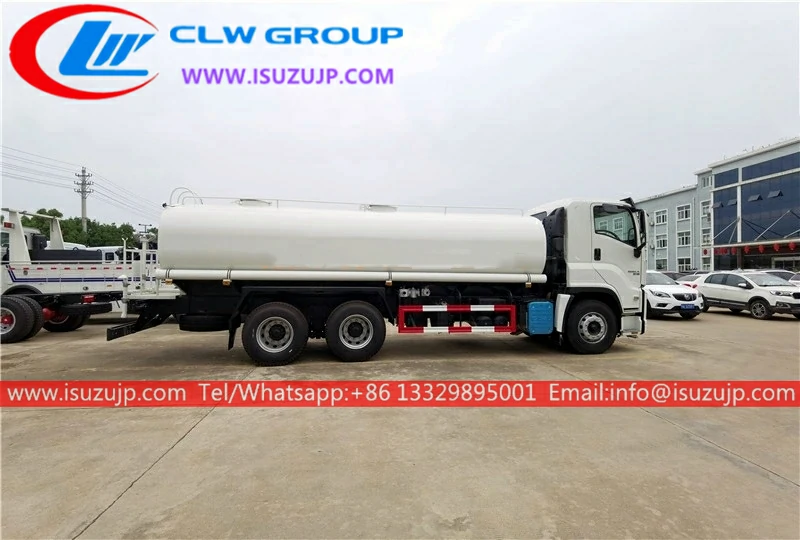

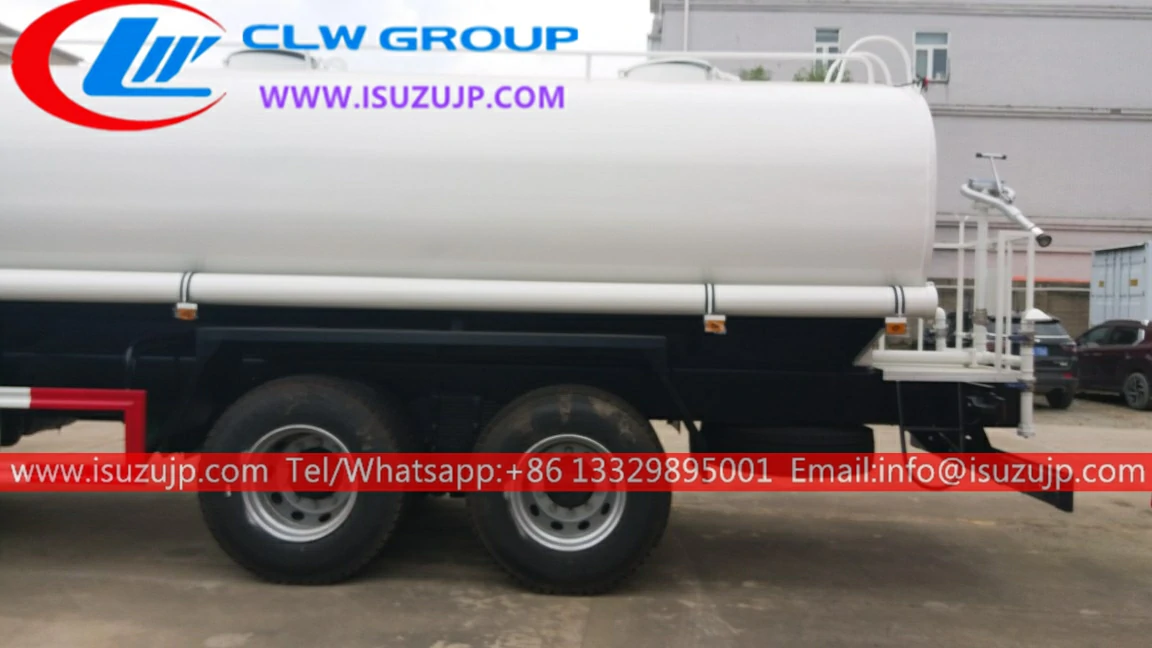

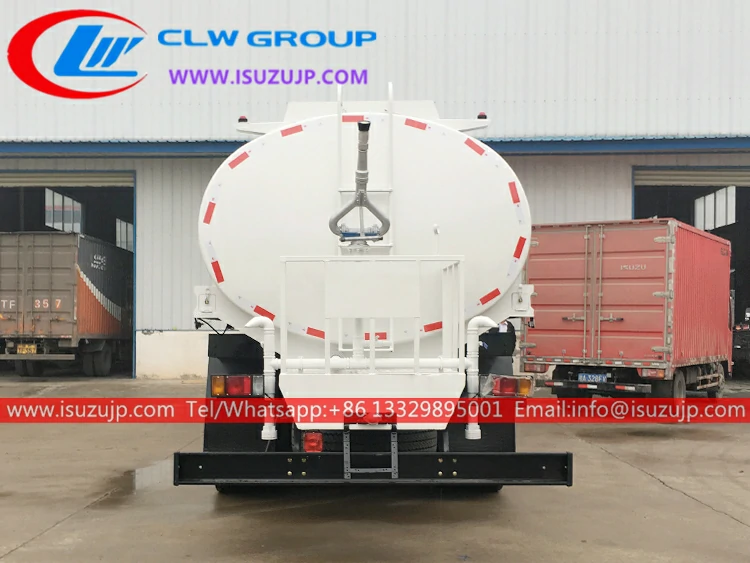

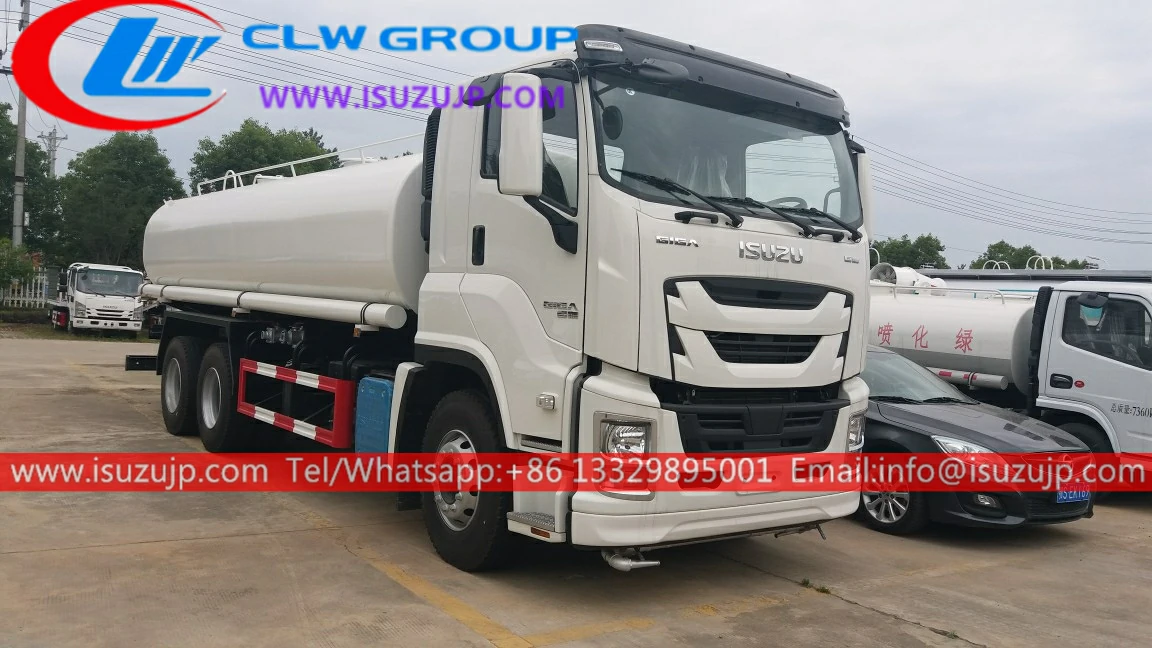

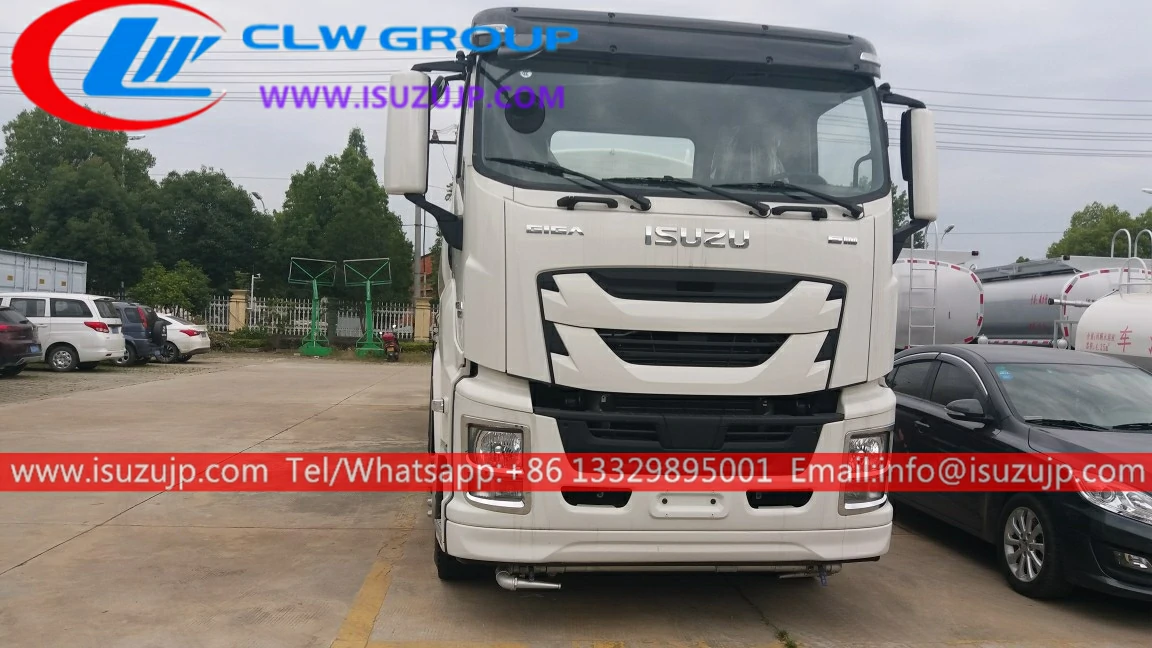

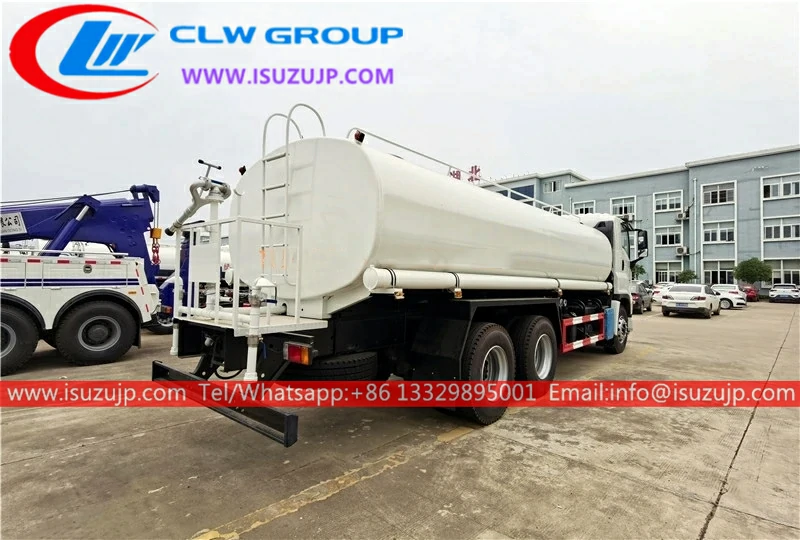

Isuzu water tanker truck structure picture:
water tank truck Optional configuration:
Water bowser technical training support:
Truck parts：
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
water sprinkler truck Factory Advantage:
- 16 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Export Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
water carrier truck shipping：
- Maximize your shipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
Bulk order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
