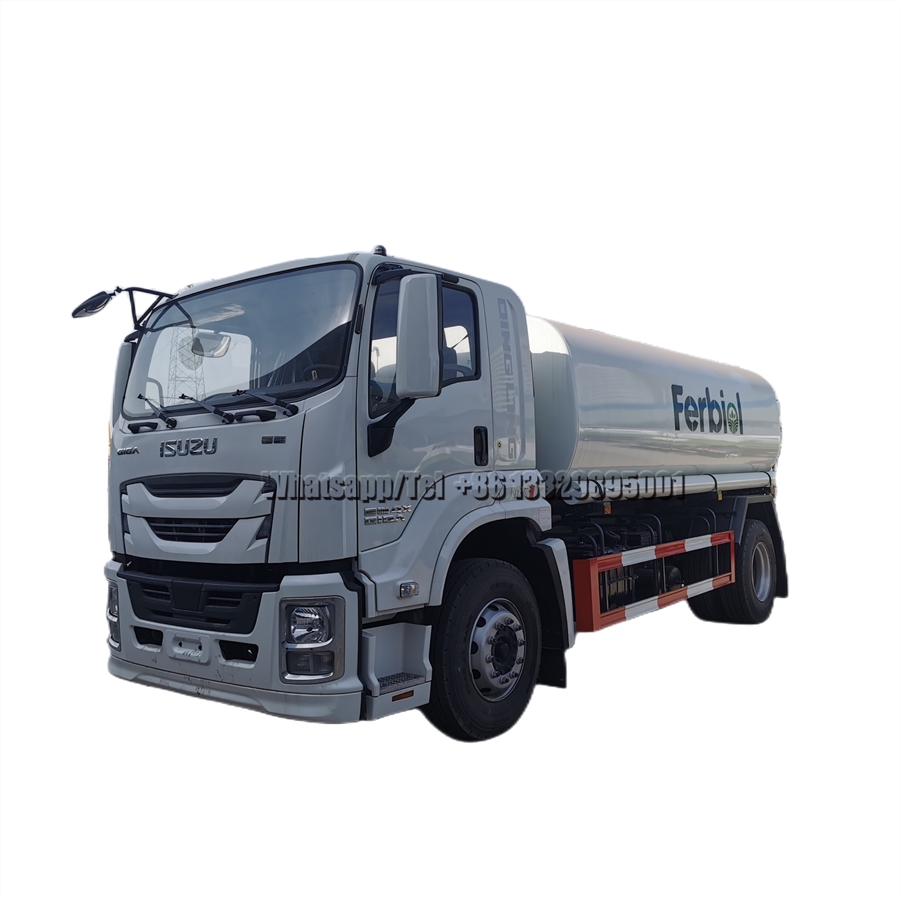

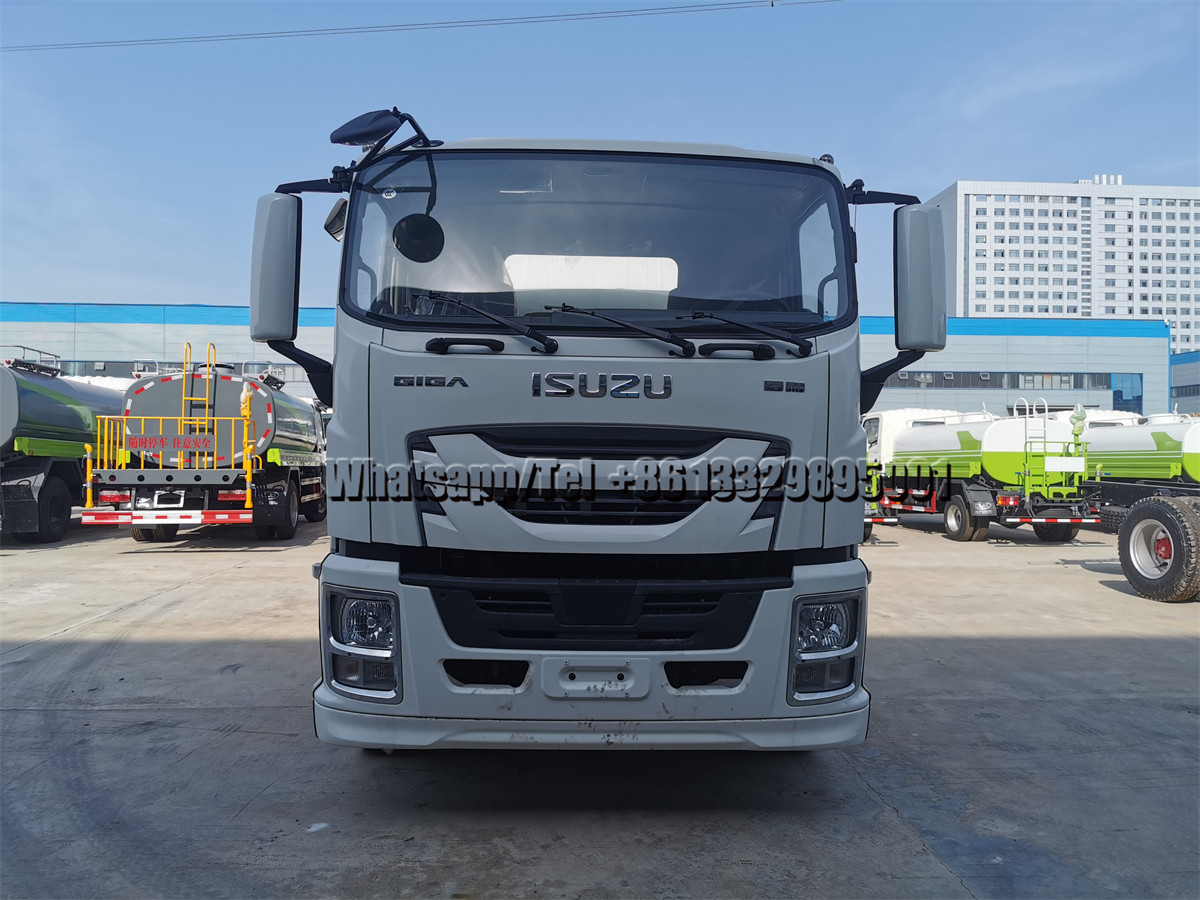

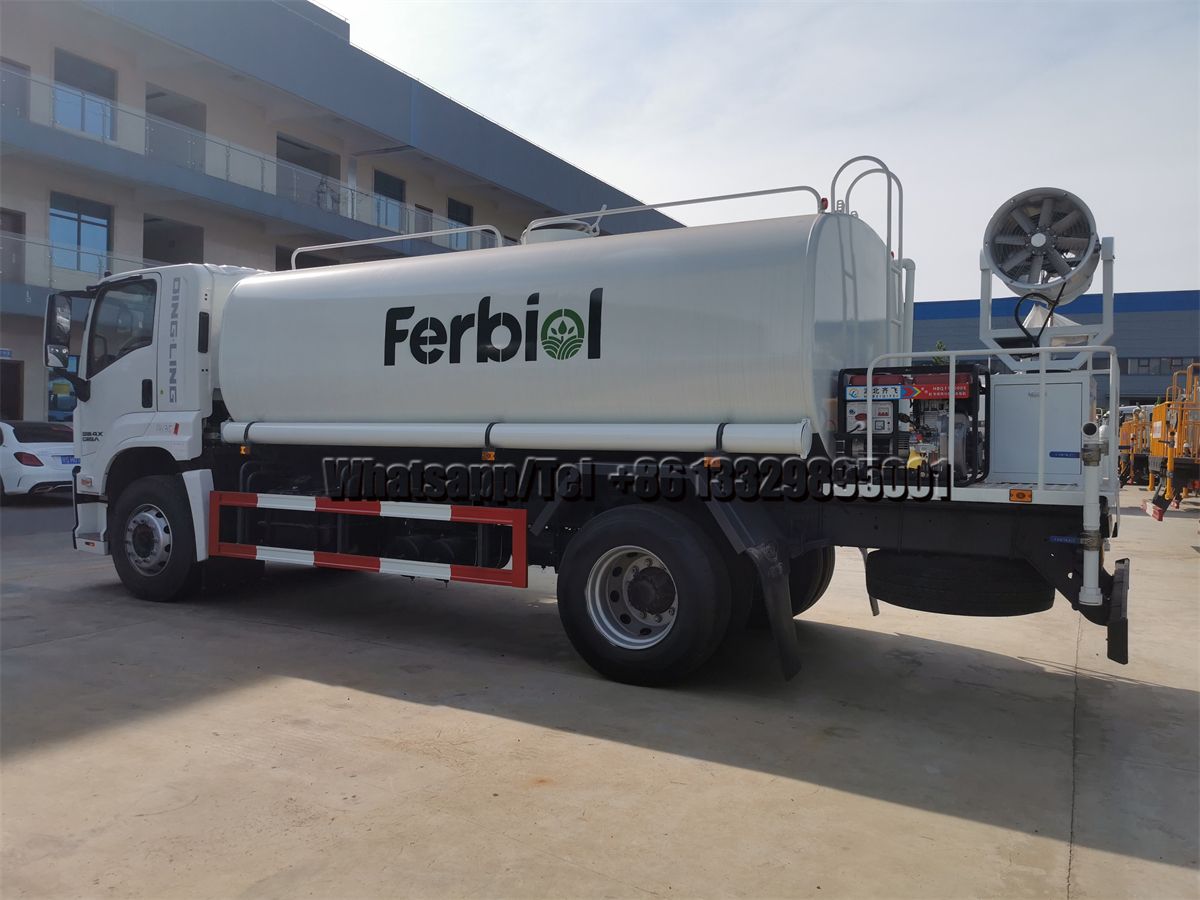

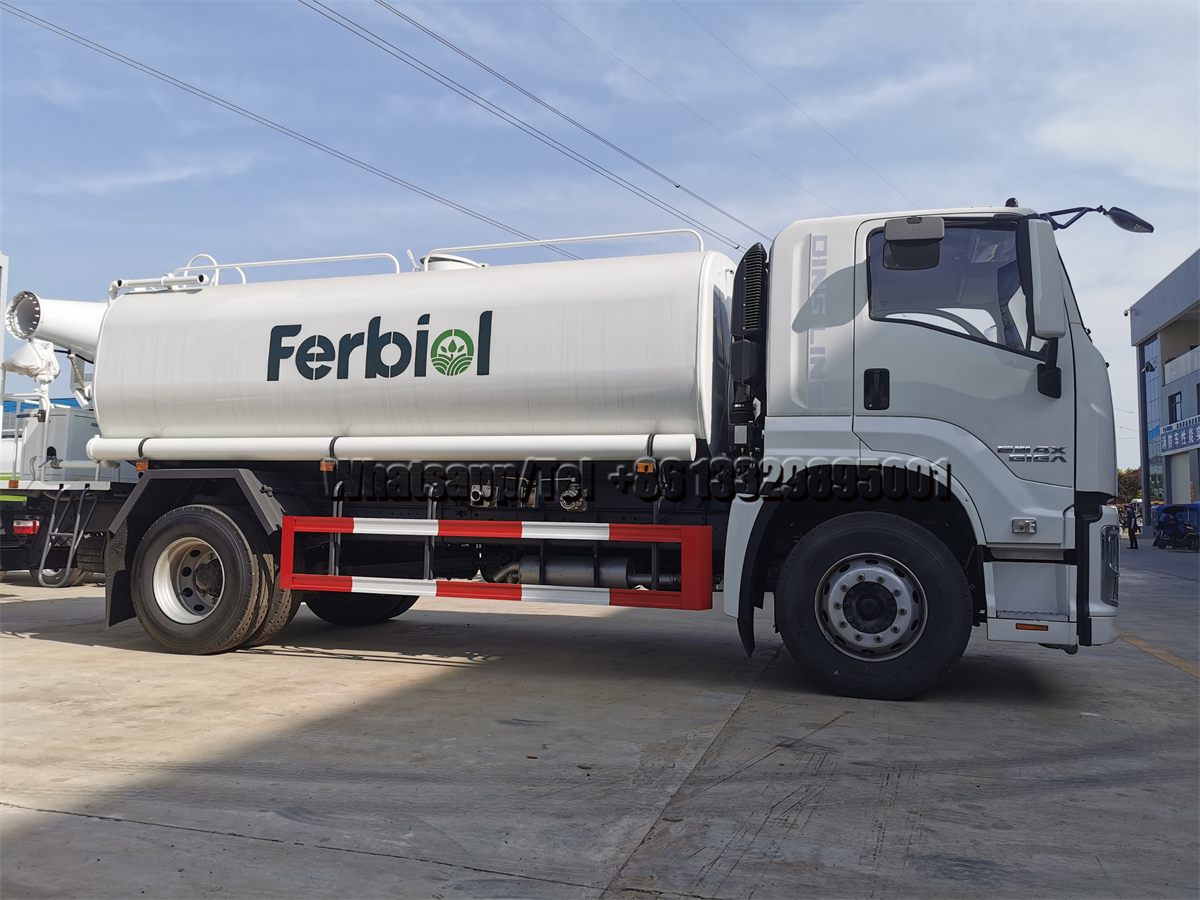

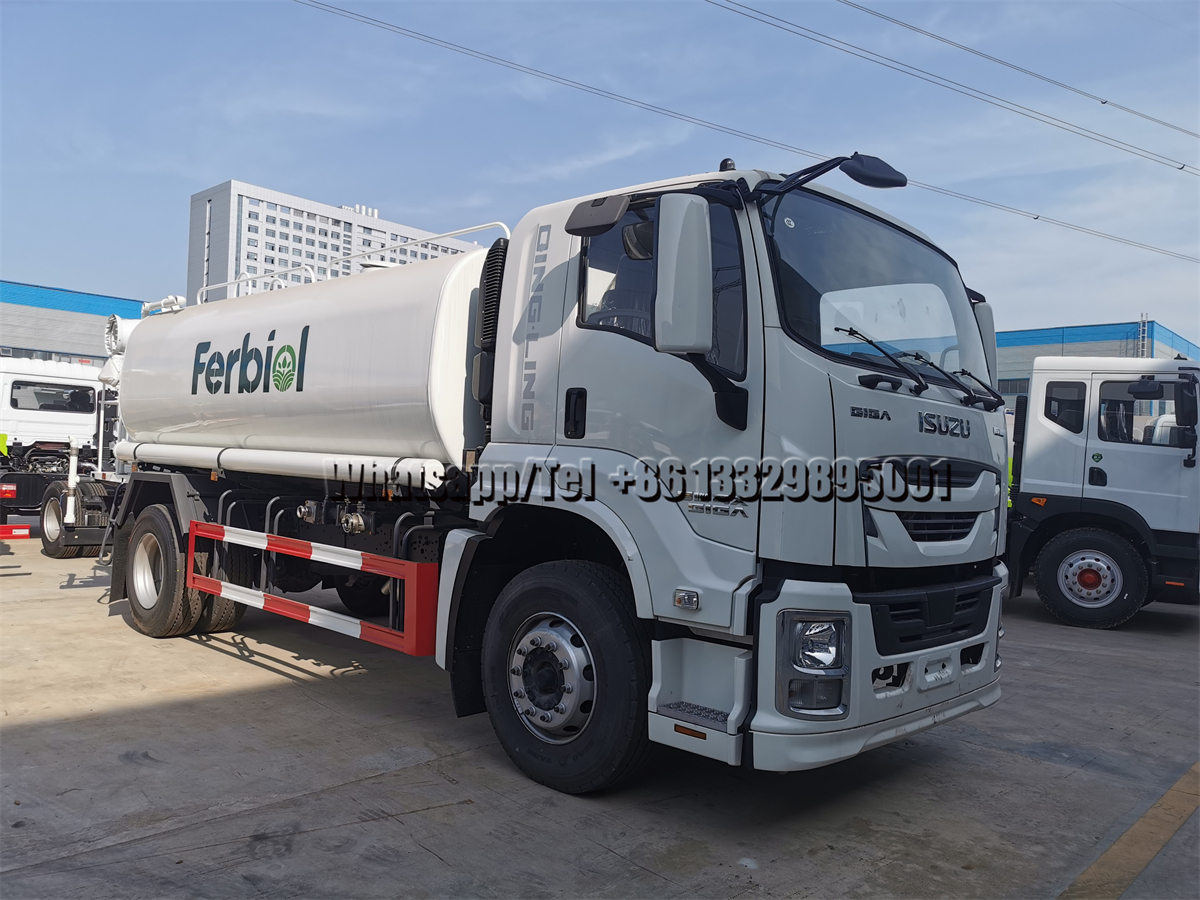

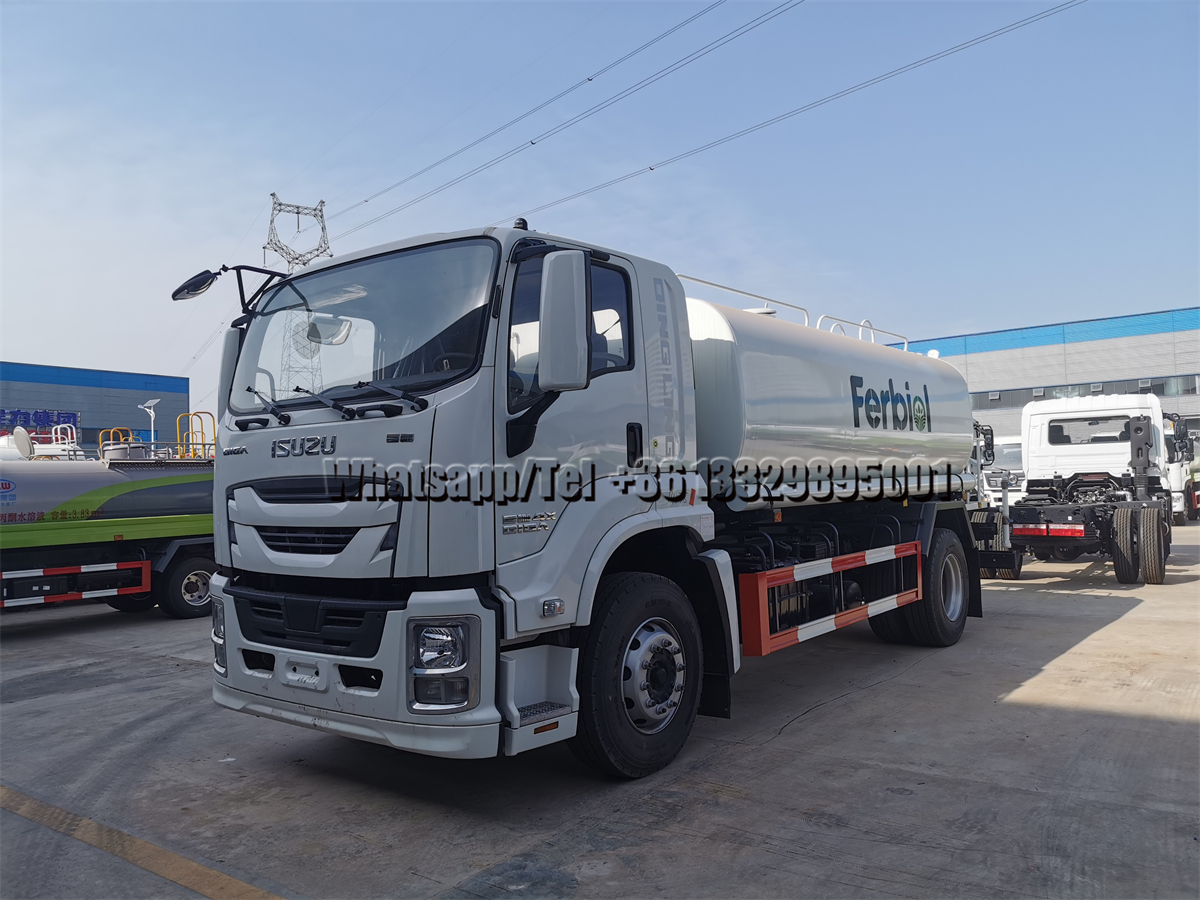

6 tyre Isuzu GIGA 12 ton water tank truck Application:
- 6 tyre Isuzu GIGA 12 ton water tank truck (also called water tank truck, water spray truck, water transport truck, water hauling truck, truck tanker for a drinkable water tanker, water tanker for the truck) is used to transport and supply water, whatever industrial or agriculture water, widely used in construction engineering, farm irrigation, drought relief, etc.
- With non-toxic treatment inside a tank or tank made of stainless steel, the water tank truck can be suitable for transporting drinking water, called a potable water tanker, drinking water tanker, stainless steel water tanker, agua potable, safe to the human body.
- Water tankers can also be equipped with special sprayers to achieve front flush, rear sprinkle, and side spray to sprinkle and clean the roads, and streets for environmental sanitation and protection, called water sprinklers, or water spray trucks.
- With a rear working platform and high cannon, the water lorry can also be used to water the plants, eve high trees in virescence, called as watering truck.
- Water bowser can be also equipped with a pesticide spraying machine, to be used to spray pesticides in the agriculture pest control field.
Advantage:
- ISUZU GIGA chassis, perfect performance
- ISUZU engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Nice shape, rational structure
- Water pump super powerful, efficient pump in and out
- The strong, durable, perfect performance
- Prolonged service life
Specification:
| Mian Technology Parameter | |
| Model Name | 6 tyre Isuzu GIGA 12 ton water tank truck on sale in saudi arabia |
| Driving Type | 4×2, left-hand drive |
| Color | White, and yellow, boxes can choose |
| Weights | |
| Rated payload weight(kg) | 12000 |
| Curb weight(kg) | 6800 |
| Dimensions | |
| Wheelbase(mm) | 4500 |
| Overall Dimension(mm) | 8000×2500×3000 |
| Box dimension | 12000L(3000 gallon) |
| Max speed(km/h) | 100 |
| Engine | |
| Engine model | 4HK1-TCG60(250HP) |
| Engine type | 4 stroke water-cooled,inter-cooling |
| No. of cylinders | straight-4 cylinders |
| Displacement(L) | 5.199L |
| Max. output (kw) | 151kw |
| Drive Line | |
| Transmission | MLD 6 speeds,6 forwards,1 reverse gear, manual operation |
| Steering | Power steering |
| Brake | Ail brake OR air brake |
| Cab | |
| Cabin | Isuzu GIGA |
| Standard configuration | with A/C, oil brake with vacuum booster pump, power steering |
| Axle | |
| Front axle | 6tons |
| Rear axle | 13 tons |
| Tire specification | |
| Tire specification | 10.00R20 standard tire,6 tires+1 spare tire |
| Water truck | |
| Water tanker material | Of high-quality carbon steel (Q235). |
| Introduction | 1. Suction≥7m Sprinkler width≥14m Range≥28m |
| 2. with front spout, back spill, and side spout function | |
| 3. with the working platform at the back, which can be installed a green high-pressure water spray gun. (The spray gun shape can be adjustable: heavy rain, moderate rain, drizzling rain, or haze.) | |
| 4. Provide the best high-power sprinkle pumps quality of the national, And with fire coupling, self-flow add self-priming function. | |
| Manhole | Man way access hole on top of the tank;1 unit DN500mm manhole |
| Horse reels | Two hose reels at each side of the truck |
| Water pump | Water pump model: CLW80QZF-60/90N (N/S) |
| Water pump flow rate(L/m): 60m3/h | |
| Head of delivery(m): 90m | |
| Self-priming function(min/4m):1.5 | |
| Efficiency(%):95% | |
| Related rotate speed(r/min)1180 | |
| matched power(kW):22 | |
Working parameter:
| Front nozzle | 15 meters hedge, optional duckbill forward | Tank material | Carbon steel Q345/stainless steel 304 |
| Rear sprinkler | Fan-shaped sprinkler, more than 20 square | Thickness of tank | 4-6 mm |
| Car side nozzle | Sprinkler water, more than 6 meters | Tank shape | Square, square, oval |

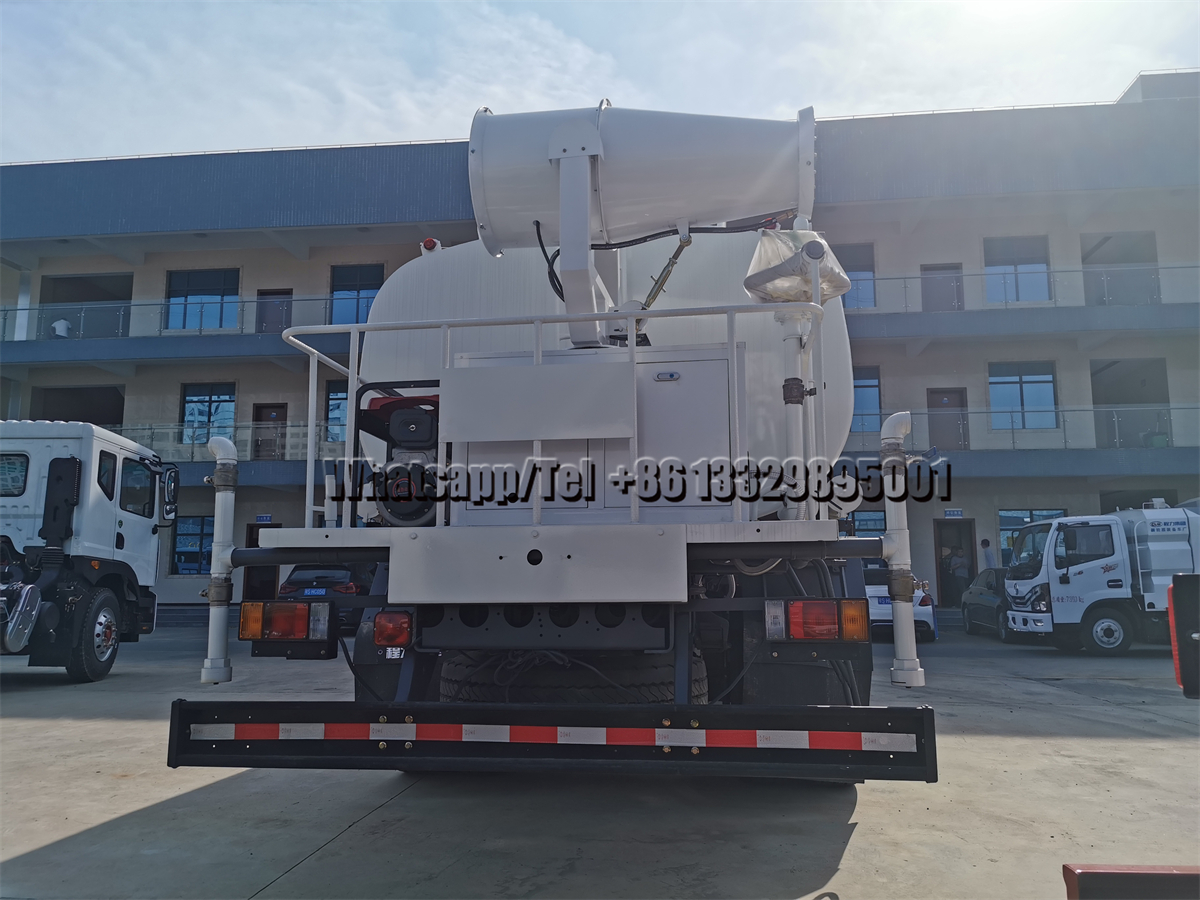

| Green anti-aircraft gun | Water column 28 meters, adjustable large, medium and light rain | In-tank treatment | Standard anti-rust coating, can be used for anti-acid alkali polyurea epoxy treatment |
| Water pump brand | International well-known brand pump | Water way | Self-priming water, fire water injection, tank top water injection |
| Optional configuration | Cab electrical control, cab display cursor level gauge, sprayer, detachable snow shovel and snow roll device, front guardrail cleaning device | ||
Isuzu water tanker truck structure picture:
water tank truck Optional configuration:
Water bowser technical training support:
Truck parts：
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
water sprinkler truck Factory Advantage:
- 16 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Export Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
water carrier truck shipping：
- Maximize your shipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
Bulk order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
