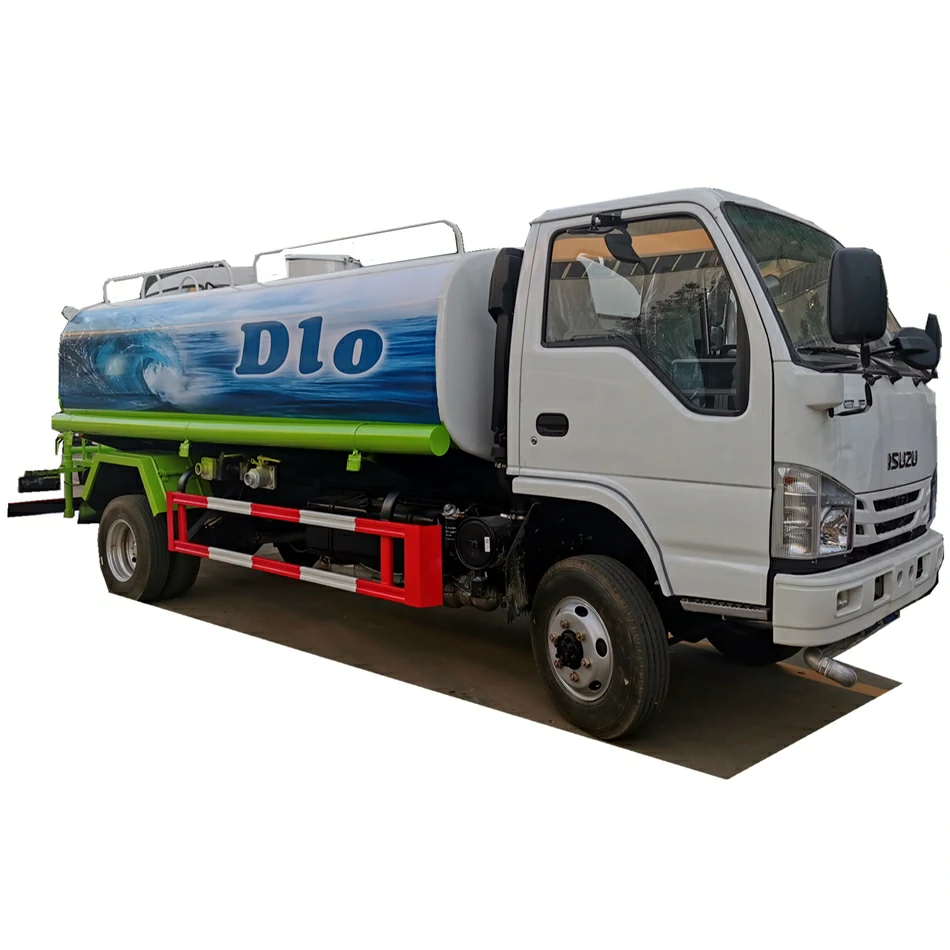

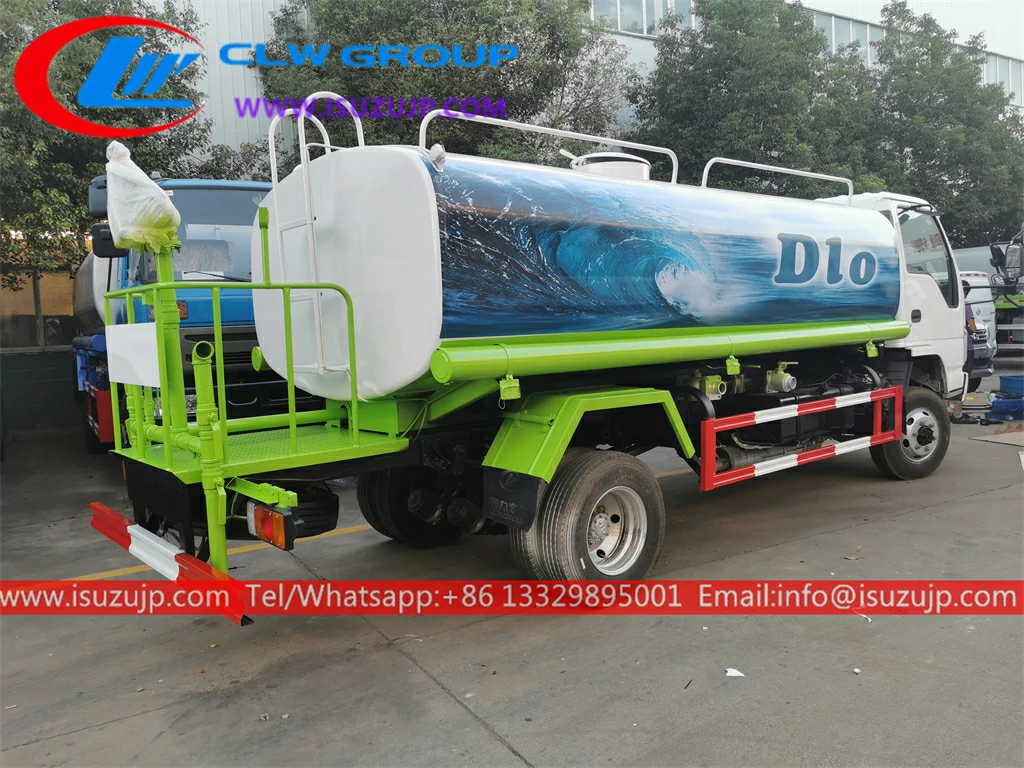

4WD Isuzu NJR 8000liters water tank lorry Application:
- Isuzu water tank lorry (also called water tank truck, water spray truck, water transport truck, water hauling truck, truck tanker for a drinkable water tanker, water tanker for the truck) is used to transport and supply water, whatever industrial or agriculture water, widely used in construction engineering, farm irrigation, drought relief, etc.
- With non-toxic treatment inside tank or tank made of stainless steel, the water tank truck can be suitable for transporting drinking water, called a potable water tanker, drinking water tanker, stainless steel water tanker, agua potable, safe to the human body.
- Water tankers can also be equipped with special sprayers to achieve front flush, rear sprinkle, side spray to sprinkle and clean the roads, streets for environmental sanitation and protection, called a water sprinkler, water spray truck.
- With a rear working platform and high cannon, the Water lorry can also be used to water the plants, even high trees in virescence, called a watering truck.
- Water bowser can be also equipped with a pesticide spraying machine, to be used to spray pesticide in agriculture pest control field.
Advantage:
- ISUZU NJR chassis, perfect performance
- ISUZU engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Nice shape, rational structure
- Water pump super powerful, efficient pump in and out
- The strong, durable, perfect performance
- Prolonged service life
Specification:
| Complete Vehicle Parameter | |
| Vehicle | 4WD Isuzu NJR 8000liters water tank lorry |
| Overall dimensions (mm) | 6800x 2300 x 2600 |
| Water tank volume (L) | 8000 |
| Gross Vehicle Weight (kg) | Appro × 11800 |
| Net weight (kg) | Appro × 3800 |
| Loading (kg) | Appro × 8000 |
| Wheelbase (mm) | 3815 |
| Max speed (Km/h) | 99 |
| Chassis Parameter | |
| Cabin | Single row cabin, power steering, air conditioner, 2-3 passengers, left-hand drive. |
| Drive form | 4×2 |
| Engine | Brand: ISUZU Model: 4JB1CN Engine power: 120hp Fuel type: diesel. Displacement : 2999ml Emission standard: Euro 6 |
| Transmission | 5 forward,1 reverse, manual operated |
| Tire model | 7.00R16 |
| No.of tires | 6pcs, with a spare tire |
| Superstructure Parameter | |
| Characteristics | 1) Carbon steel material water tank, thickness 5mm. 2) water pump. 3) rear working platform. 4) suction pipe. 5) Fire connector. 6) gravity valve. |
| Special performance | Front and rear spraying water. Left and right side spraying water. The platform has a sprinkler, spraying water. The water column can be adjusted into the mist Width of spraying water : ≥14m. Distance of spraying water : ≥28m. Vertical suction 6-8 m. Drainage time <5min, flow rate 90m3/h. |
| Applicable scope | For a variety of road cleaning City green sanitation Trees, green belt and lawn watering High altitude building rinse |
Working parameter:
| Front nozzle | 15 meters hedge, optional duckbill forward | Tank material | Carbon steel Q345/stainless steel 304 |
| Rear sprinkler | Fan-shaped sprinkler, more than 20 square | Thickness of tank | 4-6 mm |
| Car side nozzle | Sprinkler water, more than 6 meters | Tank shape | Square, square, oval |
| Green anti-aircraft gun | Water column 28 meters, adjustable large, medium and light rain | In-tank treatment | Standard anti-rust coating, can be used for anti-acid alkali polyurea epoxy treatment |
| Water pump brand | International well-known brand pump | Water way | Self-priming water, fire water injection, tank top water injection |
| Optional configuration | Cab electrical control, cab display cursor level gauge, sprayer, detachable snow shovel and snow roll device, front guardrail cleaning device | ||

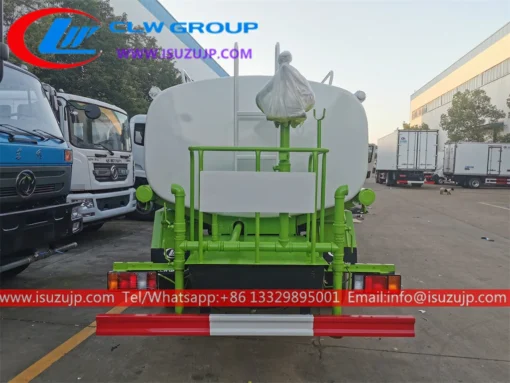

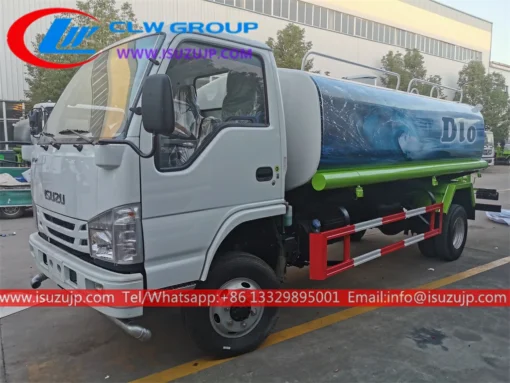

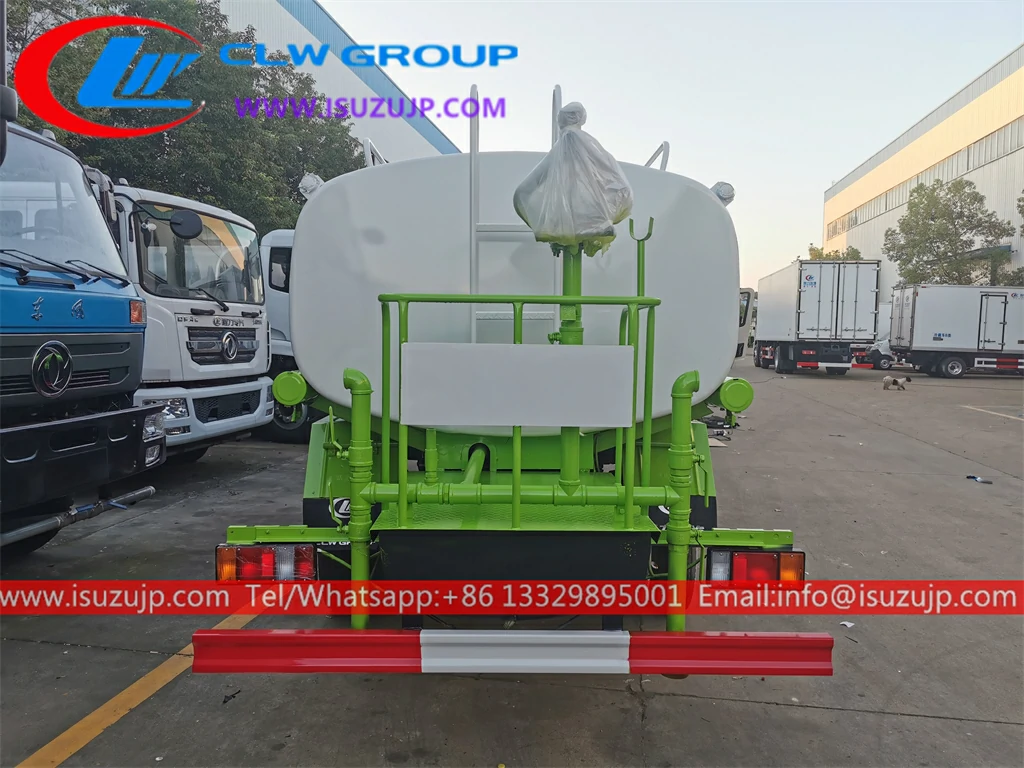

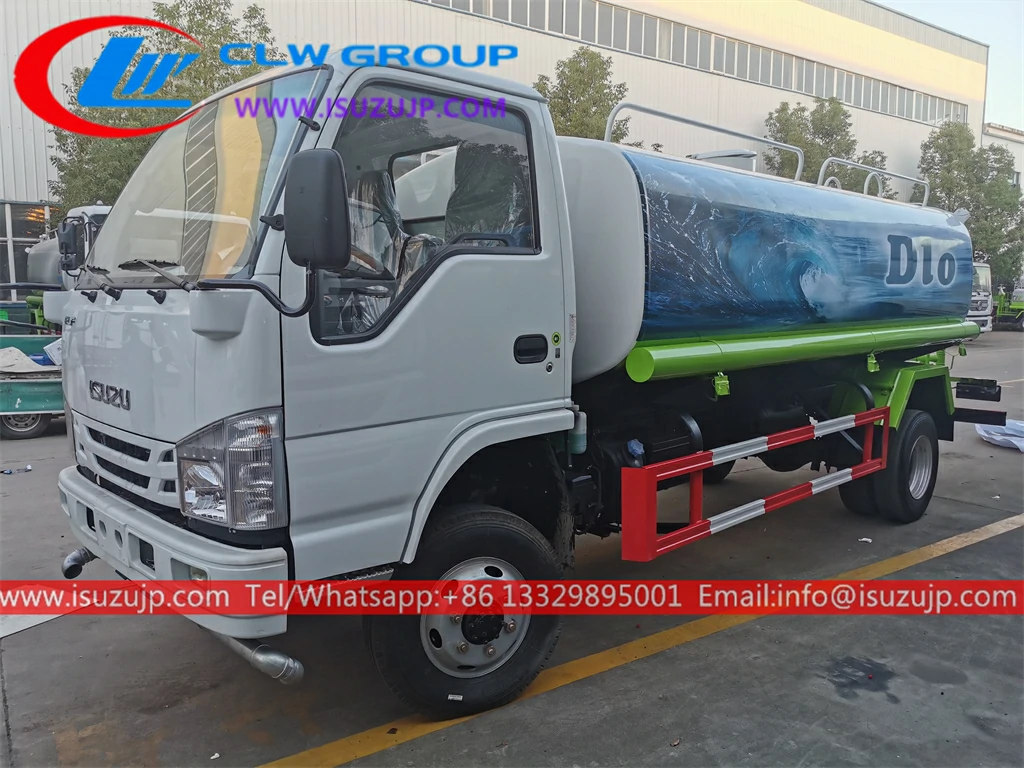

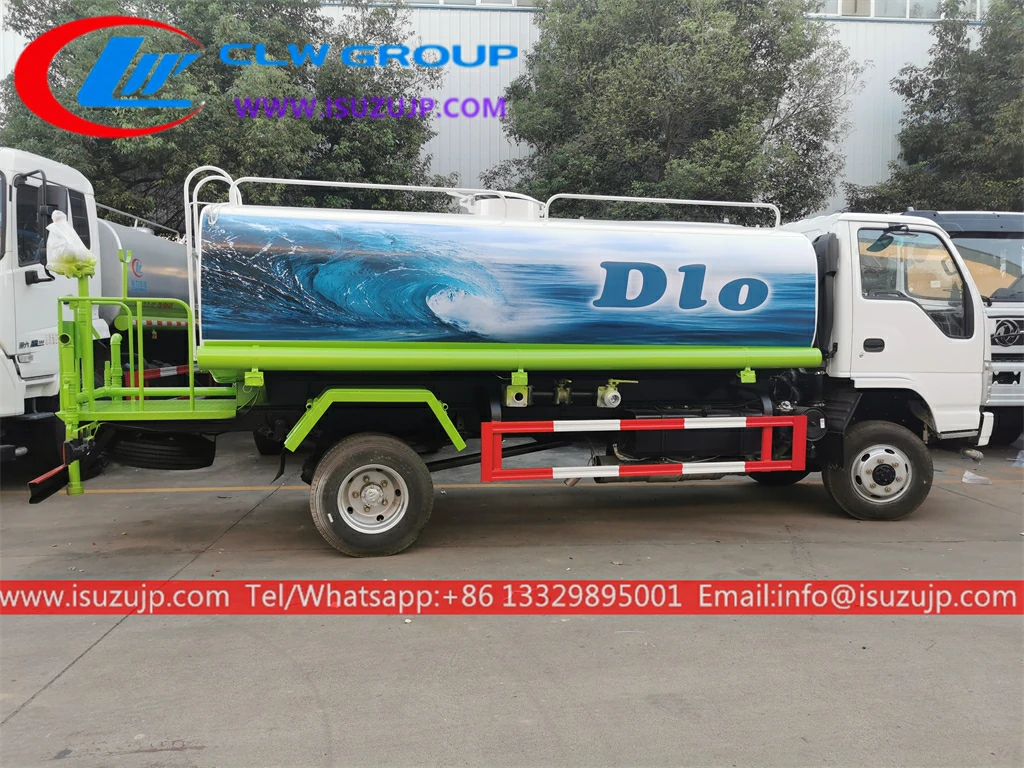

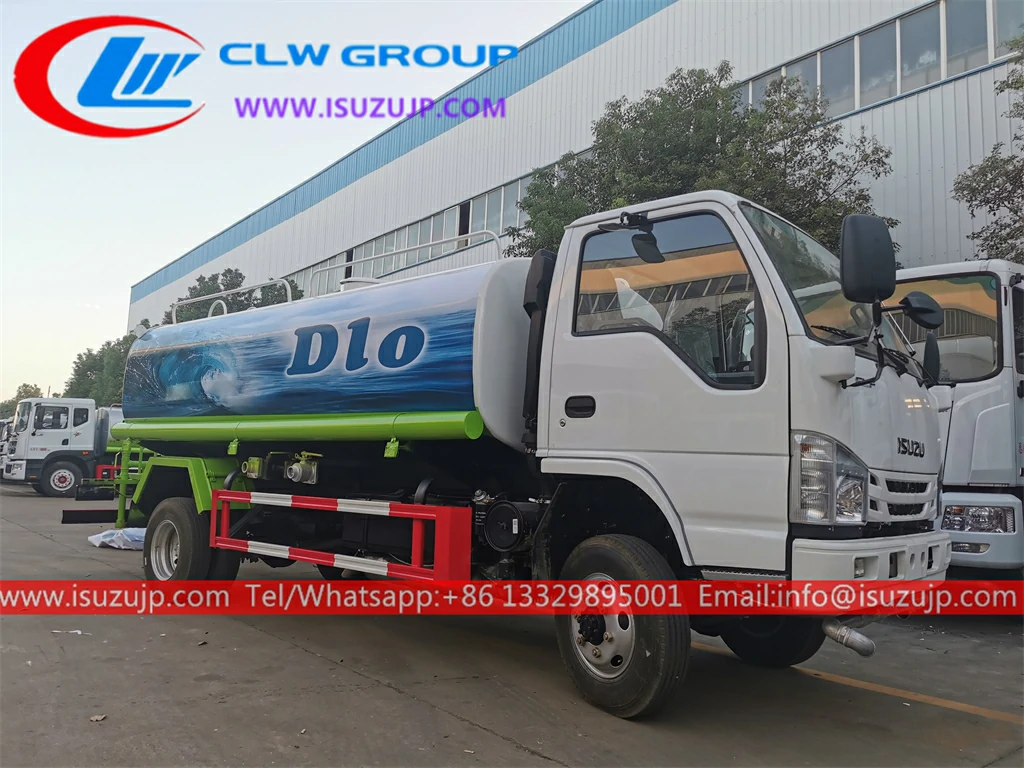

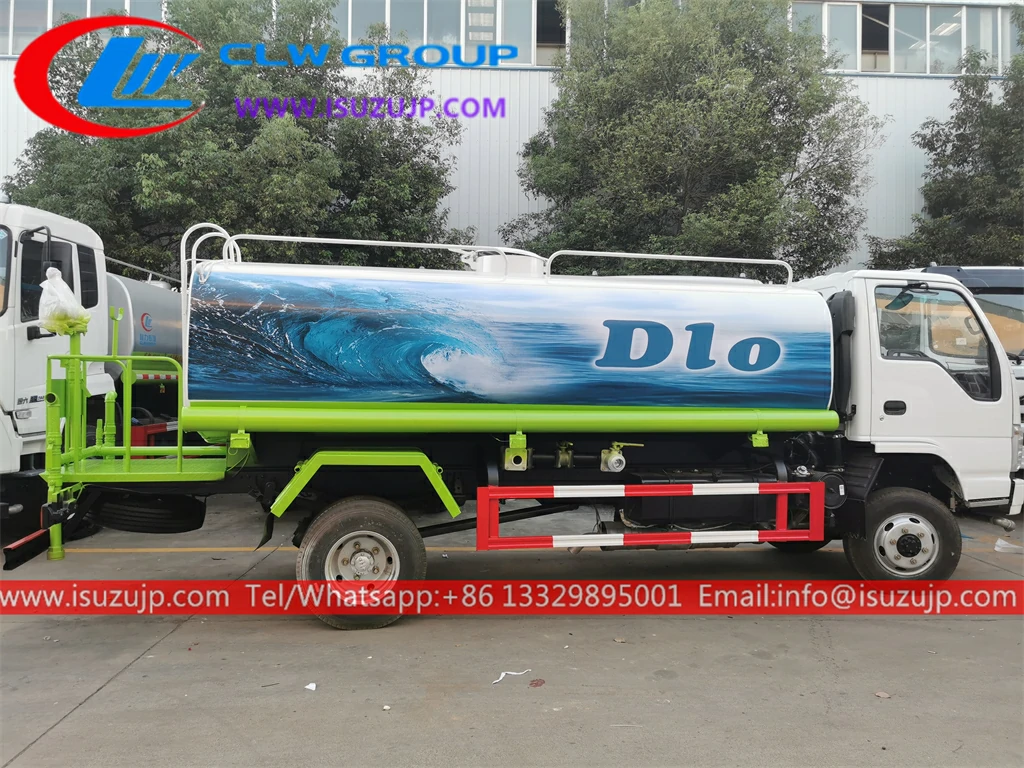

Isuzu water tanker truck structure picture:
Optional configuration:
technical training support:
water bowser tanker truck parts：
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
water sprinkler truck Factory Advantage:
- 16 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Export Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
water carrier truck shipping：
- Maximize your shipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
