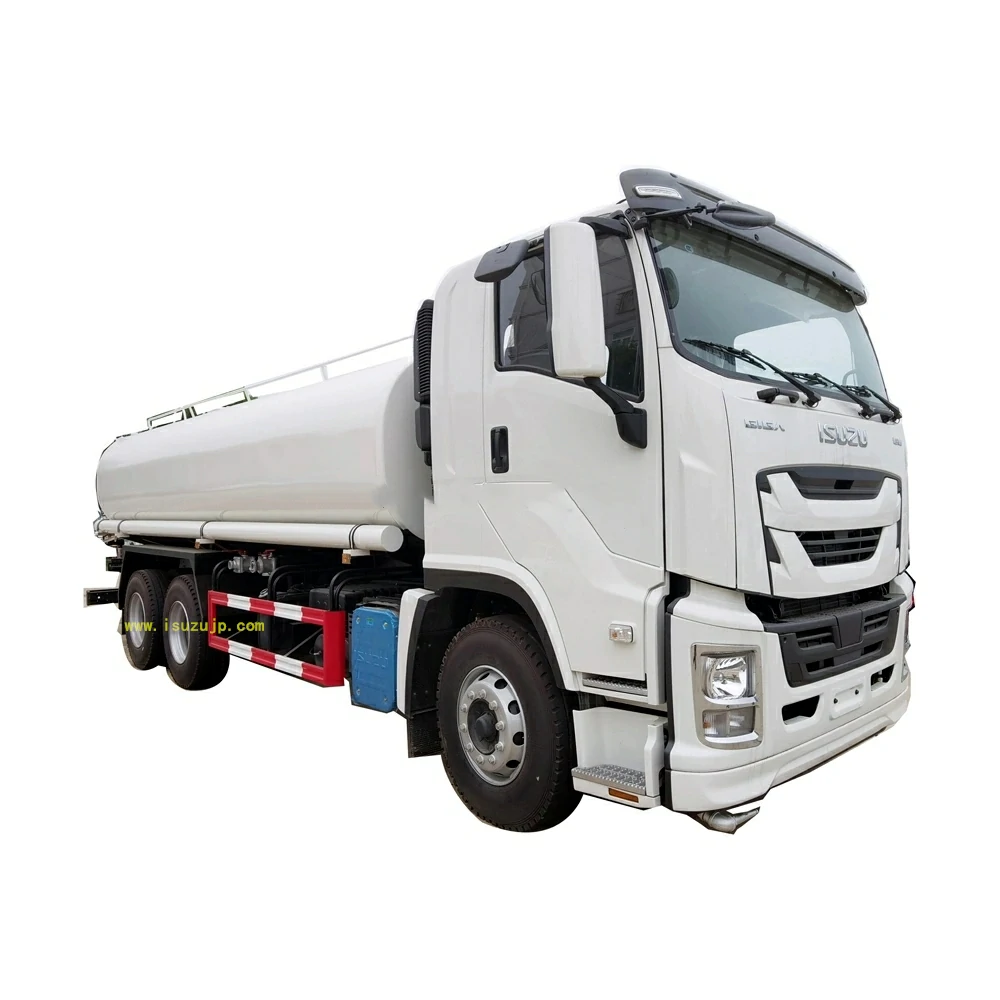

ISUZU 20cbm tri-axle water hauler truck Application:
- Isuzu water hauler truck (also called water tank truck, water spray truck, water transport truck, water hauling truck, truck tanker for a drinkable water tanker, water tanker for the truck) is used to transport and supply water, whatever industrial or agriculture water, widely used in construction engineering, farm irrigation, drought relief, etc.
- With non-toxic treatment inside tank or tank made of stainless steel, the water tank truck can be suitable for transporting drinking water, called as a potable water tanker, drinking water tanker, stainless steel water tanker, agua potable, safe to the human body.
- Water tankers can also be equipped with special sprayers to achieve front flush, rear sprinkle, side spray to sprinkle and clean the roads, streets for environmental sanitation and protection, called as water sprinkler, water spray truck.
- With a rear working platform and high cannon, the Water lorry can also be used to water the plants, even high trees in virescence, called as watering truck.
- Water bowser can be also equipped with a pesticide spraying machine, to be used to spray pesticide in agriculture pest control field.
Advantage:
- 10 wheel ISUZU GIGA chassis, perfect performance
- ISUZU engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Nice shape, rational structure
- Water pump super powerful, efficient pump in and out
- The strong, durable, perfect performance
- Prolonged service life
Specification:
| Tank volume | 20000 Litre |
| Tank material | 4mm Steel plate, (optional material: carbon steel, stainless steel) |
| Max spray range | 30m |
| Max sprinkler width | 15m |
| Standard configuration | water pump water cannon sprinkler water work platform Power take-off(PTO) Front and rear spray nozzle (Multi-direction) artesian valve, filter, distribution valve, sprinkler head, with self-suction and discharge function |
| Name | 2022 new ISUZU 20cbm tri-axle water hauler truck |
| Dimension | 10160X2550X3055mm |
| Gross weight | 25000kg |
| Curb weight | 12380kg |
| Rated load weight | 12490kg |
| Wheelbase | 4565+1370mm |
| Axle load | 7000/18000kg |
| Max speed | 110/80 km/h |
| Chassis brand | Isuzu Giga |
| Tire quantity | 10 |
| Tire specification | 12R22.5 18PR |
| Fuel | Diesel |
| Spring plate | 7/10 |
| Engine model | 6UZ1-TCG51 |
| Engine manufacturer | Isuzu |
| Horsepower | 350hp |
| Displacement | 9839ml |
| Emission standard | Euro 5 |
Working parameter:
| Front nozzle | 15 meters hedge, optional duckbill forward | Tank material | Carbon steel Q345/stainless steel 304 |
| Rear sprinkler | Fan-shaped sprinkler, more than 20 square | Thickness of tank | 4-6 mm |
| Car side nozzle | Sprinkler water, more than 6 meters | Tank shape | Square, square, oval |
| Green anti-aircraft gun | Water column 28 meters, adjustable large, medium and light rain | In-tank treatment | Standard anti-rust coating, can be used for anti-acid alkali polyurea epoxy treatment |
| Water pump brand | International well-known brand pump | Water way | Self-priming water, fire water injection, tank top water injection |
| Optional configuration | Cab electrical control, cab display cursor level gauge, sprayer, detachable snow shovel and snow roll device, front guardrail cleaning device | ||
Isuzu water tanker truck structure picture:
water tank truck Optional configuration:
Water bowser technical training support:
Truck parts：
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
water sprinkler truck Factory Advantage:
- 16 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Export Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
water carrier truck shipping：
- Maximize your shipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
Bulk order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
