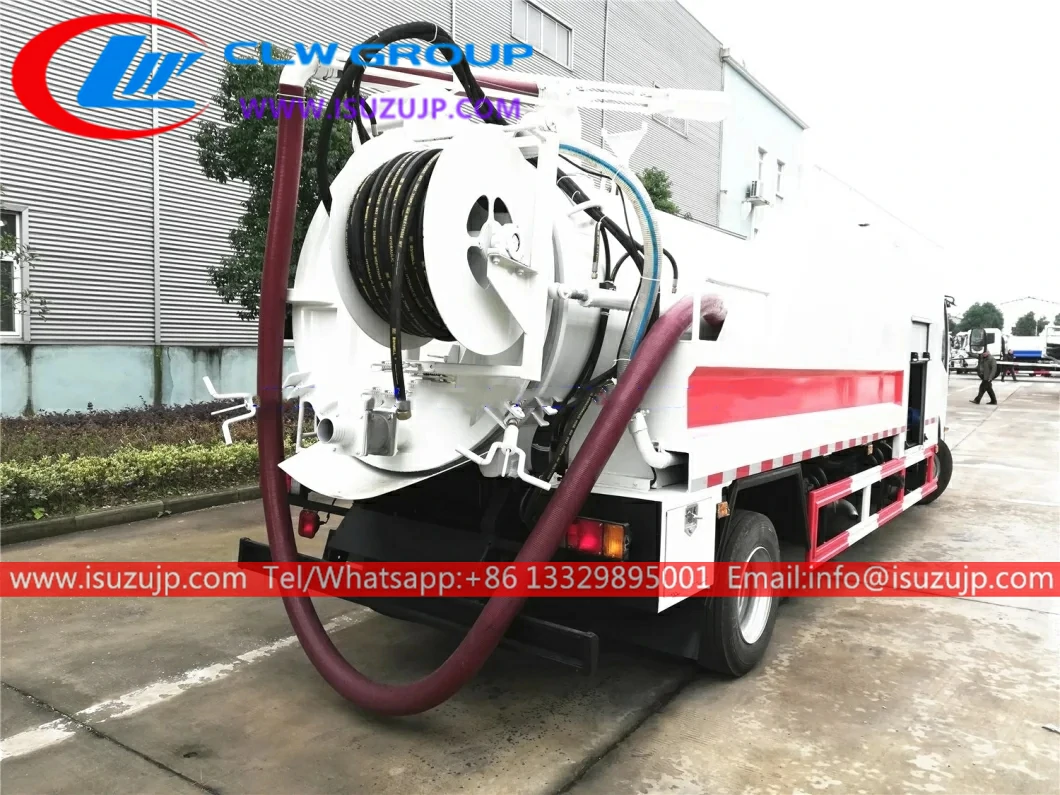

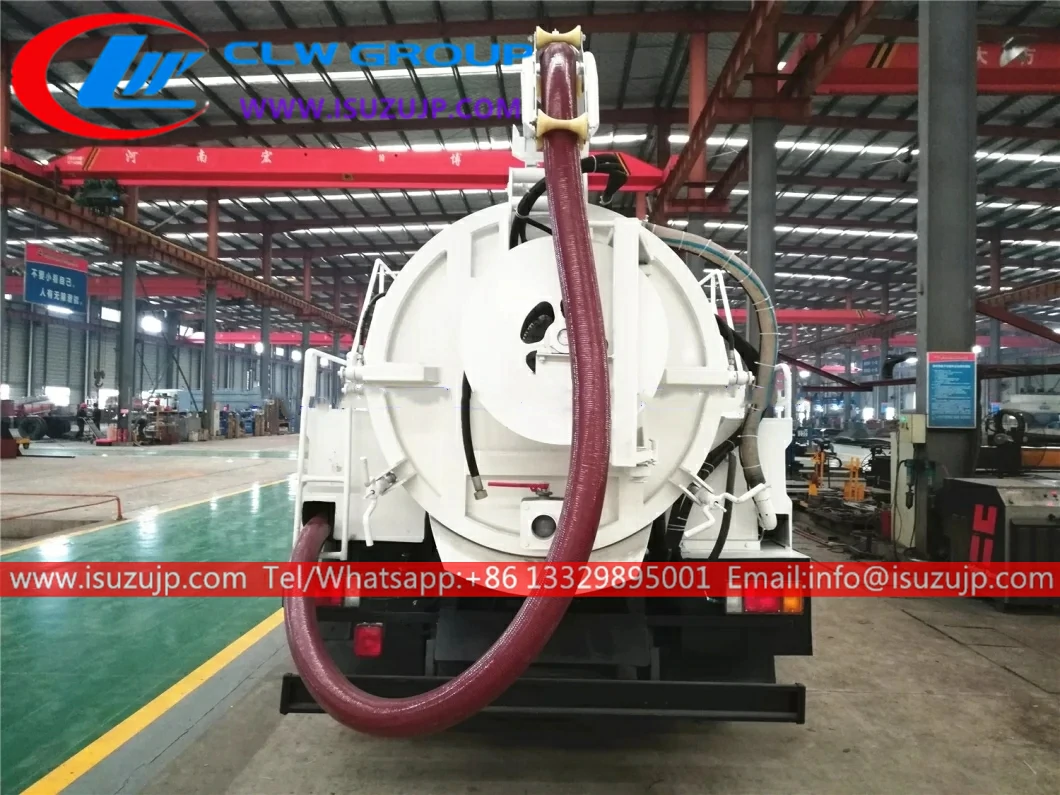

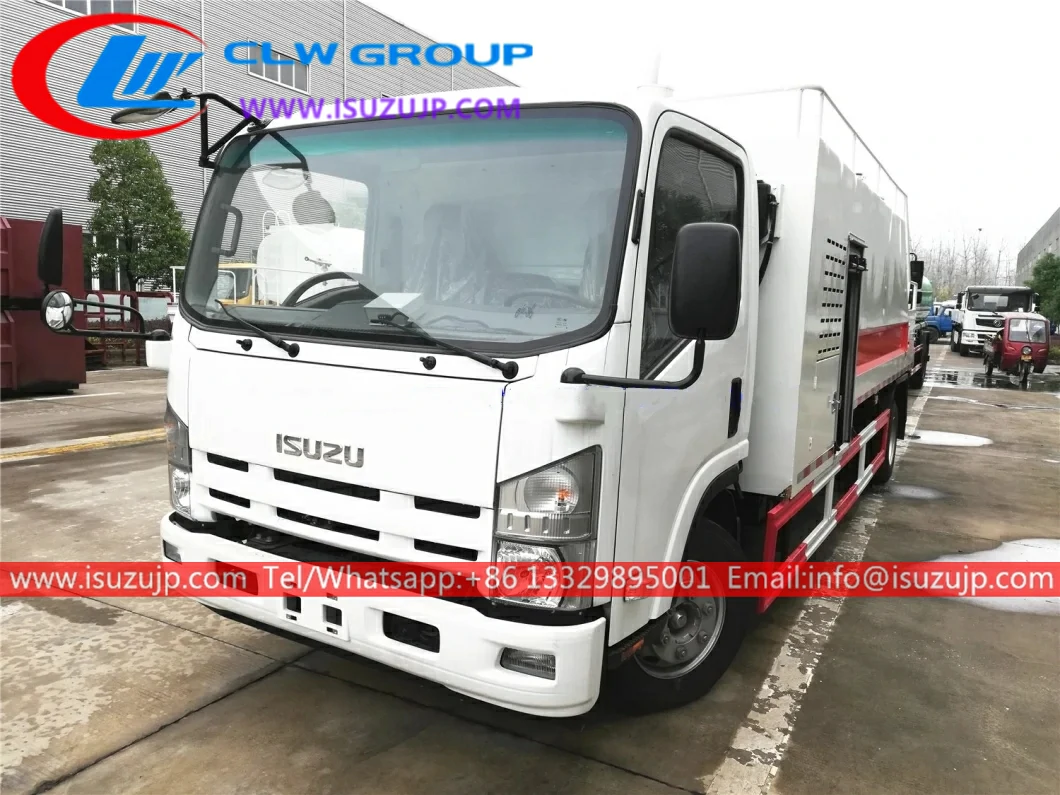

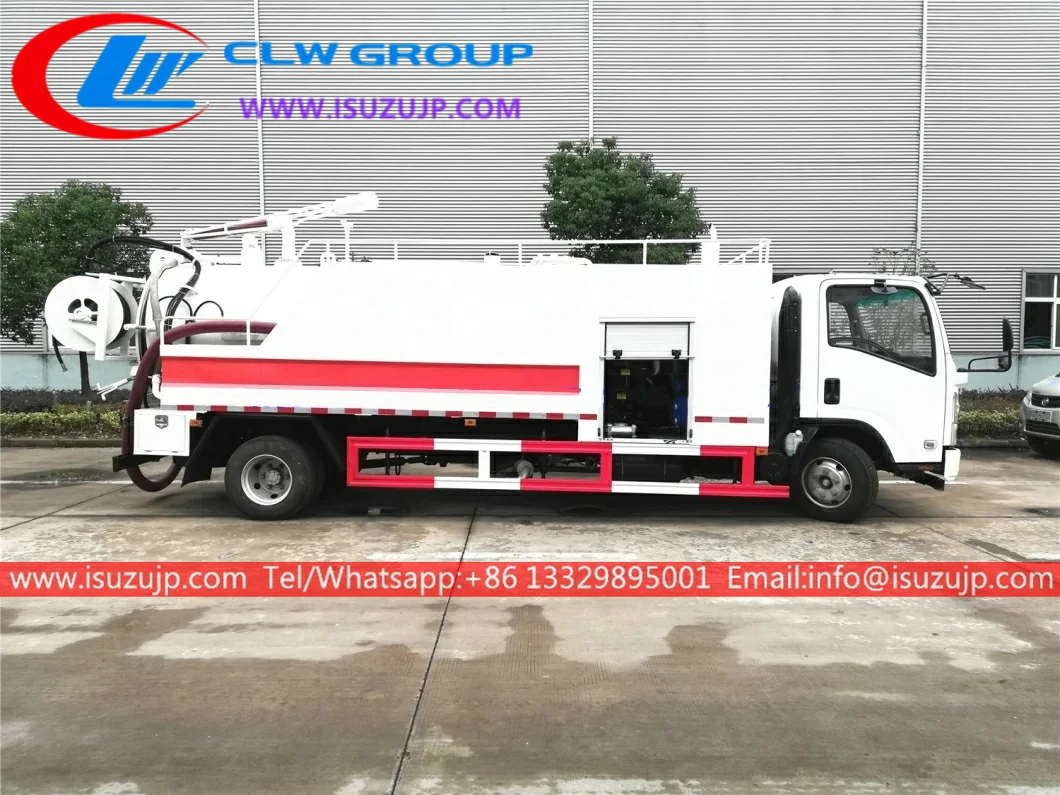

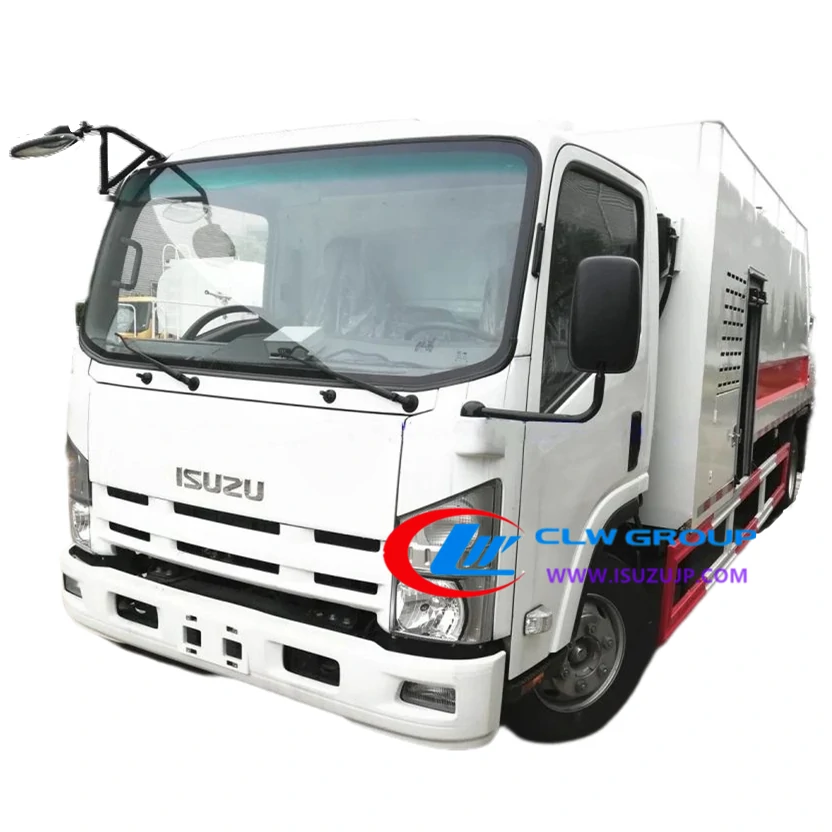

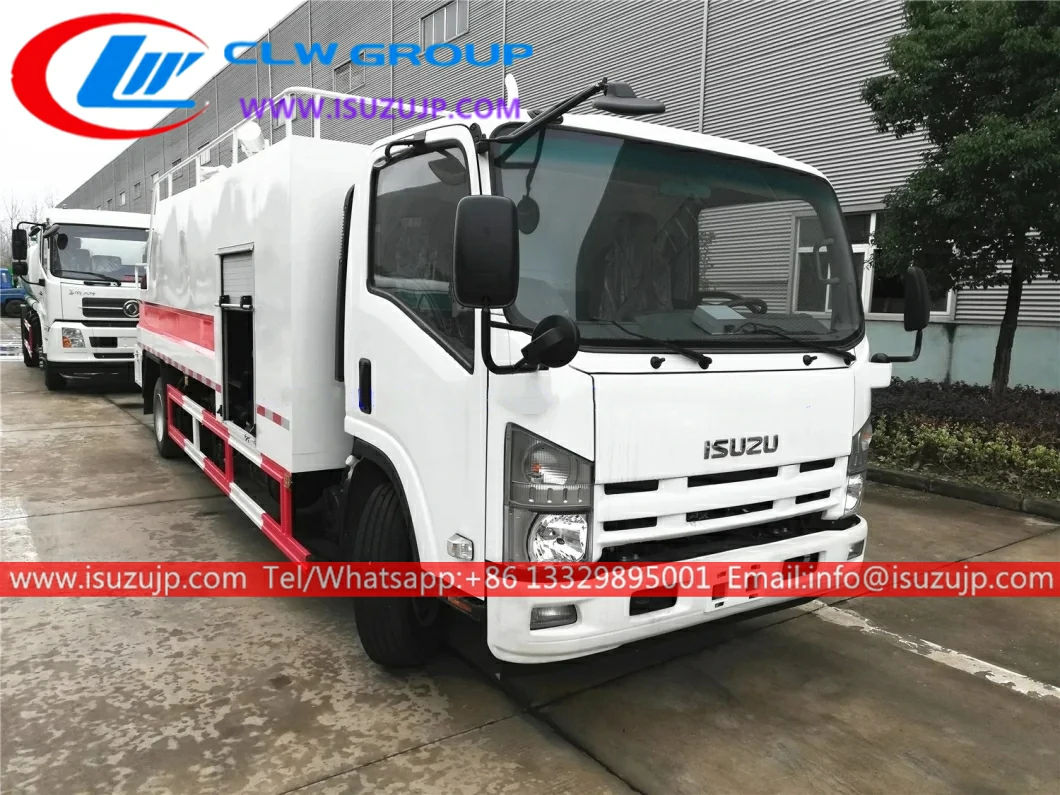

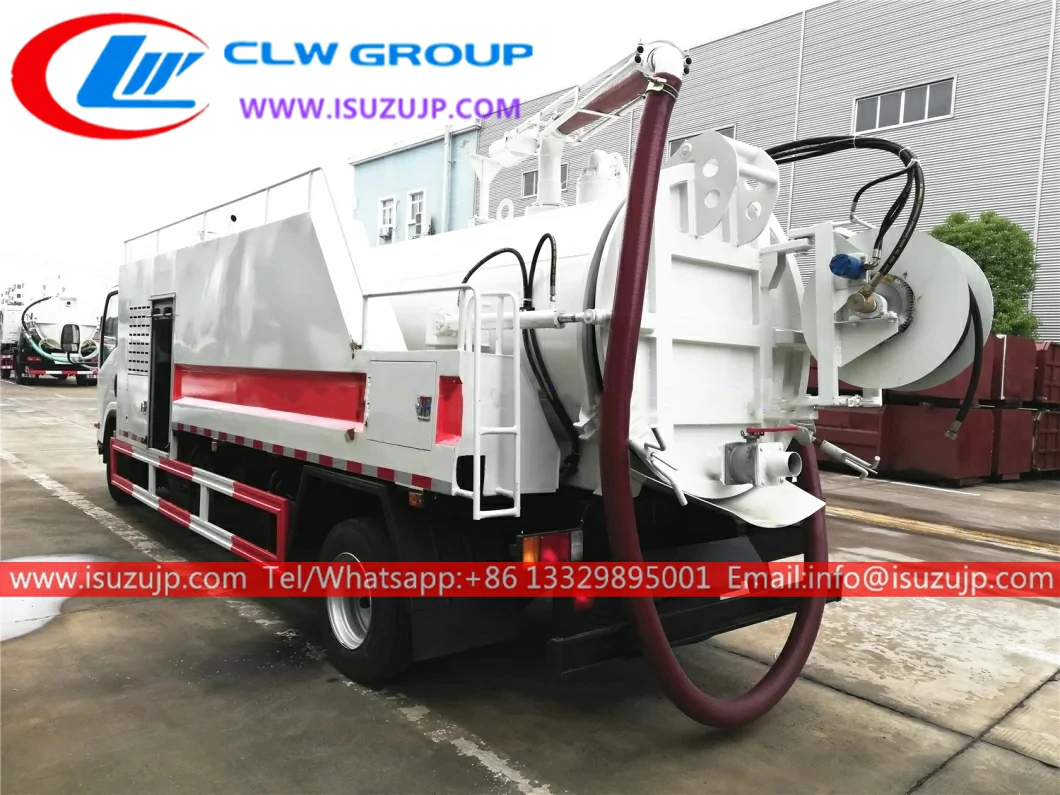

ISUZU 5000L high pressure water jetting truck Description:
- ISUZU water jetting truck also called drain cleaning truck, high pressure jetter, high pressure jetting truck, sewer flushing truck, water jetting vehicle, sewer cleaning truck, high pressure water truck,water jet truck
- jet water truck is ideal for removing stones, bottles, cans, grease, sludge, a debris from sanitary sewer and storm drain lines by the flushing action of high-pressure water.
- ISUZU sewer flushing truck carry a high pressure pump, a water tank, high-pressure hoses and nozzles. The nozzle will get impulsion and make a move forward by jetting high-pressure water.
Advantage:
- 100% custom-made
- 5,000L to 22,000L available
- Easy operation & Easy maintenance
- 15 years spare parts & Technical support
- ISUZU ELF 700P chassis, perfect performance
- ISUZU technology engine option, super powerful, no overhaul within 500,000 km.
- Optional Italy imported high pressure pump, super powerful, efficient pump in and out
- High pressure cleaning hose with automatic reel
- Strong, durable, perfect performance
Specification:
| ISUZU ELF 5000L high pressure water jetting truck | ||
| General | Vehicle Brand | CHENGLI |
| Chassis Brand | ISUZU | |
| Overall Dimension | 6600X2200X2860 mm | |
| GVW / Kerb Weight | 11,000kg / 5,800kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | Heating/cooling air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU | |
| Power | 190 HP (140 KW) | |
| Displacement | 5193 ml | |
| Emission Standard | Euro IV or V | |
| Chassis | Drive Type | 4X2, (left hand drive) |
| Transmission | ISUZU MLD 6 speed levers with 1 reverse | |
| Wheelbase/No. of axle | 3815 mm / 2 | |
| Tire Specification | 8.25-16 | |
| Tire Number | 6 tires and 1 spare tire | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure | Tank Capacity | 5,000 Liters |
| Tank material | Carbon steel | |
| High pressure pump | Optional 1: China brand pump 24Mpa Optional 2: Italy import pump 16Mpa | |
| Flow speed | 120L/min | |
| Hose | High pressure hose 60m long | |
| Hose reel | Auto hose reel | |
| Suction head | 6m | |
| Nozzles | A cluster of nozzles included | |
| Front spraying nozzle | Optional | |
| Middle spraying nozzle | Optional | |
| Rear spraying nozzle | Optional | |
| Control panel | English or Your language | |
| All standard accessories: Warning lights, music alarm, basic tool kit, English manual…… | ||
| Optional | Backup alarm can be equipped. Camera can be equipped. Operation language can be English or Appointed language. | |
Working parameter:
| Suction speed | Fill up in 10 minutes | Tank material | Carbon steel Q345, stainless steel 304 |
| Blowdown speed | Finished in a single 8 minutes | Medium and small tank thickness | 5 mm tank, 6 mm head, 4 mm partition |
| Suction horizontal distance | Up to 80 meters | Thickness of large tank | Tank body 6-8 mm, head 8 mm, partition 5 mm |
| Vertical depth of suction | Up to 9 meters | Sewage suction pump | Small Veyron single pump, large Veyron double pump |
| Operation method | Manual + pneumatic + hydraulic | Leak-proof treatment | Rubber strip + hydraulic lock + manual lock |
| Operating position | Cab + car side | Tailgate form | The tailgate is fully open, the tail is fully open |
| Blowdown method | Hydraulic lift dumping + air blowdown | ||
| Other standard | Sight liquid window, hydraulic gauge, 8 meter suction pipe, tail gravity valve, anti-overflow valve, negative pressure meter. | ||
| Optional configuration | Liquid full alarm self-stop, water ring vacuum pump, anti-corrosion treatment in the tank, solid-liquid separation filter cartridge + hydraulic auger, Honda sprinkler pump + sprinkler | ||
New craft:
Optional configuration:
Toilet suction truck composition structure:
Fecal tank truck technical training support:
Vacuum fecal trucks part, tools and instructions：
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Toilet liquid tanker vehicle truck Factory Advantage:
- 16 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Septic tanker Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
Shipping：
- Maximize your hipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
Order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
