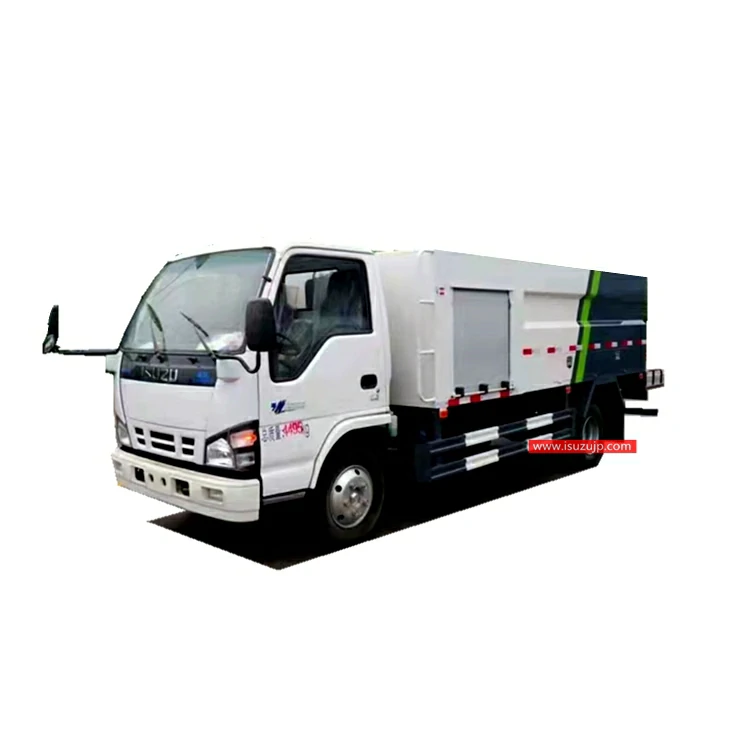

ISUZU ELF 5 ton pressure washing truck Description:
- ISUZU pressure washing truck also called street washing vehicle, high-pressure flusher truck, jet cleaning truck, road jetting truck, street cleaning vehicle, road cleaning truck, high pressure jetting vehicle, road washing truck
- road jetting truck is designed for high-pressure washing and sanitation of roads. It’s able to remove the stubborn stuff and reduce dust on the road.
- The basic accessories for an ISUZU road washing truck are front stainless steel high-pressure washing beam, rear spring.
Advantage:
- 100% custom-made
- 5,000L to 22,000L available
- Easy operation & Easy maintenance
- 15 years of spare parts & Technical support
- 6X4 ISUZU GIGA chassis, perfect performance
- ISUZU technology engine option, super-powerful, no overhaul within 500,000 km.
- Optional Italy imported high-pressure pump, super powerful, efficient pump in and out
- High-pressure cleaning hose with automatic reel
- The strong, durable, perfect performance
Specification:
| ISUZU ELF 5 ton pressure washing truck | ||
| General | Vehicle Brand | CHENG LI |
| Chassis Brand | ISUZU | |
| Overall Dimension | 5995X2000X2500 mm | |
| GVW / Kerb Weight | 7,300 kg / 3,200 kg | |
| Cab | Cab Capacity | 2 person seats with 1 sleeper |
| Air Conditioner | Equipped | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine | |
| Power | 98 (72 KW) | |
| Displacement | 2999 ml | |
| Emission Standard | Euro V | |
| Chassis | Drive Type | 4X2, left-hand drive |
| Transmission | 5-speed forward, 1 reverse | |
| Wheelbase/No. of axle | 3360 mm / 3 | |
| Tyre Specification | 700R16 | |
| Tire Number | 6 tires and 1 spare tire | |
| Max Speed | 90 km/h | |
| Paint | Metallic paint | |
| Superstructure | Water Tank | 4,000 Liters (1,000 gallons) |
| High-Pressure Pump | Imported Germany high-pressure plunger pump | |
| Max. Water Pressure | 10 MPa | |
| Water Flow Speed | 40 L/min @ 10MPa | |
| Cleaning Speed | 5-10 km/h | |
| Road Flushing Width | 3.5 m | |
| Deflection Angle | 30°(left and right) | |
| Auxiliary Engine | Yuchai engine (American brand) 75 Hp / 55 KW | |
| Sprinkling | Another water pump is equipped for sprinkling on the road. Sprinkling width: 24 M. Cannon shot: 36 M. | |
| All standard accessories: hose, high-pressure hose reel, high-pressure water gun, ground hydrant wrench, basic tool kit, English manual | ||
| Optional | Stainless steel water tank. Elevating Platform. High cannon. | |
Working parameter:
| Serial number | project name | unit | Specifications / Technical parameters |
| 1 | Effective volume of tank | m3 | 6-15 |
| 2 | Sprinkler cleaning width | m | 2.5-3.5 |
| 3 | Working speed | Km/h | 5-20 |
| 4 | Low-pressure flushing width | m | ≥21 |
| 5 | High-pressure cleaning width | m | 3.5 |
| 6 | Water spray | L/m2 | 0.2-2.0 |
| 7 | High-pressure flushing system pressure | MPa | ≥10 |
| 8 | High-pressure flushing water flow | L/min | ≥138 |
| 9 | Spray flow | L/min | ≥129 |
| 10 | Water cannon range | m | ≥35 |
| 11 | Self-priming height | m | 6.5 |
High pressure cleaning truck composition structure:

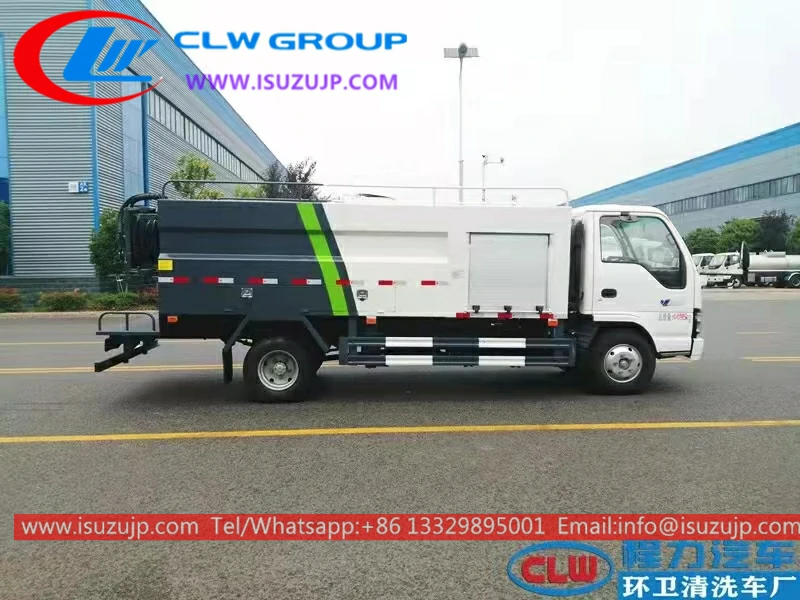

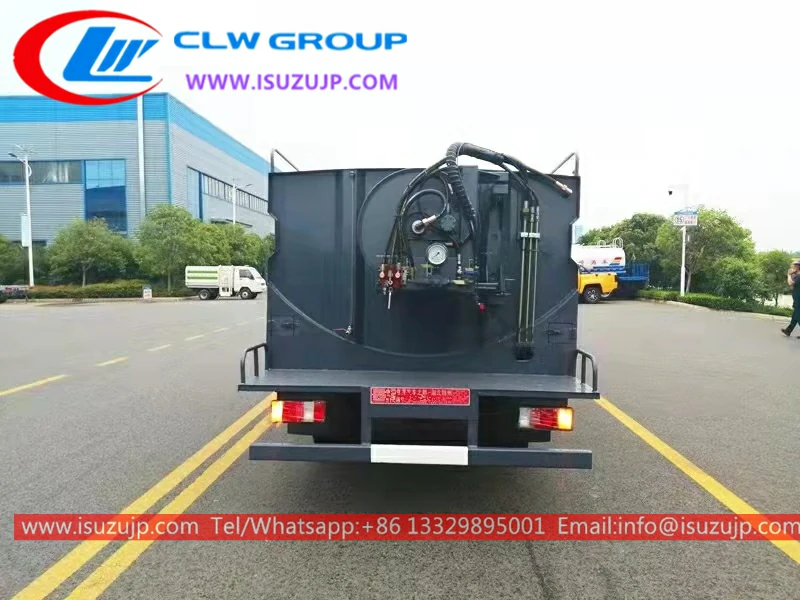

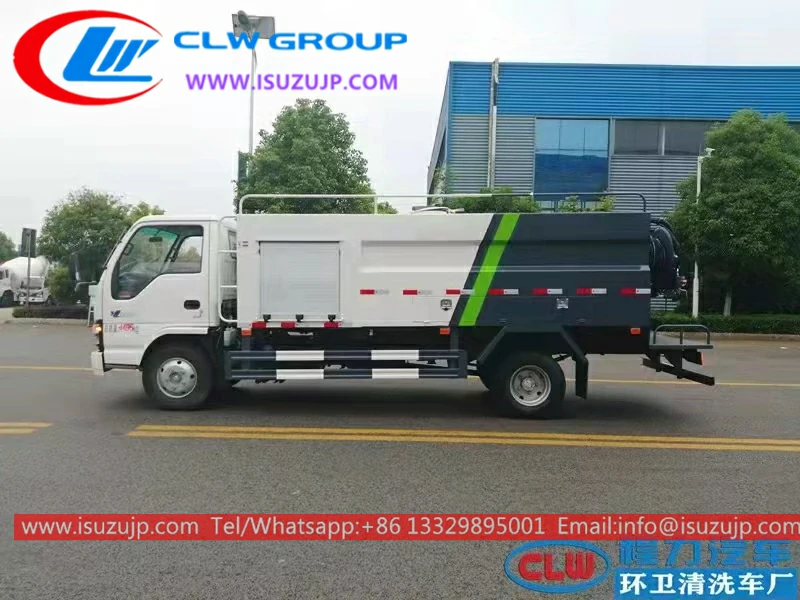

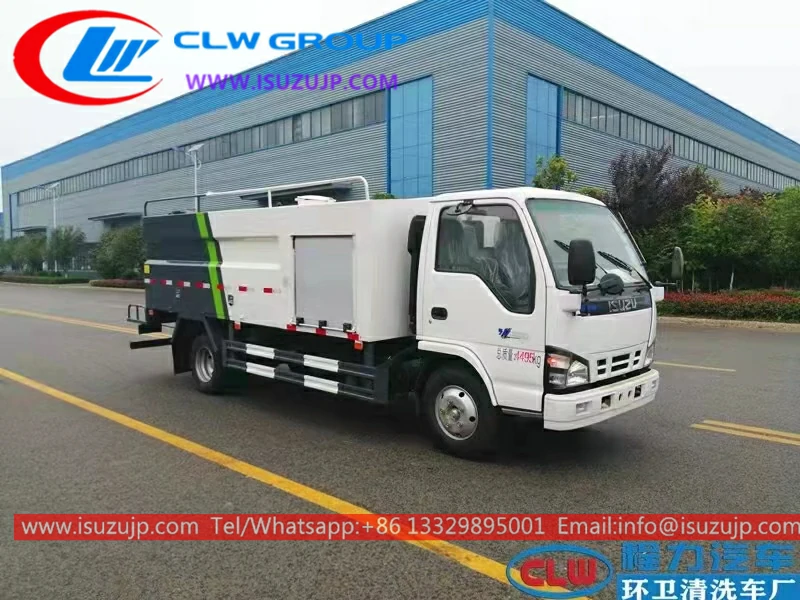

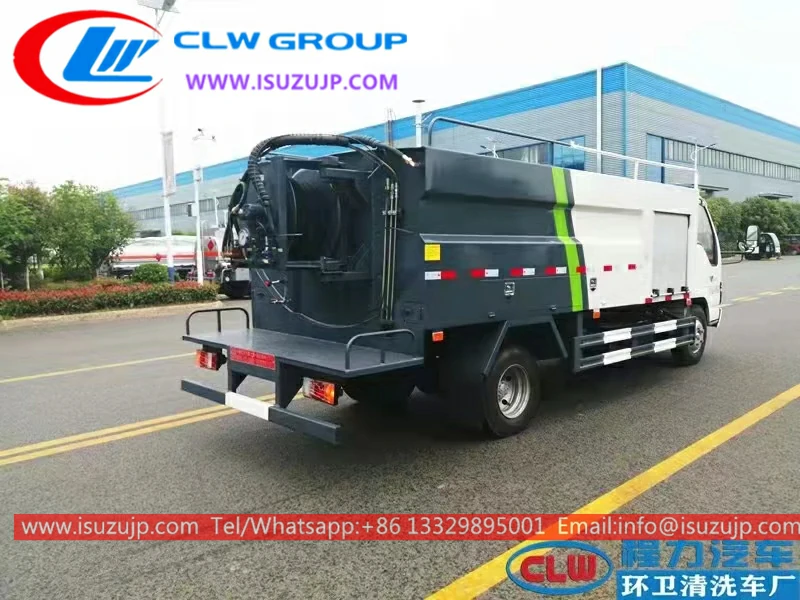

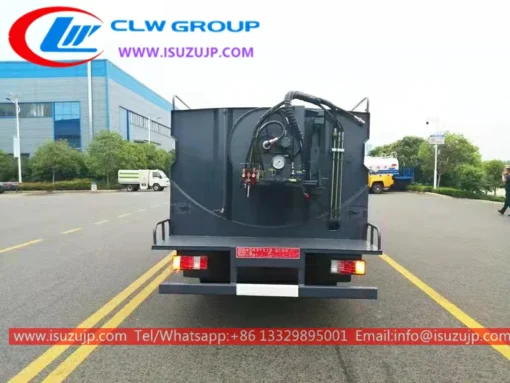

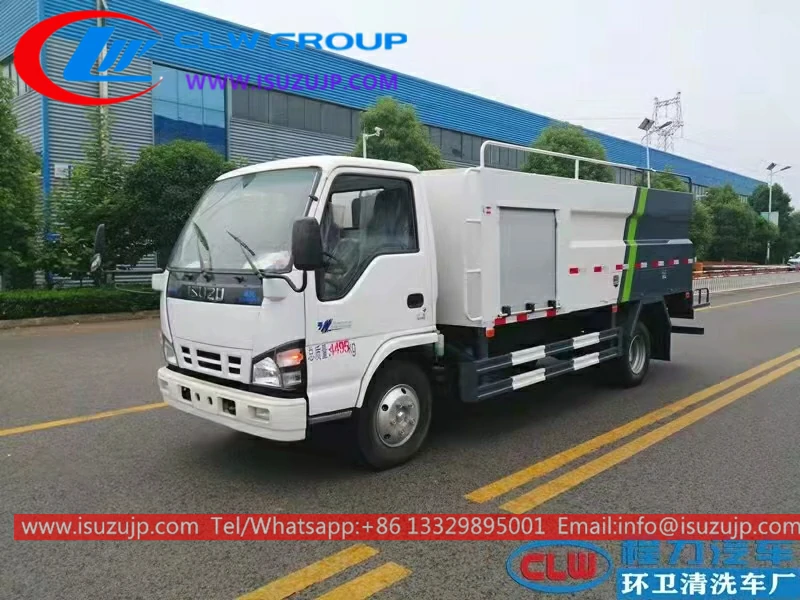

Road jetting truck working photos:
Technical training support:
Part, tools and instructions：
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Factory Advantage:
- 16 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
Shipping：
- Maximize your hipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
Order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
