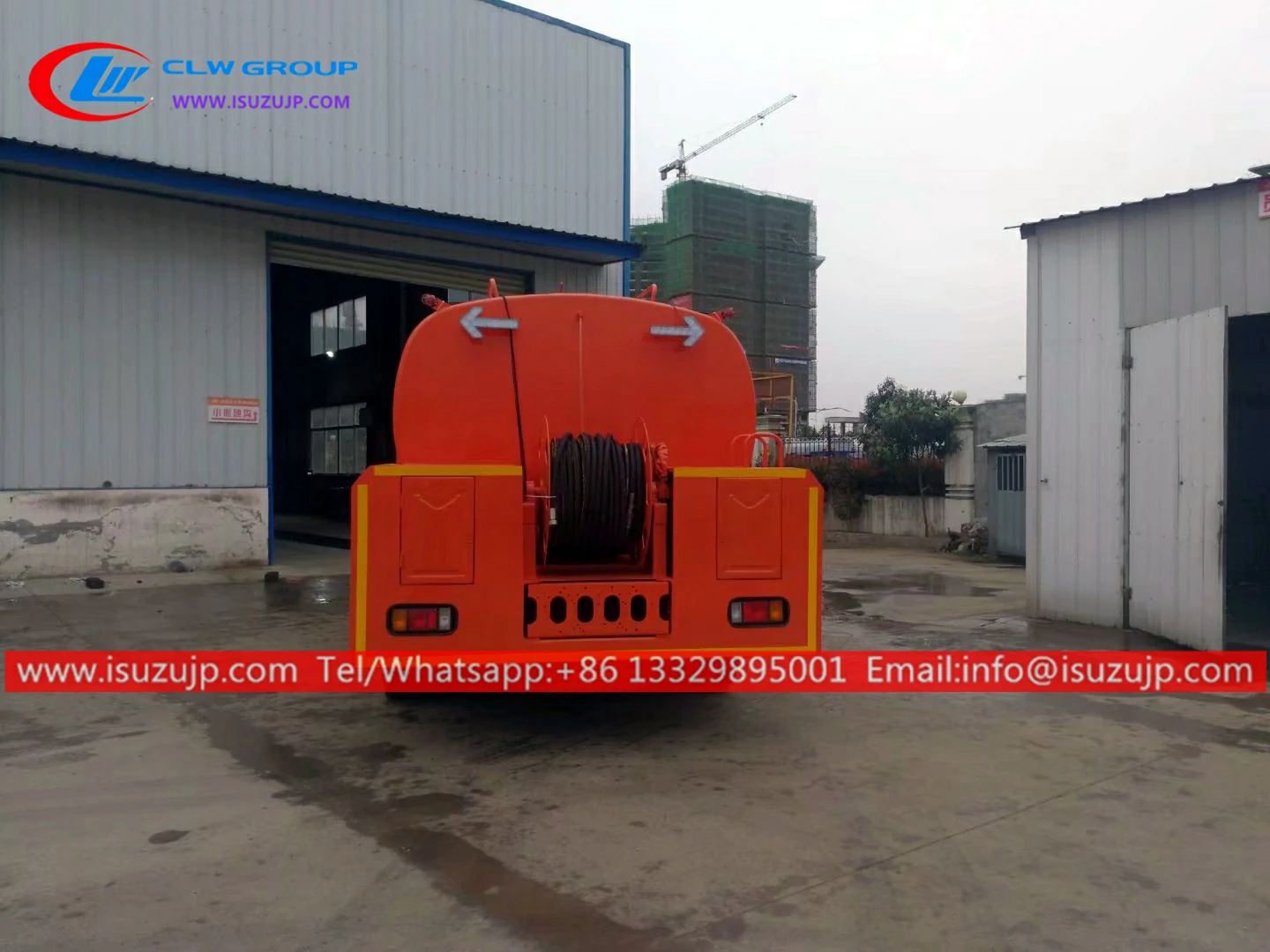

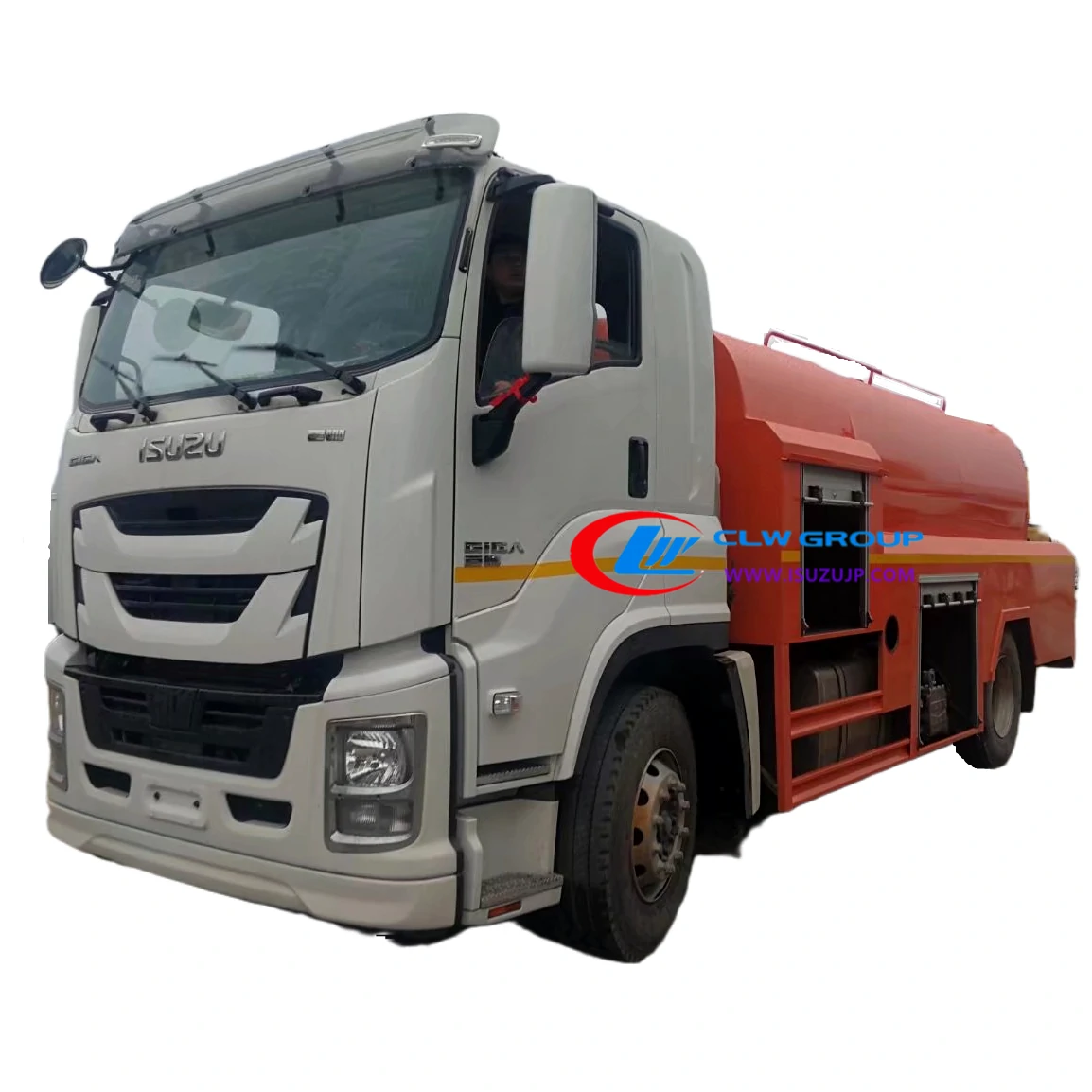

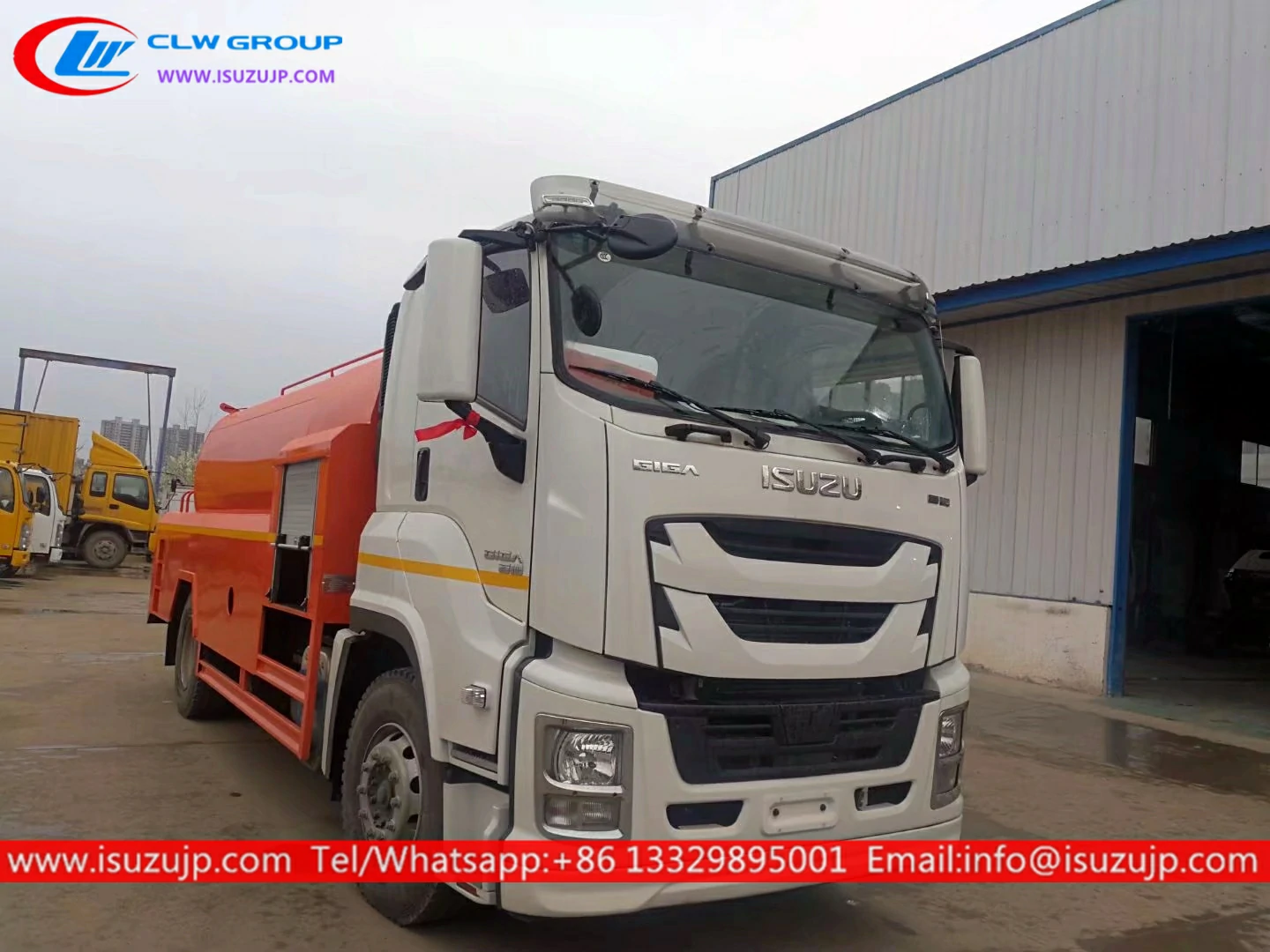

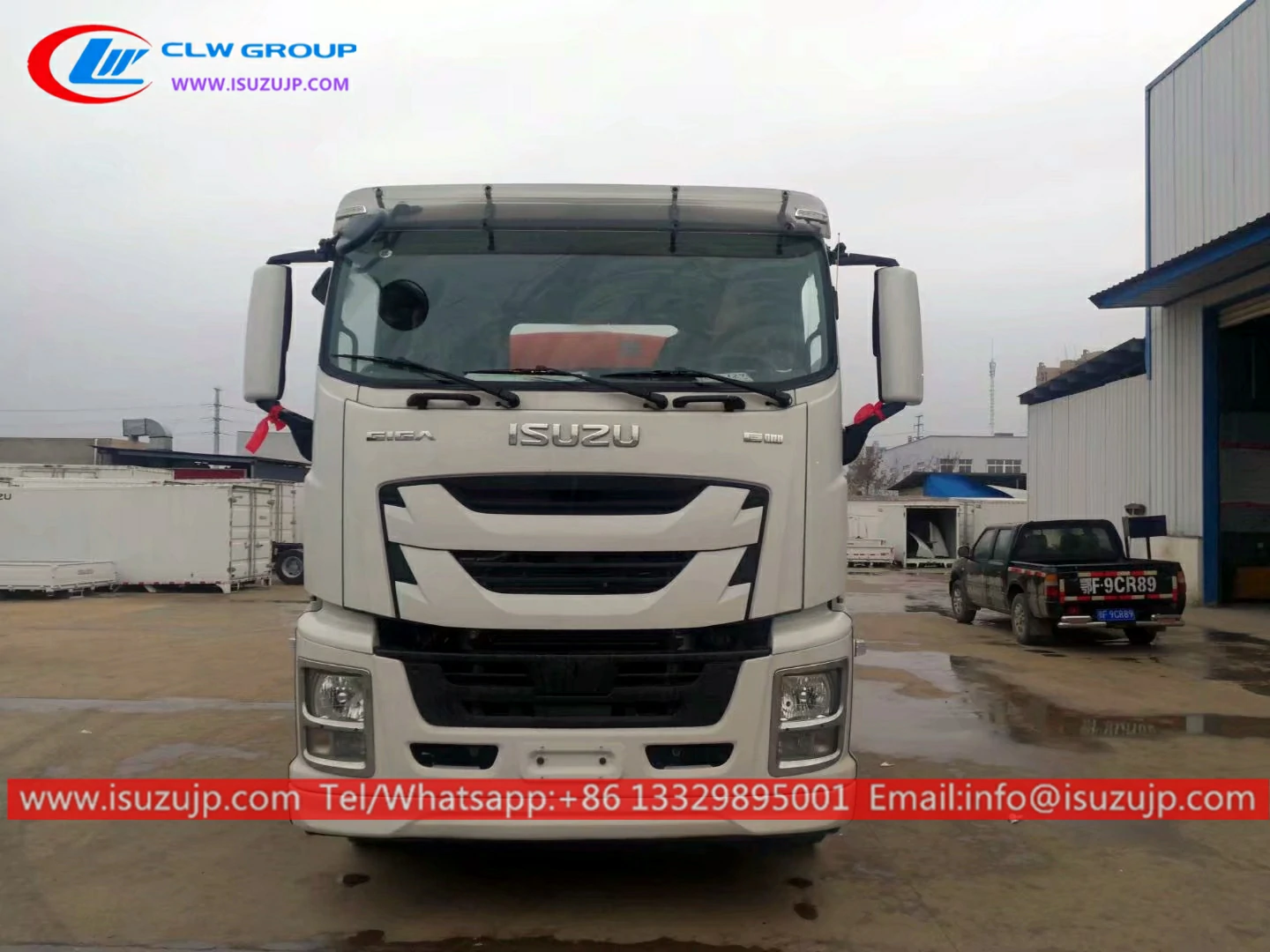

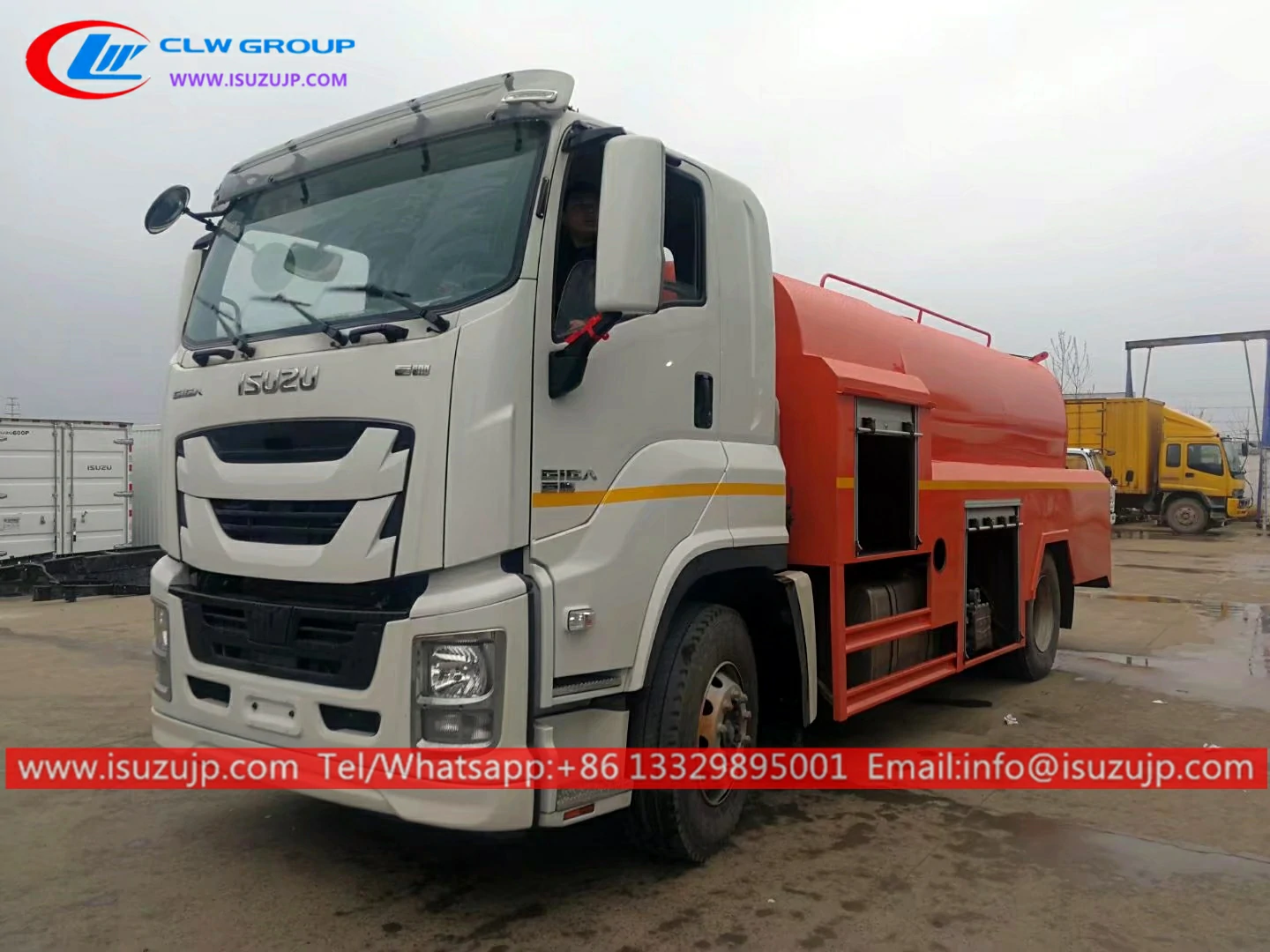

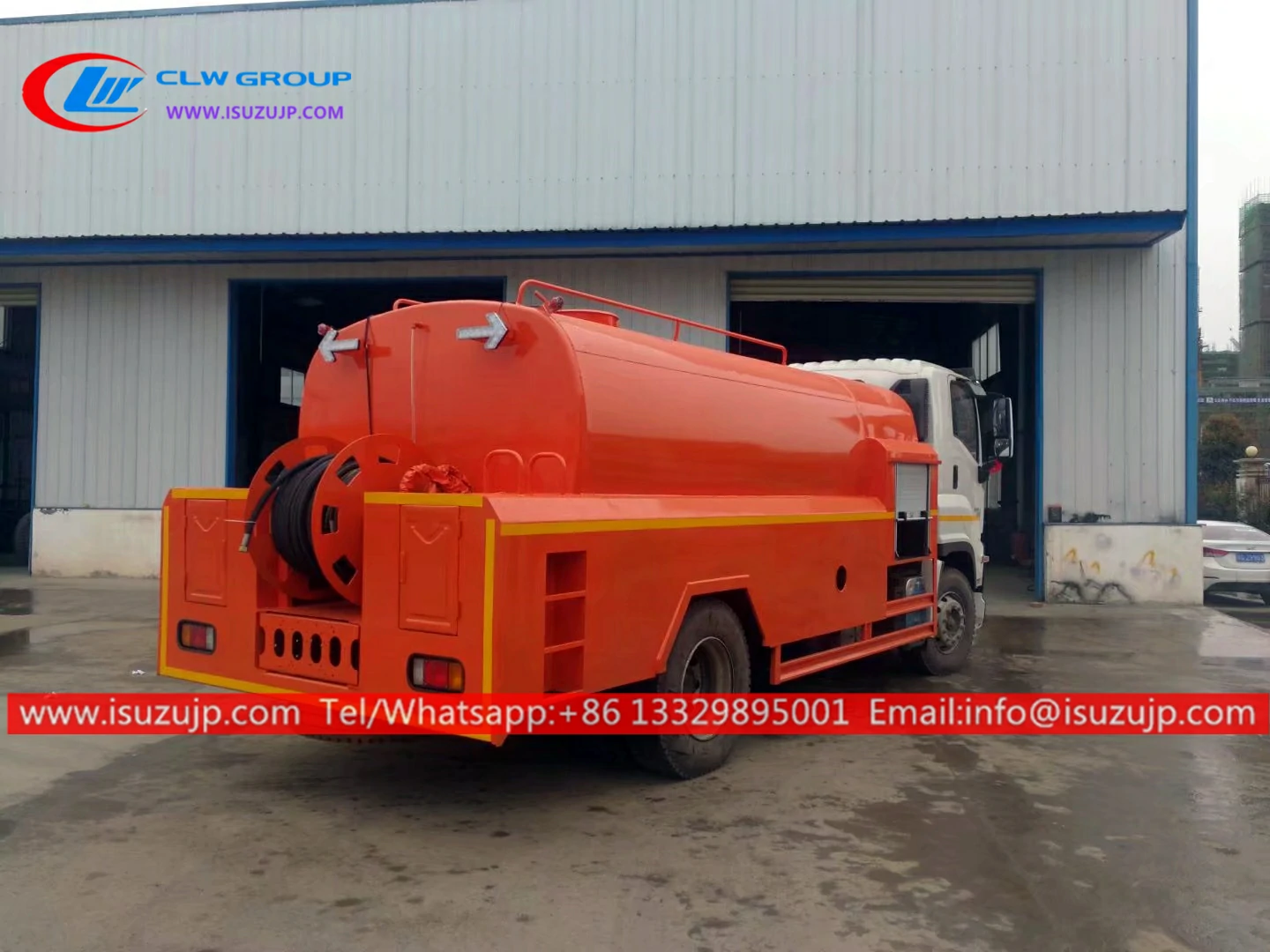

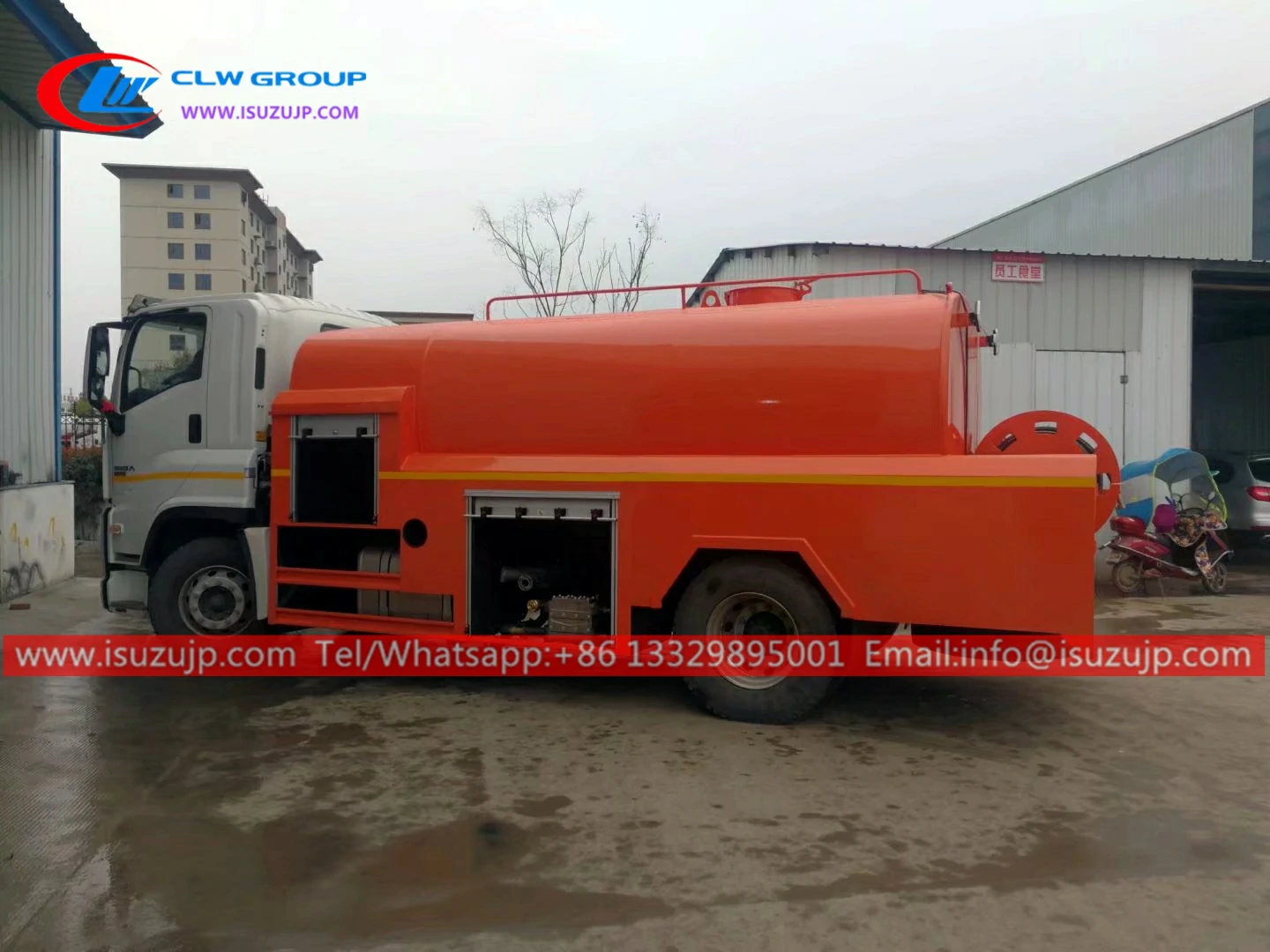

ISUZU GIGA 12000L sewer flushing truck Description:
- ISUZU sewer flushing truck also called drain cleaning truck, high pressure jetter, high pressure jetting truck, sewer flushing truck, water jetting vehicle, sewer cleaning truck, high pressure water truck,water jet truck
- jet water truck is ideal for removing stones, bottles, cans, grease, sludge, a debris from sanitary sewer and storm drain lines by the flushing action of high-pressure water.
- ISUZU sewer flushing truck carry a high pressure pump, a water tank, high-pressure hoses and nozzles. The nozzle will get impulsion and make a move forward by jetting high-pressure water.
Advantage:
- 100% custom-made
- 5,000L to 22,000L available
- Easy operation & Easy maintenance
- 15 years spare parts & Technical support
- ISUZU GIGA chassis, perfect performance
- ISUZU technology engine option, super powerful, no overhaul within 500,000 km.
- Optional Italy imported high pressure pump, super powerful, efficient pump in and out
- High pressure cleaning hose with automatic reel
- Strong, durable, perfect performance
Specification:
| Basic Information | ||||||||
| Outline size(L×W×H) (mm) | 8300X2500X2850 | Tank size(L×W×H)(mm)： | 5000x2100x1500 | |||||
| Rating mass(kg) | / | Empty mass(Kg)： | 7580 | |||||
| Full mass(kg) | 16000 | Emission standard | Euro 3 | |||||
| Engine Information | ||||||||
| Power/displacement(hp/ML) | 300HP | Type | 6HK1 | |||||
| Chassis Information | ||||||||
| Wheelbase(mm)： | 4500 | Axle load(kg) F/R | 6000/10000 | |||||
| Tire | 9.00-20 | Max speed (km/h)： | 90 | |||||
| Front suspension(mm) | 1115 | Rear suspension(mm) | 1430 | |||||
| Front track(mm) | 1620 | Rear track(mm) | 1680 | |||||
| Approach angel(°) | 20 | Departure angle(°) | 16 | |||||
| Steering | Power steering | Brake | Air brake | |||||
| Cabin | Straight head ,single row 3 people,Air-condition | |||||||
| Special function | ||||||||
| Tank capacity | water tank :12000L | |||||||
| high pressure water pump | ||||||||
| Brand | PINFL | PRESSURE | 16/24Mpa | |||||
| Conguration | famous brand German PINFU high pressure water pump, 10 high pressure spray-heads,60M high pressure pipe. | |||||||
| Trade terms | ||||||||
| Quote Lifetime | 30workdays (we promise the quote is effective in the lifetime!) | |||||||
| Payment terms | 30% by T/T in advance, 70% by T/T before delivery | |||||||
| Deliver time | 15 workdays for RHD after receive 30% earnest money | |||||||
| MOQ | 1set | |||||||
| Package | Waxing before delivery | |||||||
Working parameter:
| Suction speed | Fill up in 10 minutes | Tank material | Carbon steel Q345, stainless steel 304 |
| Blowdown speed | Finished in a single 8 minutes | Medium and small tank thickness | 5 mm tank, 6 mm head, 4 mm partition |
| Suction horizontal distance | Up to 80 meters | Thickness of large tank | Tank body 6-8 mm, head 8 mm, partition 5 mm |
| Vertical depth of suction | Up to 9 meters | Sewage suction pump | Small Veyron single pump, large Veyron double pump |
| Operation method | Manual + pneumatic + hydraulic | Leak-proof treatment | Rubber strip + hydraulic lock + manual lock |
| Operating position | Cab + car side | Tailgate form | The tailgate is fully open, the tail is fully open |
| Blowdown method | Hydraulic lift dumping + air blowdown | ||
| Other standard | Sight liquid window, hydraulic gauge, 8 meter suction pipe, tail gravity valve, anti-overflow valve, negative pressure meter. | ||
| Optional configuration | Liquid full alarm self-stop, water ring vacuum pump, anti-corrosion treatment in the tank, solid-liquid separation filter cartridge + hydraulic auger, Honda sprinkler pump + sprinkler | ||
New craft:
Optional configuration:
Toilet suction truck composition structure:
Fecal tank truck technical training support:
Vacuum fecal trucks part, tools and instructions：
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Toilet liquid tanker vehicle truck Factory Advantage:
- 16 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Septic tanker Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
Shipping：
- Maximize your hipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
Order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
