Isuzu 4.2m stainless steel reefer box truck Description:
- Isuzu stainless steel reefer box truck also called Freezer truck, Food meat transportation van, Refrigerator lorry truck is a van or truck designed to carry perishable freight specific temperatures.
- Refrigerator trucks can be ice-cooled, equipped with any one of a variety of mechanical refrigeration systems powered by gasoline or diesel engines, or utilize carbon dioxide as a colling agent.
- ISUZU Trucks can supply freezer trucks with a capacity of 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Tons,30tons.
- Transportation temperature can be from +20°C, -5°C, -10°C, -15°C, -20°C
Advantage:
- 100% custom-made
- 3 cbm to 40 cbm available
- Short delivery time 7~30 days
- Easy operation & Easy maintenance
- 15 years of spare parts & Technical support
- ISUZU engine & gearbox, super-powerful, no overhaul within 500,000 km.
- Refrigeration system brand can be optional.
- Transport temperature can be from +7°C, +2°C, -10°C, -15°C, -20°C -25°C.
Specification:
| Isuzu 4.2m stainless steel reefer box truck for sale Bolivia | |||
| Item | Specification | Item | Specification |
| General | |||
| Truck Name | Frozen Food Refrigerator Truck | Overall Dimension (mm) | 5995X1910X2790 |
| Box Dimension (mm) | 4100X1740X1750 | Gross / Curb Weight (kg) | 4495 / 3210 |
| Truck Model | QL1070A6HAY | Approach / Departure Angle (°) | 24 / 16 |
| Max. Speed (km/h) | 110 | Front / Rear Overhang (mm) | 1110 / 1525 |
| Chassis | |||
| Chassis Brand | ISUZU | Chassis Model | QL1070A6HAY |
| Wheel Base (mm) | 3360 | Leaf Spring | 3/3+2 |
| Traction System | 4 x 2 | Quantity of Axles | 2 |
| Cab Capacity | 1+1 | Front / Rear Axle Load (kg) | 1750 / 2745 |
| Transmission | manual | Front / Rear Wheel Tread (mm) | 1685 / 1525 |
| Tyre Model | 7.00R16 8PR | Quantity of Tyre | 6+1 |
| Engine (Motor) | |||
| Brand | ISUZU | Type of Fuel | Diesel |
| Model | 4KH1CN5LS | Displacement (ml) | 2999 |
| Max. Power | 98hp | Emission Standard | Euro 5 |
| Equipments | |||
| Reefer-Temperature Required | -5/-15 | Tank Material | 8mm Polyurethane in middle,covered by 2.5mm fiber glass inside and outside |
| NOTE: 1. Any part can be customized depending on customers’ demand. 2. 12 months whole vehicle warranty 3. We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance. 4. MOQ: 1 unit | |||
Working parameter:
| Insulation thickness | 80mm ester urethane | Inside and outside materials | 2.2mm FRP / Stainless steel plate | Unit brand | Domestic, imported / independent, non-independent |
| Floor material | FRP / Aluminium skid plate / Stainless steel skid plate | Installation location | Front, skirt, top | Bottom ventilation slot | Optional, aluminum alloy profile |
| Cooling time | 30 minutes | Thermal curtain | Optional | Control position | Cab |
| Meat hook | Optional | Insulation effect | 24 hours temperature rise 5 degrees | External power supply | Optional |
| Cooling temperature | Minus 20-5 degrees | Constant temperature unit | Optional | Temperature and humidity printer | Optional |
reefer truck New craft:
Frozen truck Optional configuration:
Freezer car Bodywork details:

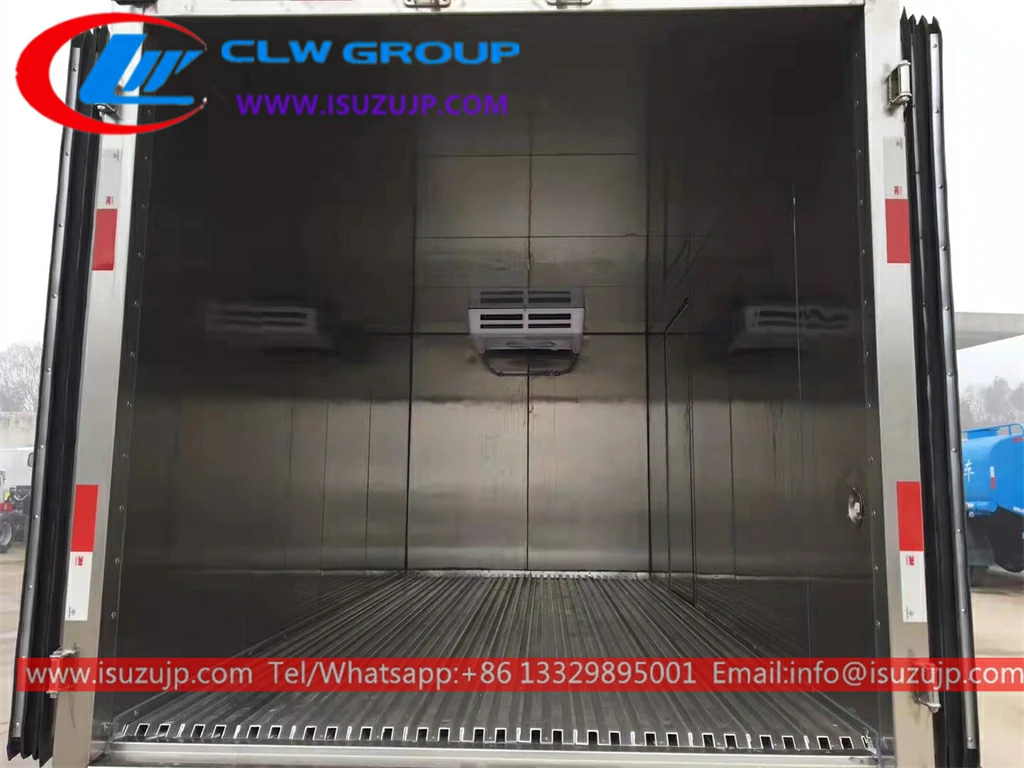

Isuzu Cold chain transport truck box Internal details：
1ton to 40ton fridge truck product Display：
Factory Advantage:
- 17 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
