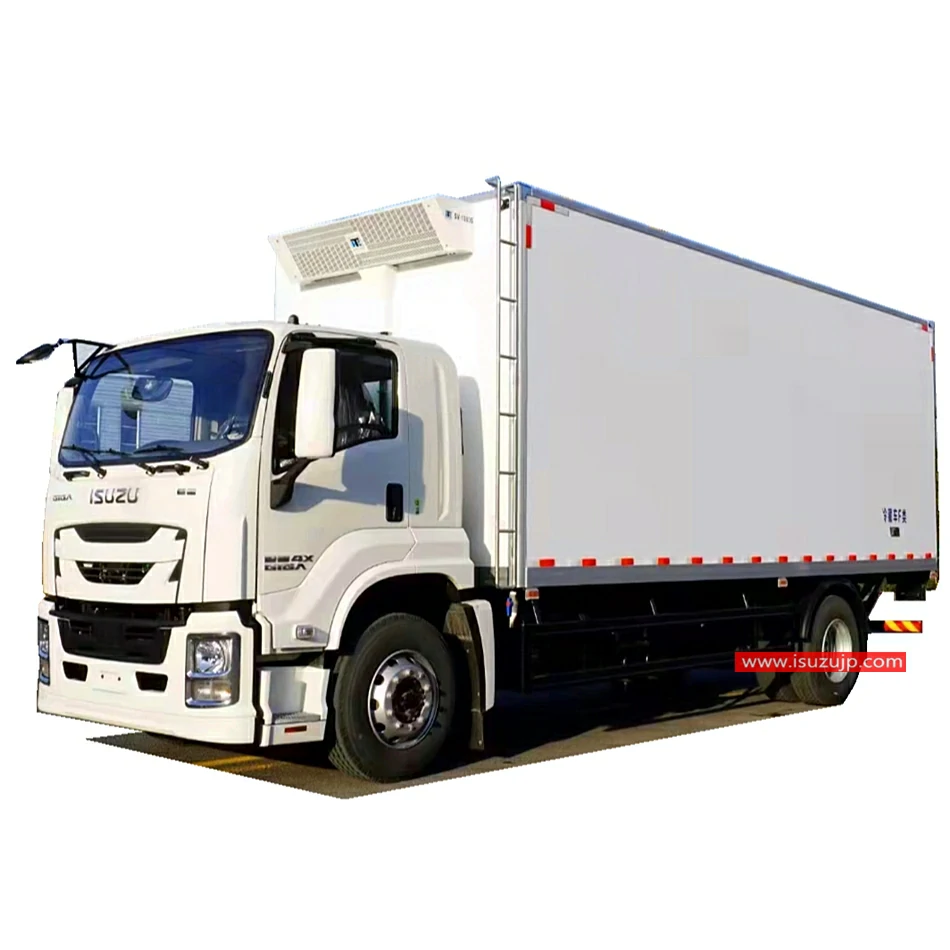

ISUZU GIGA 15T freezer lorry Description:
- Isuzu freezer lorry also called Freezer truck, Food meat transportation van, Refrigerator lorry truck is a van or truck designed to carry perishable freight specific temperatures.
- Refrigerator trucks can be ice-cooled, equipped with any one of a variety of mechanical refrigeration systems powered by gasoline or diesel engines, or utilize carbon dioxide as a colling agent.
- ISUZU Trucks can supply freezer trucks with a capacity of 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Tons,30tons.
- Transportation temperature can be from +20°C, -5°C, -10°C, -15°C, -20°C
Advantage:
- 100% custom-made
- 3 cbm to 40 cbm available
- Short delivery time 7~30 days
- Easy operation & Easy maintenance
- 15 years of spare parts & Technical support
- ISUZU engine & gearbox, super-powerful, no overhaul within 500,000 km.
- Refrigeration system brand can be optional.
- Transport temperature can be from +7°C, +2°C, -10°C, -15°C, -20°C -25°C.
Specification:
| Manufacturer | Chengli Special Automobile Co., Ltd | ||
| Product Name | ISUZU GIGA 15T freezer lorry for sale | ||
| Vehicle Brand Series | ISUZU | ||
| Vehicle Model | CLW5163GSSD5 | ||
| Production Time | 25 days | ||
| Chassis parameters | Overall dimensions | mm | 8900X2550X3800 |
| Gross weight | kg | 18,000 | |
| Kerb weight | 7,500 | ||
| Wheelbase | mm | 5,600 | |
| Driving type | 4X2 | ||
| Chassis model | ISUZU GIGA | ||
| Tire size | 1000R20 | ||
| Number of Tires | 6+1 | ||
| Passengers in cab | 3 | ||
| Engine | Engine model | 6HK1-TCG40 | |
| Type of fuel | Diesel | ||
| Power | 240HP | ||
| Max speed | Km/h | 95 | |
| Emission standard | EURO V | ||
| Cooling performance | Cargo Body Size | 6800X2400X2400 mm | |
| Panel Material | FRP + PU Foam + FRP 105mm | ||
| Panel Structure | All Closed Sandwich | ||
| Side Door Type | On the Right sidewall | ||
| Single Opening | |||
| Rear Door Type | Full-Size Double Opening Rear Door | ||
| Flooring | Antiskid and abrasion-resistant | ||
| Refrigeration Unit | Carrier SUPRA 750 | ||
| Body Space Temp | -15 degree~ +20 degree | ||
| Marker Light | 2 sets white on the front, 2 sets Red on rear | ||
| Ceiling Light | 2 sets of 12/24V LED | ||
| Control Panel | English | ||
| Painting | Two primers, and one final paint coating | ||
| Color & LOGO | According to wish | ||
| Factory standard | “U” shape Sub Frame, Safety protection, Rotating Lamp, Working Lamp, Handholds, Mudguards and rubber flaps… | ||
| Documents | English operation manual, Spare parts list, and all necessary export docs. | ||
| Optional equipment | 1, Refrigeration brand: Carrier, Thermoking, DAIKIN (with any brand) 2, Rear vision camera 3, Aluminium flooring, Hanging system 4, Optional Dual temperature, multi-compartment | ||
Working parameter:
| Insulation thickness | 80mm ester urethane | Inside and outside materials | 2.2mm FRP / Stainless steel plate | Unit brand | Domestic, imported / independent, non-independent |
| Floor material | FRP / Aluminium skid plate / Stainless steel skid plate | Installation location | Front, skirt, top | Bottom ventilation slot | Optional, aluminum alloy profile |
| Cooling time | 30 minutes | Thermal curtain | Optional | Control position | Cab |
| Meat hook | Optional | Insulation effect | 24 hours temperature rise 5 degrees | External power supply | Optional |
| Cooling temperature | Minus 20-5 degrees | Constant temperature unit | Optional | Temperature and humidity printer | Optional |
reefer truck New craft:
Frozen truck Optional configuration:
Freezer car Bodywork details:
Isuzu Cold chain transport truck box Internal details：
1ton to 40ton fridge truck product Display：
Factory Advantage:
- 17 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
