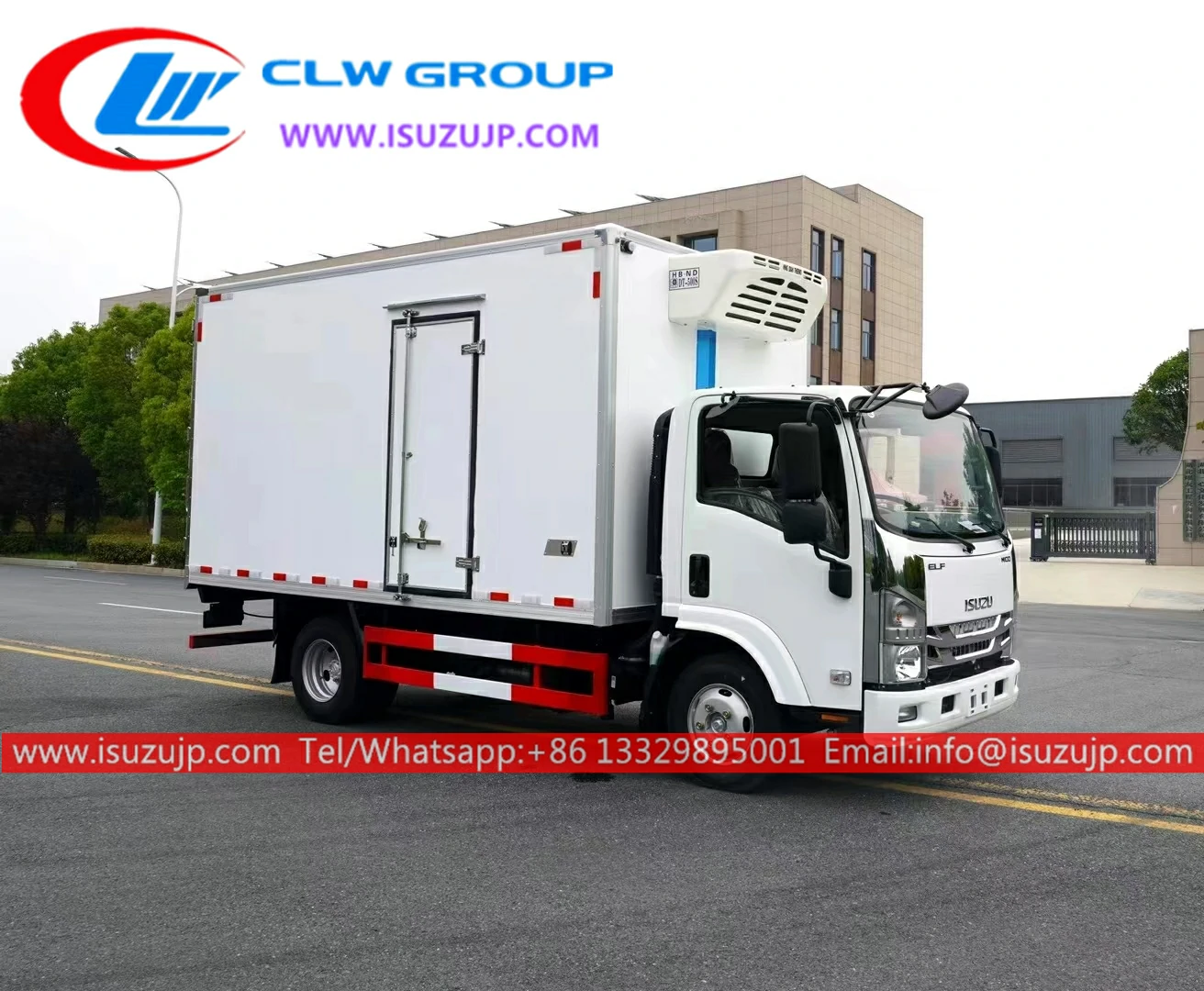

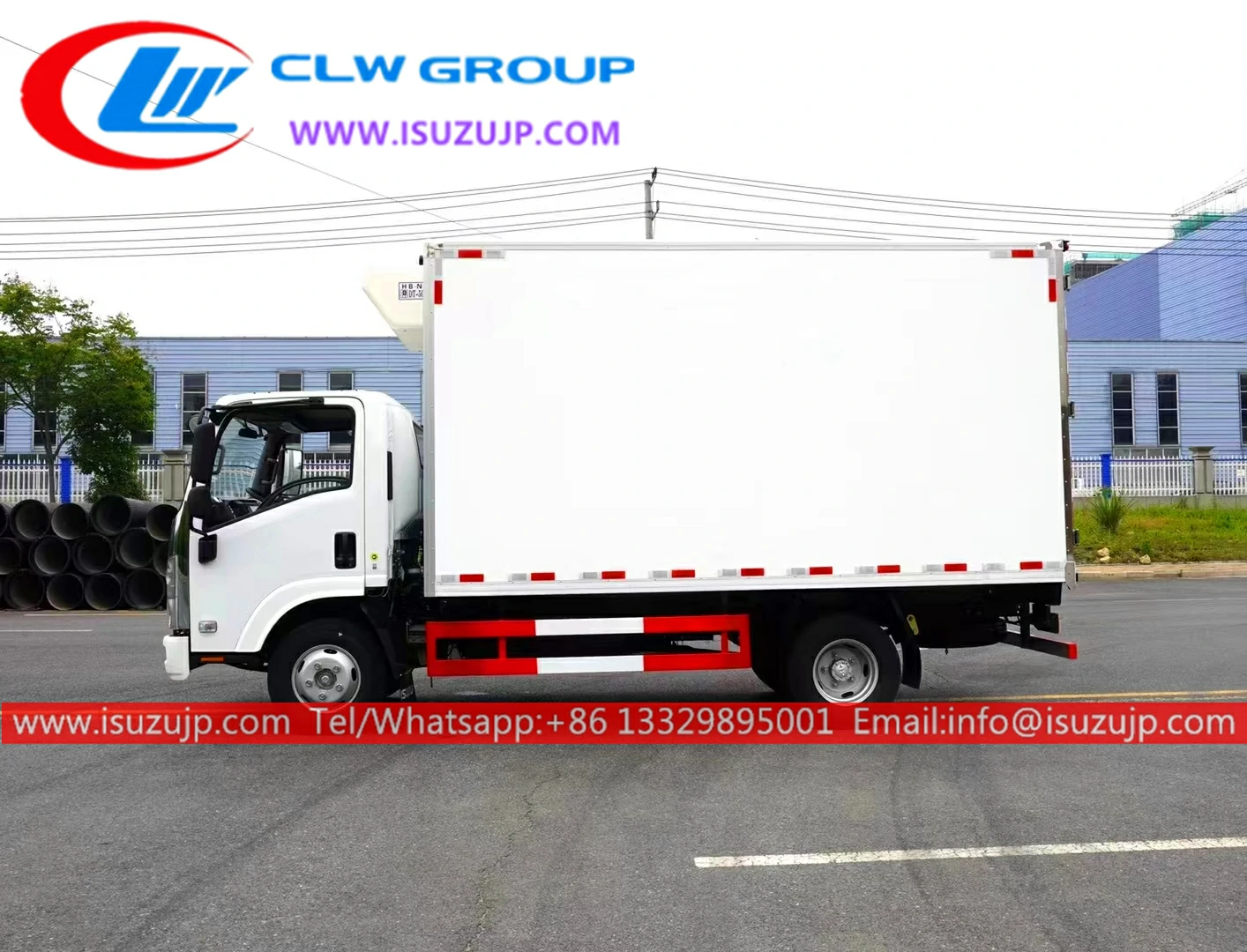

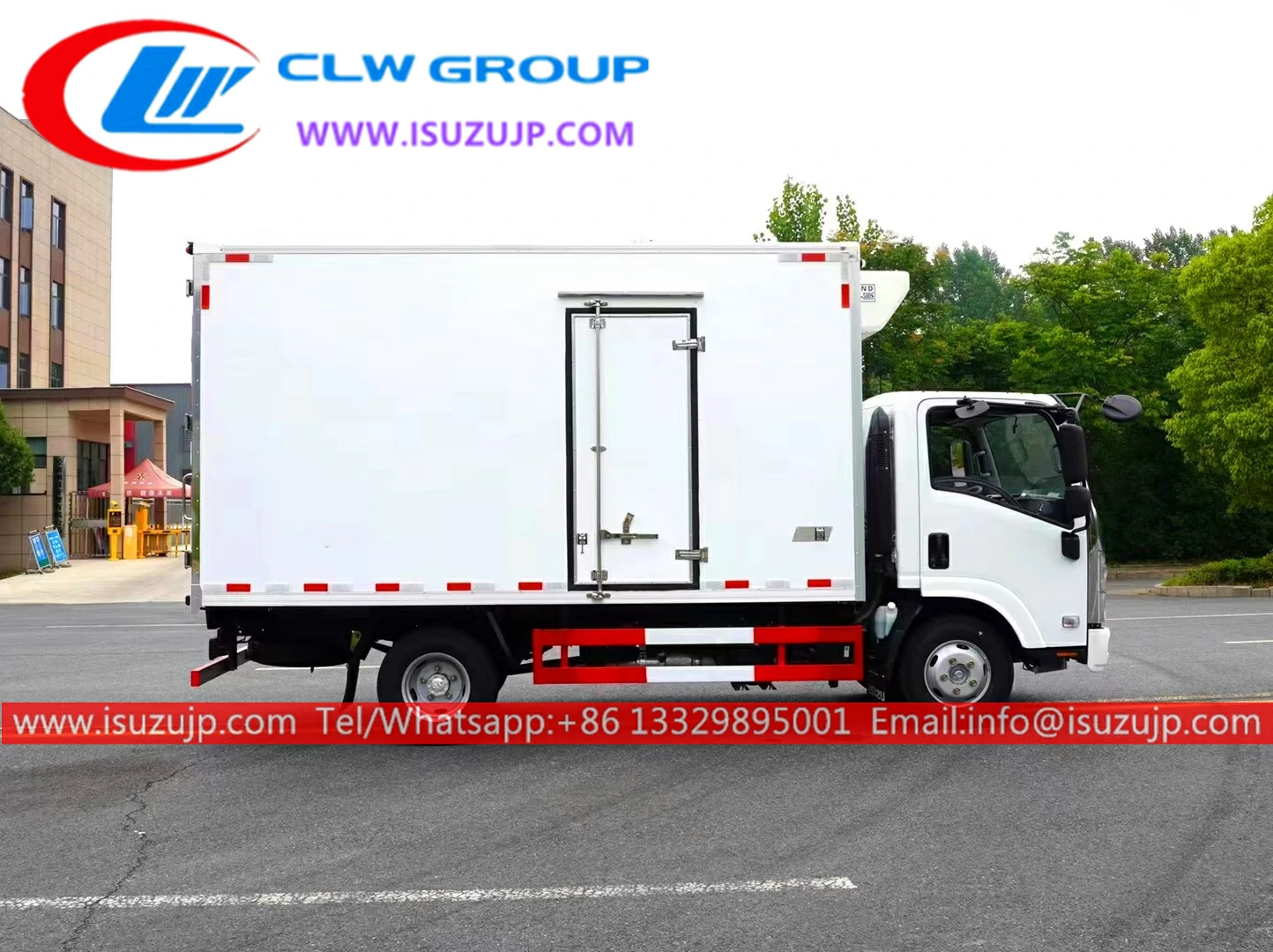

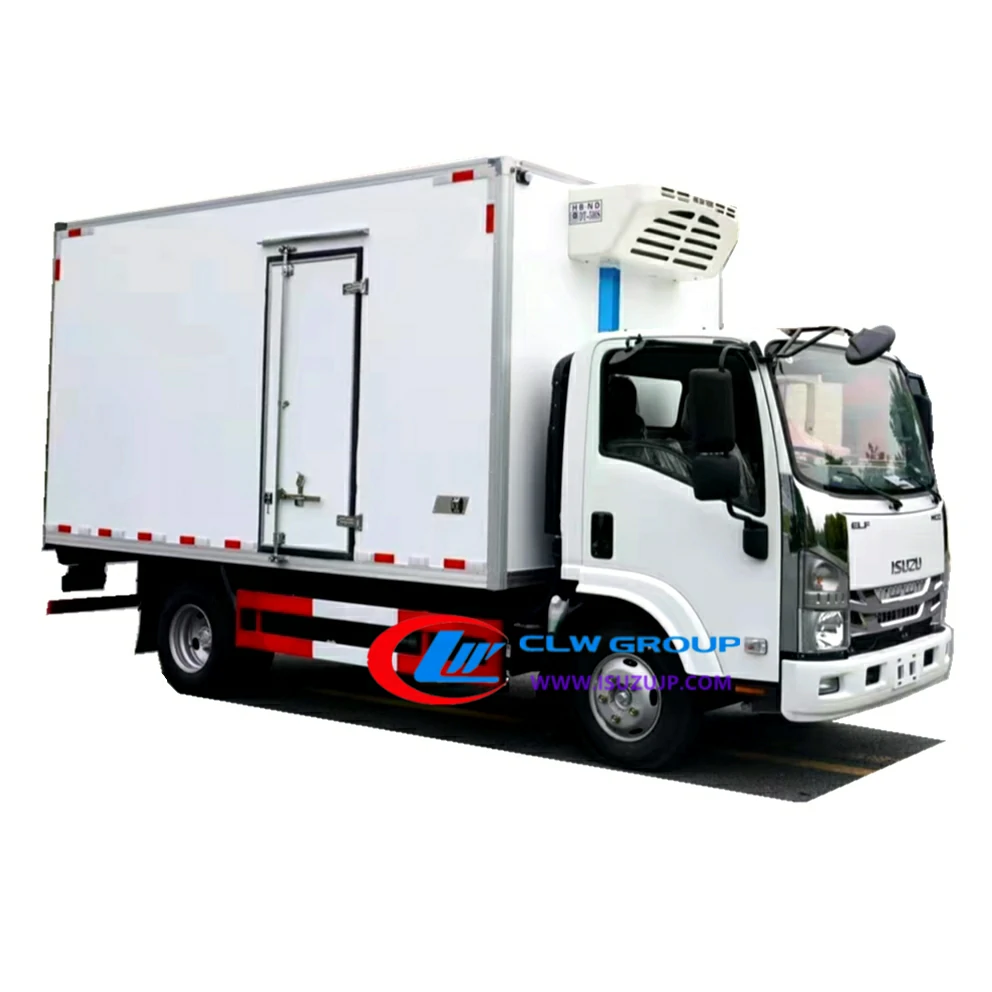

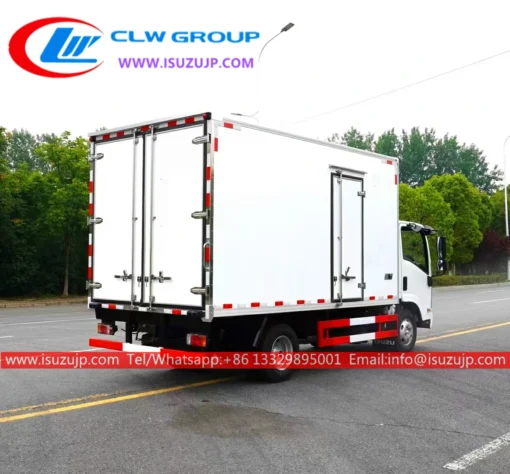

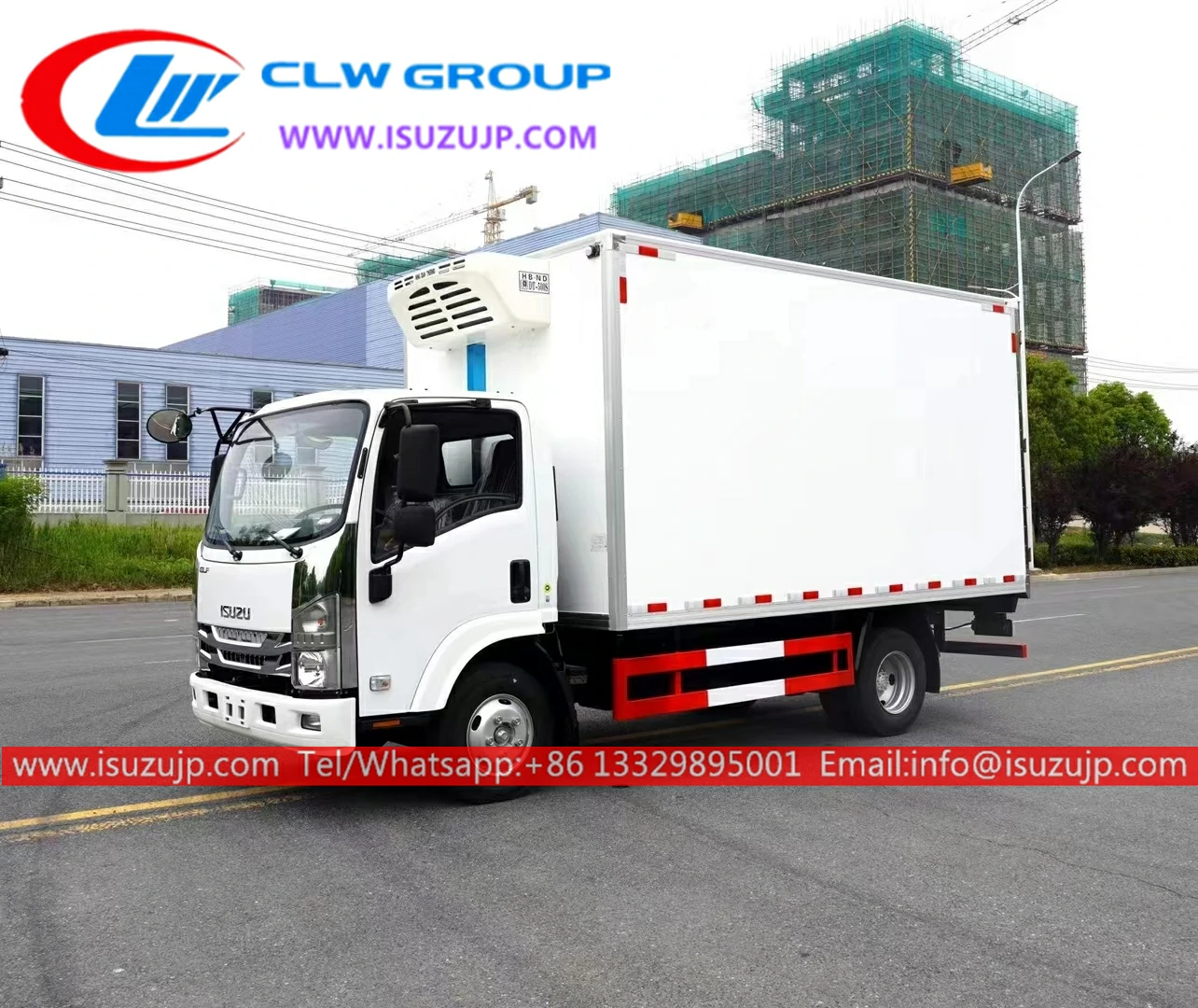

ISUZU M600 6000kg reefer van Description:
- Isuzu M600 6000kg reefer van also called a Freezer truck, Food meat transportation van, Refrigerator lorry truck is a van or truck designed to carry perishable freight specific temperatures.
- Refrigerator trucks can be ice-cooled, equipped with any one of a variety of mechanical refrigeration systems powered by gasoline or diesel engines, or utilize carbon dioxide as a cooling agent.
- ISUZU Trucks can supply freezer trucks with a capacity of 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Tons,30tons.
- Transportation temperature can be from +20°C, -5°C, -10°C, -15°C, -20°C
Advantage:
- 100% custom-made
- 3 cbm to 40 cbm available
- Short delivery time 7~30 days
- Easy operation & Easy maintenance
- 15 years of spare parts & Technical support
- ISUZU engine & gearbox, super powerful, no overhaul within 500,000 km.
- The refrigeration system brand can be optional.
- Transport temperature can be from +7°C, +2°C, -10°C, -15°C, -20°C -25°C.
Specification:
| ISUZU M600 6000kg reefer van Vehicle Parameters | Overall Dimension(L x W x H) | 6940x2070x3000mm |
| Box dimension(L x W x H) | 4960x1900x1800mm Material: glass reinforced plastics | |
| Curb Weight: | 3470Kg | |
| GVW: | 6975Kg | |
| Wheelbase: | 3815mm | |
| Drive Type: | 4×2 | |
| Engine | Engine Model: | 4KH1-TCG51 |
| Engine Power: | 88Kw | |
| Delivery Capacity: | 2999(ml) | |
| Horsepower: | 120PS | |
| Emission standard | EURO5 | |
| Transmission | Transmission: | QingLing MSB-5SM |
| Forword Gear: | 5 Speed Gear | |
| Backward Gear: | 1 Speed Gear | |
| Seats | Front Seat: | 3 |
| Cabin | ISUZU Wide Cabin 1995mm | |
| Chassis | Front Wheel Distance: | 1685mm |
| Rear Wheel Distance: | 1525mm | |
| Axle Loads: | Double Axles | |
| Rear Axle Ratio: | 6.142 | |
| Tires: | 6 | |
| Tire Model: | 7.00R16 14PR | |
| Configuration | 1 | Power Steering |
| 2 | AC | |
| 3 | Retro-reflective Marking | |
| 4 | TubelessTire | |
| 5 | ABS | |
| 6 | Free Maintenance Battery | |
| Refrigerating Machine | Brand Model | Thermo King RV580 |
| Maximum degrees | -18 degrees | |
Working parameter:
| Insulation thickness | 80mm ester urethane | Inside and outside materials | 2.2mm FRP / Stainless steel plate | Unit brand | Domestic, imported / independent, non-independent |
| Floor material | FRP / Aluminium skid plate / Stainless steel skid plate | Installation location | Front, skirt, top | Bottom ventilation slot | Optional, aluminum alloy profile |
| Cooling time | 30 minutes | Thermal curtain | Optional | Control position | Cab |
| Meat hook | Optional | Insulation effect | 24 hours temperature rise 5 degrees | External power supply | Optional |
| Cooling temperature | Minus 20-5 degrees | Constant temperature unit | Optional | Temperature and humidity printer | Optional |
reefer truck New craft:
Frozen truck Optional configuration:
Freezer car Bodywork details:

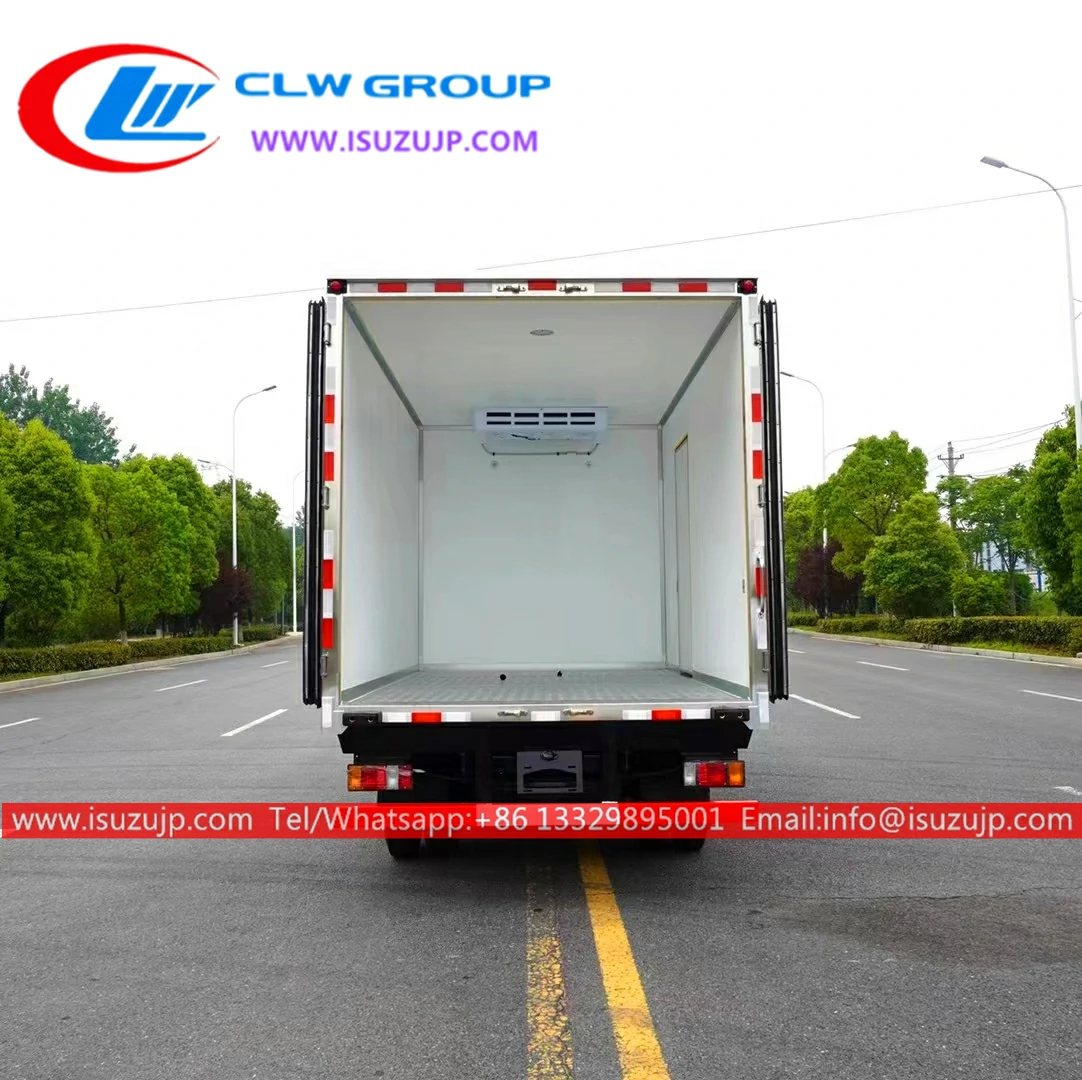

Isuzu Cold chain transport truck box Internal details：
1ton to 40ton fridge truck product Display：
Factory Advantage:
- 17 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
