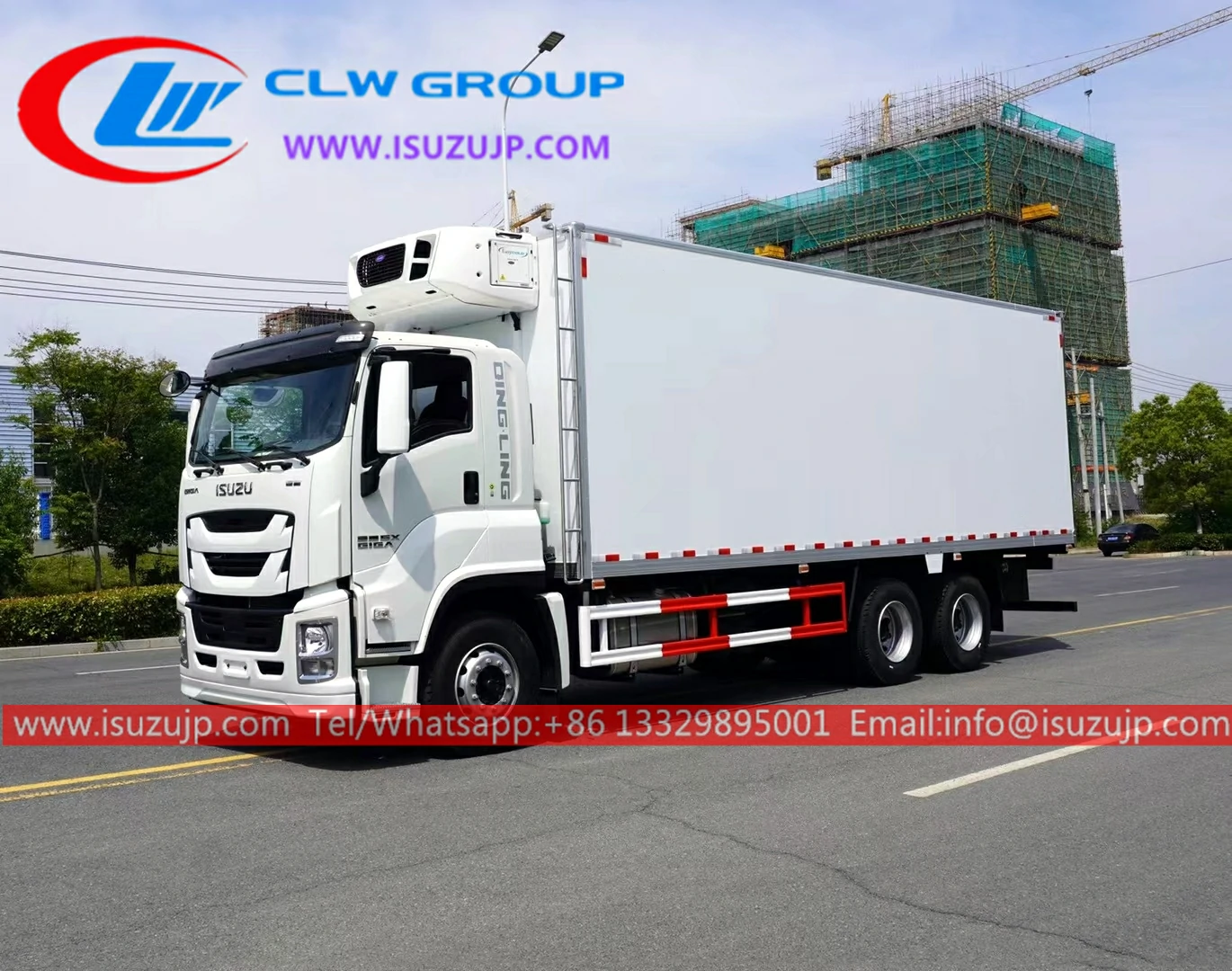

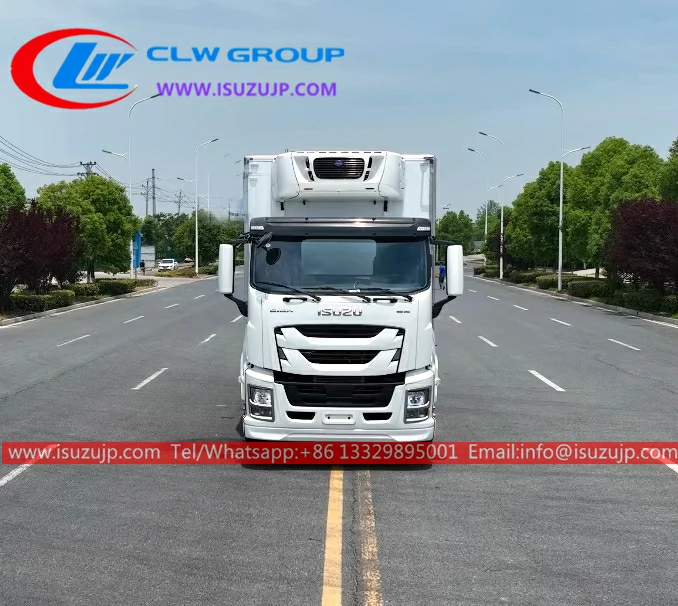

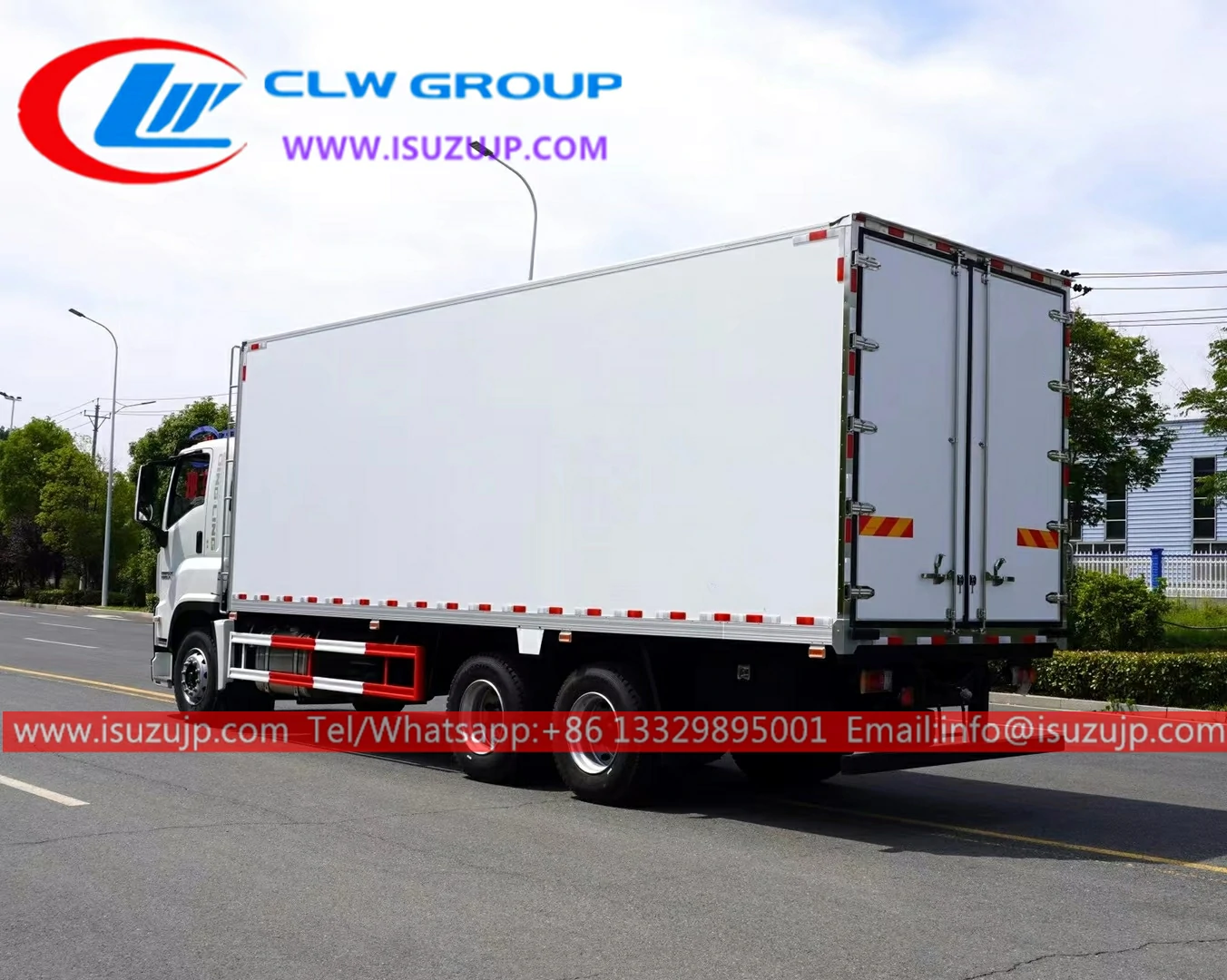

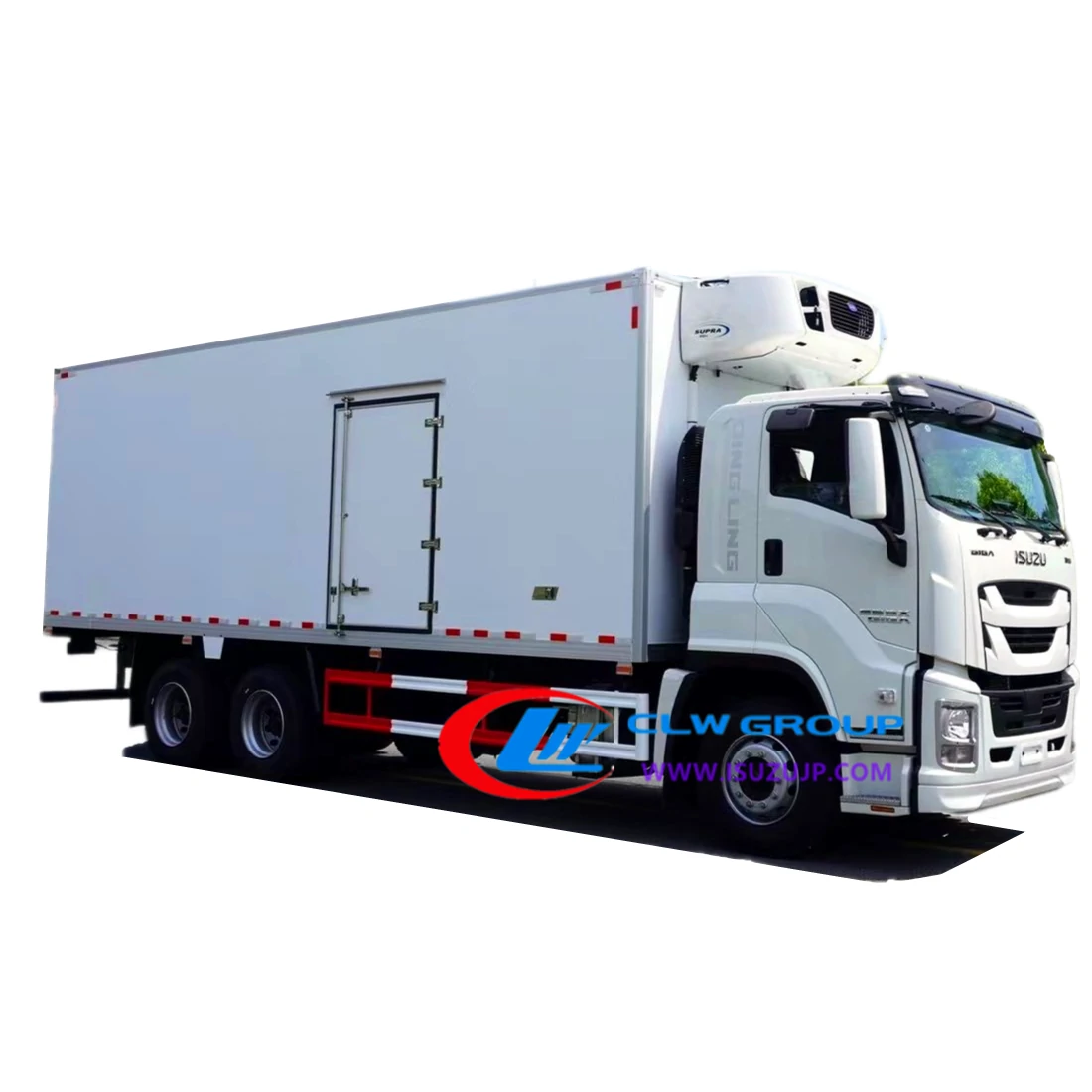

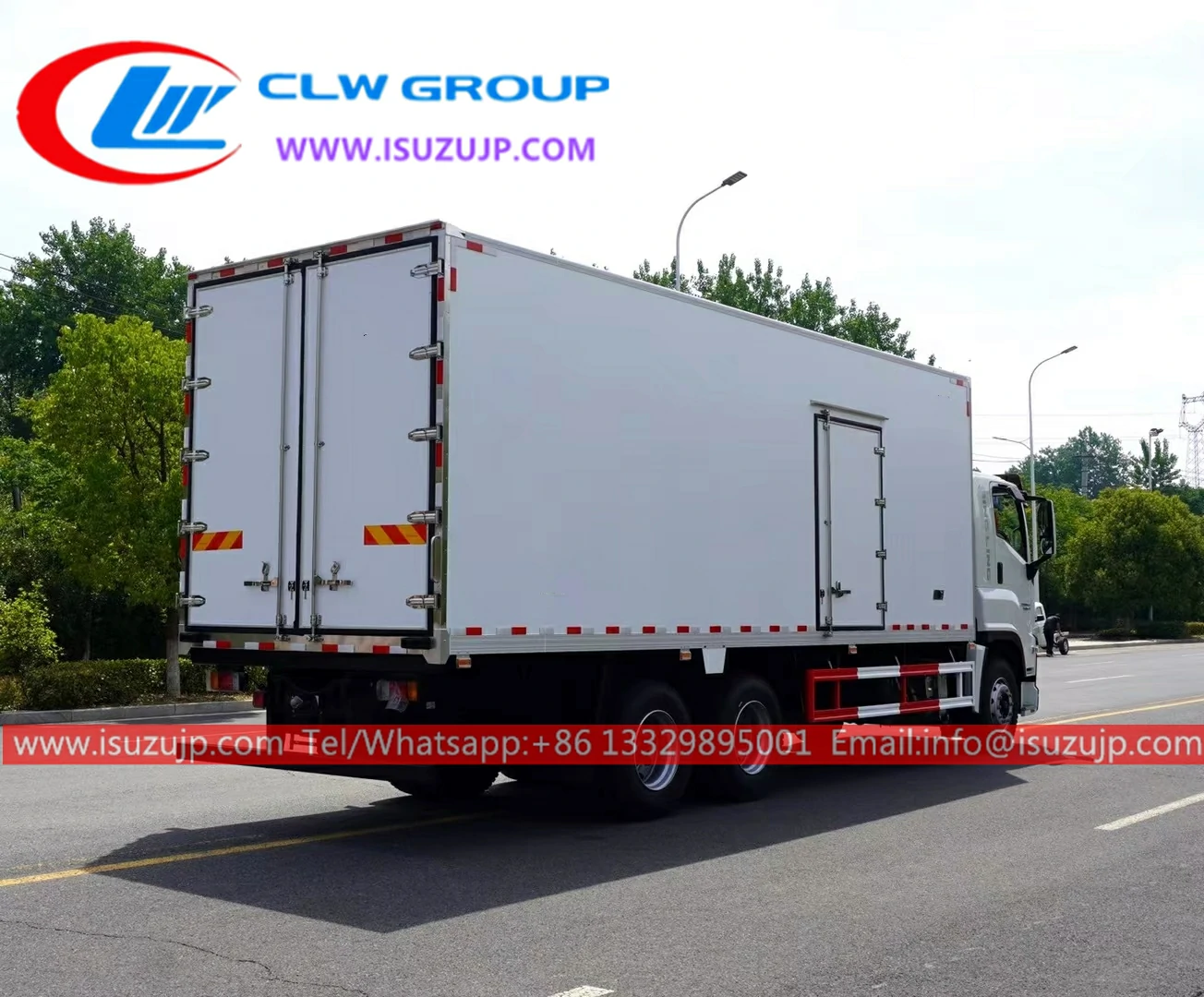

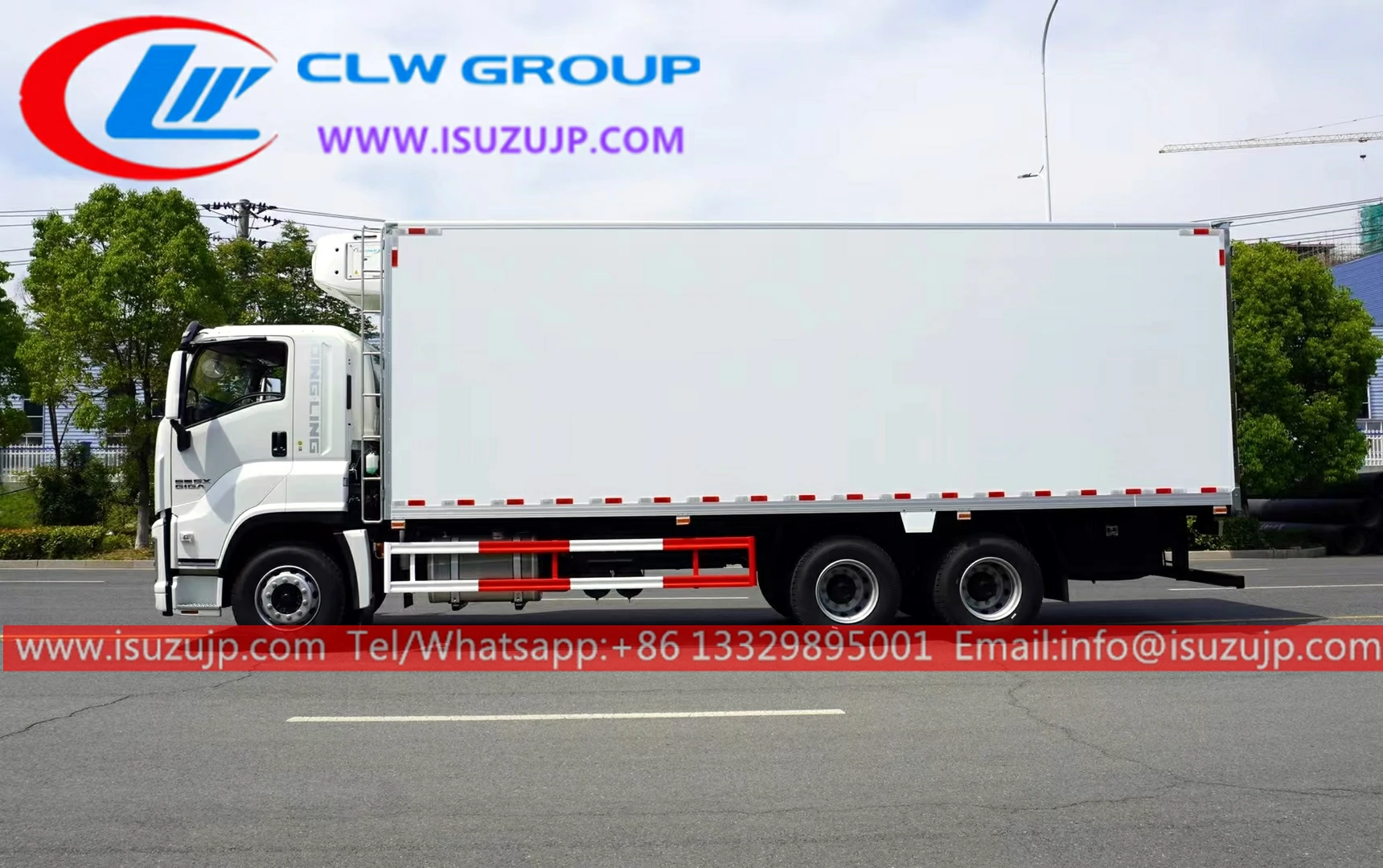

6×4 ISUZU GIGA 20-25tons refrigerated van Description:
- 6×4 ISUZU GIGA 20-25tons refrigerated van also called Freezer truck, Food meat transportation van, Refrigerator lorry truck is a van or truck designed to carry perishable freight specific temperatures.
- Refrigerator trucks can be ice-cooled, equipped with any one of a variety of mechanical refrigeration systems powered by gasoline or diesel engines, or utilize carbon dioxide as a cooling agent.
- ISUZU Trucks can supply freezer trucks with a capacity of 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Tons,30tons.
- Transportation temperature can be from +20°C, -5°C, -10°C, -15°C, -20°C
Advantage:
- 100% custom-made
- 3 cbm to 40 cbm available
- Short delivery time 7~30 days
- Easy operation & Easy maintenance
- 15 years of spare parts & Technical support
- ISUZU engine & gearbox, super powerful, no overhaul within 500,000 km.
- The refrigeration system brand can be optional.
- Transport temperature can be from +7°C, +2°C, -10°C, -15°C, -20°C -25°C.
Specification:
| 6×4 ISUZU GIGA 20-25tons refrigerated van for sale philippines | ||
| General | Vehicle Brand | CHENG LI |
| Chassis Brand | ISUZU | |
| Overall Dimension | 10350X2600X3890 mm | |
| GVW / Kerb Weight | 25,000 kg / 12,200 kg | |
| Cab | Cab Capacity | 2 persons are allowed with 1 sleeper |
| Air Conditioner | Equipped | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine | |
| Power | 300 Hp (221 KW) | |
| Displacement | 7790 ml | |
| Emission Standard | Euro VI | |
| Chassis | Drive Type | 6X4, left-hand drive |
| Transmission | FAST 9-speed forward, 1 reverse | |
| No. of axle | 4 | |
| Tyre Specification | 295/80R22.5 | |
| Tyre Number | 10 tires and 1 spare tire | |
| Max Speed | 90 km/h | |
| Paint | Metallic paint | |
| Superstructure | Box Capacity | 20-25 Ton |
| Box Material | Fiberglass | |
| Cooling system | King | |
| Lowest temperature | -5° or -20° | |
| Box size：7850x2420x2400mm | ||
| Optional | Box material could be aluminum or stainless steel. The cooling system could be an imported brand. Temperature data logger, temperature alarm. Extra side door. Slide rail and meat hook for special use. | |
Working parameter:
| Insulation thickness | 80mm ester urethane | Inside and outside materials | 2.2mm FRP / Stainless steel plate | Unit brand | Domestic, imported / independent, non-independent |
| Floor material | FRP / Aluminium skid plate / Stainless steel skid plate | Installation location | Front, skirt, top | Bottom ventilation slot | Optional, aluminum alloy profile |
| Cooling time | 30 minutes | Thermal curtain | Optional | Control position | Cab |
| Meat hook | Optional | Insulation effect | 24 hours temperature rise 5 degrees | External power supply | Optional |
| Cooling temperature | Minus 20-5 degrees | Constant temperature unit | Optional | Temperature and humidity printer | Optional |
reefer truck New craft:
Frozen truck Optional configuration:
Freezer car Bodywork details:

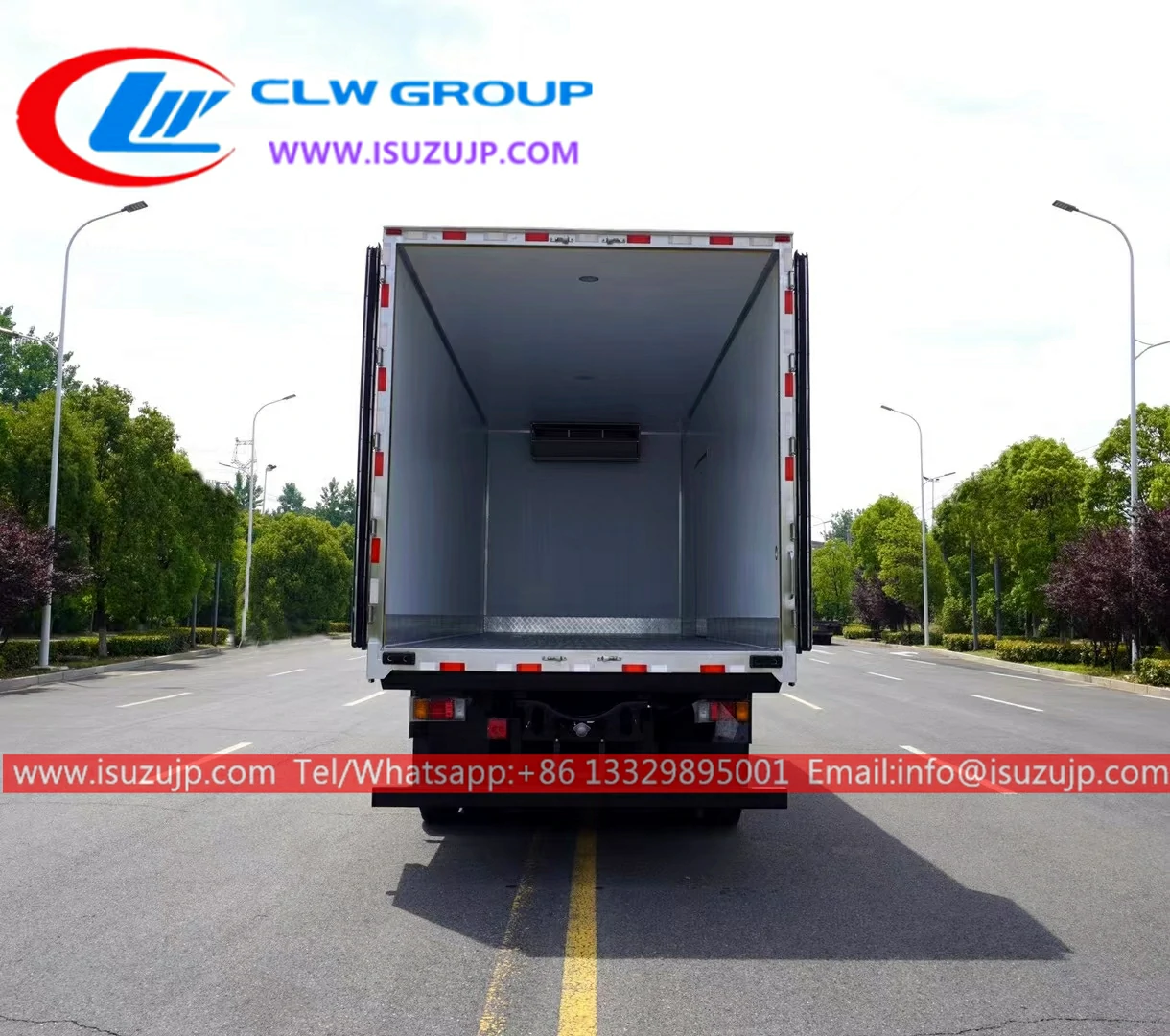

Isuzu Cold chain transport truck box Internal details：
1ton to 40ton fridge truck product Display：
Factory Advantage:
- 17 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
