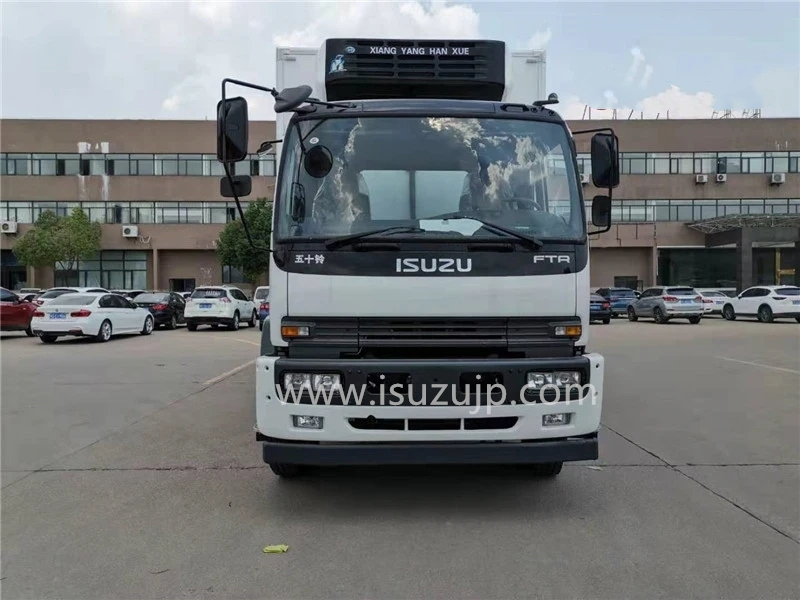

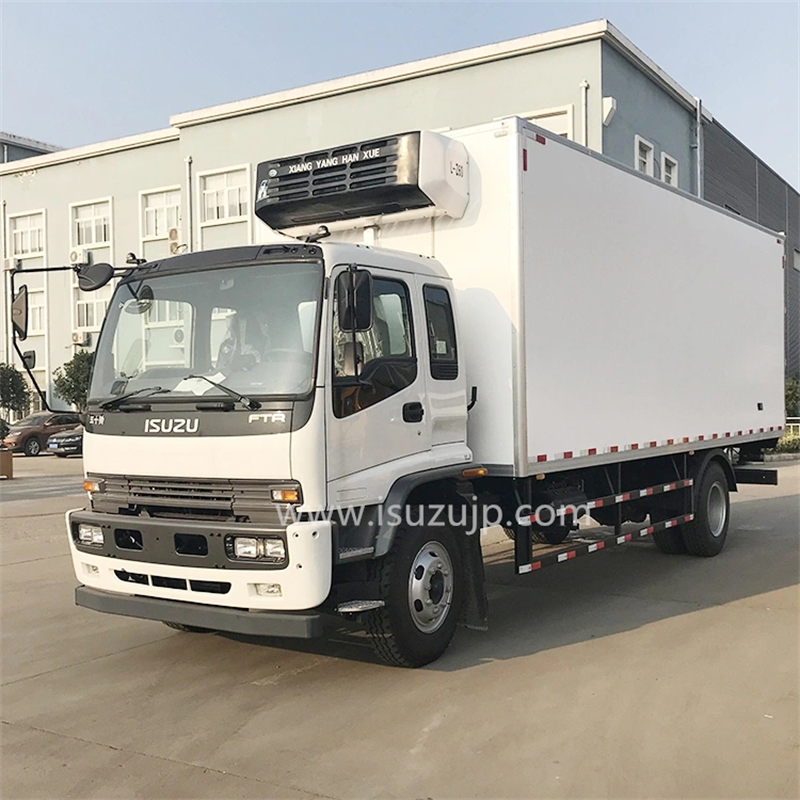

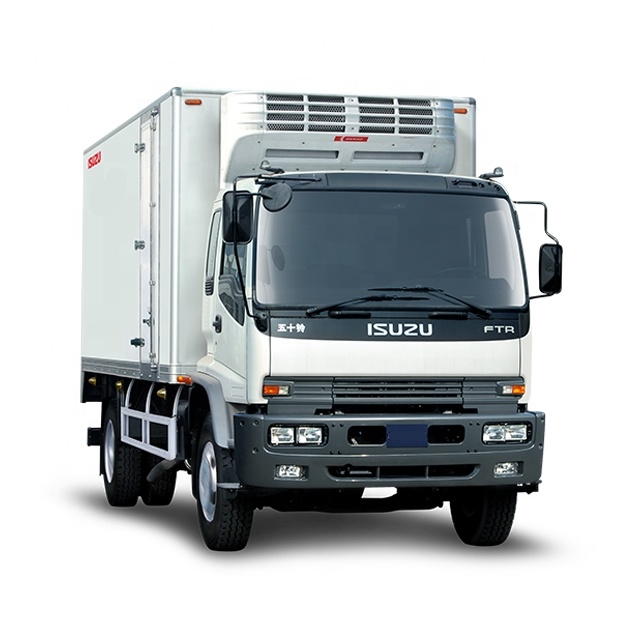

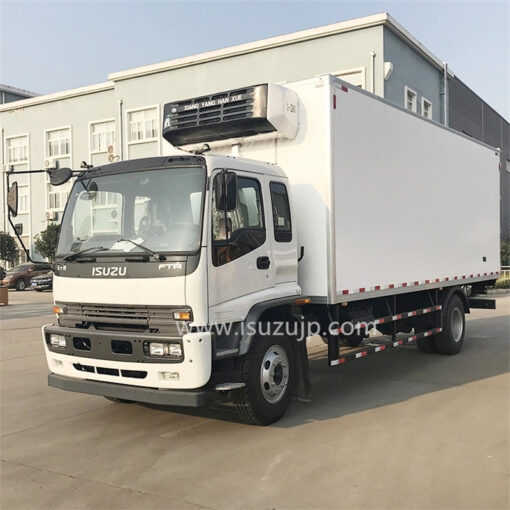

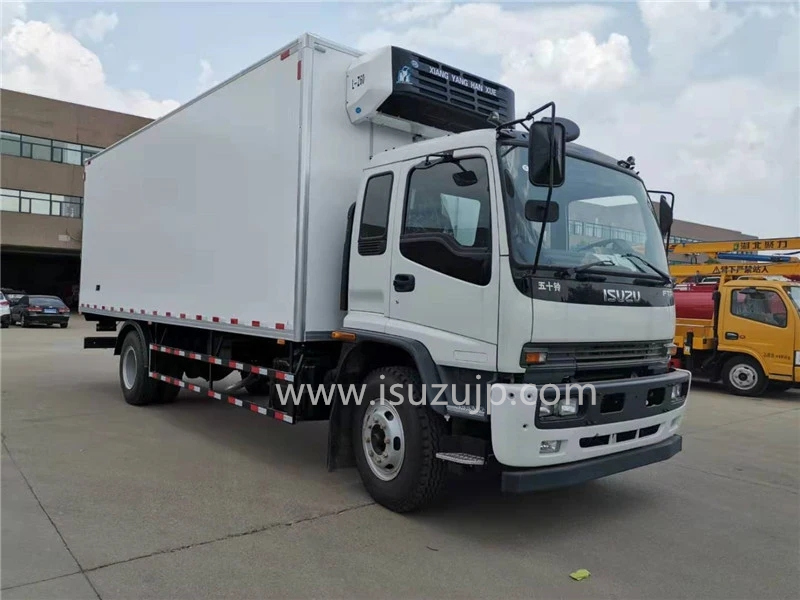

Isuzu Ftr 10 ton Refrigerated truck Description:
- Isuzu Ftr 10 ton Refrigerated truck also called Freezer truck, Food meat transportation van, Refrigerator lorry trucks is a van or truck designed to carry perishable freight as specific temperatures.
- Refrigerator trucks can be ice-cooled, equipped with any one of a variety of mechanical refrigeration systems powered by gasoline or diesel engines, or utilize cabon dioxide as a colling agent.
- ISUZU Trucks can supply freezer trucks with capacity from 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Tons,30tons.
Advantage:
- 100% custom-made
- 3 cbm to 40 cbm available
- Short delivery time 7~30 days
- Easy operation & Easy maintenance
- 15 years spare parts & Technical support
- ISUZU engine & gearbox, super powerful, no overhaul within 500,000 km.
- Refrigeration system brand can be optional.
- Transport temperature can be from +7°C, +2°C, -10°C, -15°C, -20°C -25°C.
Specification:
| Isuzu Ftr 10 ton Refrigerated truck | ||
| General | Vehicle Brand | CHENGLI |
| Chassis Brand | ISUZU | |
| Overall Dimension | 9000x2500x3600 mm | |
| GVW / Kerb Weight | 14,000 kg / 7,200 kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | Air conditioner is equipped | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine | |
| Power | 190 Hp (139 KW)/205HP (150 KW) | |
| Displacement | 5193 ml | |
| Emission Standard | Euro V/Euro VI | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | 6-speed forward, 1 reverse | |
| No. of axle | 2 | |
| Tyre Specification | 9.00R20 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 100 km/h | |
| Paint | Metallic paint | |
| Superstructure | Box Capacity | 12 Ton |
| Box Material | Fiberglass | |
| Cooling system | King | |
| Lowest temperature | -5° or -15° | |
| All other standard accessories: Tool kit, English manual…… | ||
| Optional | Box material could be aluminum or stainless steel. Cooling system could be imported brand. Temperature data logger, temperature alarm. Extra side door. Slide rail and meat hook for special use. | |
Working parameter:
| Insulation thickness | 80mm ester urethane | Inside and outside materials | 2.2mm FRP / Stainless steel plate | Unit brand | Domestic, imported / independent, non-independent |
| Floor material | FRP / Aluminium skid plate / Stainless steel skid plate | Installation location | Front, skirt, top | Bottom ventilation slot | Optional, aluminum alloy profile |
| Cooling time | 30 minutes | Thermal curtain | Optional | Control position | Cab |
| Meat hook | Optional | Insulation effect | 24 hours temperature rise 5 degrees | External power supply | Optional |
| Cooling temperature | Minus 20-5 degrees | Constant temperature unit | Optional | Temperature and humidity printer | Optional |
Isuzu reefer truck New craft:
Frozen truck Optional configuration:

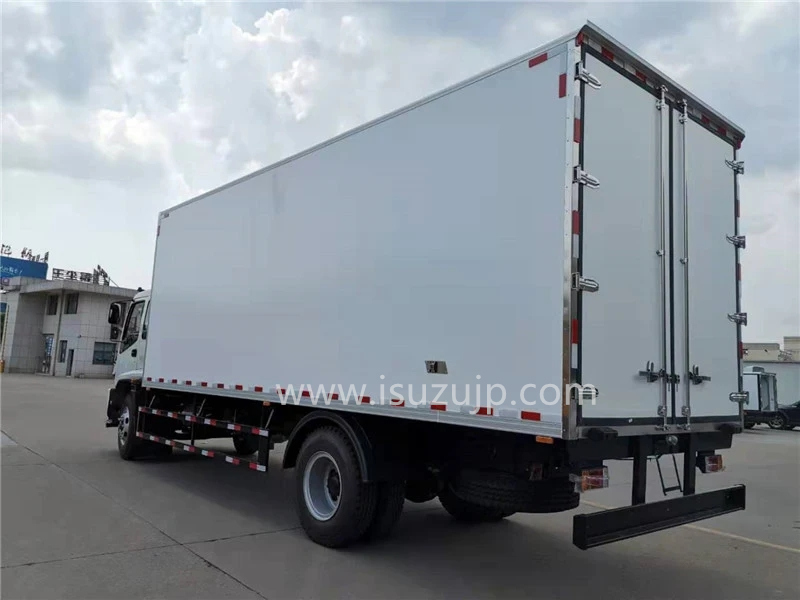

Freezer car Bodywork details:

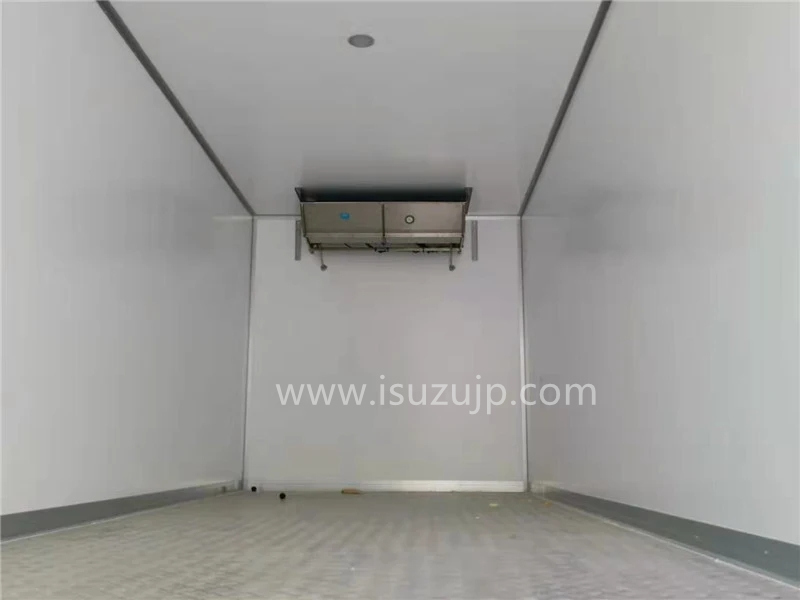

Cold chain transport truck box Internal details：
1ton to 40ton fridge truck product Display：
Factory Advantage:
- 17 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
