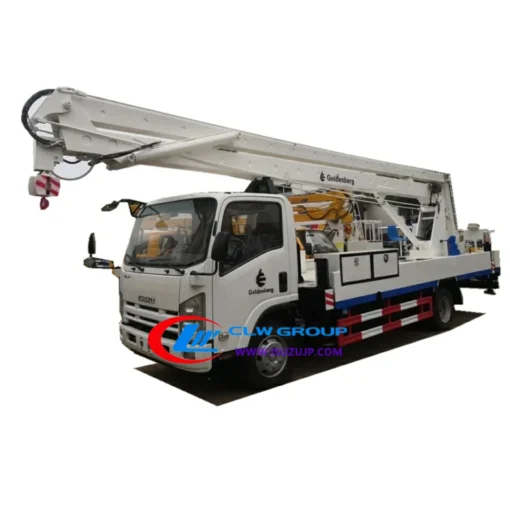

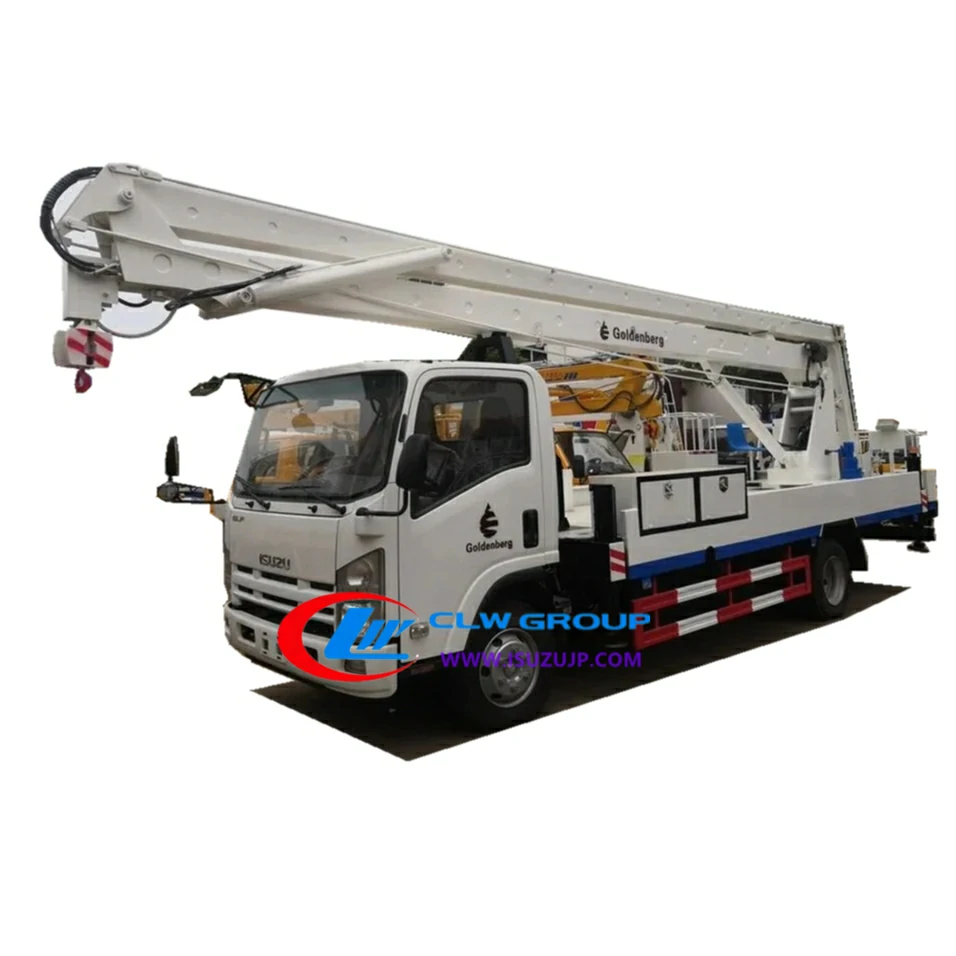

ISUZU NQR 22m aerial work truck Description:
- Isuzu aerial work truck also called Overhead working truck, Basket crane truck, Aerial lift working truck, Manlift boom truck, Hydraulic telescopic boom truck, Truck-mounted aerial platform.
- Aerial lift Man truck is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.
Advantage:
- 100% custom-made
- 8m to 45m available
- Short delivery time 7~30 days
- Easy operation & Easy maintenance
- 15 years of spare parts & Technical support
- ISUZU engine & gearbox, super-powerful, no overhaul within 500,000 km.
- Working cage can be made of steel structure or reinforced fibreglass (insulated cage); can rotate 90 degrees in left and right;
- 4pcs outriggers and front support improve operation stability and safety;
- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.;
- The wireless remote control system is available.
Specification:
| ISUZU NQR 22m aerial work truck | ||
| General | Vehicle Brand | CHENGLI |
| Chassis Brand | ISUZU | |
| Overall Dimension | 9200 x 2500 x 3420 mm | |
| GVW / Kerb Weight | 10,000 kg / 7,300 kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | With air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU | |
| Power | 190Ps (140KW) | |
| Displacement | 5200 ml | |
| Emission Standard | Euro 4 | |
| Chassis | Drive Type | 4X2, left-hand drive |
| Transmission | ISUZU MLD transmission, 6-forward gears & 1 reverse, no overhaul within 500,000km | |
| Wheelbase/No. of axle | 5200 mm / 2 | |
| Tyre Specification | 8.25-16 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure | Cage Rated Capacity | 200 kg |
| Working Height | 18m | |
| Beam | The beam is articulated & telescopic extension type, hydraulic actuated and controlled | |
| Slewing | Slewing range is continuous 235° (minimum) with a slewing speed of a maximum of 15° per second. | |
| Control | Control both on the ground and remote control in a cage | |
| Safety Device | Relief valve, balance valve, double-way hydraulic lock, hand-operated emergency hydraulic pump | |
| Leveling System | Hydraulic stabilizer to level the vehicle on uneven ground | |
| Optional | Insulated cage; Wireless remote control system | |
Folding arm aerial platform truck Working parameter:
Manlift boom truck New craft:

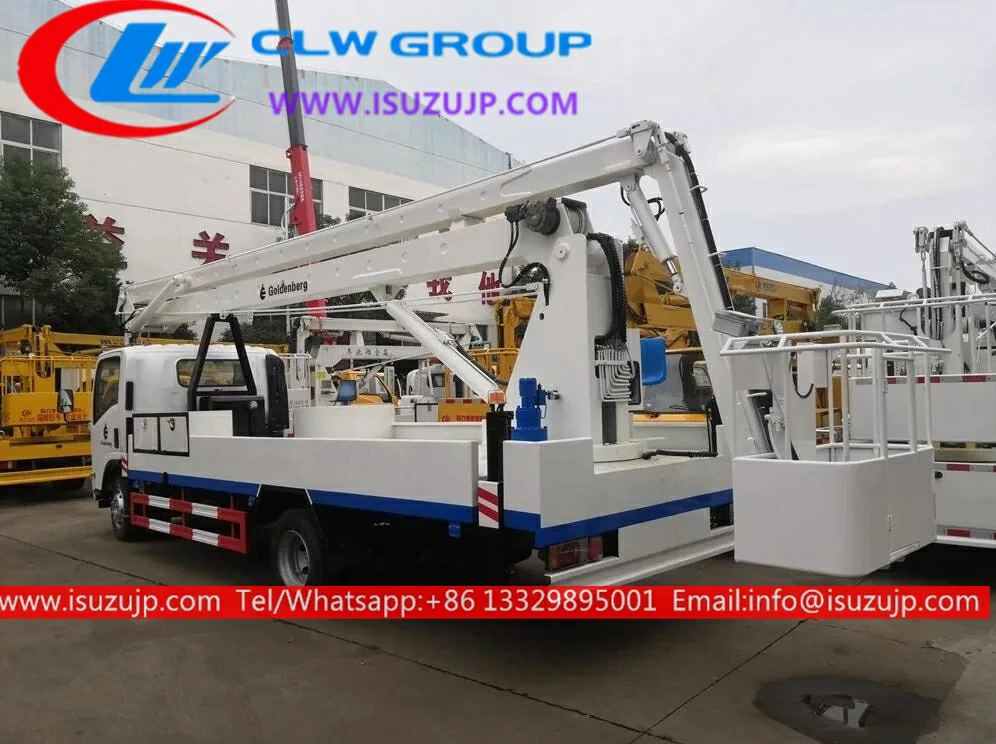

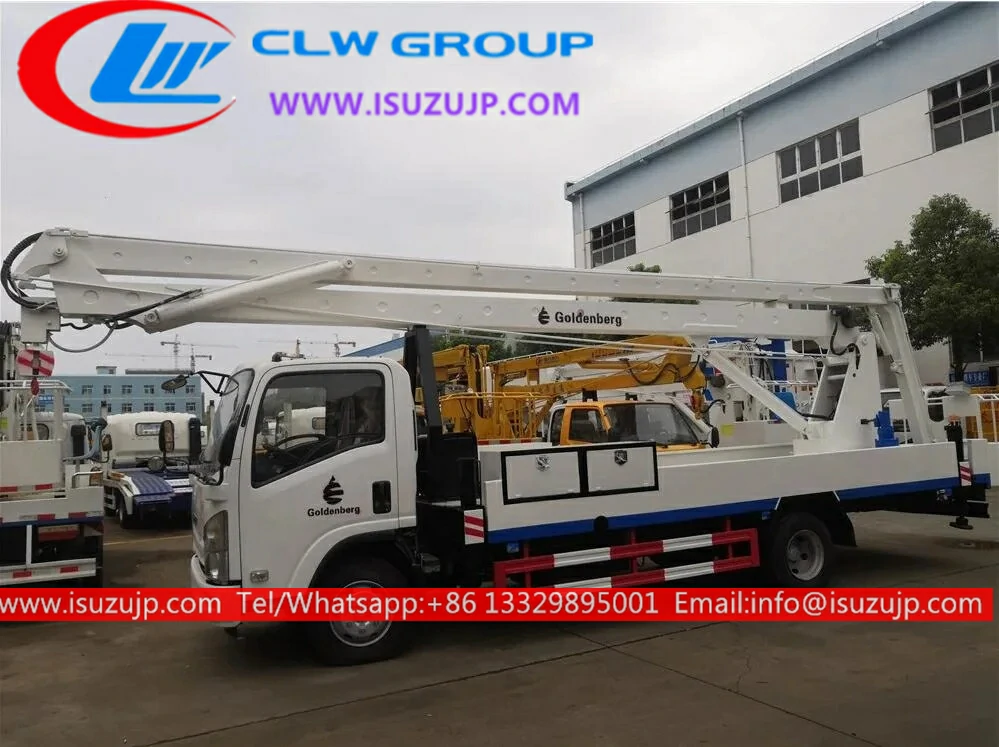

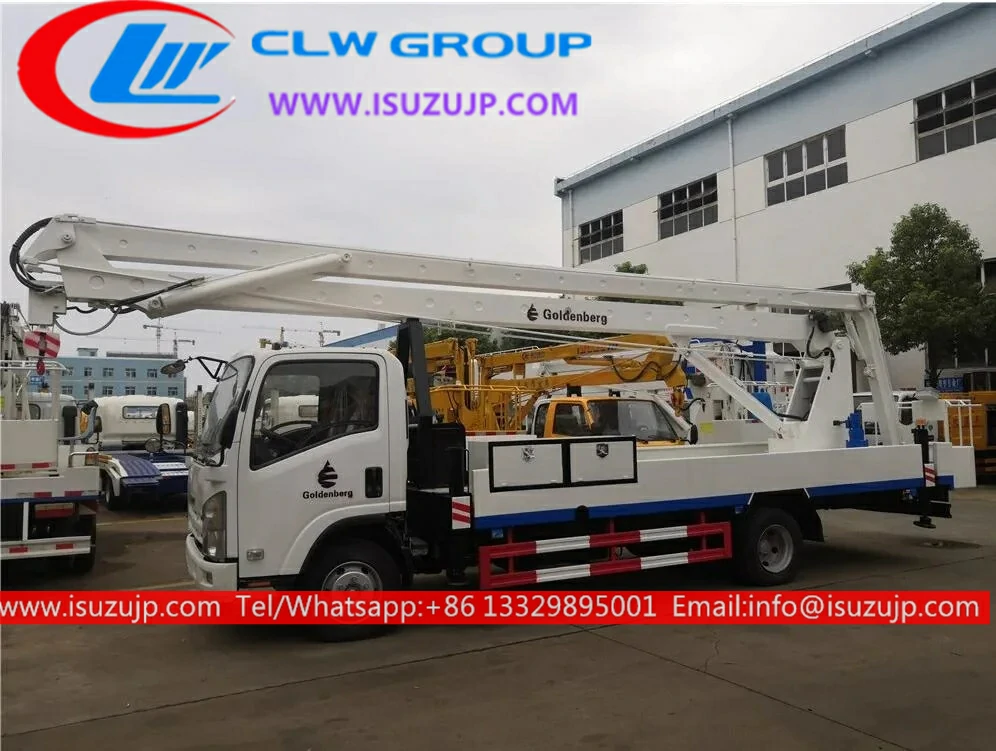

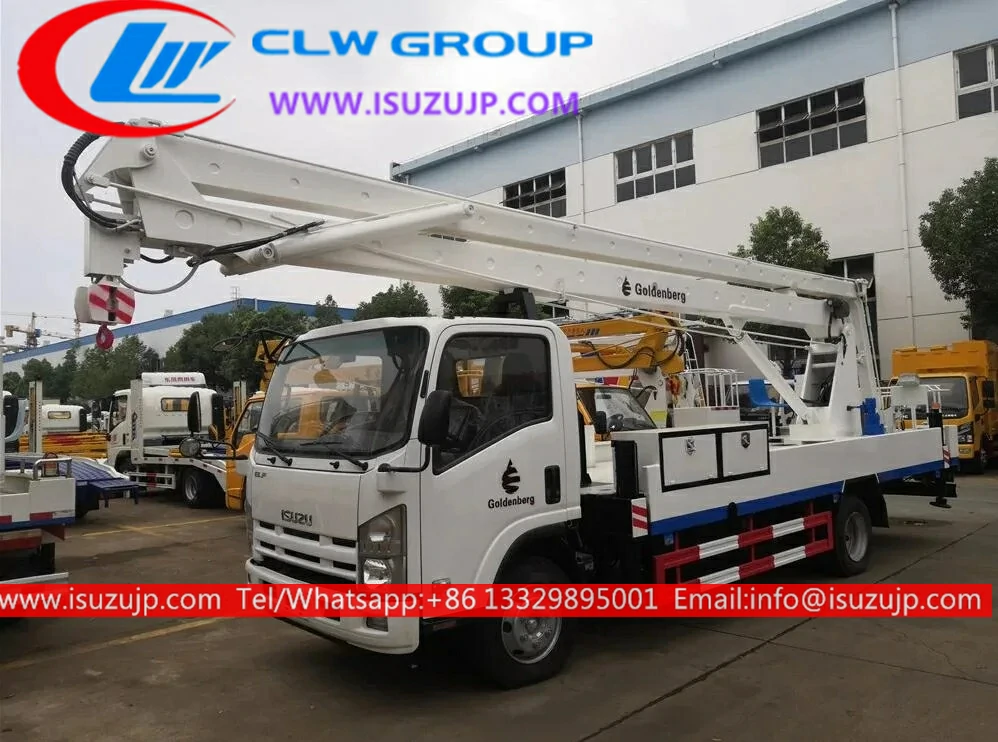

Aerial lift working truck Bodywork details:
ISUZU Aerial platform truck features：
- The truck adopts the international leading Qingling high-end chassis and is equipped with a special device for straight arm hydraulic lifting
- Three operating modes: wireless + wired + handle, more convenient to use, adapt to various working conditions, computer intelligent control, automatic limit range, automatic alarm device for dangerous working conditions, more safe and reliable

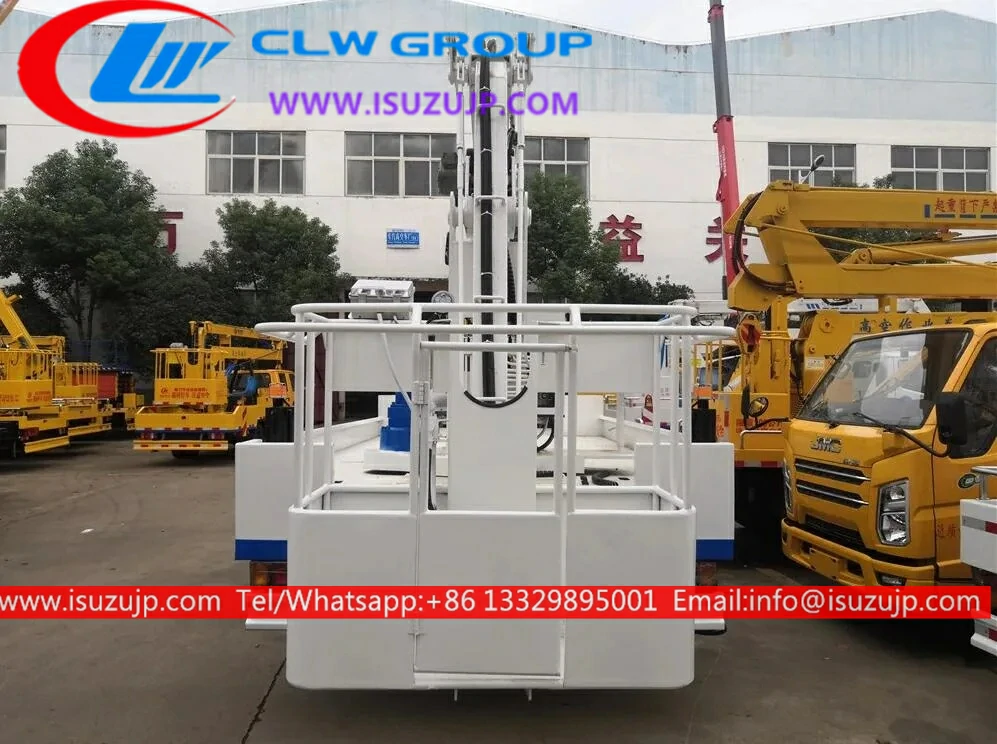

- The work bucket and the rear of the entrance and exit, easy to enter and exit, good passability
- Fully telescopic working arm, high operating efficiency, wide operating range
- Octagonal cross section of working arm, good love, made of high strength material, good reliability
- There is an emergency power source for more protection, and a 220V power socket is provided when getting off the car, which can easily lead the 220V power source to work at a high place.
- Remote control system of engine speed, easy to operate and high efficiency
- The support legs can be operated on both sides of the cab, which is convenient and efficient.
- The outrigger is H-shaped, the outrigger span is large, and the stability is good. It can be operated at the same time or separately, adapting to various ground conditions
- 360-degree turntable rotation, wide operating range, improve efficiency.
Factory Advantage:
- 17 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
