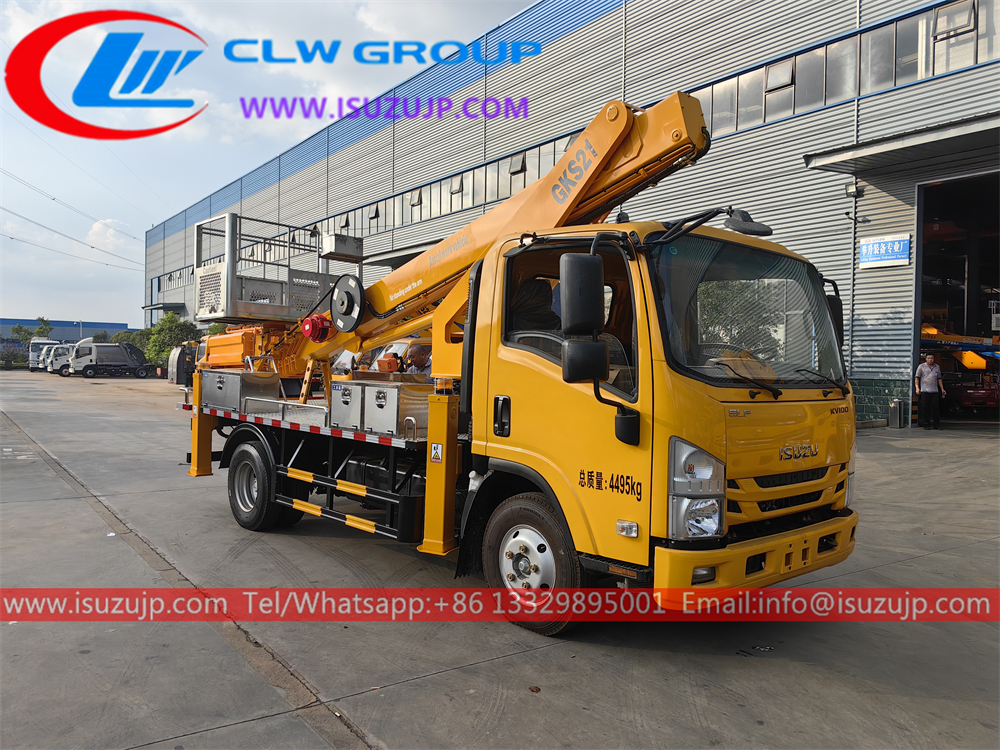

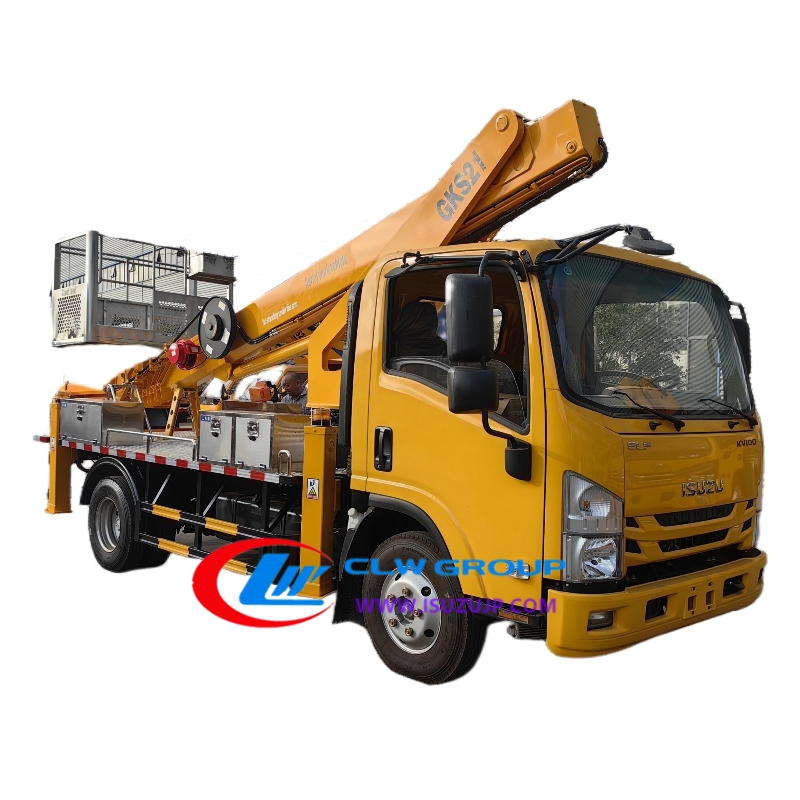

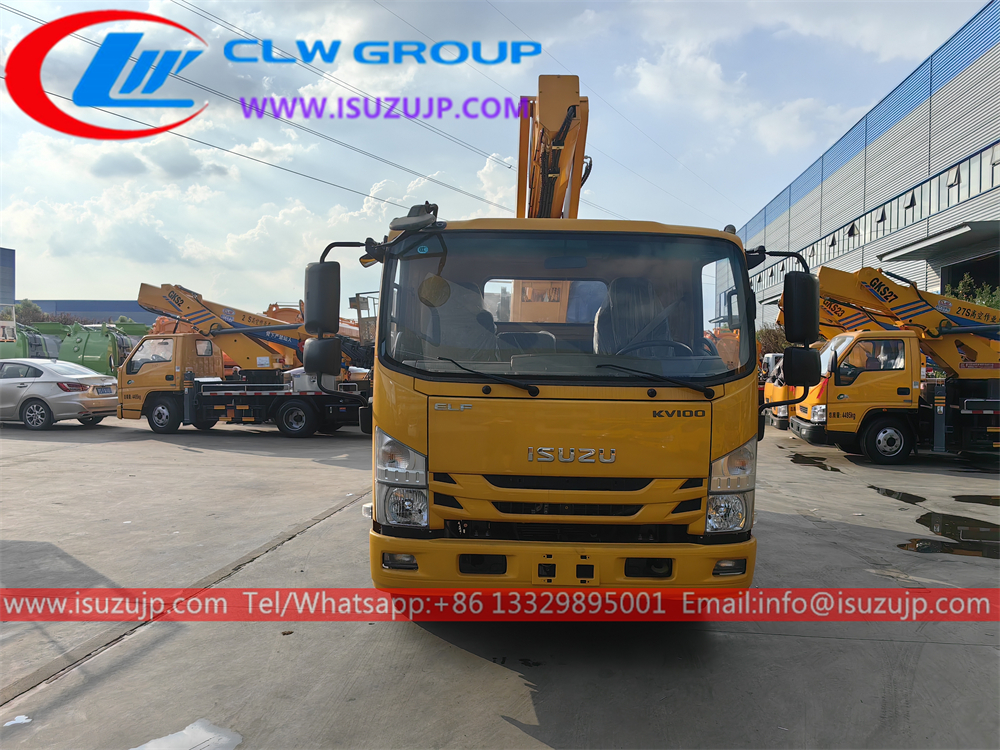

ISUZU NMR 19m 20m 21m boom lift truck Description:
- ISUZU NMR 19m 20m 21m boom lift truck also called Overhead working truck, Basket crane truck, Aerial lift working truck, Manlift boom truck,Hydraulic telescopic boom truck , Truck mounted aerial platform.
- Aerial lift Man truck is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.
Advantage:
- 100% custom-made
- 8m to 45m available
- Short delivery time 7~30 days
- Easy operation & Easy maintenance
- 15 years of spare parts & Technical support
- ISUZU engine & gearbox, super-powerful, no overhaul within 500,000 km.
- Working cage can be made of steel structure or reinforced fibreglass (insulated cage); can rotate 90 degrees in left and right;
- 4pcs outriggers and front support improve operation stability and safety;
- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.;
- The wireless remote control system is available.
Specification:
| ISUZU NMR 19m 20m 21m boom lift truck | |||
| Chassis brand | ISUZU | Chassis Model | NMR |
| Work capacity | 24 meters | Truck model | CLW5070GSSD |
| Engine power | 120 HP | Axle drive | 4×2 |
| Gear box | Isuzu MSB5S | Remarks | Double cabin, A/C |
| Overall dimensions | 6100X2100X3020mm | Wheel base | 4500mm |
| Chassis Manufacturer | ISUZU | ||
| Cab | Configuration | air conditioner allowable 3 passengers | |
| Color | Yellow.other color is optional | ||
| Engine | Model | 4KH1 | |
| Emission | Euro 6 | ||
| Rated power | 120hp | ||
| Displacement | 2999ml | ||
| Tire | Size | 7.00R16 Tire, With one spare tyre | |
| Number | 6+1 nos | ||
| Front axle | 3 tons | ||
| Rear axle | 4 tons | ||
| Transmissions | MSB 5 speed transmission, 5 speed forward 1 reverse | ||
| Technical Parameters | |||
| Working condition | Maximum operating height | 24m | |
| Max operating range | 18.6m | ||
| Max range at max height | 11.8m | ||
| Max height at max range | 9.6m | ||
| Rotation | 360° | ||
| Boom Type | 5Sections telescopic boom | ||
| Outrigger type | Outrigger type | Front V Rear H type. Controlled independently | |
| Outrigger span (Vertical x | Vertical | 5370.5385mm | |
| horizontal) | horizontal | 4975, 5195mm | |
| Rear Outrigger flash lights | 2pcs | ||
| Basket | Rated loading weight | 220kgs | |
| L*W*H(mm) | 1500x700x1150 | ||
| Bucket material | Stainless steel fence and antiskid platform. | ||

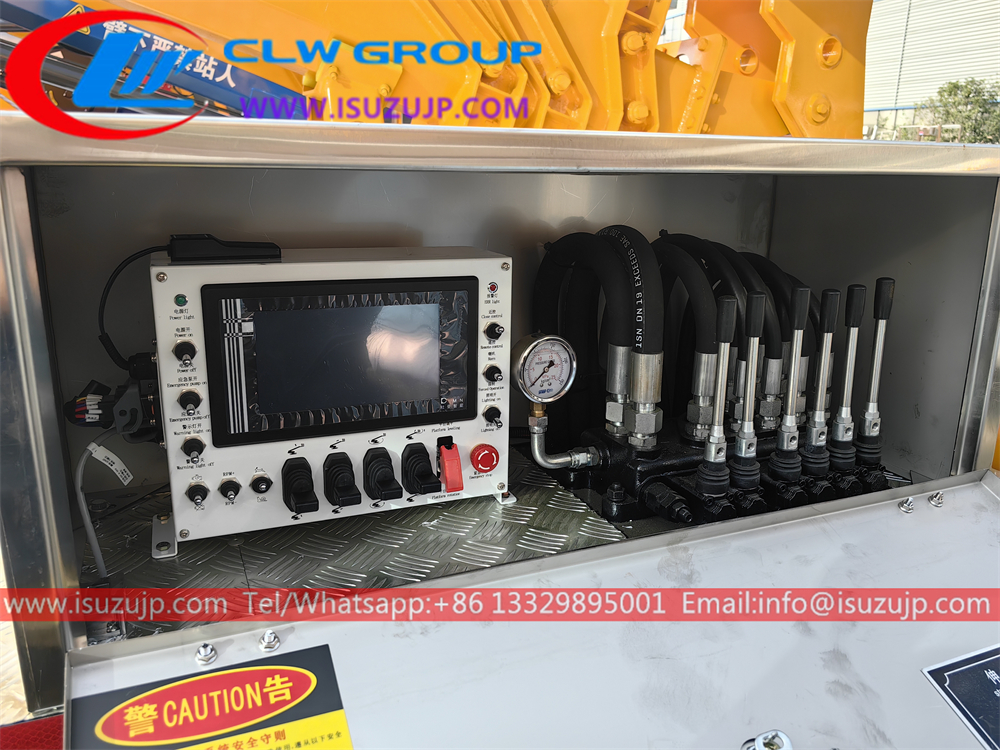

| Operation system | Operation | Electrical operation of working platform and ground remote control. | |
| Control system | Load sensitive proportional system can realize double actiorsynchronization and stepless speed regulation | ||
| Power take-off system | Pneumatic operation | ||
| Leveling system | Hydraulic automatic leveling | ||

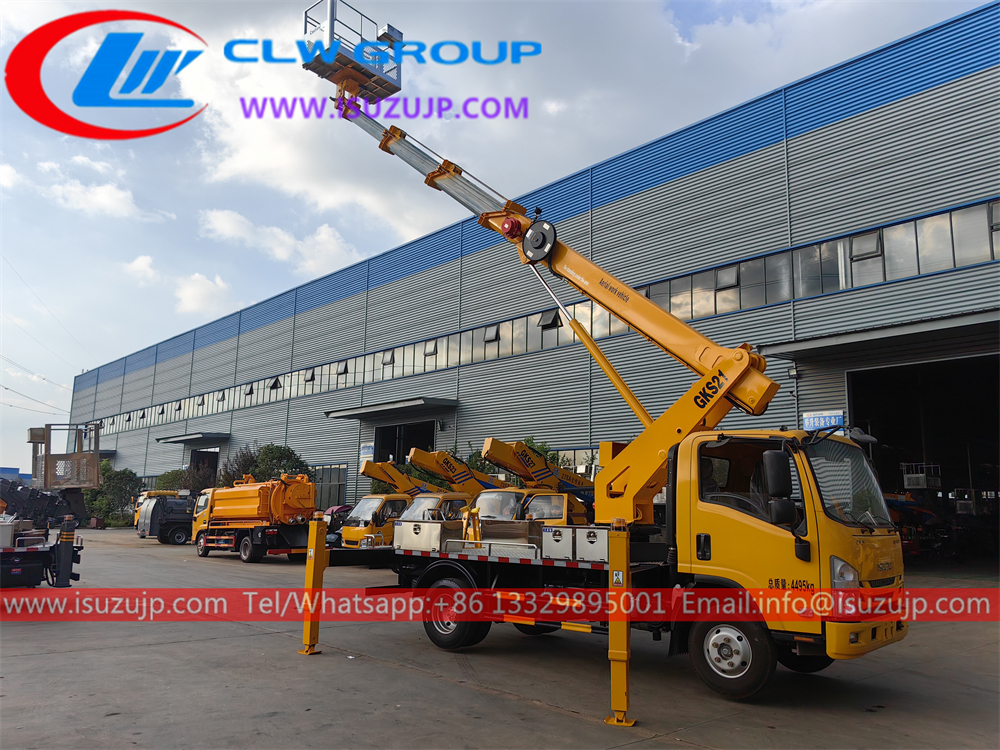

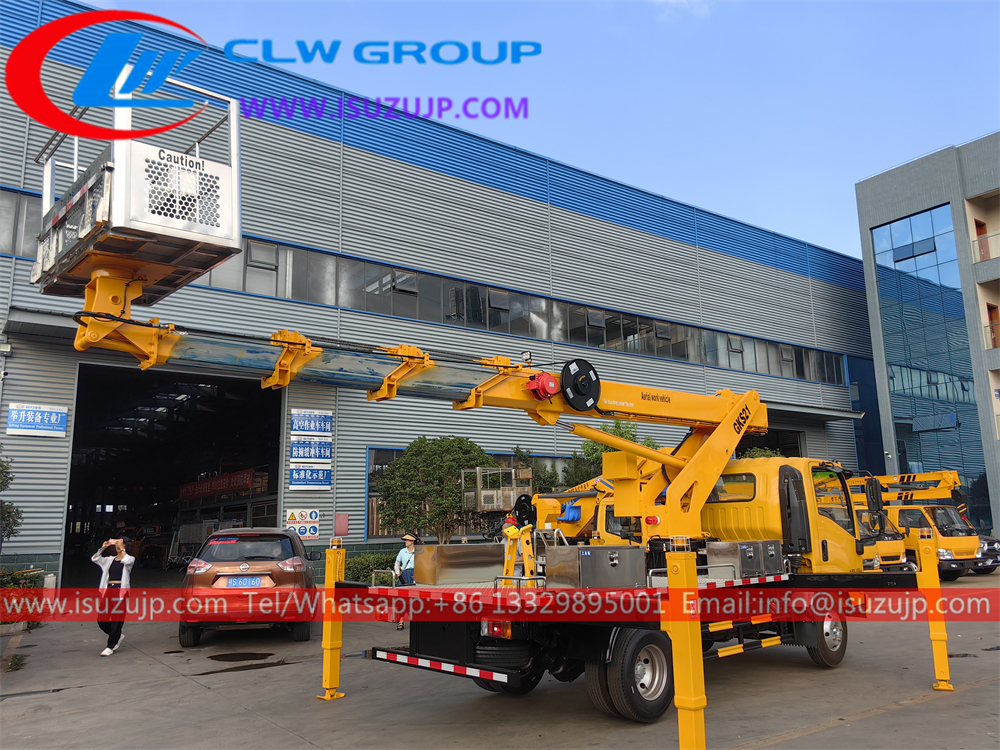

Telescopic working platform truck Working parameter:
Manlift boom truck New craft:
Aerial lift working truck Bodywork details:
ISUZU Aerial platform truck features：
- The truck adopts the international leading Qingling high-end chassis and is equipped with a special device for straight arm hydraulic lifting

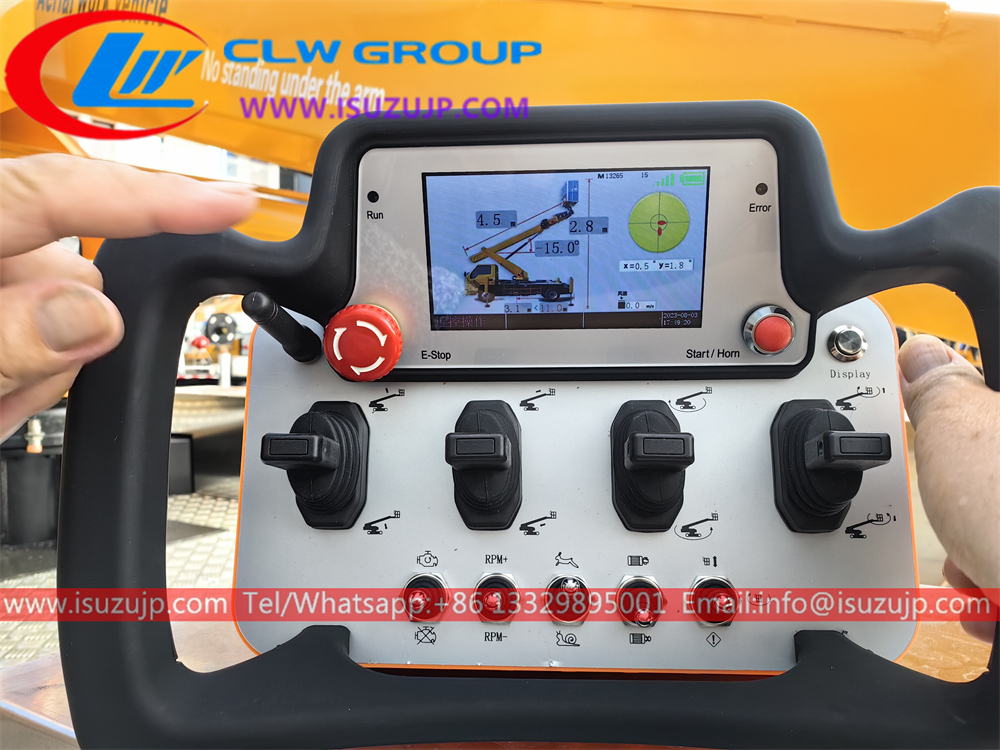

- Three operating modes: wireless + wired + handle, more convenient to use, adapt to various working conditions, computer intelligent control, automatic limit range, automatic alarm device for dangerous working conditions, more safe and reliable
- The work bucket and the rear of the entrance and exit, easy to enter and exit, good passability
- Fully telescopic working arm, high operating efficiency, wide operating range
- Octagonal cross section of working arm, good love, made of high strength material, good reliability
- There is an emergency power source for more protection, and a 220V power socket is provided when getting off the car, which can easily lead the 220V power source to work at a high place.
- Remote control system of engine speed, easy to operate and high efficiency
- The support legs can be operated on both sides of the cab, which is convenient and efficient.
- The outrigger is H-shaped, the outrigger span is large, and the stability is good. It can be operated at the same time or separately, adapting to various ground conditions
- 360-degree turntable rotation, wide operating range, improve efficiency.
Factory Advantage:
- 17 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
