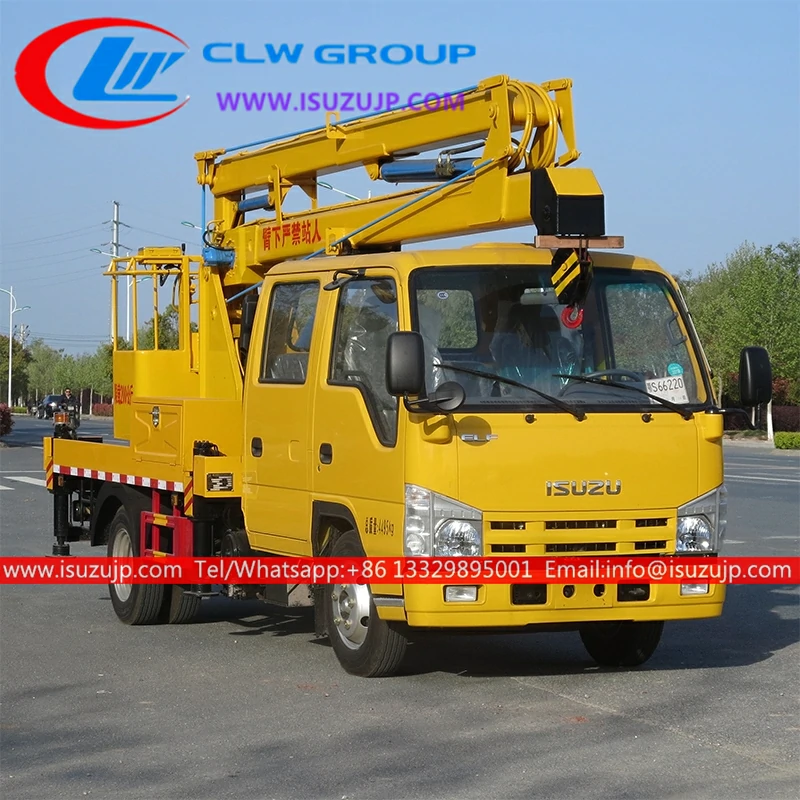

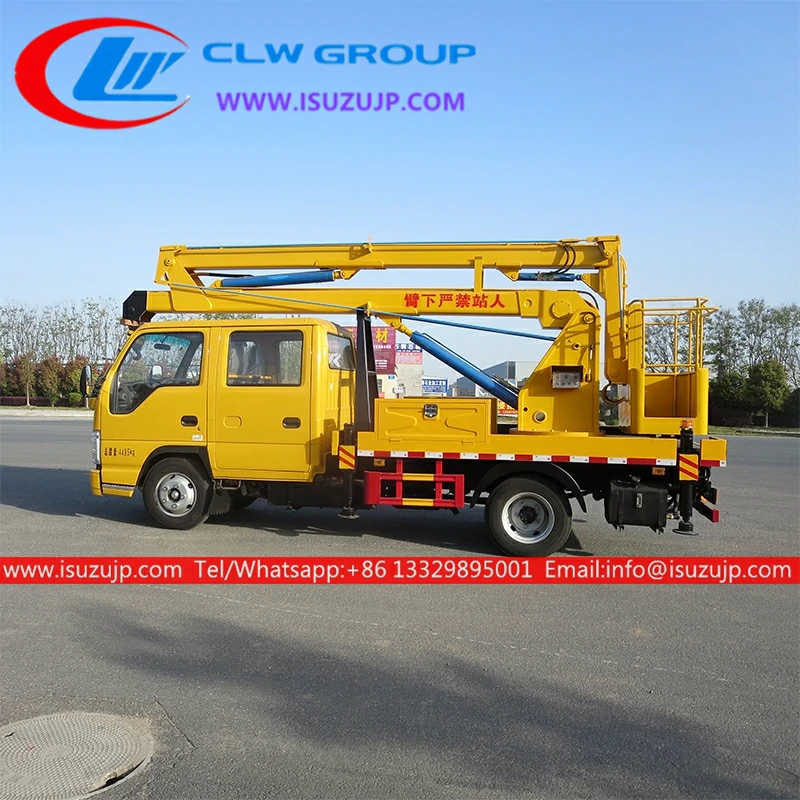

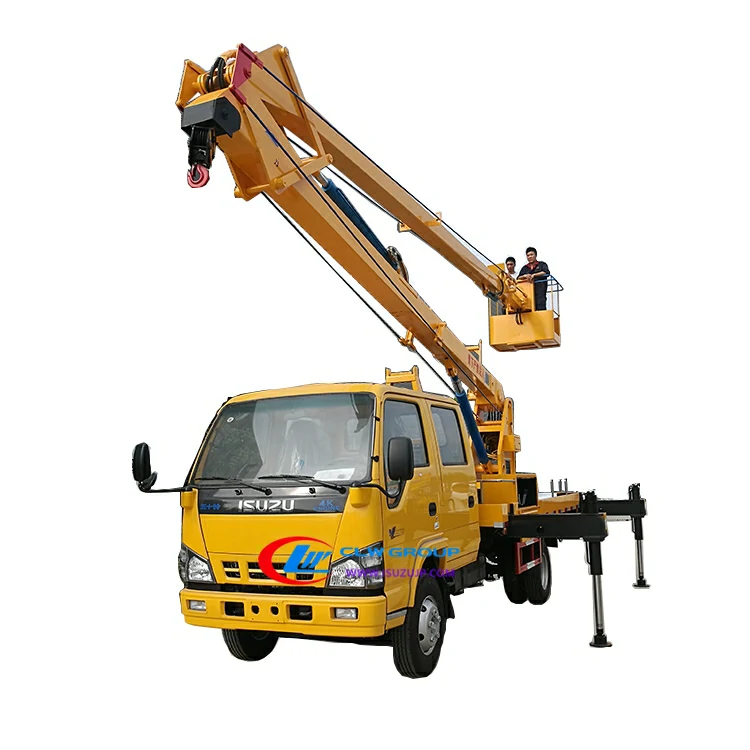

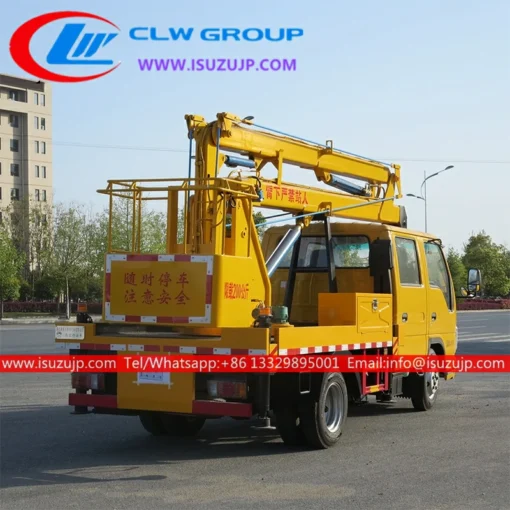

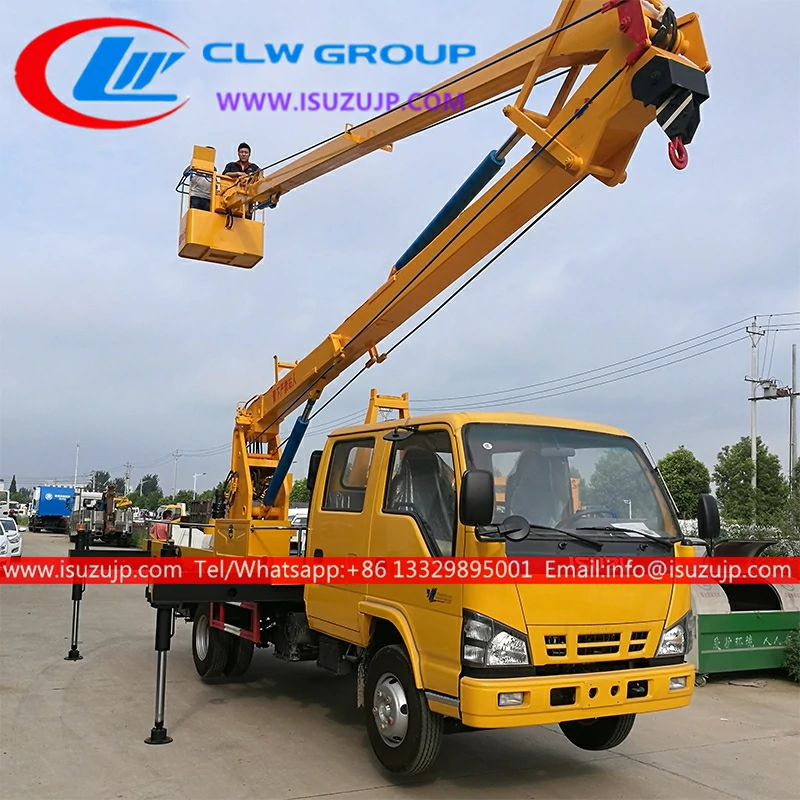

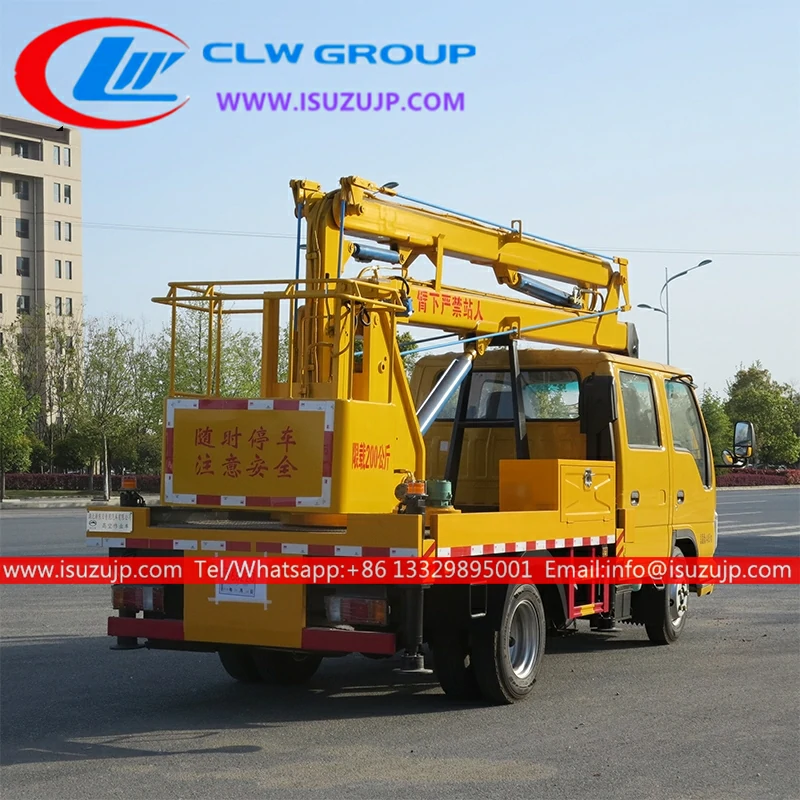

ISUZU 18 meters elevating platform truck Description:
- Isuzu elevating platform truck also called Overhead working truck, Basket crane truck, Aerial lift working truck, Manlift boom truck, Hydraulic telescopic boom truck, Truck-mounted aerial platform.
- Aerial lift Man truck is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.
- 100% custom-made
- 8m to 45m available
- Short delivery time 7~30 days
- Easy operation & Easy maintenance
- 15 years of spare parts & Technical support
- ISUZU engine & gearbox, super-powerful, no overhaul within 500,000 km.
- Working cage can be made of steel structure or reinforced fibreglass (insulated cage); can rotate 90 degrees in left and right;
- 4pcs outriggers and front support improve operation stability and safety;
- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.;
- The wireless remote control system is available.
|ISUZU 18 meters elevating platform truck|
|Overall Dimension||8550 x 2100 x 3350 mm|
|GVW / Kerb Weight||6,810 kg / 6485 kg|
|Cab||Cab Capacity||2+3 persons allowed|
|Air Conditioner||With air conditioner|
|Power||120HP (88 KW)|
|Emission Standard||Euro 4|
|Chassis||Drive Type||4X2, left hand drive|
|Transmission||ISUZU MSB transmission, 5-forward gears & 1 reverse, no overhaul within 500,000km|
|Wheelbase/No. of axle||3815 mm / 2|
|Tyre Specification||7.00-16 or 7.00R16|
|Tyre Number||6 tyres and 1 spare tyre|
|Max Speed||95 km/h|
|Superstructure||Cage Rated Capacity||200 kg|
|Beam||The beam is articulated & telescopic extension type, hydraulic actuated and controlled|
|Slewing||Slewing range is continuous 235° (minimum) with a slewing speed of maximum 15° per second.|
|Control||Control both on the ground and remote control in cage|
|Safety Device||Relief valve, balance valve, double-way hydraulic lock, hand operated emergency hydraulic pump|
|Leveling System||Hydraulic stabilizer to level the vehicle on uneven ground|
|Optional||Insulated cage; Wireless remote control system|
Folding arm aerial platform truck Working parameter:
Manlift boom truck New craft:

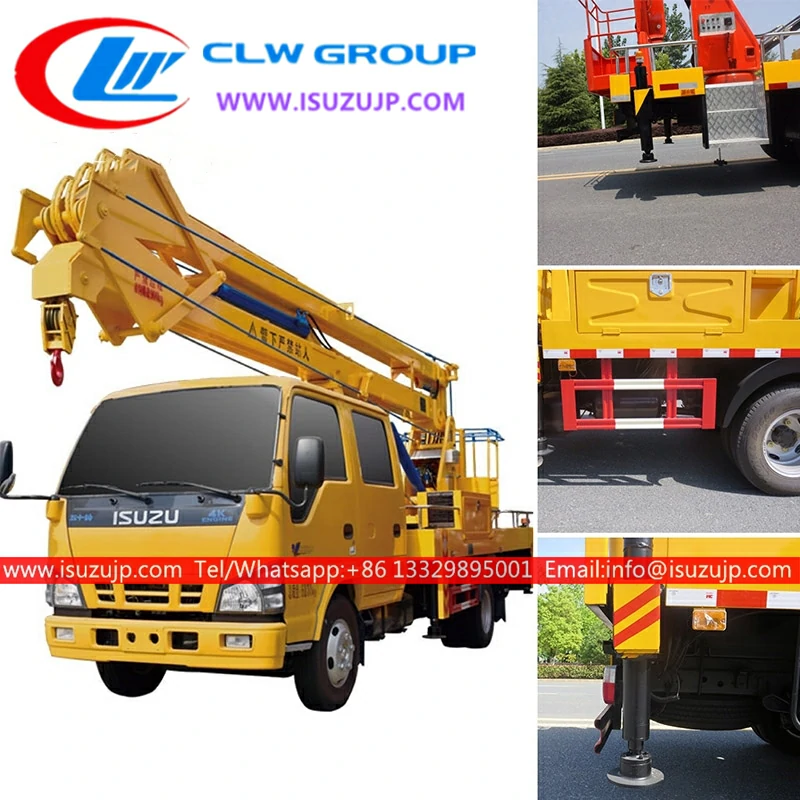

Aerial lift working truck Bodywork details:
ISUZU Aerial platform truck features：
- The truck adopts the international leading Qingling high-end chassis and is equipped with a special device for straight arm hydraulic lifting
- Three operating modes: wireless + wired + handle, more convenient to use, adapt to various working conditions, computer intelligent control, automatic limit range, automatic alarm device for dangerous working conditions, more safe and reliable
- The work bucket and the rear of the entrance and exit, easy to enter and exit, good passability
- Fully telescopic working arm, high operating efficiency, wide operating range
- Octagonal cross section of working arm, good love, made of high strength material, good reliability
- There is an emergency power source for more protection, and a 220V power socket is provided when getting off the car, which can easily lead the 220V power source to work at a high place.
- Remote control system of engine speed, easy to operate and high efficiency
- The support legs can be operated on both sides of the cab, which is convenient and efficient.
- The outrigger is H-shaped, the outrigger span is large, and the stability is good. It can be operated at the same time or separately, adapting to various ground conditions
- 360-degree turntable rotation, wide operating range, improve efficiency.
- 17 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
