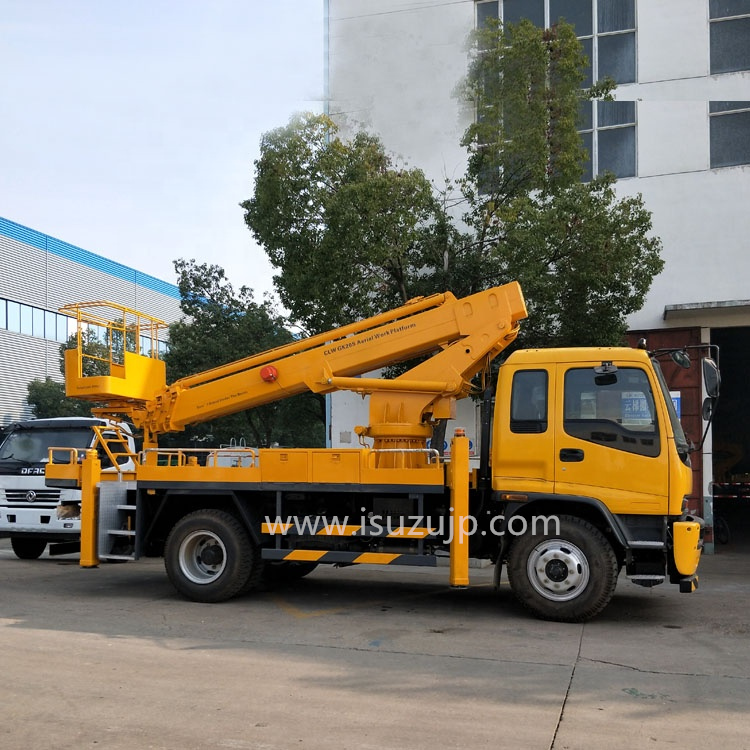

Isuzu Ftr 32m Aerial Platform Truck Description:
- Isuzu Aerial platform trucks also called Overhead working truck, Basket crane truck, Aerial lift working truck, Manlift boom truck,Hydraulic telescopic boom truck , Truck mounted aerial platform.
- Isuzu Aerial lift Man truck is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.
Advantage:
- 100% custom-made
- 8m to 45m available
- Short delivery time 7~30 days
- Easy operation & Easy maintenance
- 15 years spare parts & Technical support
- ISUZU engine & gearbox, super powerful, no overhaul within 500,000 km.
- Working cage can be made of steel structure or reinforced fiberglass (insulated cage);can rotate 90 degree in left and right;
- 4pcs outriggers and front support improve operation stability and safety;
- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.;
- Wireless remote control system is available.
Specification:
| Manufacturer | CHENGLI | ||
| Product Name | ISUZU Aerial Platform Truck | ||
| Vehicle Brand Series | ISUZU | ||
| Vehicle Model | CLW5160GSD5 | ||
| Production Time | 25 days | ||
| Chassis parameters | Overall dimensions | mm | 8800*2500*3260 |
| Gross weight | kg | 16000 | |
| Kerb weight | 9900 | ||
| Wheelbase | mm | 4,500 | |
| Driving type | 4*2 | ||
| Chassis model | ISUZU FTR | ||
| Tire size | 10R22.5 | ||
| Number of Tires | 6+1 | ||
| Passengers in cab | 3 | ||
| Engine | Engine model | 6KH1CN5HS | |
| Type of fuel | Diesel | ||
| Power | 205HP | ||
| Max speed | Km/h | 110 | |
| Emission standard | EURO 5,6 | ||
| Lifting performance | Max Working height | 28m / 32m | |
| Max Working radius | 15m | ||
| Hook | 1000kg Suitable for folding arm aerial platform truck | ||

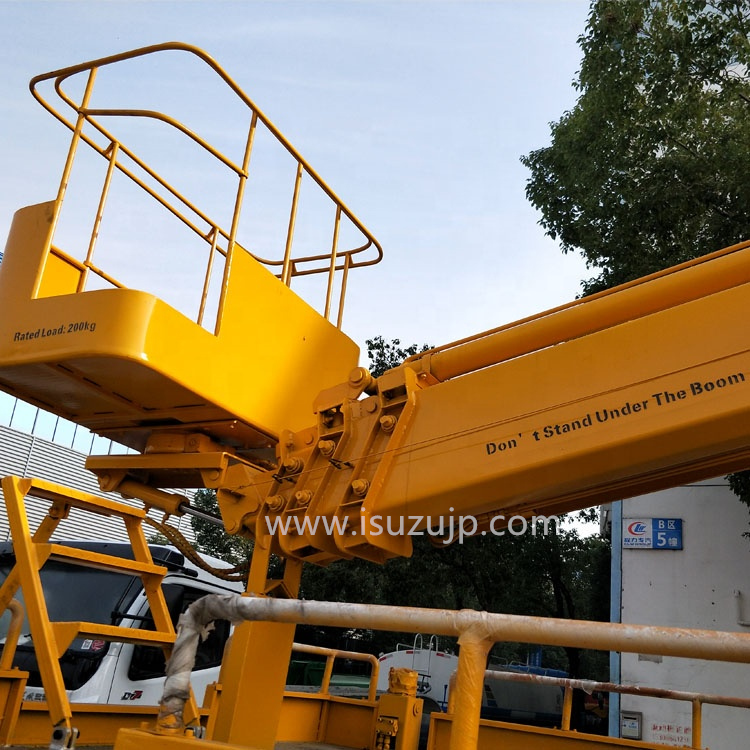

| Bucket/Cage | 200 kg loading capacity | ||
| 1100x1100x660mm | |||
| Boom | Stiff boom Rotation Angle 360 | ||
| Control | Control both on the ground and remote control in cage | ||
| Outrigger | 4 pcs/Adjusted separately | ||
| Leveling System | Hydraulic stabilizer to level the vehicle on uneven ground | ||
| Operation | Hydraulic control lever system | ||
| Control Panel | English | ||
| Emergency pump | Included, When the engine and main pump fail, workers can be sent back to the ground | ||
| Painting | Two primers, and one final paint coating | ||
| Color & LOGO | According to wish | ||
| Factory standard | “U” shape Sub Frame, Hydraulic system,Relief valve, balance valve, double-way hydraulic lock, hand operated emergency hydraulic pump, Working Lamp, Hand holds, Mudguards and rubber flaps… | ||
| Documents | English operation manual, Spare parts list, and all necessary export docs. | ||
| Optional equipment | 1, Other Working height (with any option) 2, Fiber-glass bucket 3, Italy imported multi-way valve 4, Optional remote control | ||

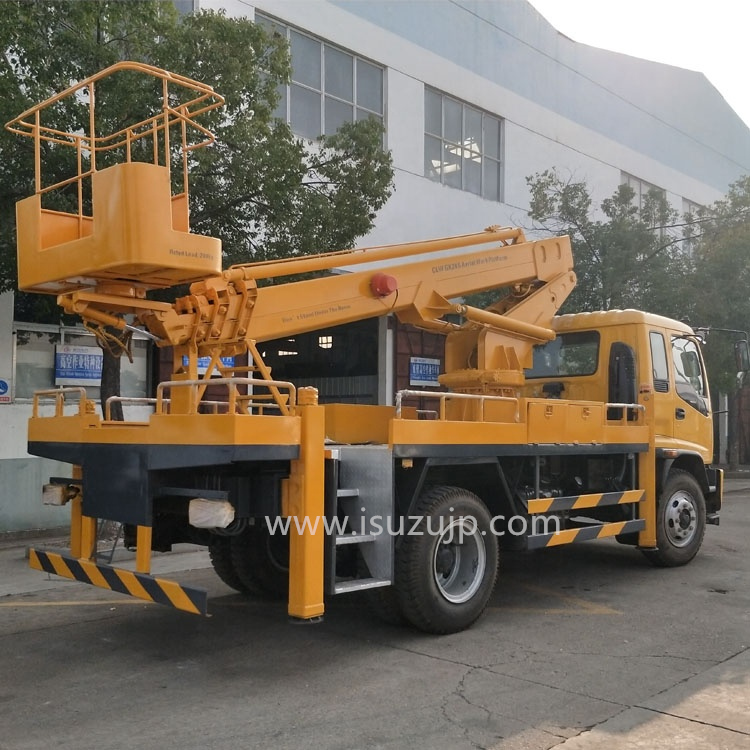

Telescopic working platform truck Working parameter:

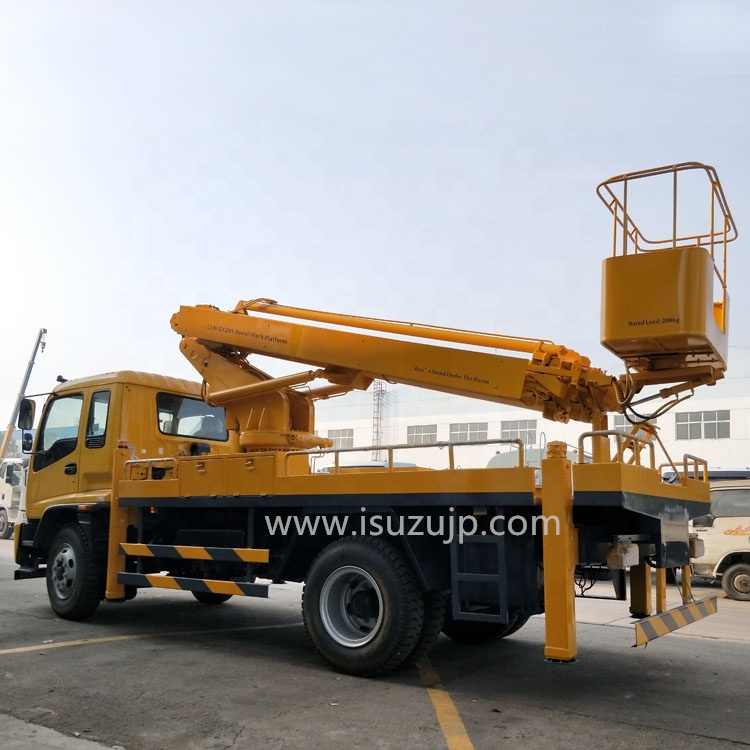

Manlift boom truck New craft:

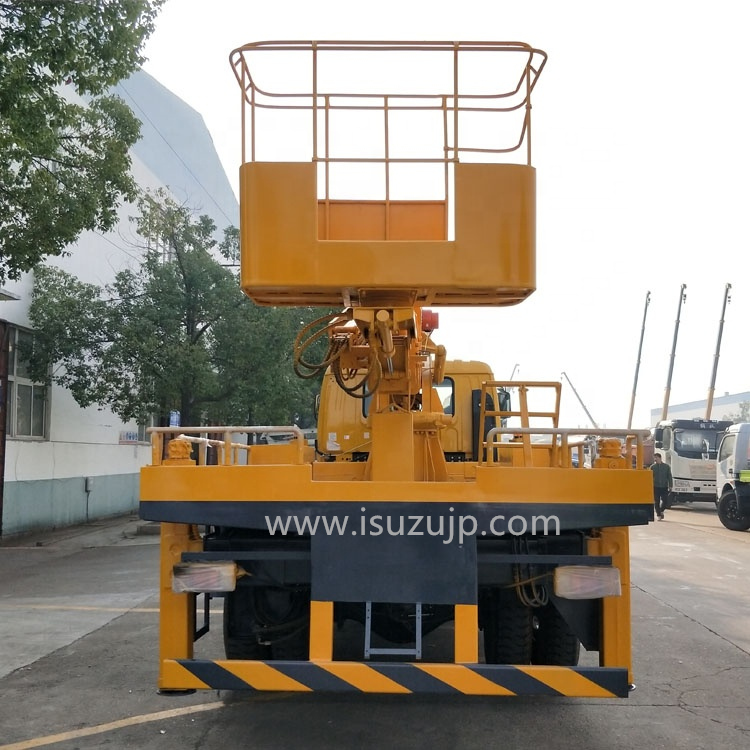

Aerial lift working truck Bodywork details:

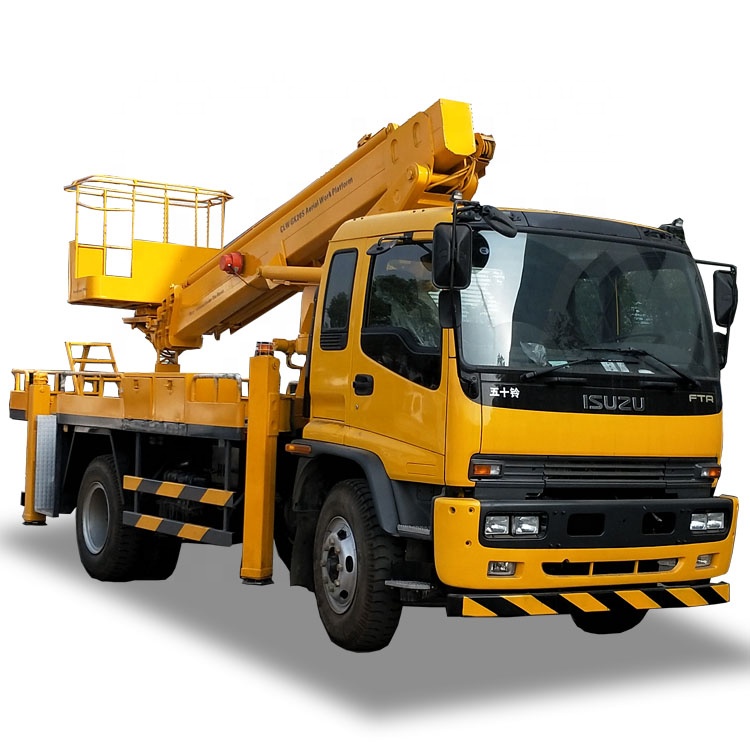

ISUZU Aerial platform truck features：
- The truck adopts the international leading Qingling high-end chassis and is equipped with a special device for straight arm hydraulic lifting
- Three operating modes: wireless + wired + handle, more convenient to use, adapt to various working conditions, computer intelligent control, automatic limit range, automatic alarm device for dangerous working conditions, more safe and reliable
- The work bucket and the rear of the entrance and exit, easy to enter and exit, good passability
- Fully telescopic working arm, high operating efficiency, wide operating range
- Octagonal cross section of working arm, good love, made of high strength material, good reliability
- There is an emergency power source for more protection, and a 220V power socket is provided when getting off the car, which can easily lead the 220V power source to work at a high place.
- Remote control system of engine speed, easy to operate and high efficiency
- The support legs can be operated on both sides of the cab, which is convenient and efficient.
- The outrigger is H-shaped, the outrigger span is large, and the stability is good. It can be operated at the same time or separately, adapting to various ground conditions
- 360-degree turntable rotation, wide operating range, improve efficiency.
Factory Advantage:
- 17 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
