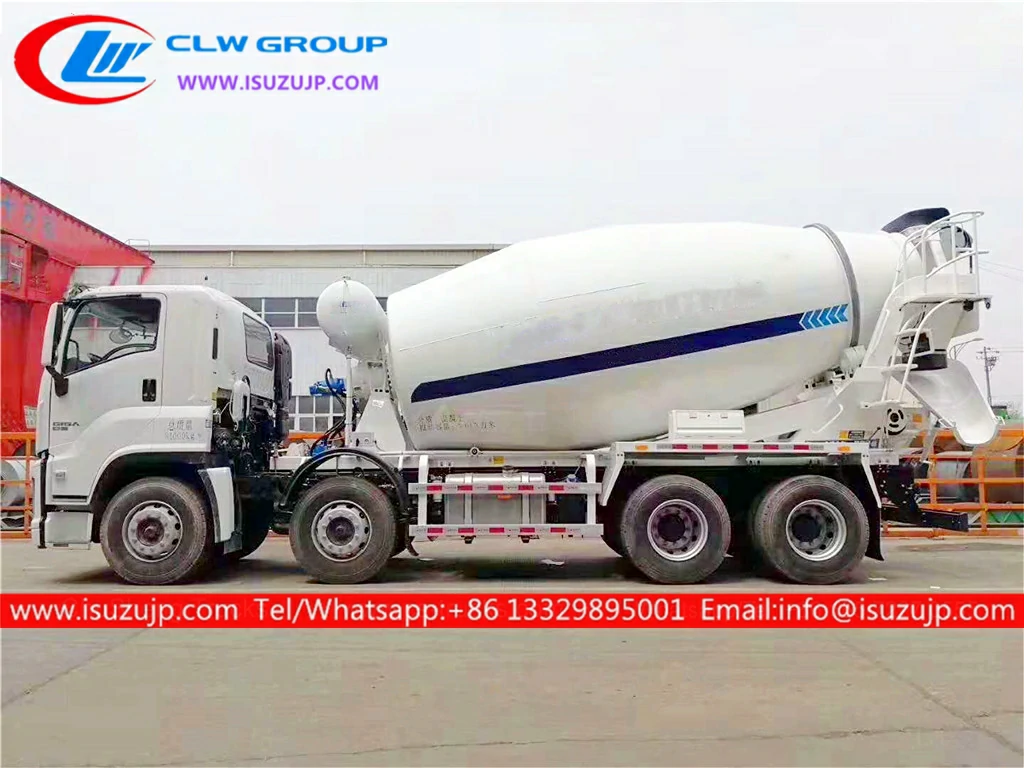

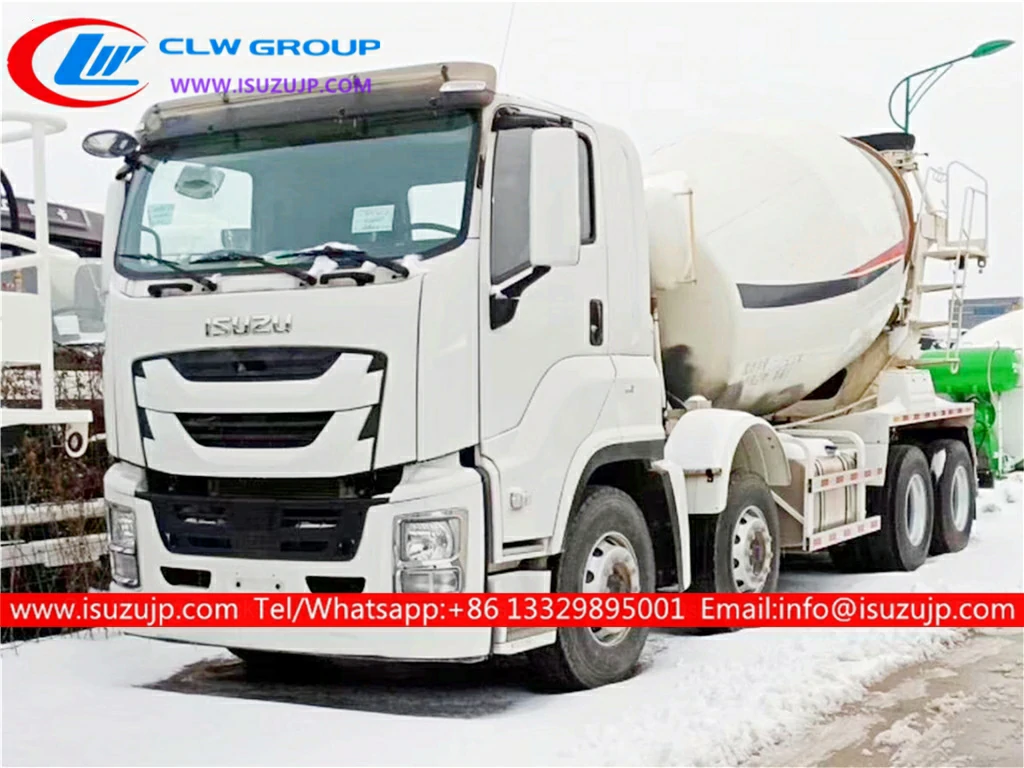

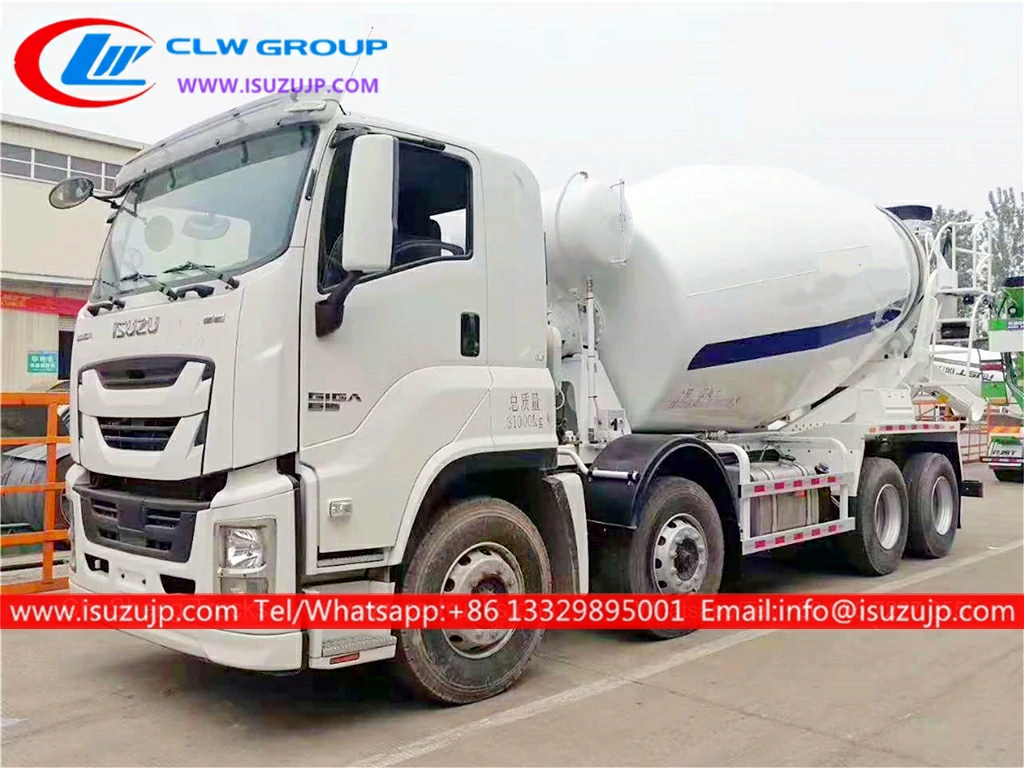

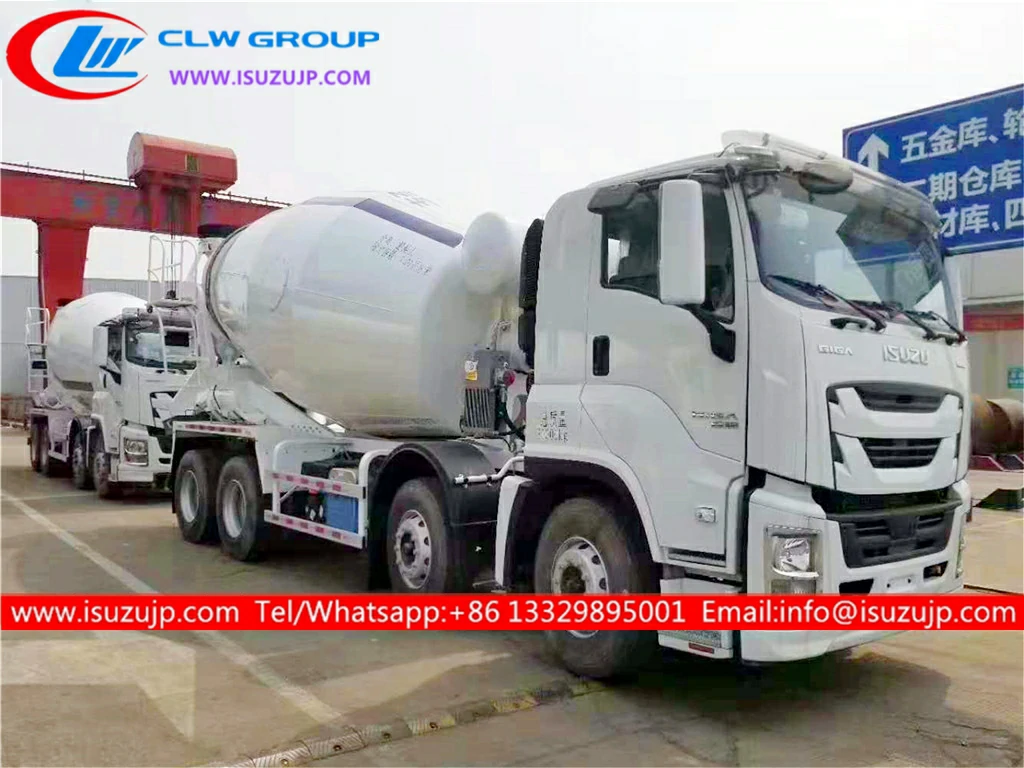

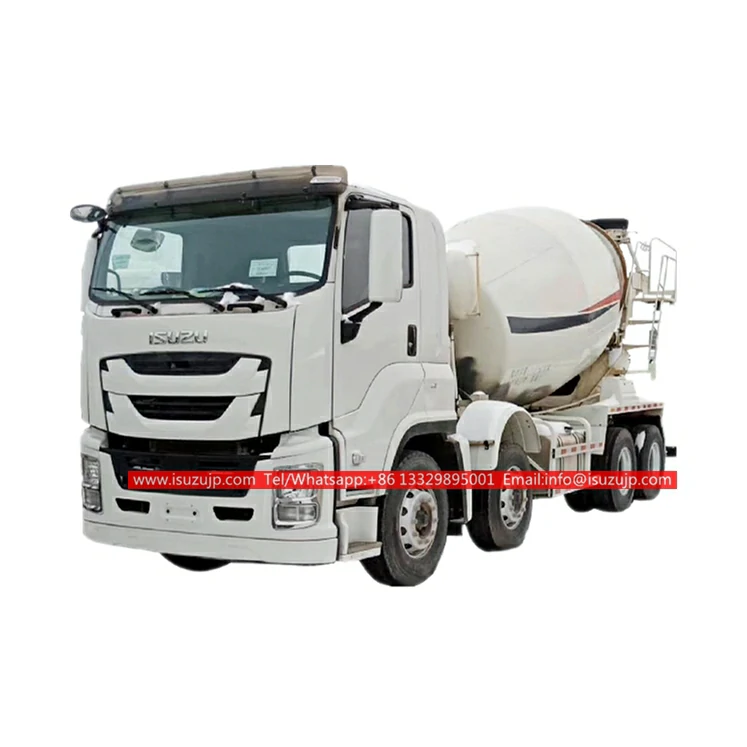

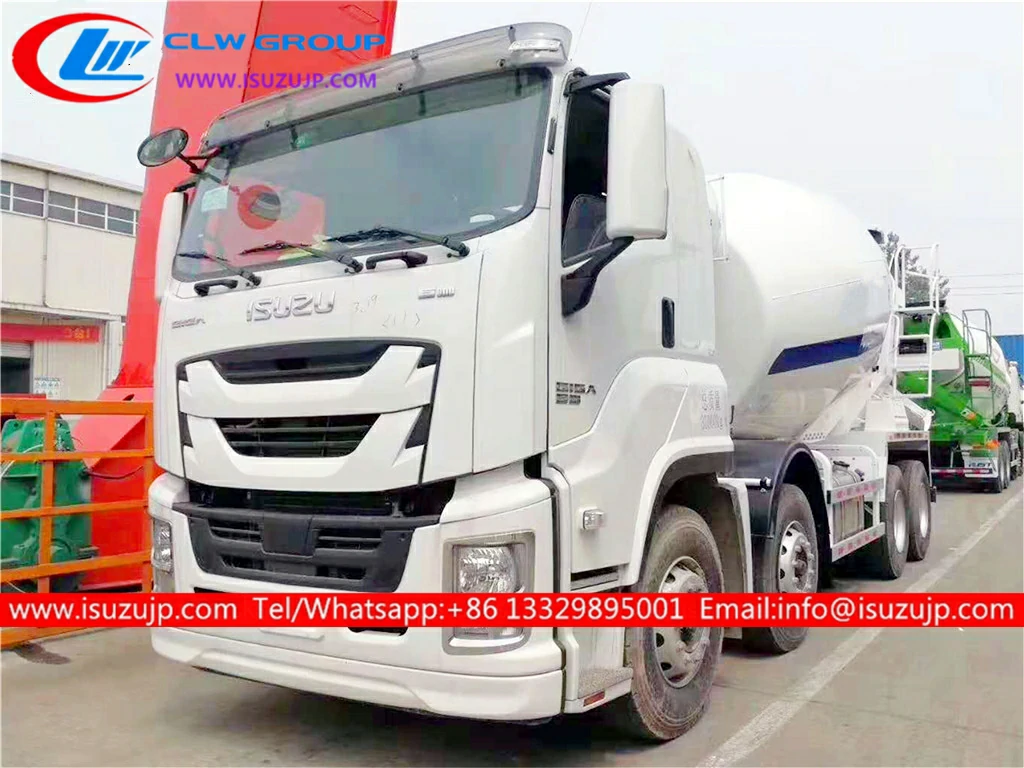

ISUZU GIGA 14cbm volumetric concrete mixer truck Description:
- ISUZU volumetric concrete mixer truck also called Cement mixer truck, self loading Mixer truck, Concrete mixer drum truck, transit mixer vehicle is made to transport and mix concrete up to the construction site.
- Concrete mixing transport truck maintains the material’s liquid state through agitation, or turning of the drum, until delivery.
- Our mixer truck is mainly used in cement mixing station, construction field and other place.The capacity ranges from 2m3 to 18m3, meeting customers’ various needs.
- It is can loading and unloading by itself. After discharging the concrete, the mixer drum will be cleaning automatically by its water suppling system.
Advantage:
- 8×4 ISUZU GIGA heavy duty chassis, perfect performance
- 6UZ1 engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Mixer drum capacity from 3cbm to 18cbm.
- Easy operation and easy maintenance.
- Various types of Hydraulic main parts are available.
- Hydraulic system adopts Germany Rexroth, America EATON, Italy ARK, America Sauer;
- Pneumatic Water Supple System. The pressure is provided by the air tank on the chassis with pressure protection devices .The Water inlet connector fits for both normal water pipe and fire fitting.
- New technology T-shape Blade. It is made of hard-wearing alloy steel, and thus protects the mixer blades from abrasion, extends the service life of the agitator drum, and enhances mixing performance;
- Equipped with the large diameter hopper, it can realize the quickly feeding, not plugging and spilling, and it is easy to clean;
- Optimized design of mixing drum ensure the concrete residue ratio is less than 1%;
- Colors can be customized.
Specification:
| ISUZU GIGA 14cbm volumetric mixer truck for sale | ||
| General | Vehicle Brand | CHENG LI |
| Chassis Brand | ISUZU | |
| Overall Dimension | 11800X2500X4000 mm | |
| GVW / Kerb Weight | 31,000 kg / 16,000 kg | |
| Cab | Cab Capacity | 2 persons seats with 1 sleeper |
| Air Conditioner | Equipped | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine | |
| Power | 380 Hp (279 KW) | |
| Displacement | 9839 ml | |
| Emission Standard | Euro V | |
| Chassis | Drive Type | 8X4, left hand drive |
| Transmission | 12-speed forward, 2 reverse | |
| Wheelbase/No. of axle | 1850+3280+1370 mm / 4 | |
| Tyre Specification | 315/80R22.5 | |
| Tyre Number | 12 tyres and 1 spare tyre | |
| Max Speed | 90 km/h | |
| Paint | Metallic paint | |
| Superstructure | Mixing Capacity | 12 m³ |
| Drum Material | Alloy steel | |
| Hydraulic Motor | Imported Brand | |
| Hydraulic Pump | Imported Brand | |
| Reduction Box | Imported Brand | |
| Radiator | High Class Chinese Brand | |
| Rest Rate | ≤0.5% | |
| Water Supply System | Air pressure | |
| Water Tank Volume | 400 L | |
| All other standard accessories: manhole, ladder, inlet, discharge | ||
| Optional | Hydraulic system brand could be PMP, ZF, Eaton, Rexroth, etc. Or other appointed brand. | |
Cement mixer truck Structure:
ISUZU self loading Mixer truck parts tools and instructions:
Factory Advantage:
- 17 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
construction sand rock transport truck shipping：
- Maximize save your sea freight.
- Professional guidance on your importing documents.
- Safe, fast and timely
