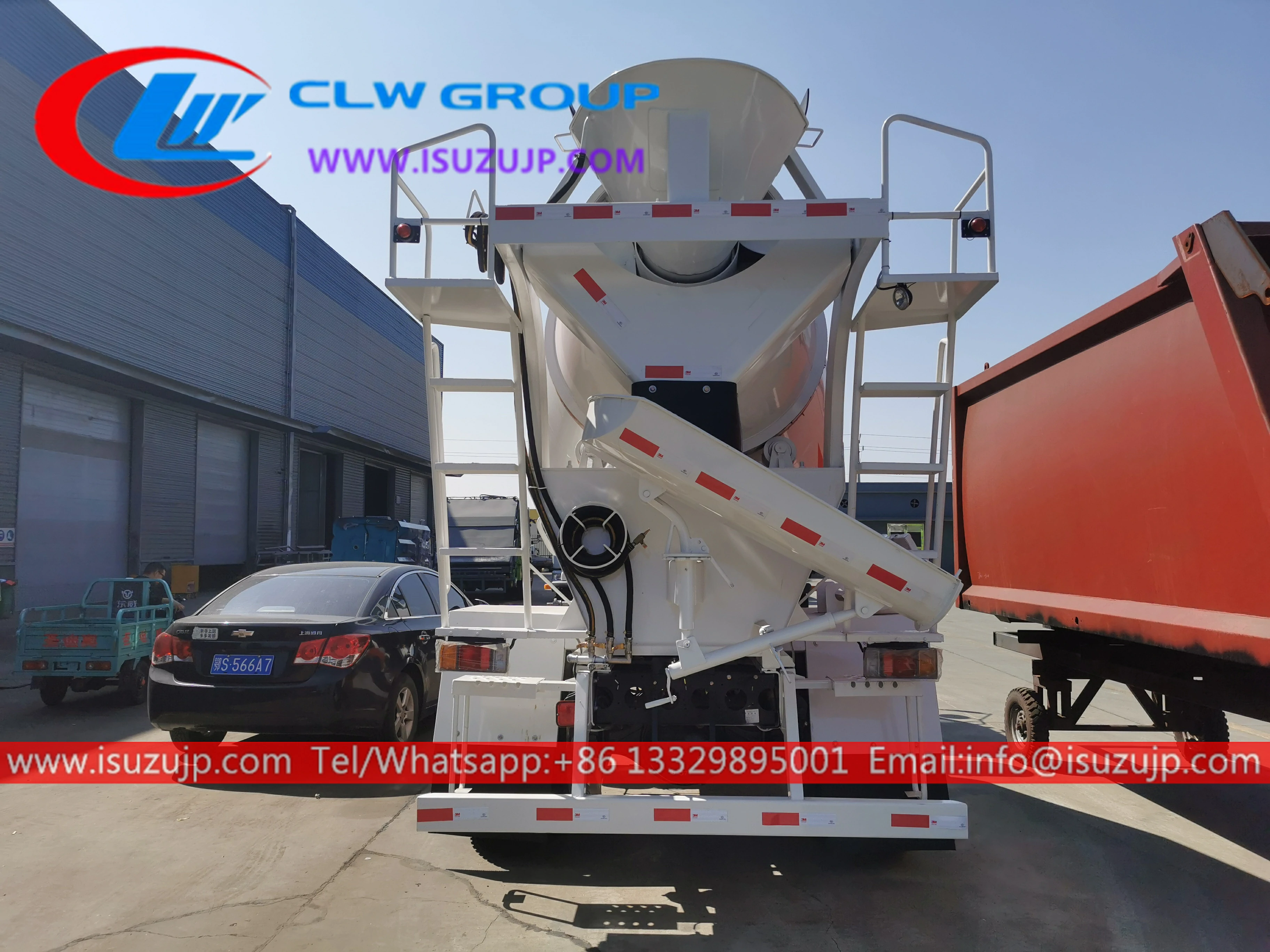

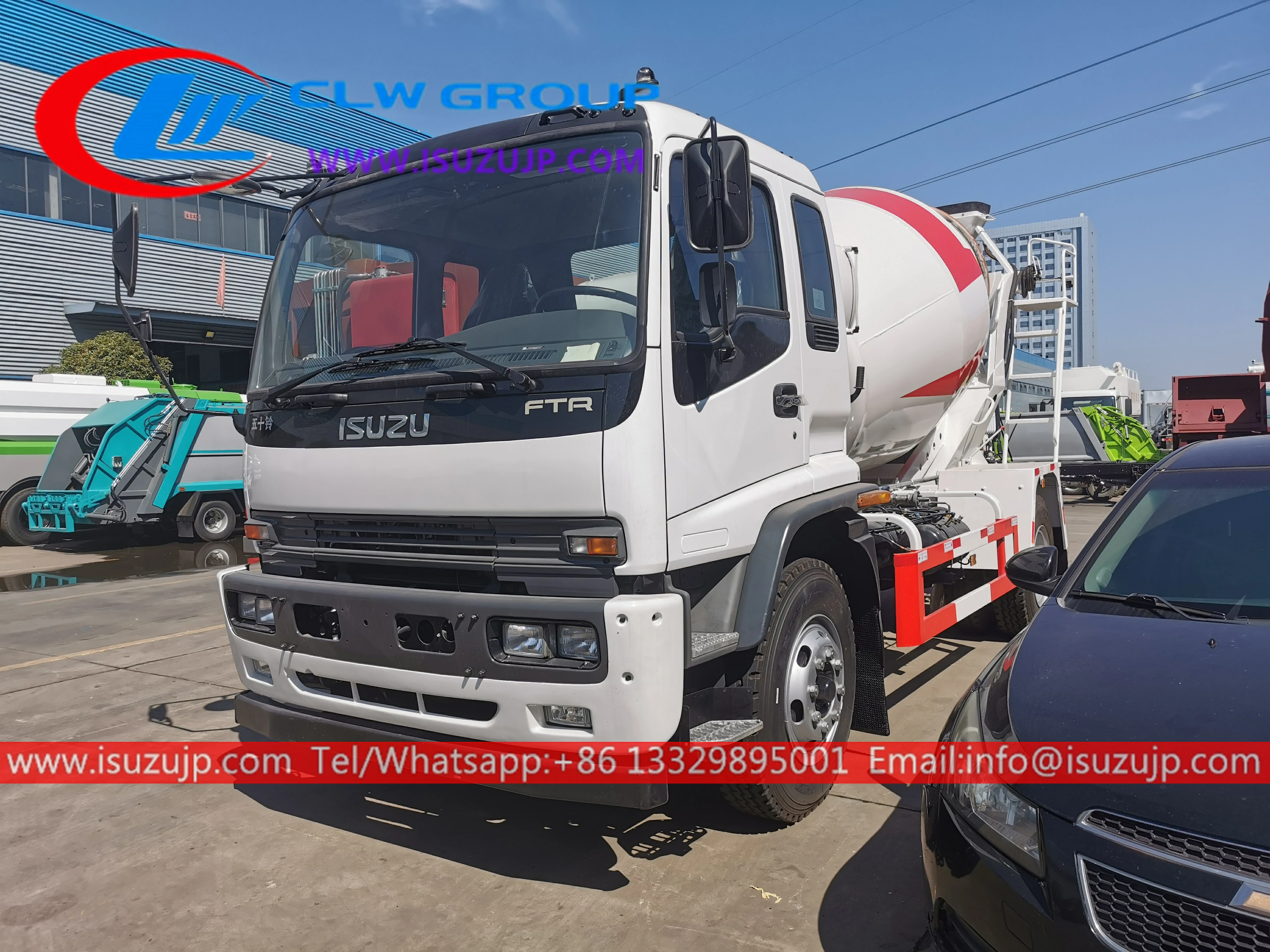

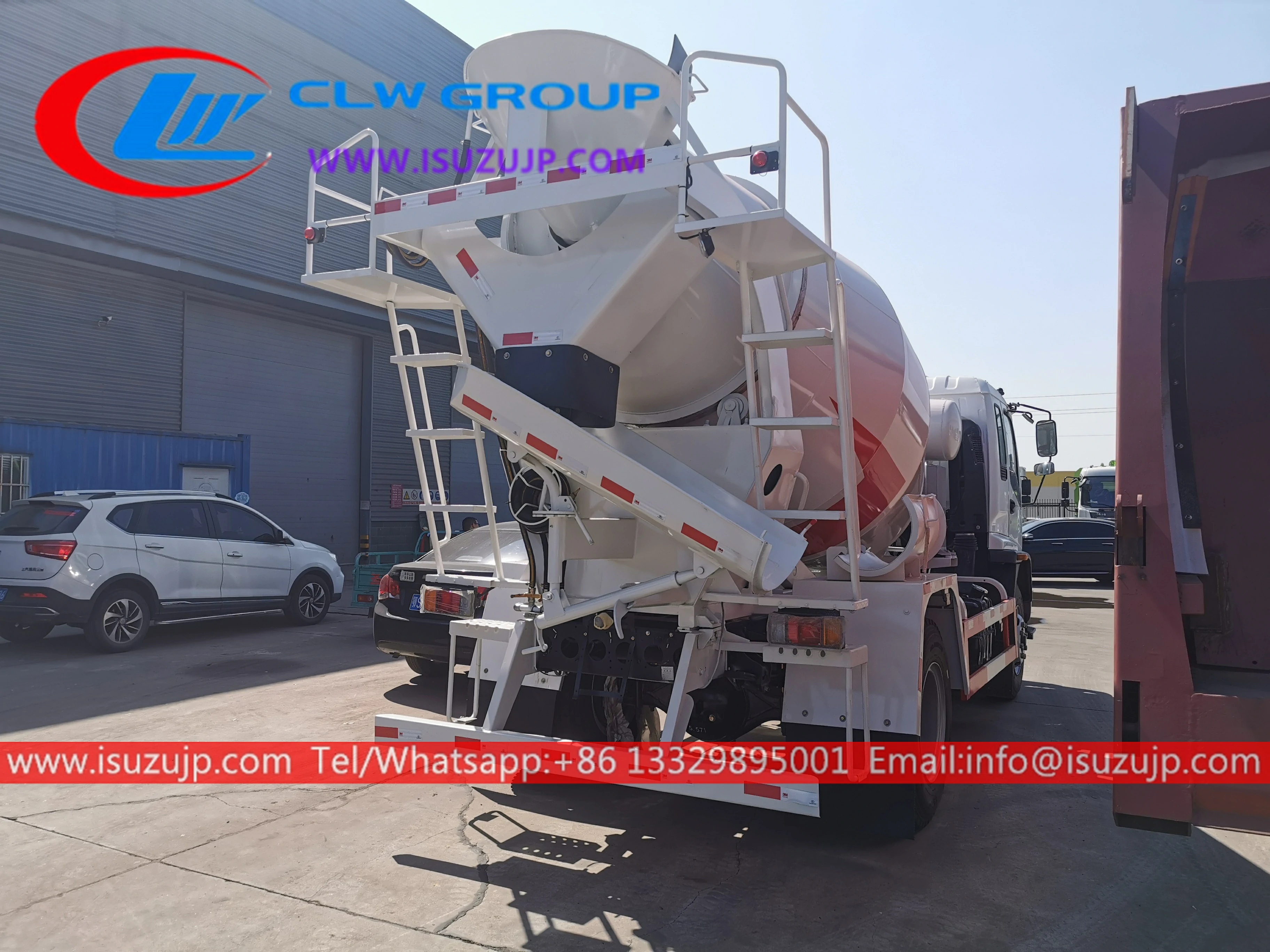

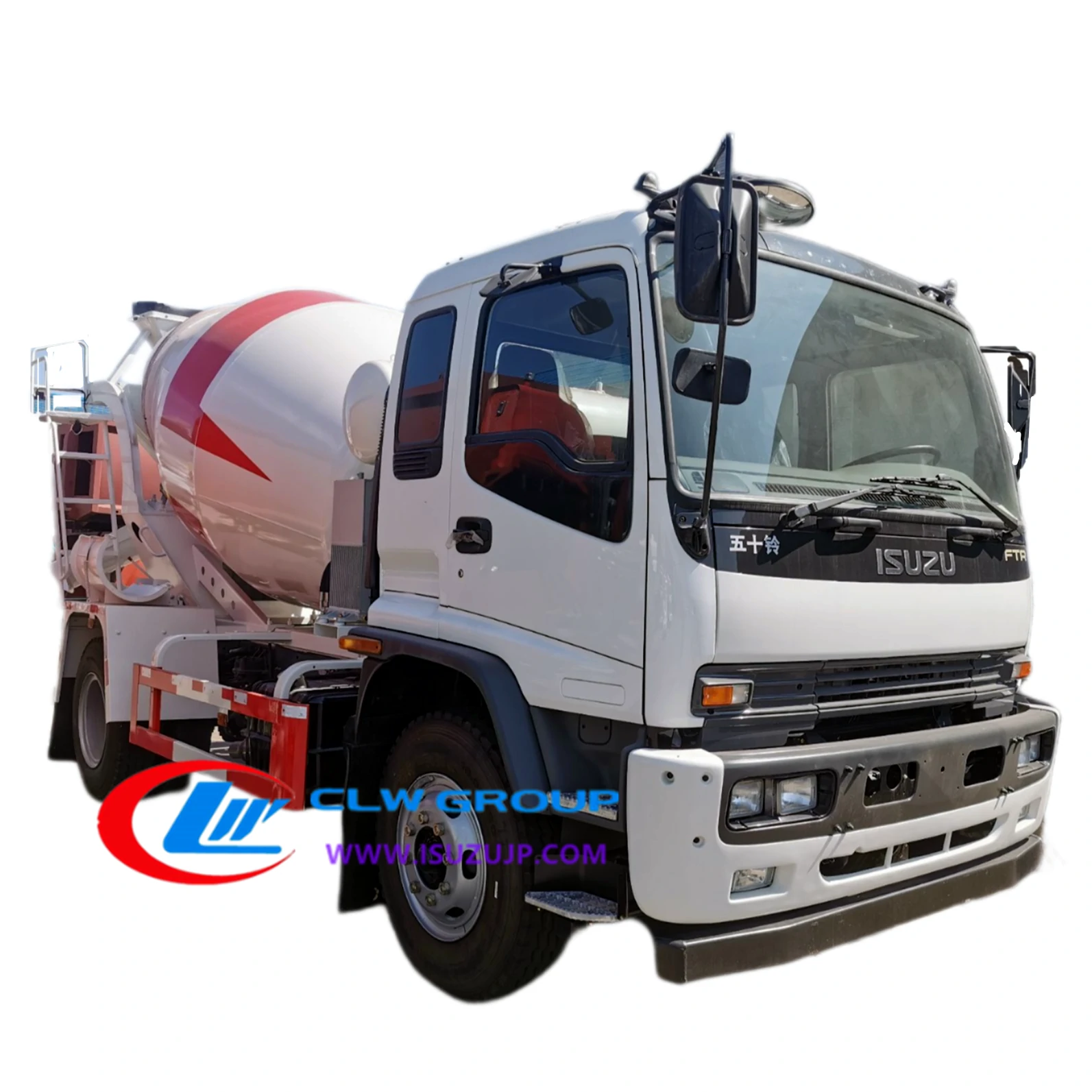

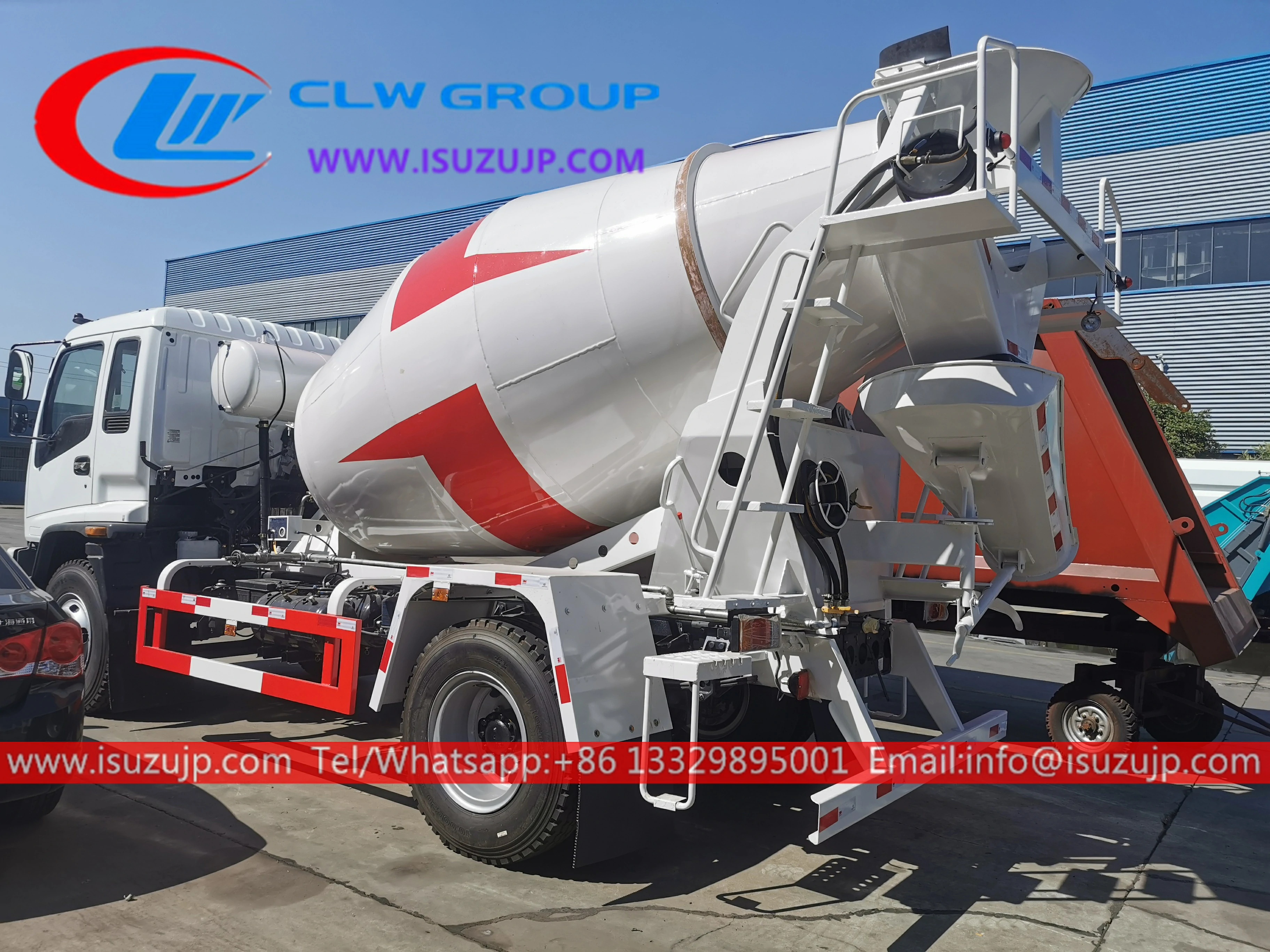

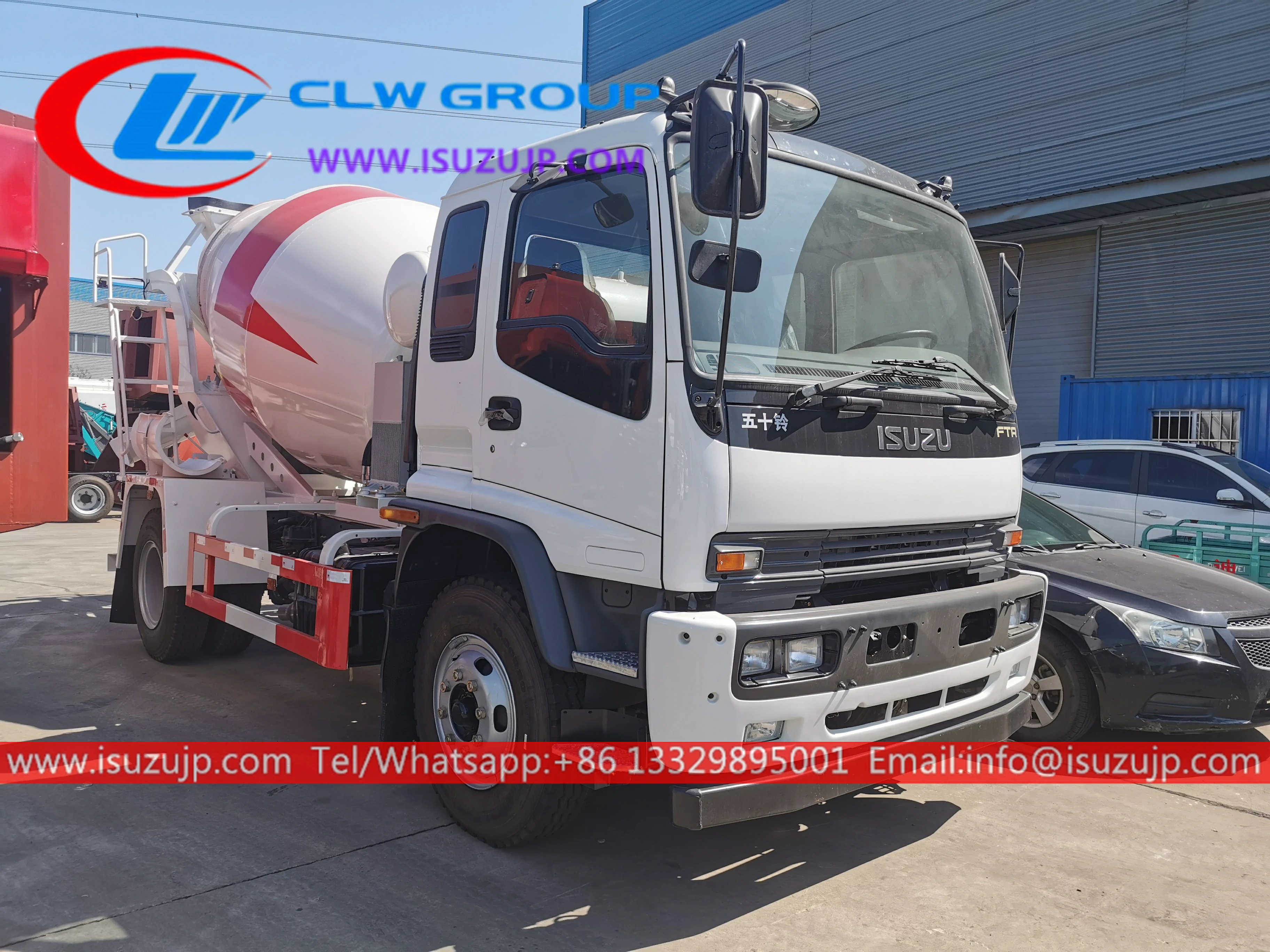

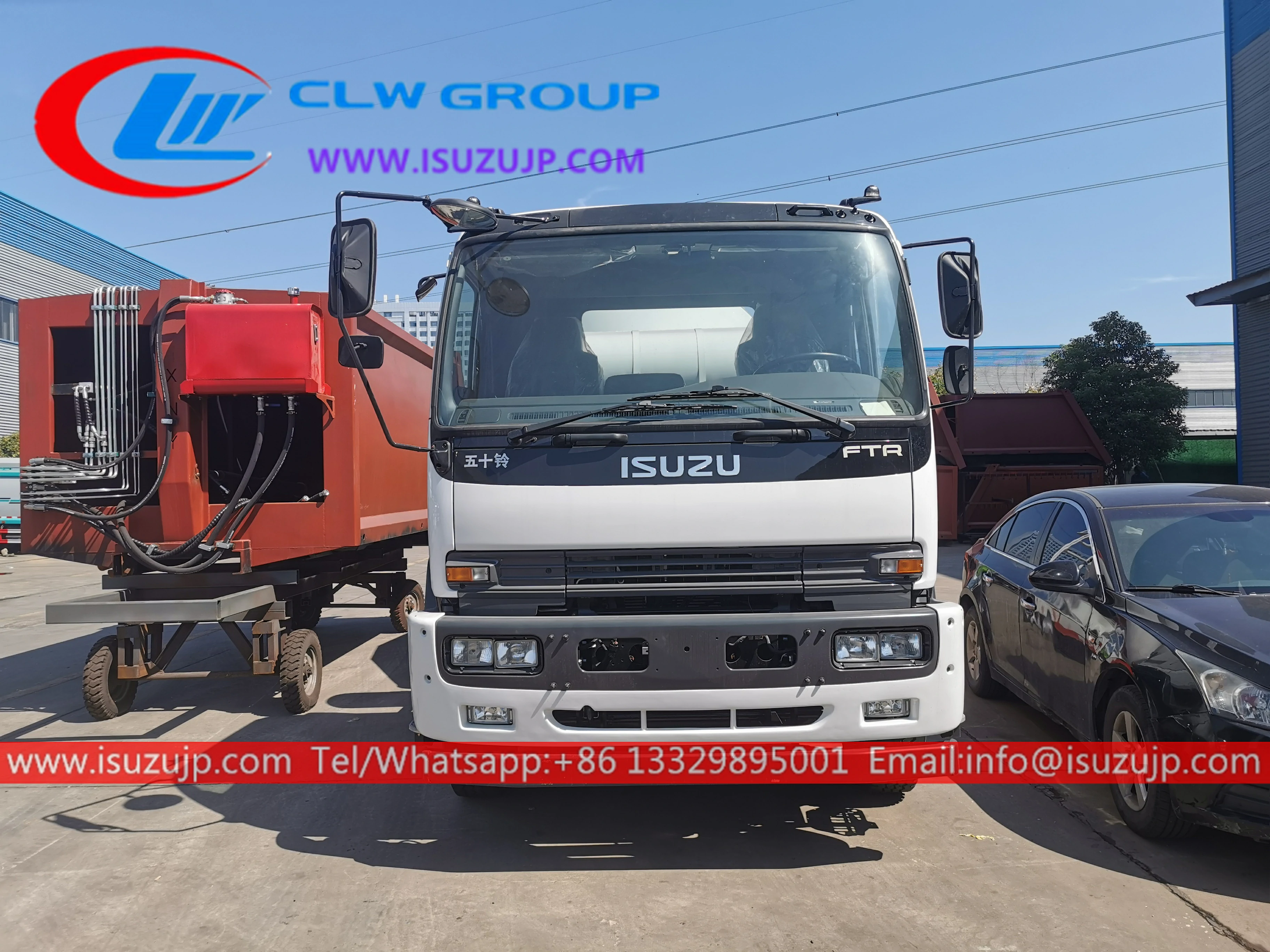

ISUZU FTR 7cbm transit mixer truck Description:
- ISUZU transit mixer truck also called Concrete mixer truck, self-loading Mixer truck, Concrete mixer drum truck, or transit mixer vehicle is made to transport and mix concrete up to the construction site.
- The concrete mixing transport truck maintains the material’s liquid state through agitation, or turning of the drum, until delivery.
- Our mixer truck is mainly used in cement mixing stations, the construction field, and other places. The capacity ranges from 2m3 to 18m3, meeting customers’ various needs.
- It is can be loaded and unloaded by itself. After discharging the concrete, the mixer drum will be cleaned automatically by its water-supplying system.
Advantage:
- ISUZU FTR chassis, perfect performance
- 6UZ1 engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Mixer drum capacity from 3cbm to 18cbm.
- Easy operation and easy maintenance.
- Various types of Hydraulic main parts are available.
- Hydraulic system adopts Germany Rexroth, America EATON, Italy ARK, America Sauer;
- Pneumatic Water Supply System. The pressure is provided by the air tank on the chassis with pressure protection devices. The Water inlet connector fits both normal water pipe and fire fitting.
- New technology T-shape Blade. It is made of hard-wearing alloy steel, and thus protects the mixer blades from abrasion, extends the service life of the agitator drum, and enhances mixing performance;
- Equipped with the large diameter hopper, it can realize quickly feed, not plugging and spilling, and it is easy to clean;
- The optimized design of the mixing drum ensures the concrete residue ratio is less than 1%;
- Colors can be customized.
Specification:
| ISUZU FTR 7cbm transit mixer truck | ||
| General | Vehicle Brand | CHENG LI |
| Chassis Brand | ISUZU | |
| Overall Dimension | 8600x2500x3800 mm | |
| GVW / Kerb Weight | 16,000 kg / 12,000 kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | With air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine | |
| Power | 205HP (151 KW) | |
| Displacement | 5199 ml | |
| Emission Standard | Euro V | |
| Chassis | Drive Type | 4×2 left-hand drive |
| Transmission | 9-speed front, 1 reverse | |
| Wheelbase/No. of axle | 4500mm / 3 | |
| Tyre Specification | 900R20 | |
| Tyre Number | 10 tires and 1 spare tire | |
| Max Speed | 90 km/h | |
| Paint | Metallic paint | |
| Superstructure | Mixing Capacity | 10 m³ |
| Drum Material | Alloy steel | |
| Hydraulic Motor | Imported Brand | |
| hydraulic pump | Imported Brand | |
| Reduction Box | Imported Brand | |
| Radiator | High-Class Chinese Brand | |
| Rest Rate | ≤0.5% | |
| Water Supply System | Air pressure | |
| Water Tank Volume | 400 L | |
| All other standard accessories: manhole, ladder, inlet, discharge……. | ||
| Optional | Hydraulic system brands could be PMP, ZF, Eaton, Rexroth, etc., Or other pointed brands. | |
