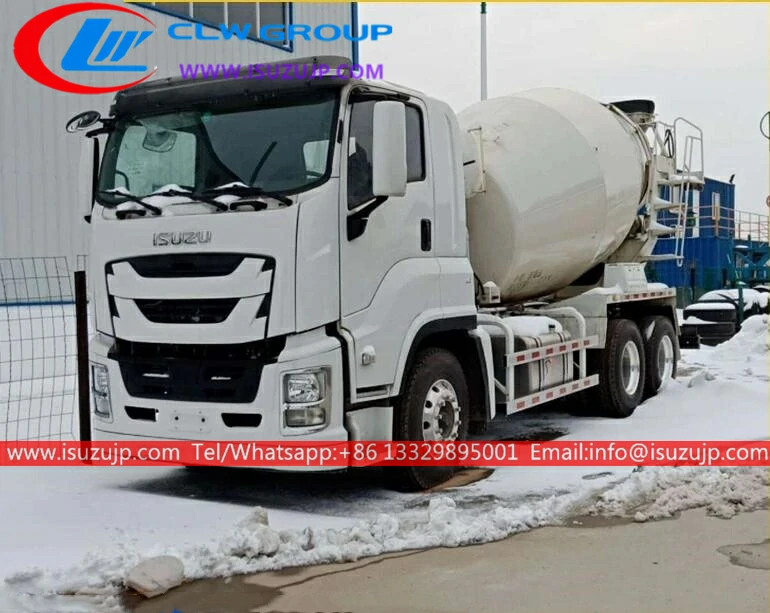

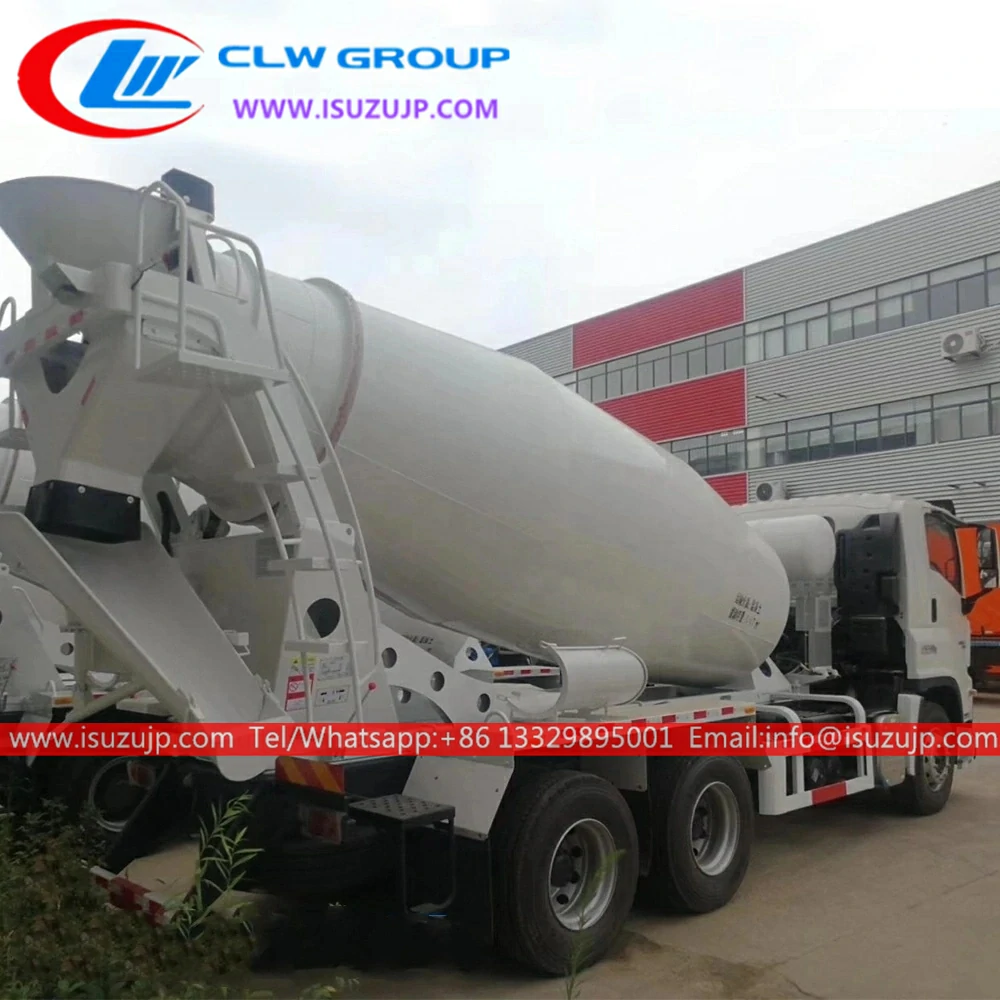

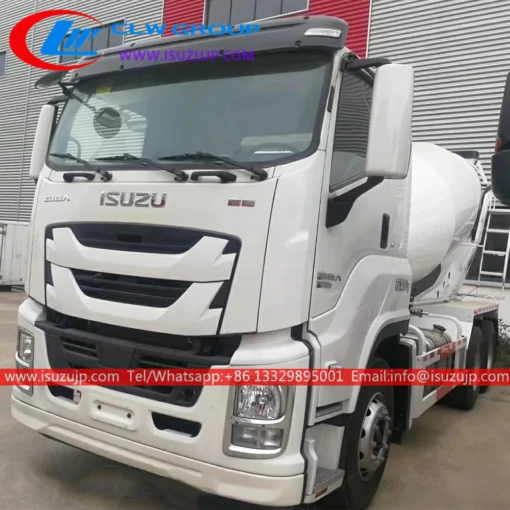

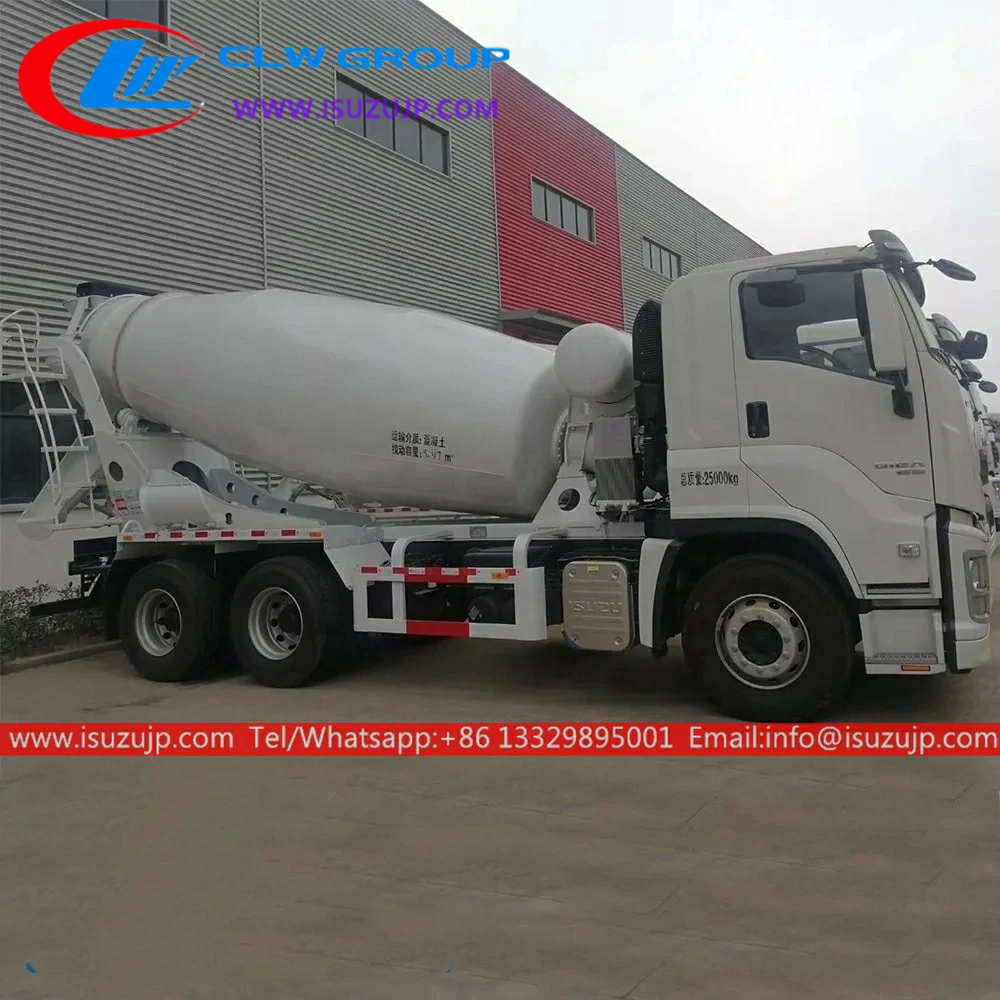

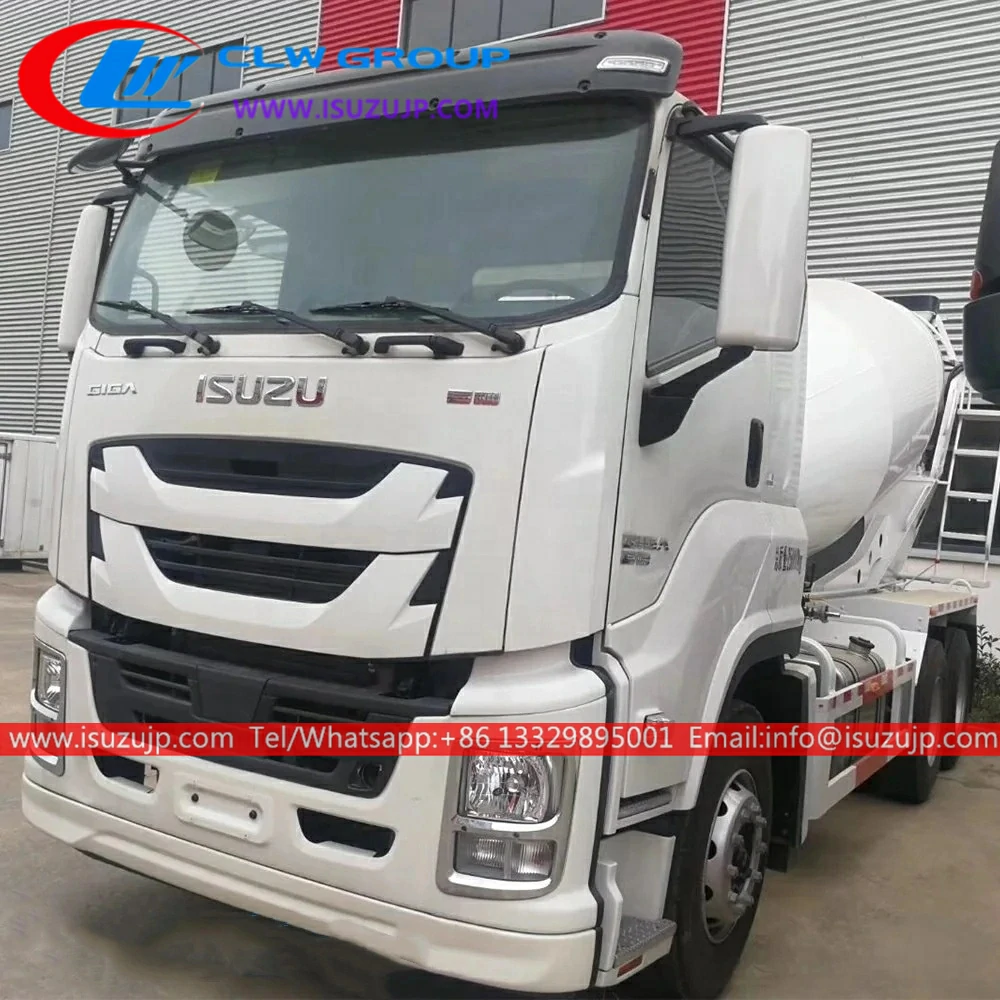

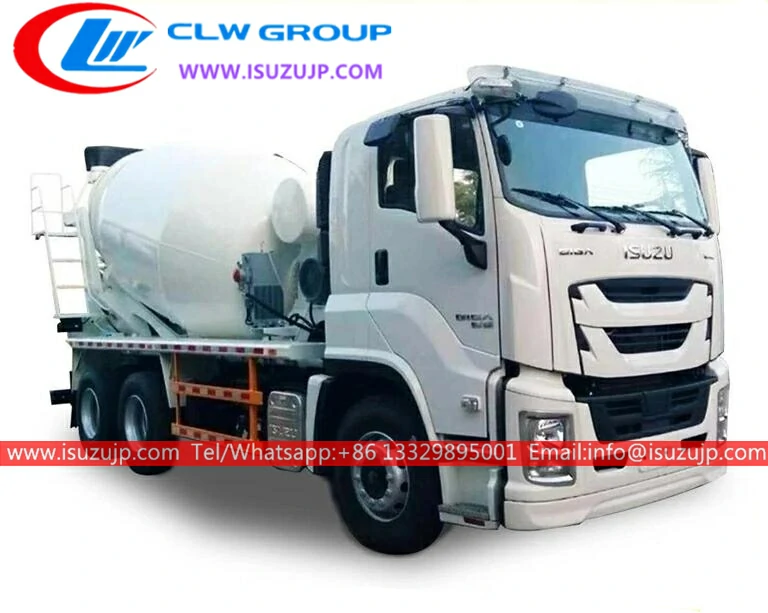

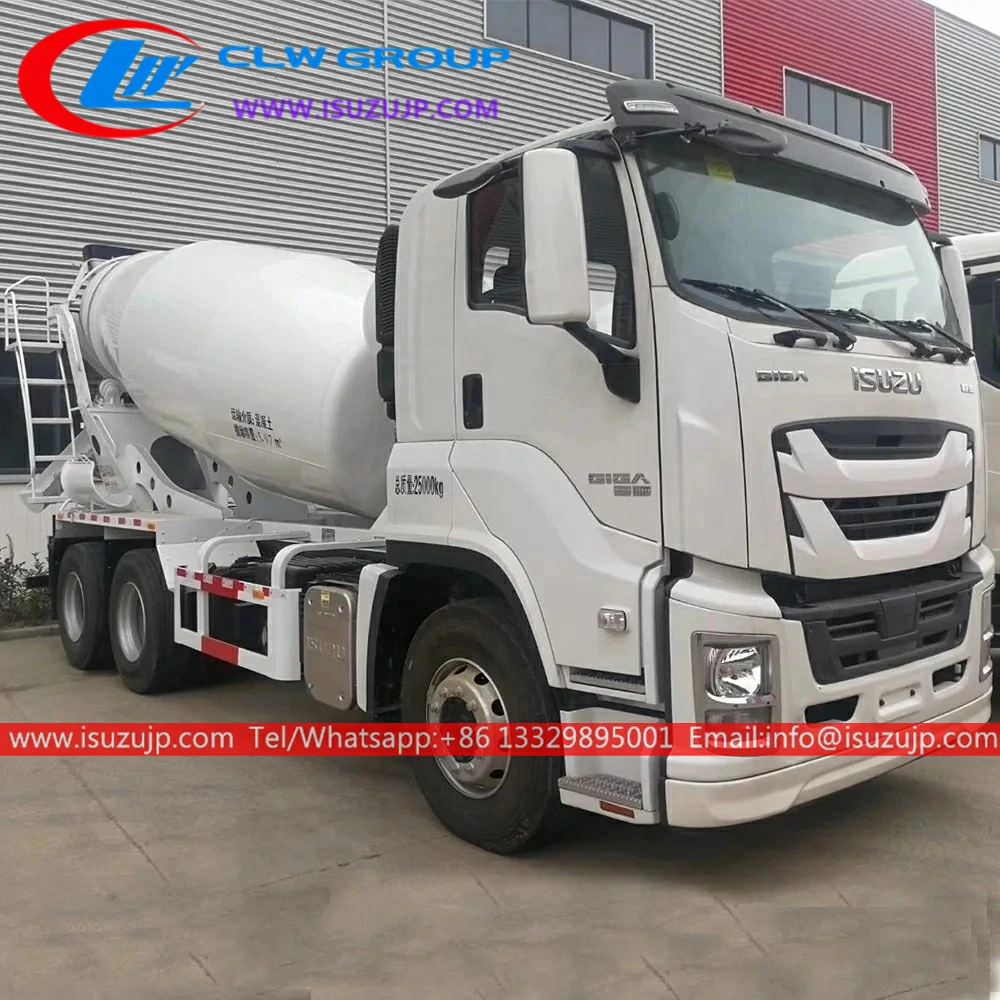

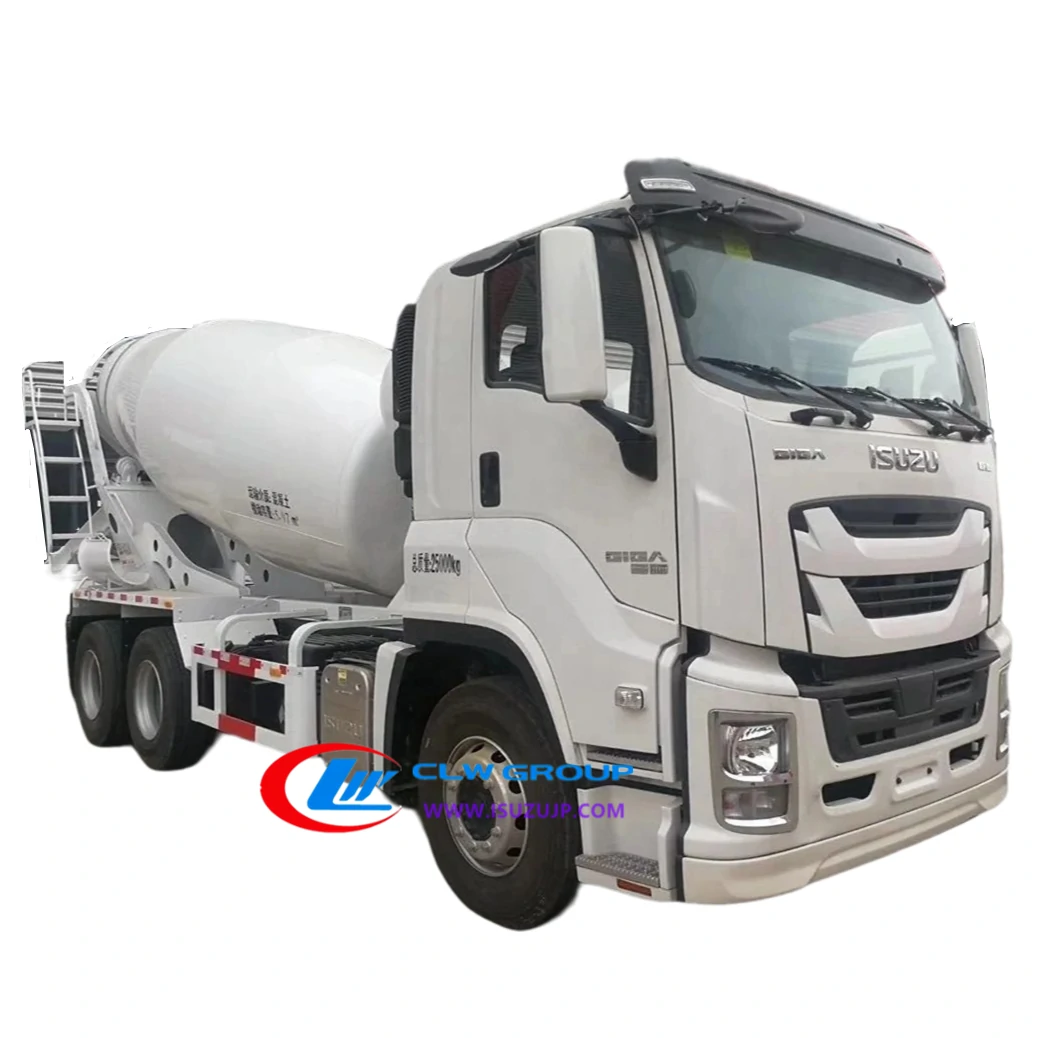

ISUZU GIGA 12cbm Concrete Mixer Truck Description:
- ISUZU Concrete Mixer Truck also called cement mixer truck, self loading Mixer truck, Concrete mixer drum truck, transit mixer vehicle is made to transport and mix concrete up to the construction site.
- Concrete mixing transport truck maintains the material’s liquid state through agitation, or turning of the drum, until delivery.
- Our mixer truck is mainly used in cement mixing station, construction field and other place.The capacity ranges from 2m3 to 18m3, meeting customers’ various needs.
- It is can loading and unloading by itself. After discharging the concrete, the mixer drum will be cleaning automatically by its water suppling system.
Advantage:
- ISUZU GIGA heavy duty chassis, perfect performance
- 6UZ1 engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Mixer drum capacity from 3cbm to 18cbm.
- Easy operation and easy maintenance.
- Various types of Hydraulic main parts are available.
- Hydraulic system adopts Germany Rexroth, America EATON, Italy ARK, America Sauer;
- Pneumatic Water Supple System. The pressure is provided by the air tank on the chassis with pressure protection devices .The Water inlet connector fits for both normal water pipe and fire fitting.
- New technology T-shape Blade. It is made of hard-wearing alloy steel, and thus protects the mixer blades from abrasion, extends the service life of the agitator drum, and enhances mixing performance;
- Equipped with the large diameter hopper, it can realize the quickly feeding, not plugging and spilling, and it is easy to clean;
- Optimized design of mixing drum ensure the concrete residue ratio is less than 1%;
- Colors can be customized.
Specification:
| ISUZU GIGA 12cbm Concrete Mixer Truck | ||
| General | Vehicle Brand | CHENGLI |
| Chassis Brand | ISUZU GIGA | |
| Overall Dimension | 9800X2500X3600 mm | |
| GVW / Kerb Weight | 31,000kg / 11,450kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | Heating/cooling air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU 6UZ1-TCG51 | |
| Power | 350 HP (258 KW) | |
| Displacement | 9839 ml | |
| Emission Standard | Euro 4 or 5 | |
| Chassis | Drive Type | 6X4, (left hand drive) |
| Transmission | RT-11509C 9 speed levers with 1 reverse | |
| Wheelbase/No. of axle | 3640+1410 mm / 3 | |
| Tire Specification | 11.00R20 | |
| Tire Number | 10 tires and 1 spare tire | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure | Mixer Tank Volume | 8 cbm |
| Hydraulic Pump | EATON 5423 | |
| Hydraulic Motor | EATON 5433 | |
| Loading speed | ≥ 1.2 m3/min | |
| Dischargeing speed | ≥ 3 m3/min | |
| Rest rate | ≤ 1 % | |
| Water tank | 450L | |
| All standard accessories: All steel body with drop sides. Auto release removable trilgate. Ladder, warning lights, PTO fire extinguisher, basic tool kit, English manual…… | ||
| Optional | Back alarm and Camera can be equipped. Water jetting system can be choose. Other hydraulic system brand can be choose. | |

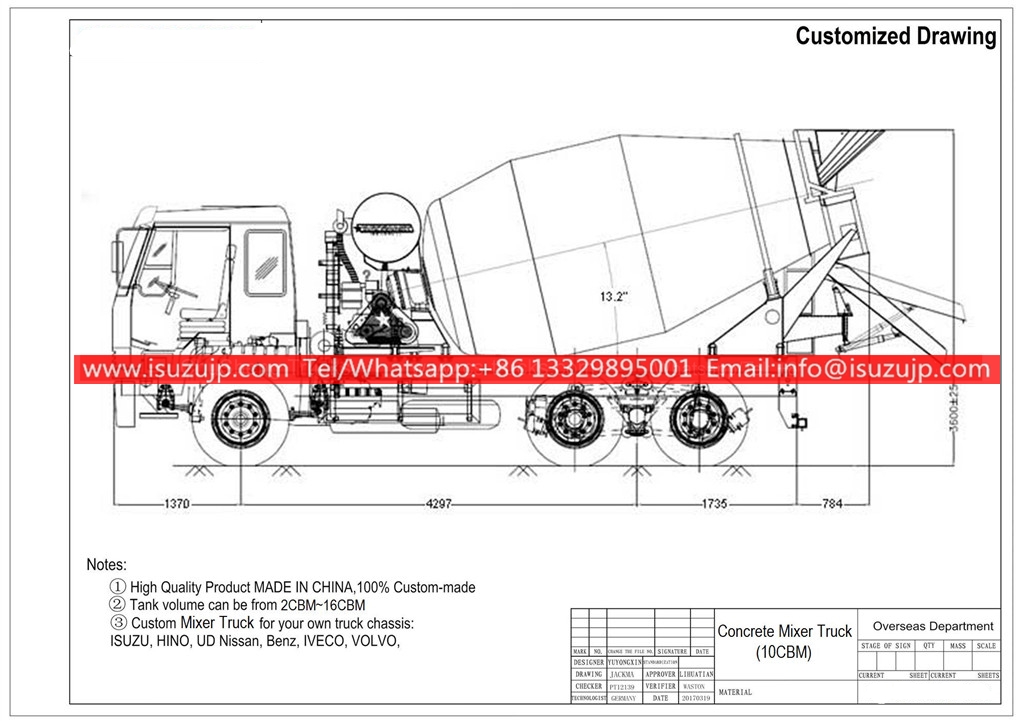

Cement mixer truck Structure:

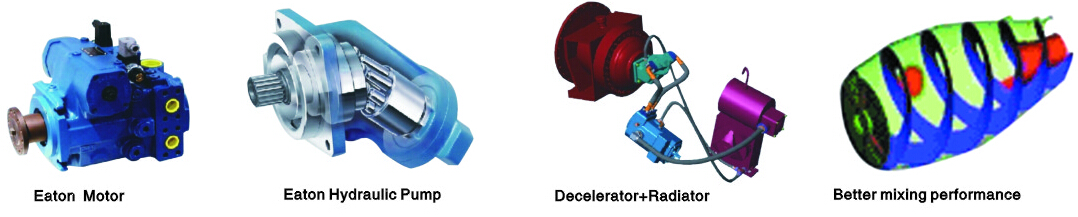

ISUZU self loading Mixer truck parts tools and instructions:
Factory Advantage:
- 17 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
construction sand rock transport truck shipping：
- Maximize save your sea freight.
- Professional guidance on your importing documents.
- Safe, fast and timely
