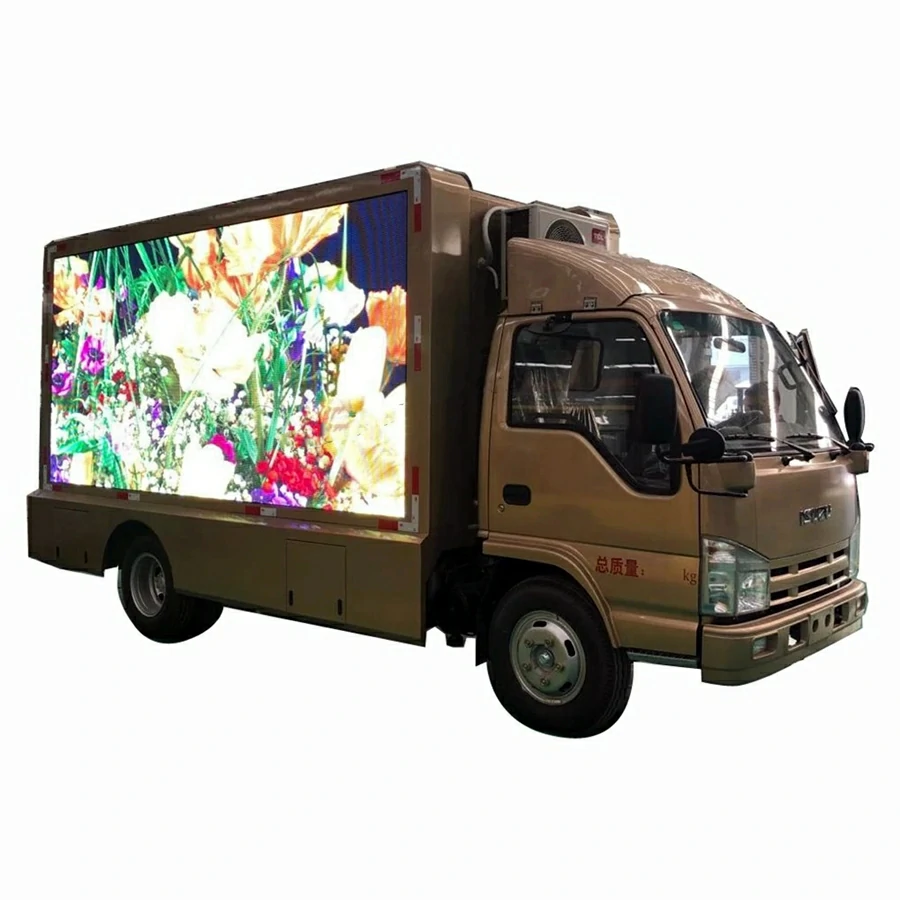

ISUZU ELF mini mobile full color led screen truck Description:
- ISUZU led screen truck also called mobile billboard truck, LED video truck, digital LED vehicle, LED advertising truck, LED digital display truck, mobile video truck, outdoor advertising truck
- LED advertising truck is a new design for advertising. It is widely used in new products promotion, products live sales, mini-show, concerts, etc. The LED trucks could get the best effect with live video displays.
- Based on different situations, LED trucks could be designed with a single screen, double screen, triple screen.
- As for the screen, there has several options: P3, P4, P5, P6. (P6 means 6mm pixels, smaller number, clearer picture.)
Advantage:
Chassis：
- ISUZU chassis, perfect performance.
- ISUZU engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Nice shape, rational structure
- High-quality hydraulic system
- Massive, durable, perfect performance
- Prolonged service life
Bodywork：
- 1P6, P8, and P10 full color led screen for optional meet all customer’s requirement.

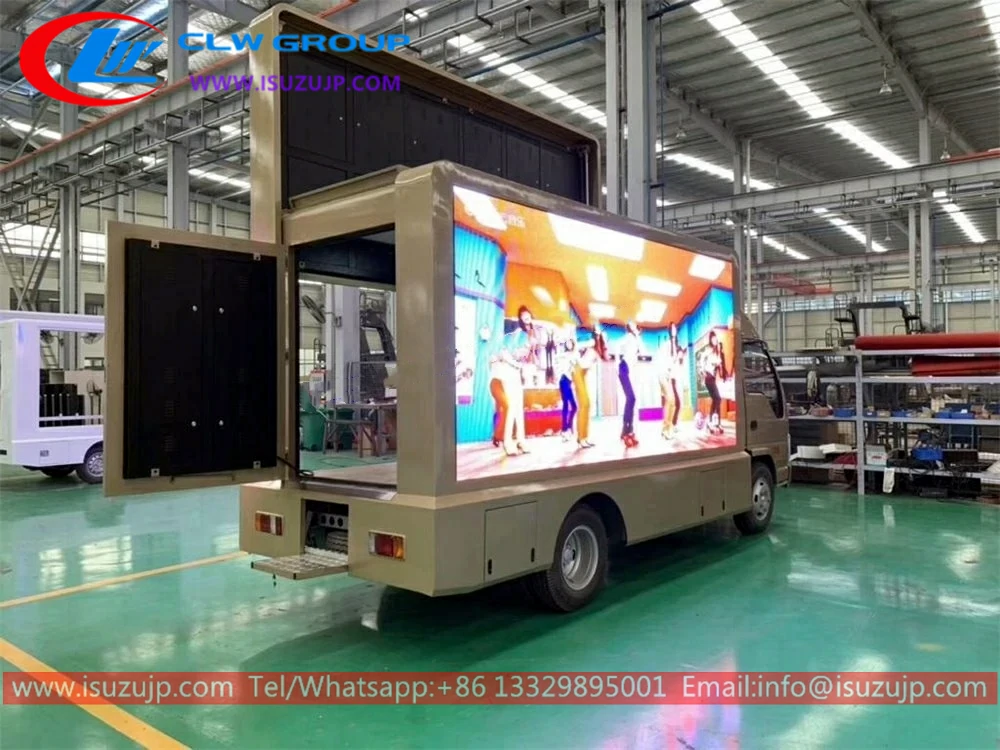

Brightness can be adjusted automatically according to different surroundings - Side screen can be lifted 1.5m for stage performance, good visual effect, Multi-media Control System,
High definition 15625pixels/sqm, good uniformity, HD nice video advertising effect. - Double color scrolling marquee on the rear door. Equipped with high-quality play devices. perfect listening effect.

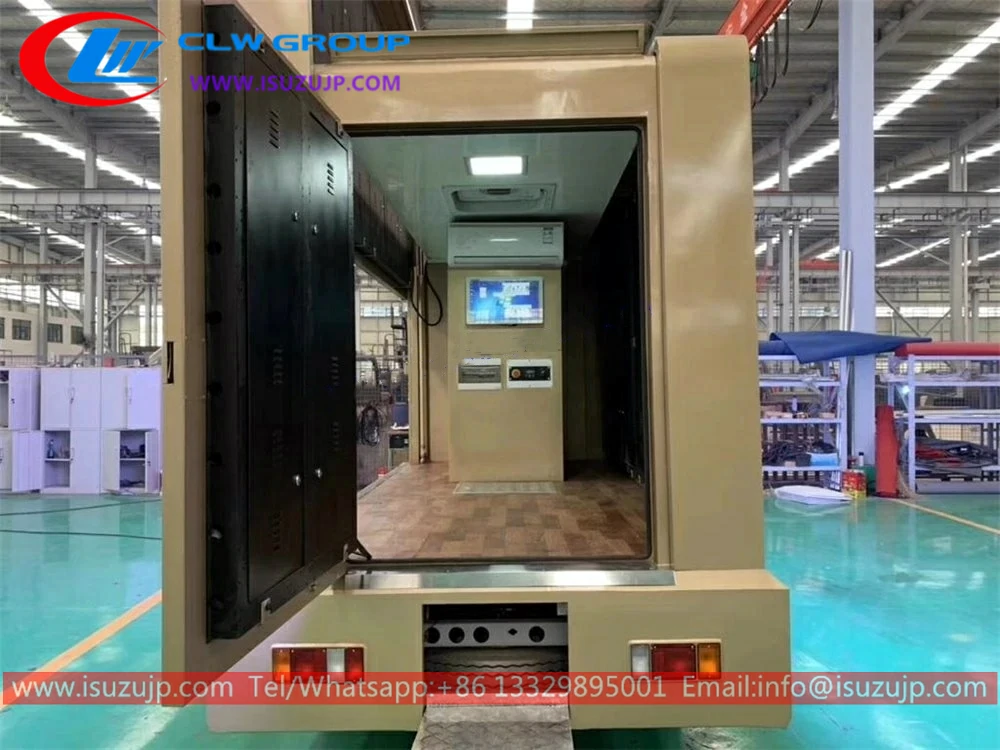

- Super-silent generator, save electricity, environmental protection. Luxury wood floor with plastic flooring.
- LED Screen takes imported EPISTAR chips, automatically control open& close. High level of illumination,
waterproof IP65 anti-corrosion or oxidation resistance, long lifespan, and high refresh frequency, and easy to maintain. - DIP LED encapsulation confirms the high brightness even under strong sunlight.
Specification:
| ISUZU ELF mini mobile full color led screen truck | ||
| General | Vehicle Brand | CHENGLI |
| Chassis Brand | ISUZU | |
| Overall Dimension | 6000X2000X2900 mm | |
| GVW / Kerb Weight | 4,475 kg / 4,345 kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | Air conditioner is equipped | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine | |
| Power | 120 HP (88 KW) | |
| Displacement | 2999 ml | |
| Emission Standard | Euro V | |
| Chassis | Drive Type | 4X2, left-hand drive |
| Transmission | ISUZU MSB 5 speed forward gearbox, 1 reverse | |
| Wheelbase/No. of axle | 3360 mm / 2 | |
| Tyre Specification | 7.00-15 | |
| Tyre Number | 6 tires and 1 spare tire | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |

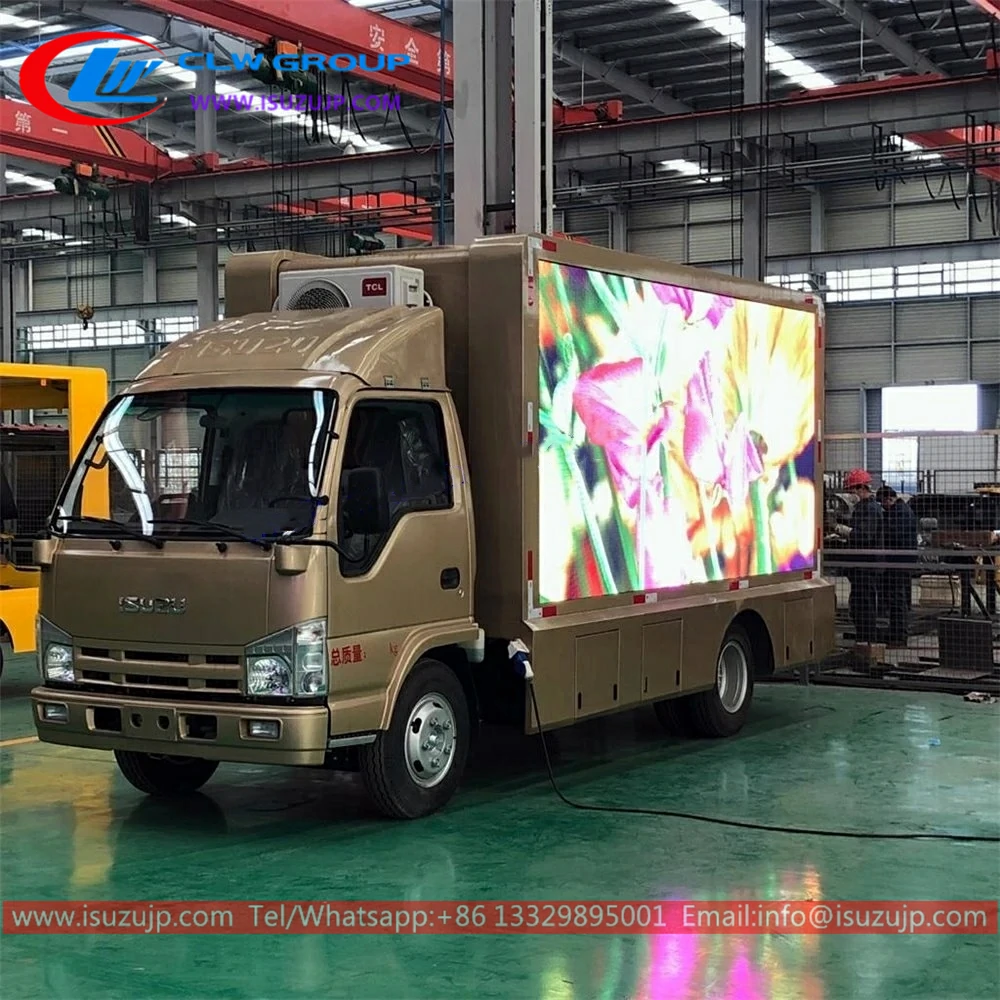

| Superstructure | Side A | LED Screen – P5, Dimension: 3840 X 1760 mm |
| Side B | Rolling Advertising Picture | |
| Rear Board | LED Screen – P5, Dimension: 1280 X 1440 mm | |
| All other standard accessories: Anti-water wood floor, Ouma diesel generator, speaker box, amplifier, industrial control computer…… | ||

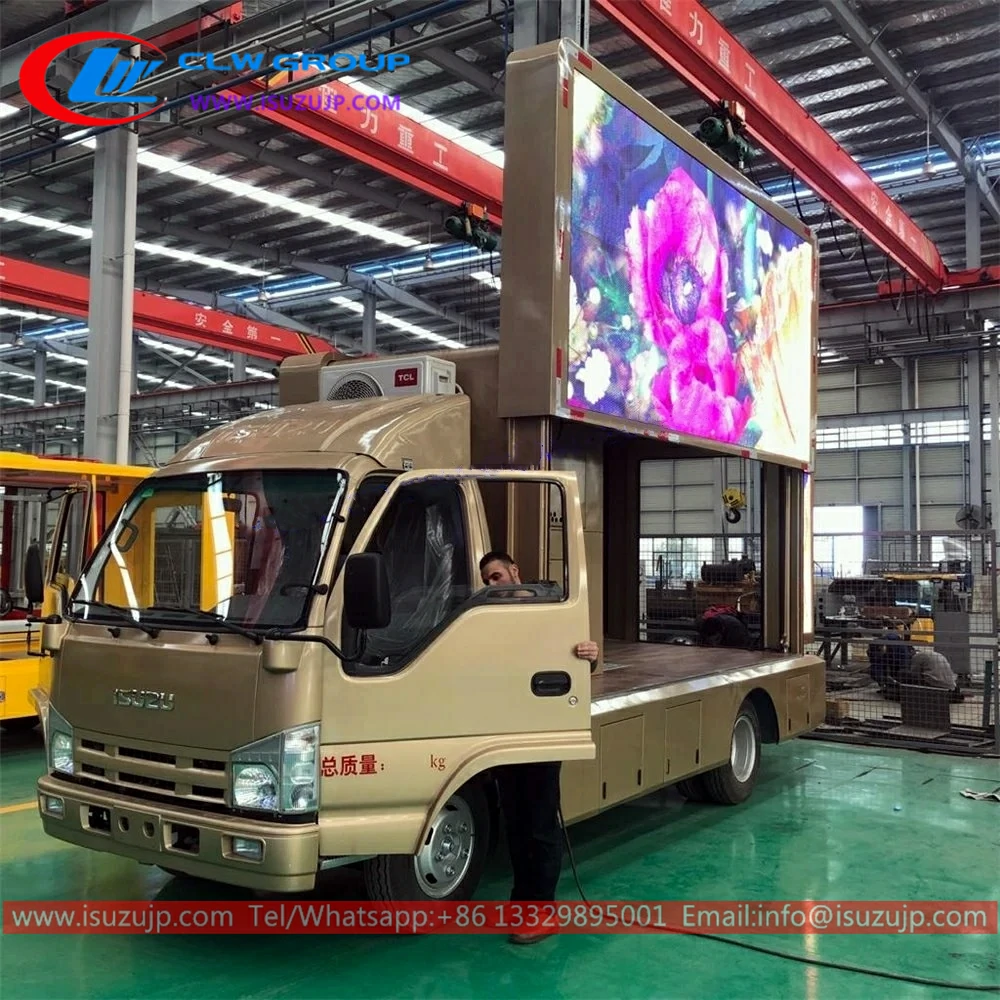

| Optional | One screen, double, triple screen, rolling advertising picture. Side Screen with lifting function, lifting height: 1.5 m. It can be extended to a show stage. | |
ISUZU led display vehicle accessories display:
Outdoor LED truck HD color display:
Led car Body box configuration:
| ⑴Box material: | 5CM conforms to the steel frame box | ⑵ Interior materials: | Optional aluminum pattern plate or FRP | |
| ⑶Electronic control system: | Safe and intelligent internal and external network automatic switching | ⑷Ventilation system: | Power exhaust fan exhaust skylight | |
| ⑸Amplifier brand: | Yvette Broadcast Amplifier | ⑹Audio brand: | Wanda waterproof column | |
| ⑺ LED color screen: | Imported wick outdoor HD waterproof and shockproof | ⑻Monochrome subtitle screen: | Shenzhen Meiyadi P5 screen | |
| ⑼Screen cabinet: | Waterproof and heat-proof ventilation safety box | ⑽Screen power supply: | High temperature brand power box | |
| ⑾Roller light box: | 3C grade tempered glass + remote roller | ⑿ Screen cable: | Bold copper wire | |
| ⒀Hydraulic stage: | Optional 4-10 square meters | ⒁Lifting system : | Optional hydraulic lifting or electronically controlled lifting | |
| ⒂Media playback system: | Optional Amethyst, Nova, Carlet | ⒃ Floor material: | Optional wooden floor or aluminum pattern board | |
| ⒄Optional power supply system: | Optional generator or battery power supply | ⒅ Industrial control system: | Optional industrial control computer or video player | |
| ⒆External power supply: | Military fast interface and copper wire cable | ⒇Operating platform: | Optional fixed suspension cab operation | |
Optional parameter of LED screen(according to box dimension)：
Wheelbase(mm) | Screen size |
| 2765 | P8:2304*1408=3.24m2,P6:2304*1345=3.1m2 |
| 2800 | P8:2560*1536=3.93m2,P6:2496*1536=3.83m2 rear monochromatic screen:960*1280=1.64m2 |
2900 3070 | P8:2304*1536=3.54m2,P6:2496*1536=3.83m2 rear monochromatic screen:960*1280=1.64m2 |
| 3300,3308,3360 | P8:3840*1792=6.88m2,P6:3840*1728=6.65m2 rear monochromatic screen:1280*1440=1.84m2 |
| 3800 | P8:4864*2048=10m2,P6:4800*2112=10.13m2 rear monochromatic screen:1600*1600=2.56m2 |
| 4700 | P8:5376*2304=12.38m2,P6:5376*2304=12.38m2 rear monochromatic screen:1600*1600=2.56m2 |
advertisement publicity vehicle Field of use:
Composition structure:
Led billboard truck detailed picture:
Led screen vehicle Optional Type:
Factory Advantage:
- 17 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
