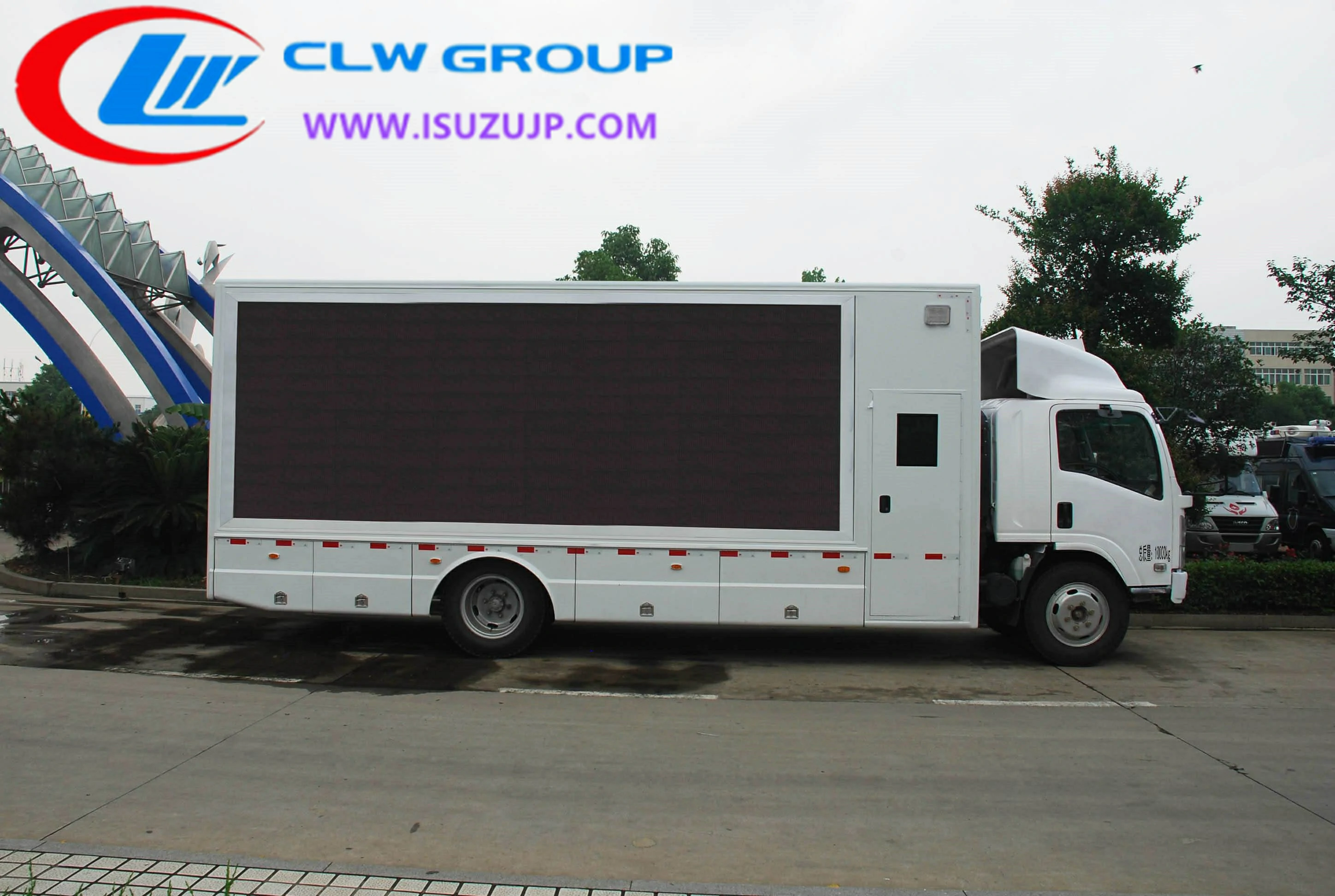

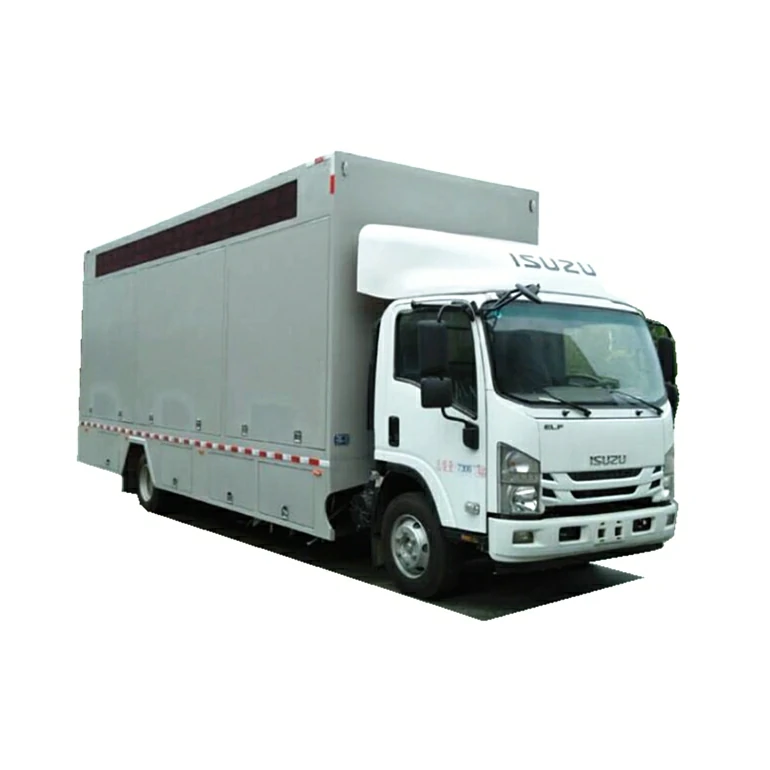

ISUZU NQR Large outdoor led truck Description:
- ISUZU outdoor led truck also called mobile billboard truck, LED video truck, digital LED vehicle, LED advertising truck, LED digital display truck, mobile video truck, outdoor advertising truck
- LED advertising truck is a new design for advertising. It is widely used in new products promotion, products live sales, mini-show, concerts, etc. The LED trucks could get the best effect with live video displays.
- Based on different situations, LED trucks could be designed with a single screen, double screen, triple screen.
- As for the screen, there has several options: P3, P4, P5, P6. (P6 means 6mm pixels, smaller number, clearer picture.)
Advantage:
Chassis：
- ISUZU chassis, perfect performance.
- ISUZU engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Nice shape, rational structure
- High-quality hydraulic system
- The massive, durable, perfect performance
- Prolonged service life
Bodywork：
- 1P6, P8, and P10 full color led screen for optional meet all customer’s requirement.
Brightness can be adjusted automatically according to different surroundings - Side screen can be lifted 1.5m for stage performance, good visual effect, Multi-media Control System,
High definition 15625pixels/sqm, good uniformity, HD nice video advertising effect. - Double color scrolling marquee on the rear door. Equipped with high-quality play devices. perfect listening effect.
- Super-silent generator, save electricity, environmental protection. Luxury wood floor with plastic flooring.
- LED Screen takes imported EPISTAR chips, automatically controlling open& close. High level of illumination,
waterproof IP65 anti-corrosion or oxidation resistance, long lifespan, and high refresh frequency, and easy to maintain. - DIP LED encapsulation confirms the high brightness even under strong sunlight.
Specification:
| Basic configuration parameters | |||
| Vehicle name | ISUZU NQR Large outdoor led truck | Side screen size (mm) | 3200*1760(mm) |
| Dimensions (mm) | 8998×2448×3520,3800 | Tail screen size (mm) | – |
| Total mass (kg) | 10000 | Rated mass (kg) | – |
| Curb weight (kg) | 9805 | Maximum speed (km/h) | 95 |
| Fuel type | diesel fuel | Emission Standards | Country five |
| Wheelbase (m) | 4475 | Tire specifications | 235/75R17.5 14PR |
| Chassis brand/model | Isuzu/QL1100A8MAY | Engine brand/model | Qingling Isuzu/4HK1-TC51 |
| Power/Horsepower (kW/ps) | 141/192 | Displacement (ml) | 5193 |
| Upload configuration parameters | |||
| The standard configuration | Three layers of anti-rust primer at the bottom of the car body; double vent design on the right side of the car body; the rear door of the car body is a flip-up door panel, which is assisted by gas springs and equipped with a built-in door lock; the rear panel of the car body is equipped with heat-dissipating shutters; Equipped with an exhaust fan; the console is installed in the cab for easy control; the power supply is 220V, equipped with power quick connectors; 30 meters of power cords, equipped with waterproof and explosion-proof quick connectors; beautiful large enclosures are installed under the carriage, front and rear guards; | ||
| Optional configuration | The side screen lift of the carriage adopts electronic control hydraulic operation (optional). An automatic stage or a simple stage can be equipped with a vehicle control system and a playback system (military computer, waterproof speaker, high-frequency amplifier). | ||
ISUZU led display vehicle accessories display:
Outdoor LED truck HD color display:
Led car Body box configuration:
| ⑴Box material: | 5CM conforms to the steel frame box | ⑵ Interior materials: | Optional aluminum pattern plate or FRP | |
| ⑶Electronic control system: | Safe and intelligent internal and external network automatic switching | ⑷Ventilation system: | Power exhaust fan exhaust skylight | |
| ⑸Amplifier brand: | Yvette Broadcast Amplifier | ⑹Audio brand: | Wanda waterproof column | |
| ⑺ LED color screen: | Imported wick outdoor HD waterproof and shockproof | ⑻Monochrome subtitle screen: | Shenzhen Meiyadi P5 screen | |
| ⑼Screen cabinet: | Waterproof and heat-proof ventilation safety box | ⑽Screen power supply: | High temperature brand power box | |
| ⑾Roller light box: | 3C grade tempered glass + remote roller | ⑿ Screen cable: | Bold copper wire | |
| ⒀Hydraulic stage: | Optional 4-10 square meters | ⒁Lifting system : | Optional hydraulic lifting or electronically controlled lifting | |
| ⒂Media playback system: | Optional Amethyst, Nova, Carlet | ⒃ Floor material: | Optional wooden floor or aluminum pattern board | |
| ⒄Optional power supply system: | Optional generator or battery power supply | ⒅ Industrial control system: | Optional industrial control computer or video player | |
| ⒆External power supply: | Military fast interface and copper wire cable | ⒇Operating platform: | Optional fixed suspension cab operation | |
Optional parameter of LED screen(according to box dimension)：
Wheelbase(mm) | Screen size |
| 2765 | P8:2304*1408=3.24m2,P6:2304*1345=3.1m2 |
| 2800 | P8:2560*1536=3.93m2,P6:2496*1536=3.83m2 rear monochromatic screen:960*1280=1.64m2 |
2900 3070 | P8:2304*1536=3.54m2,P6:2496*1536=3.83m2 rear monochromatic screen:960*1280=1.64m2 |
| 3300,3308,3360 | P8:3840*1792=6.88m2,P6:3840*1728=6.65m2 rear monochromatic screen:1280*1440=1.84m2 |
| 3800 | P8:4864*2048=10m2,P6:4800*2112=10.13m2 rear monochromatic screen:1600*1600=2.56m2 |
| 4700 | P8:5376*2304=12.38m2,P6:5376*2304=12.38m2 rear monochromatic screen:1600*1600=2.56m2 |
advertisement publicity vehicle Field of use:
Composition structure:

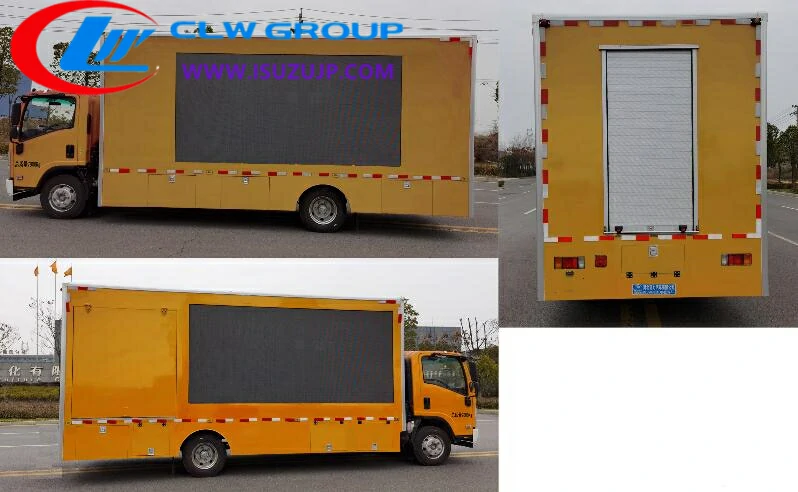

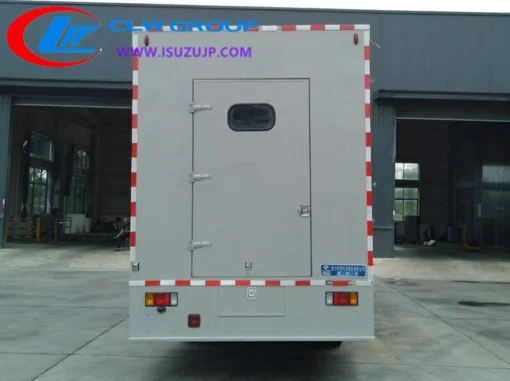

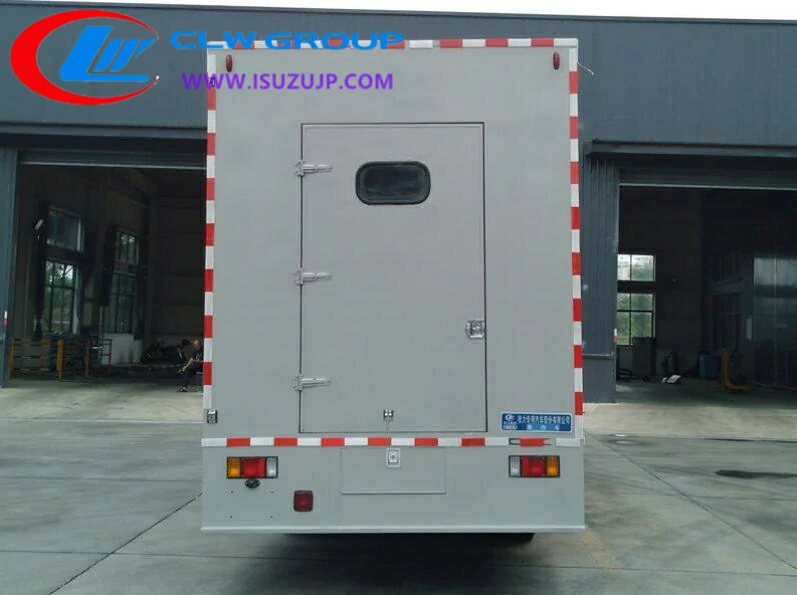

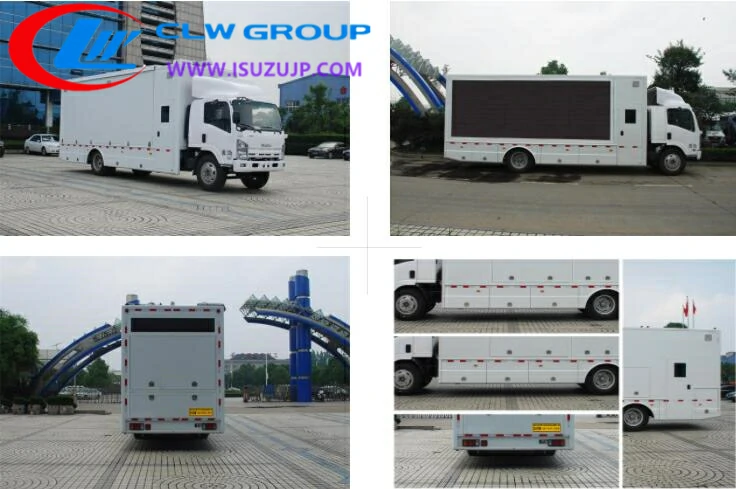

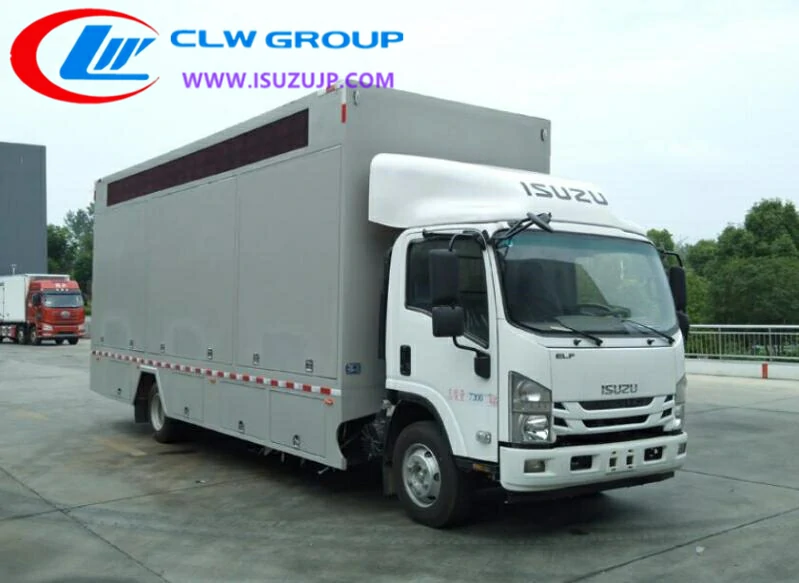

Led billboard truck detailed picture:
Led screen vehicle Optional Type:
Factory Advantage:
- 17 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
