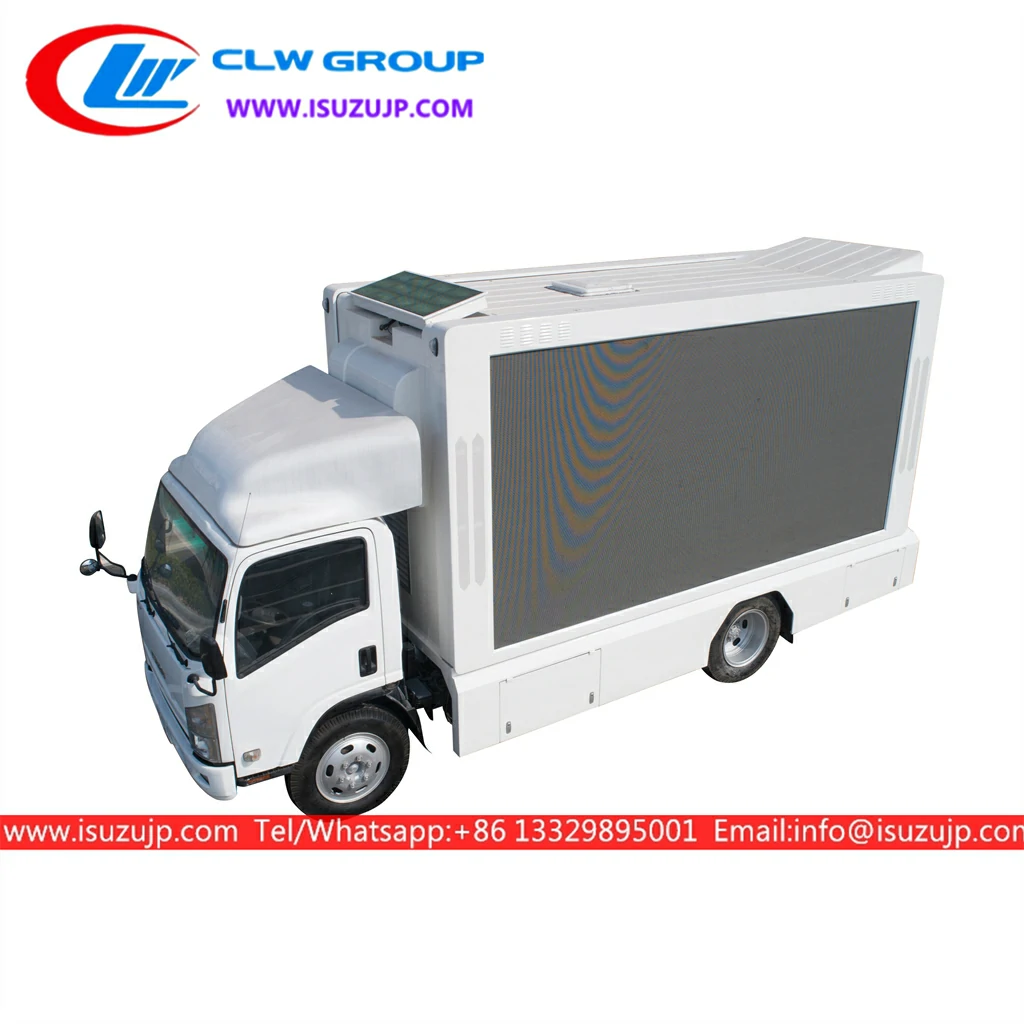

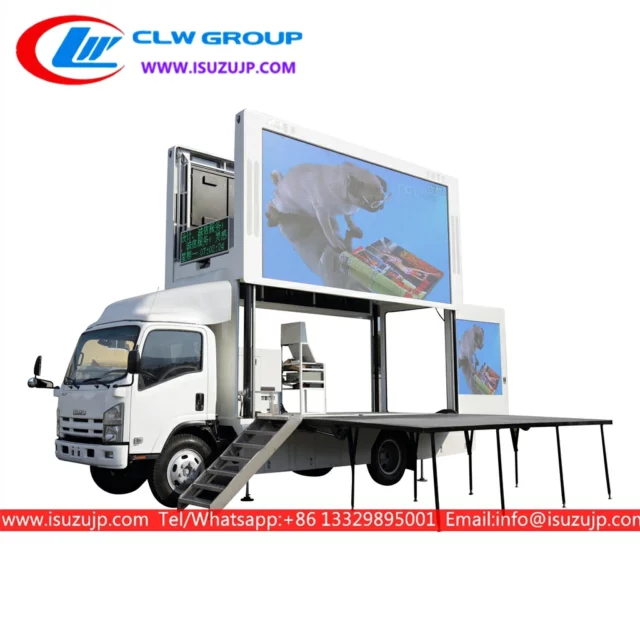

ISUZU NPR outdoor mobile led stage truck Description:
- ISUZU mobile led stage truck also called mobile billboard truck, LED video truck, digital LED vehicle, LED advertising truck, LED digital display truck, mobile video truck, outdoor advertising truck
- LED advertising truck is a new design for advertising. It is widely used in new products promotion, products live sales, mini-show, concerts, etc. The LED trucks could get the best effect with live video displays.
- Based on different situations, LED trucks could be designed with a single screen, double screen, triple screen.
- As for the screen, there has several options: P3, P4, P5, P6. (P6 means 6mm pixels, smaller number, clearer picture.)
Advantage:
Chassis：
- ISUZU chassis, perfect performance.
- ISUZU engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Nice shape, rational structure
- High-quality hydraulic system
- Massive, durable, perfect performance
- Prolonged service life
Bodywork：
- 1P6, P8, and P10 full color led screen for optional meet all customer’s requirement.

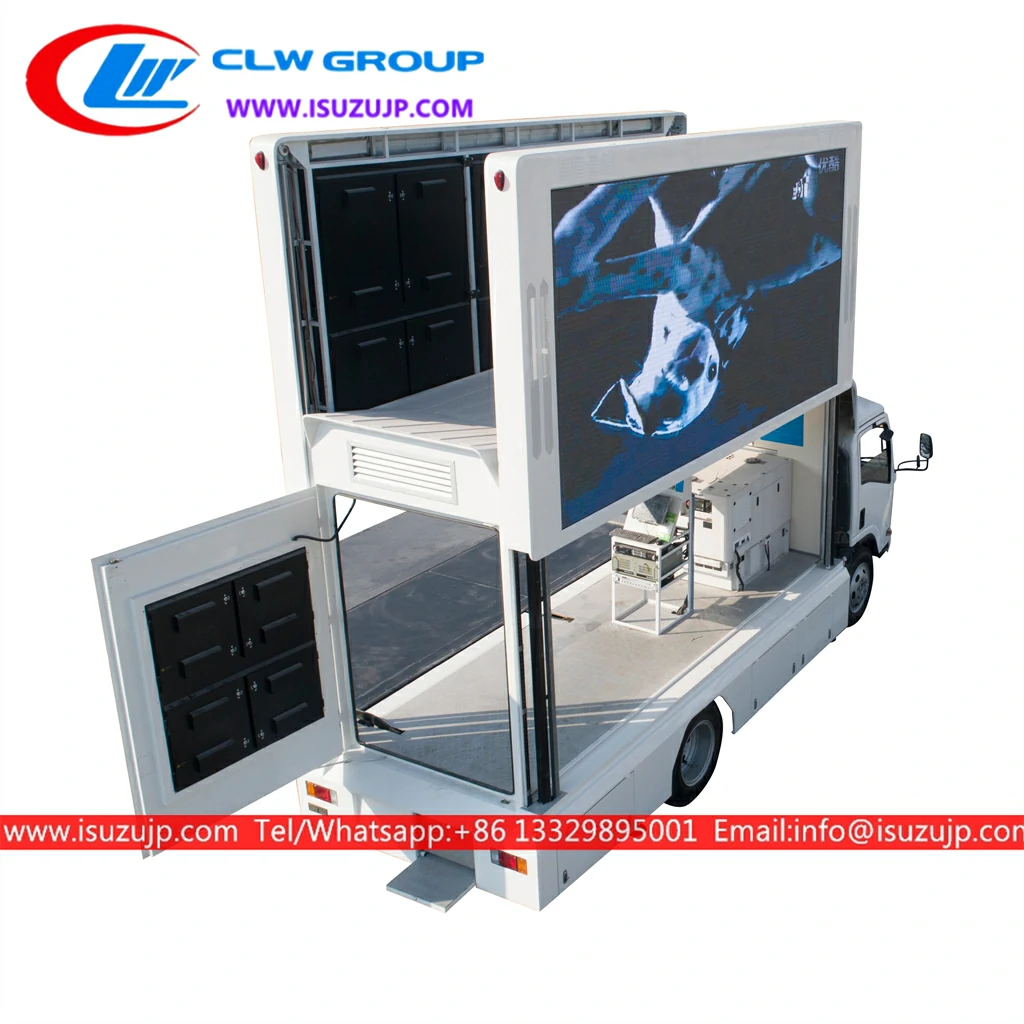

Brightness can be adjusted automatically according to different surroundings - Side screen can be lifted 1.5m for stage performance, good visual effect, Multi-media Control System,
High definition 15625pixels/sqm, good uniformity, HD nice video advertising effect. - Double color scrolling marquee on the rear door. Equipped with high-quality play devices. perfect listening effect.
- Super-silent generator, save electricity, environmental protection. Luxury wood floor with plastic flooring.
- LED Screen takes imported EPISTAR chips, automatically control open& close. High level of illumination,
waterproof IP65 anti-corrosion or oxidation resistance, long lifespan, and high refresh frequency, and easy to maintain. - DIP LED encapsulation confirms the high brightness even under strong sunlight.
Specification:
Chassis | |||
Brand | ISUZU NPR outdoor mobile led stage truck for sale | External | 7200mm x 2300mm x 3800mm |
Emission standards | Euro V | Total weight | 8200kgs |
Seat | Single row 3 seats | Wheelbase | 3815mm |
Generator model | 4KH1-TCG40 | Displacement and power（ml/kw) | 5193 / 139 |
Screen Lifting and Supporting System | |||
Hydraulic Lifting System: lifting range 2000mm, bearing 3000KGS，Double lift system | |||
Wind-against Level: Against level 8 wind after screen lift up 2 meters | |||
Support Legs: Stretch distance 300mm | |||
Silence generator group | |||
External | 1950x900x1050mm | Power | 24kw |
Generator Engine | Brand LEES of generator set | Number of cylinders | Water-cooled inline 4 |
Displacement | 3.31L | Bore x stroke | 84mm x 90mm |
LED Screen Full color (left side and right side) | |||
Left side and Right side: | 4480mm x 2240mm | Module Size | 320mm(W) x 320mm(H) |
Chip brand | RGB Epistar | Dot pitch | 6 mm |
Brightness | 6500cd/㎡–8000cd/㎡ | Max Power consumption | 700 w/㎡ |
Lifespan | 100,000 hours | Average power consumption | 300w/㎡ |
LED Screen Full color (rear side) | |||
Rear Side: | 1280mm x 1600mm | Module Size | 320mm(W) x320mm(H) |
Chip brand | RGB Epistar | Dot pitch | 6 mm |
Brightness | 6500cd/㎡ | Max Power consumption | 700 w/㎡ |
Lifespan | 100,000 hours | Average power consumption | 300w/㎡ |
Single color LED strip (front side) | |||
LED strip screen size: | 1280mm x 480mm | Dot pitch | 10mm |
Chip brand | Opto Red Color | Module Resolution | 32pixel(W)*16pixel(H) |
Power parameter | |||
Input Voltage | Three phases five wires 380V | Output Voltage | 220V |
Current | 70A | Power : Average power consumption | 0.3kwh/㎡ |
Sound System | |||
Speaker | Max Power consumption: 120W | Power Amplifier Unilateral power output | 200W |
Player System | |||
Video processor | NOVA | Model | VX2U |

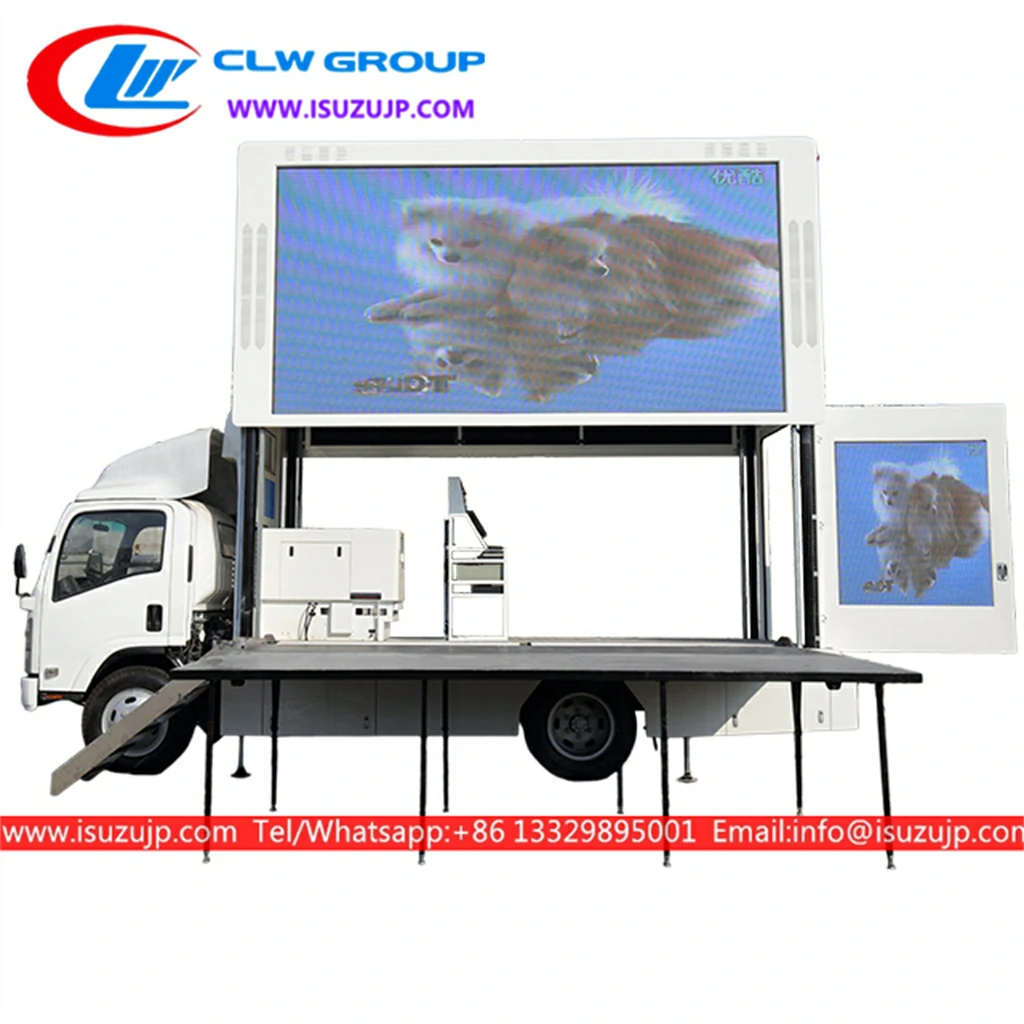

Hydraulic stage | |||
Stage size: | 5000 * 3000 | Open the way | Hydraulic folding |
ISUZU led display vehicle accessories display:
Outdoor LED truck HD color display:
Led car Body box configuration:
| ⑴Box material: | 5CM conforms to the steel frame box | ⑵ Interior materials: | Optional aluminum pattern plate or FRP | |

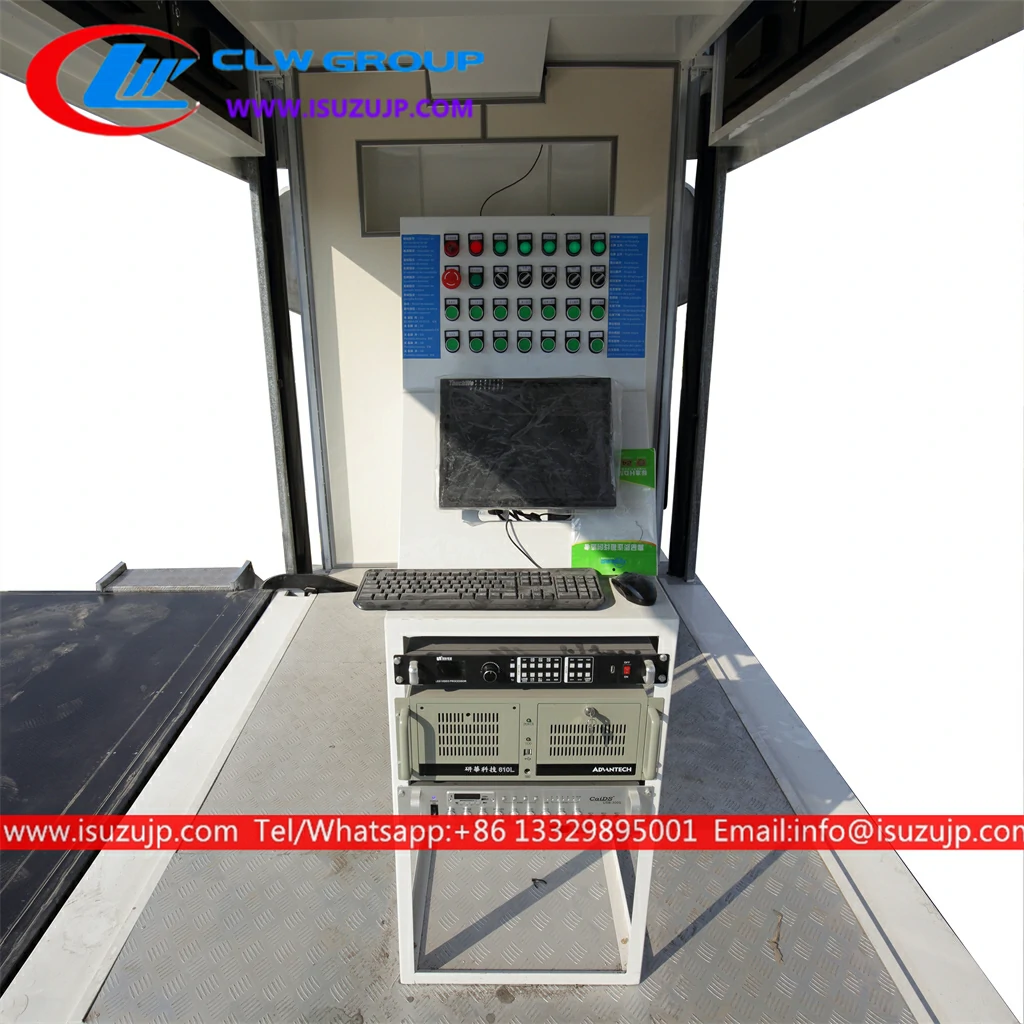

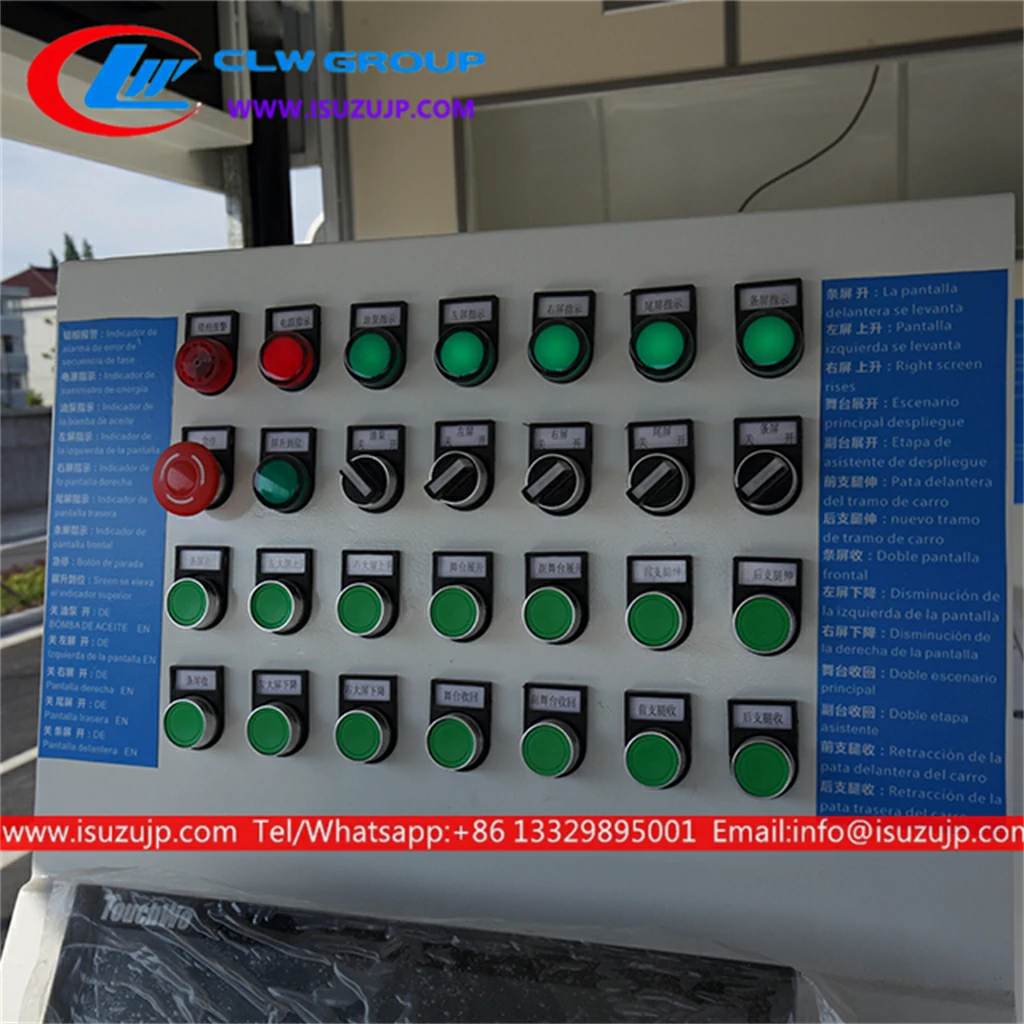

| ⑶Electronic control system: | Safe and intelligent internal and external network automatic switching | ⑷Ventilation system: | Power exhaust fan exhaust skylight | |
| ⑸Amplifier brand: | Yvette Broadcast Amplifier | ⑹Audio brand: | Wanda waterproof column | |
| ⑺ LED color screen: | Imported wick outdoor HD waterproof and shockproof | ⑻Monochrome subtitle screen: | Shenzhen Meiyadi P5 screen | |
| ⑼Screen cabinet: | Waterproof and heat-proof ventilation safety box | ⑽Screen power supply: | High temperature brand power box | |
| ⑾Roller light box: | 3C grade tempered glass + remote roller | ⑿ Screen cable: | Bold copper wire | |
| ⒀Hydraulic stage: | Optional 4-10 square meters | ⒁Lifting system : | Optional hydraulic lifting or electronically controlled lifting | |
| ⒂Media playback system: | Optional Amethyst, Nova, Carlet | ⒃ Floor material: | Optional wooden floor or aluminum pattern board | |
| ⒄Optional power supply system: | Optional generator or battery power supply | ⒅ Industrial control system: | Optional industrial control computer or video player | |
| ⒆External power supply: | Military fast interface and copper wire cable | ⒇Operating platform: | Optional fixed suspension cab operation | |
Optional parameter of LED screen(according to box dimension)：
Wheelbase(mm) | Screen size |
| 2765 | P8:2304*1408=3.24m2,P6:2304*1345=3.1m2 |
| 2800 | P8:2560*1536=3.93m2,P6:2496*1536=3.83m2 rear monochromatic screen:960*1280=1.64m2 |
2900 3070 | P8:2304*1536=3.54m2,P6:2496*1536=3.83m2 rear monochromatic screen:960*1280=1.64m2 |
| 3300,3308,3360 | P8:3840*1792=6.88m2,P6:3840*1728=6.65m2 rear monochromatic screen:1280*1440=1.84m2 |
| 3800 | P8:4864*2048=10m2,P6:4800*2112=10.13m2 rear monochromatic screen:1600*1600=2.56m2 |
| 4700 | P8:5376*2304=12.38m2,P6:5376*2304=12.38m2 rear monochromatic screen:1600*1600=2.56m2 |
advertisement publicity vehicle Field of use:
Composition structure:
Led billboard truck detailed picture:
Led screen vehicle Optional Type:
Factory Advantage:
- 17 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
