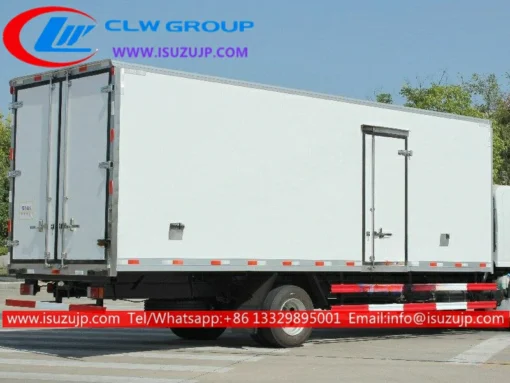

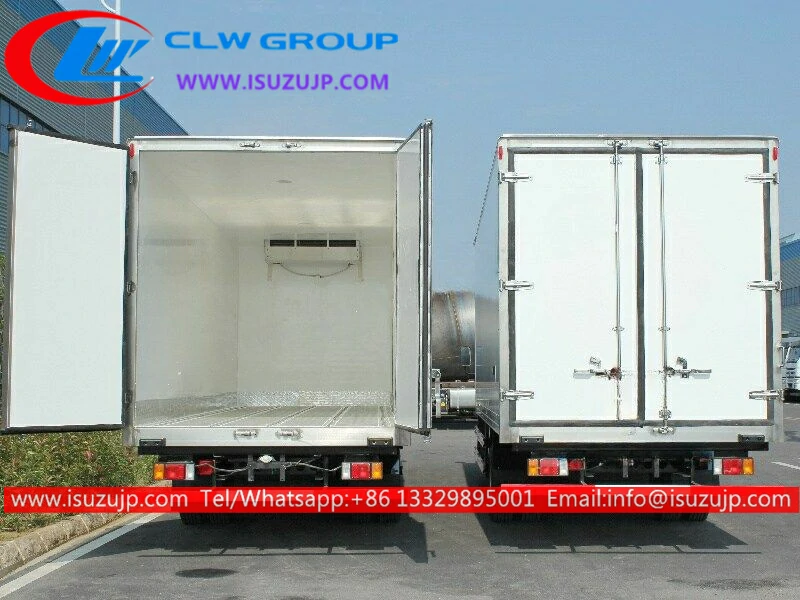

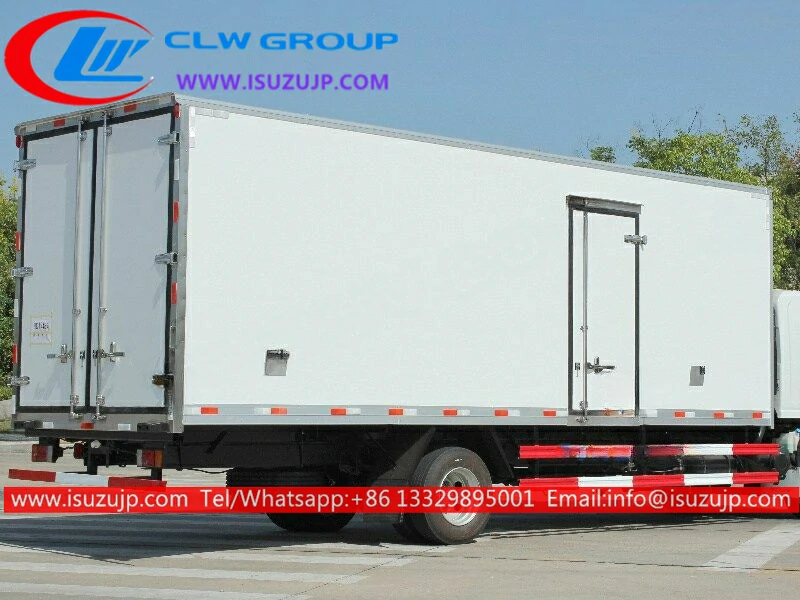

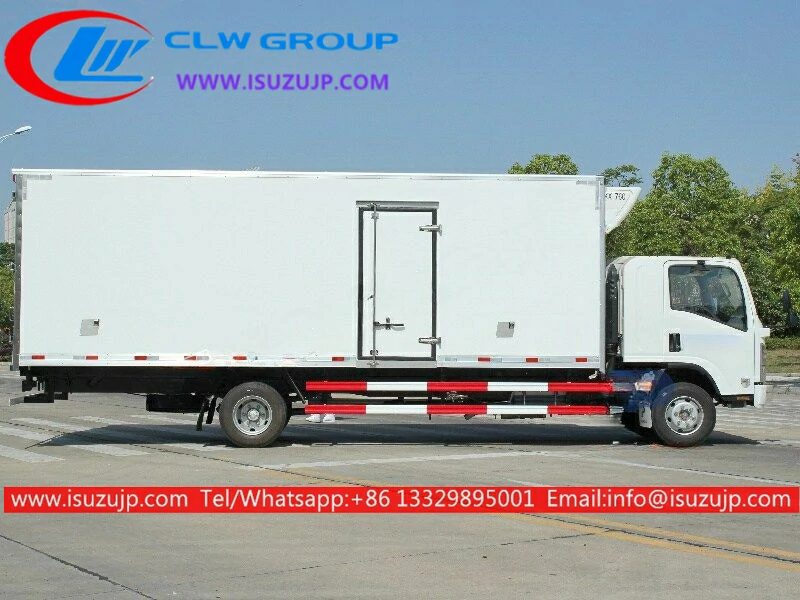

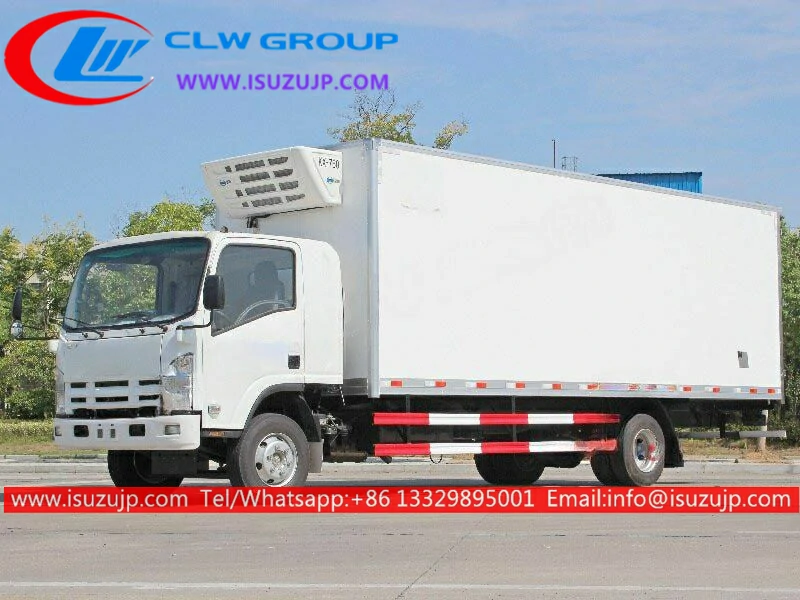

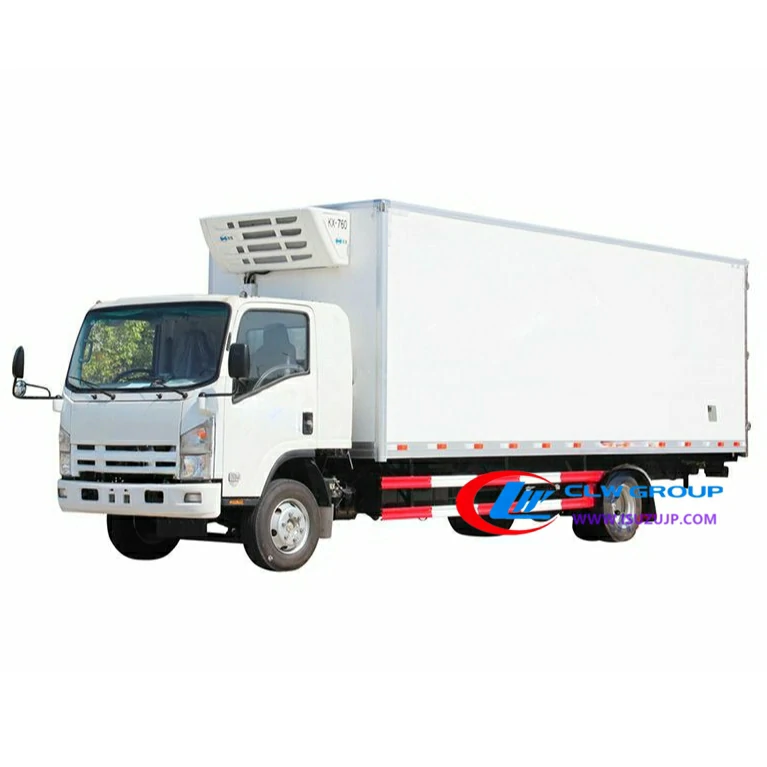

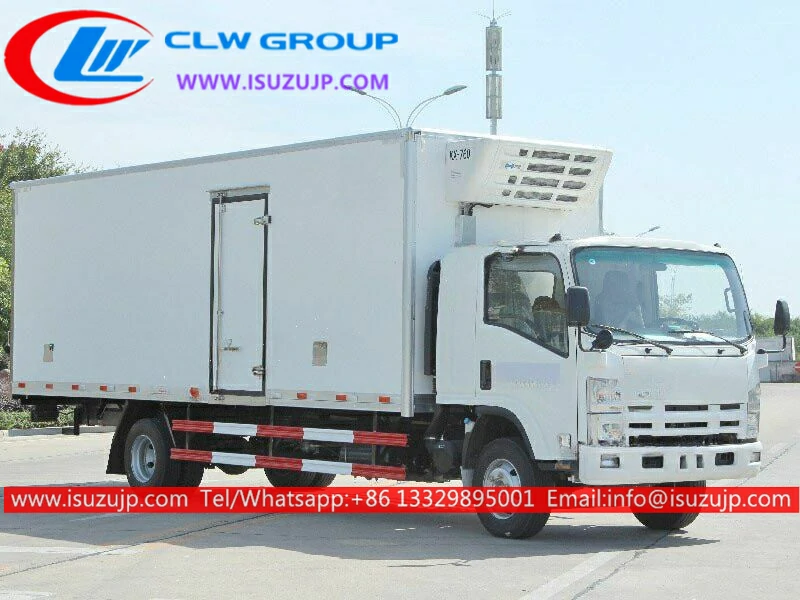

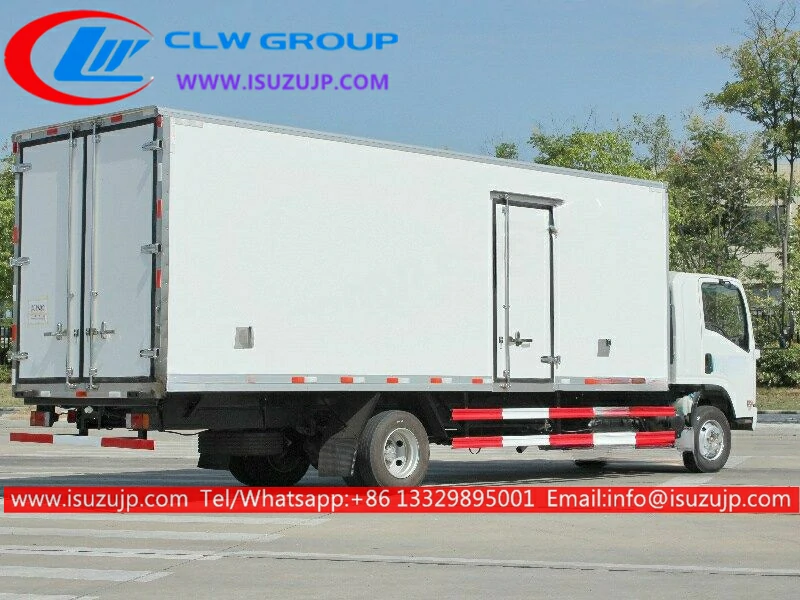

Isuzu ELF 7tons fish freezer truck with Sleeping cabin Description:
- Isuzu ELF 7tons fish freezer truck with Sleeping cabin also called Freezer truck, Food meat transportation van, Refrigerator lorry truck is a van or truck designed to carry perishable freight specific temperatures.
- Refrigerator trucks can be ice-cooled, equipped with any one of a variety of mechanical refrigeration systems powered by gasoline or diesel engines, or utilize carbon dioxide as a colling agent.
- ISUZU Trucks can supply freezer trucks with a capacity of 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Tons,30tons.
- Transportation temperature can be from +20°C, -5°C, -10°C, -15°C, -20°C
Advantage:
- 100% custom-made
- 3 cbm to 40 cbm available
- Short delivery time 7~30 days
- Easy operation & Easy maintenance
- 15 years spare parts & Technical support
- ISUZU engine & gearbox, super powerful, no overhaul within 500,000 km.
- Refrigeration system brand can be optional.
- Transport temperature can be from +7°C, +2°C, -10°C, -15°C, -20°C -25°C.
Specification:
| Manufacturer | CHENGLI | |
| Item | Isuzu ELF 7tons fish freezer truck with Sleeping cabin | |
| Brand | ISUZU | |
| Model | CLW5090TSSL6 | |
| Production Time | 30 days | |
| Truck Chassis | ||
| Specification | Overall dimensions | 8500*2500*3360 mm |
| Gross weight | 10,000 kg | |
| Kerb weight | 4,500 kg | |
| Wheelbase | 4,475 mm | |
| Driving type | 4*2 | |
| Chassis model | QINGLING ELF Medium-duty | |
| Tire size | 235/75R17.5 | |
| Passengers in cab | 3 | |
| Engine | Engine model | 4HK1-TCG50 |
| Type of fuel | Diesel | |
| Power | 190 HP | |
| Gearbox | MLD 6-shift gearbox | |
| Upper Structure | ||
| Freezer Body performance | Refrigerator Unit | Chinese Brand KAIXUE KX-760 |
| Body Space Temperature | -15 degree~ +20 degree | |
| Body Capacity | 6Tons | |
| Body Size | 7000x2200x2000 mm | |
| Panel Material | FRP + PU Foam + FRP 105mm | |
| Panel Structure | All Closed Sandwich | |
| Side Door Type | Single door, on right side wall | |
| Rear Door Type | Full size double opening rear doors | |
| Flooring | Antiskid and abrasion resistant, customized wheel roller for easy operation | |
| Marker Light | 2 sets White and 2 sets Red | |
| Celling Light | 2 sets of 12/24V LED | |
| Painting | Two primers, and one final paint coating | |
| Color & LOGO | According to wish | |
| Factory standard | “U” shape Sub Frame, Hydraulic system, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards, and rubber flaps… | |
| Documents | English operation manual, Spare parts list, and all necessary export docs. | |
| Optional equipment | 1, Other Refrigeration Brand: CARRIER, THERMOKING, DAIKIN (Any options) 2, Working camera can be equipped 3, Optional rear lifting platform | |
Working parameter:
| Insulation thickness | 80mm ester urethane | Inside and outside materials | 2.2mm FRP / Stainless steel plate | Unit brand | Domestic, imported / independent, non-independent |
| Floor material | FRP / Aluminium skid plate / Stainless steel skid plate | Installation location | Front, skirt, top | Bottom ventilation slot | Optional, aluminum alloy profile |
| Cooling time | 30 minutes | Thermal curtain | Optional | Control position | Cab |
| Meat hook | Optional | Insulation effect | 24 hours temperature rise 5 degrees | External power supply | Optional |
| Cooling temperature | Minus 20-5 degrees | Constant temperature unit | Optional | Temperature and humidity printer | Optional |

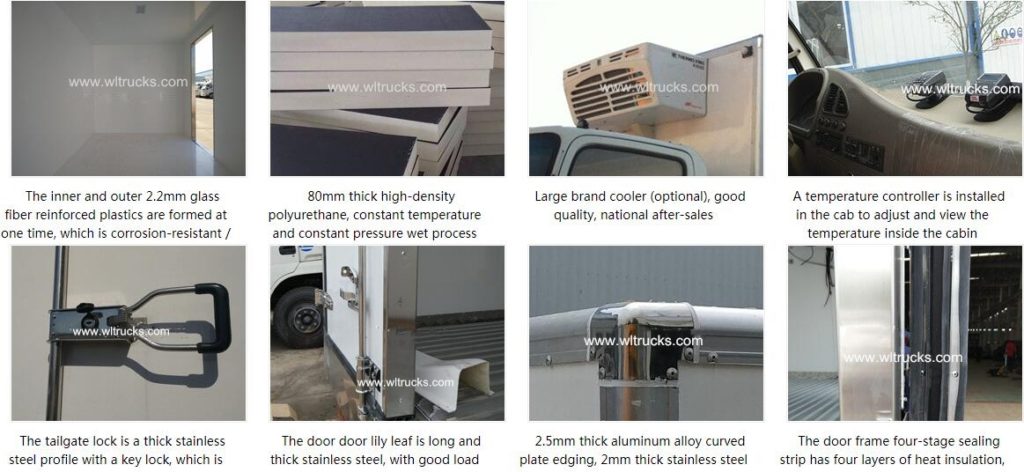

reefer truck New craft:

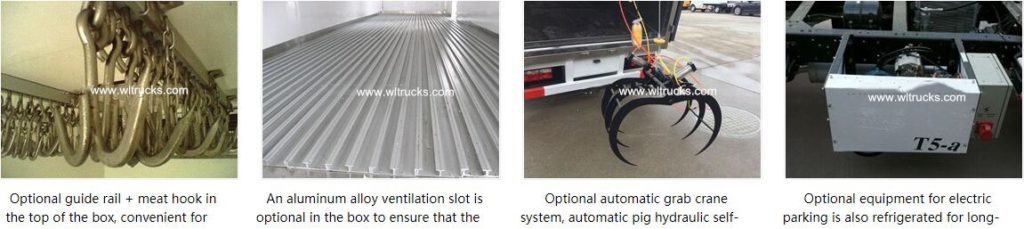

Frozen truck Optional configuration:

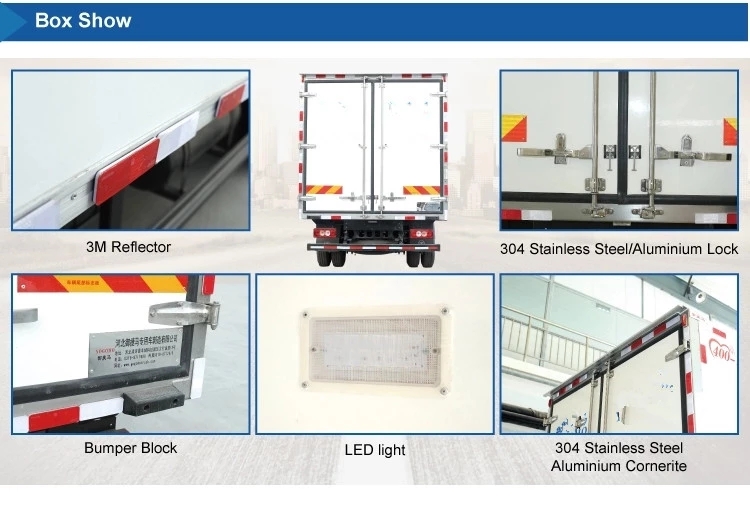

Freezer car Bodywork details:

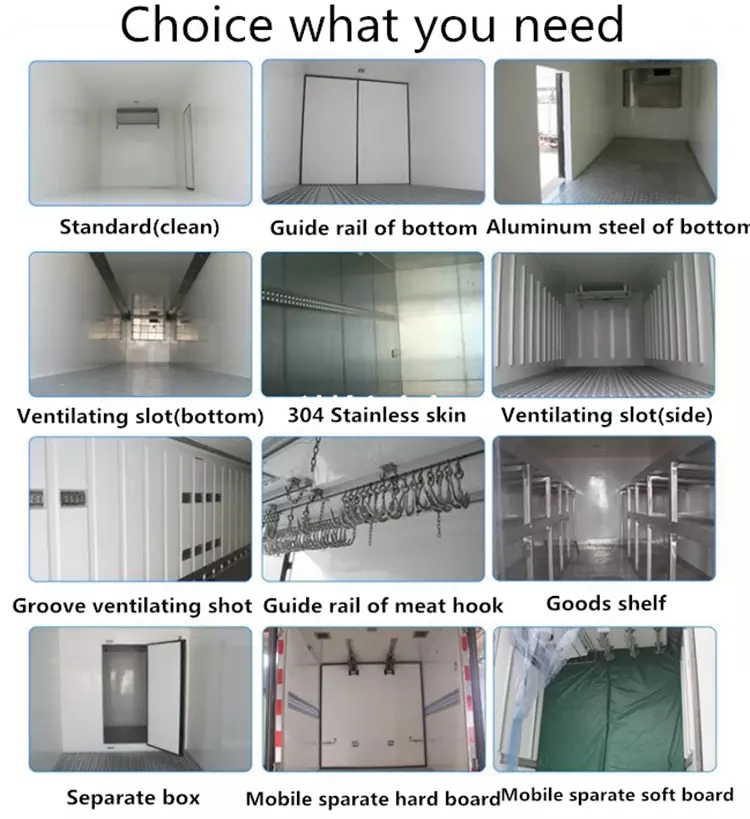

Isuzu Cold chain transport truck box Internal details：

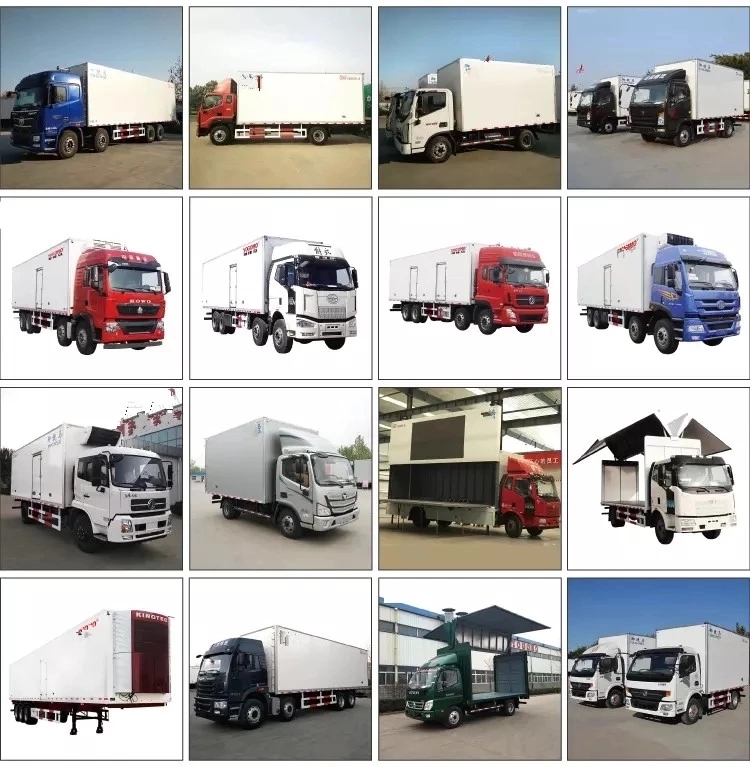

1ton to 40ton fridge truck product Display：
Factory Advantage:
- 17 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
