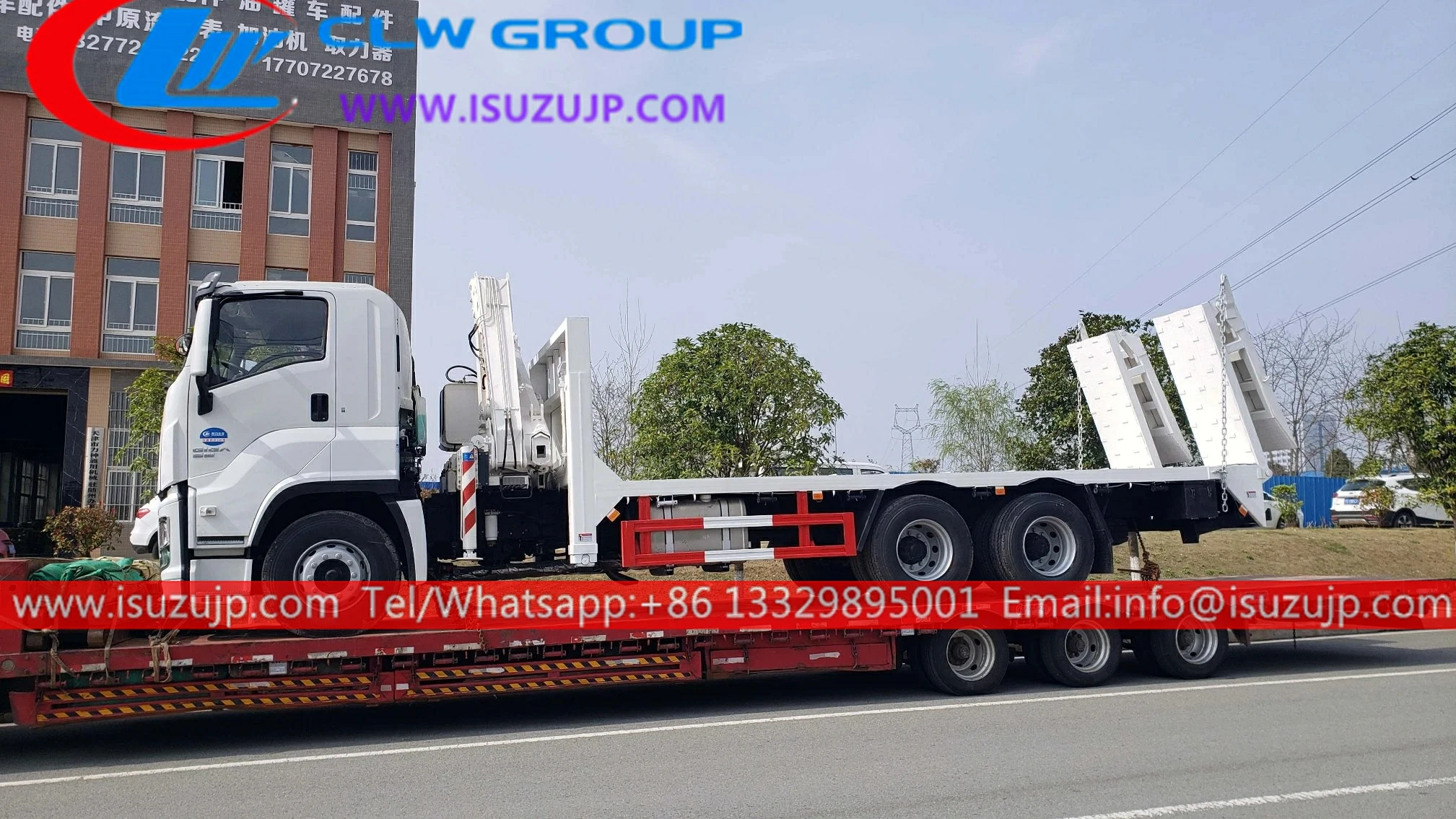

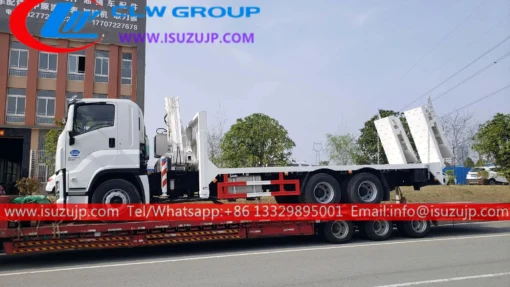

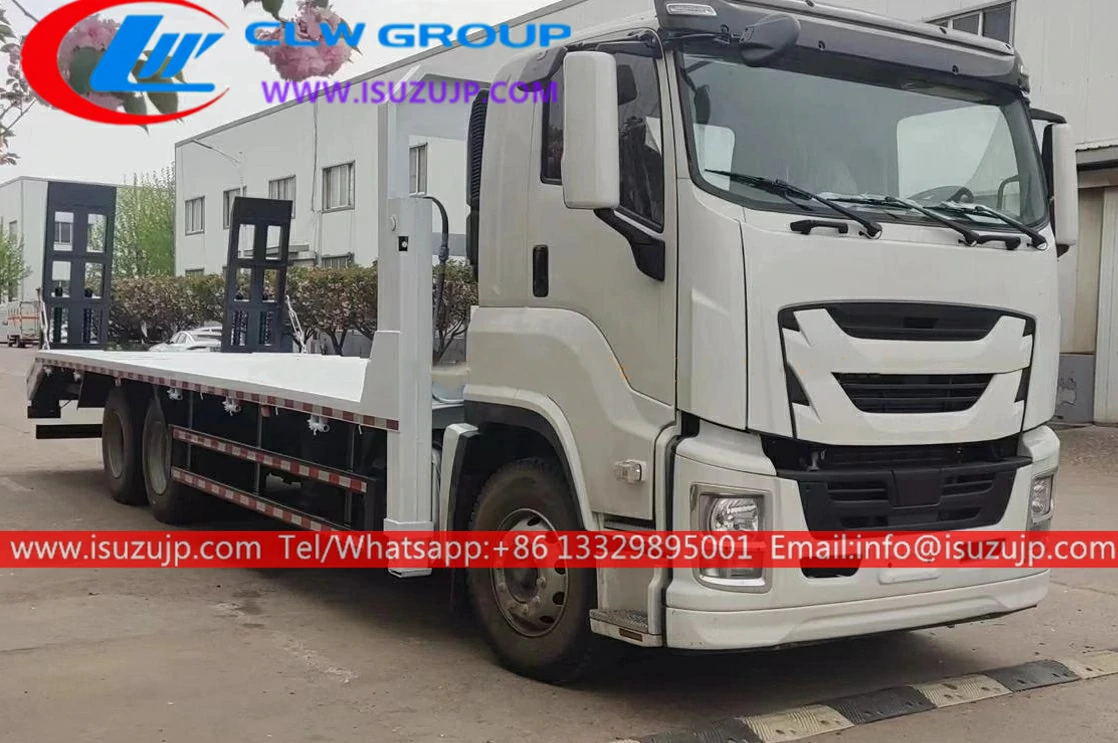

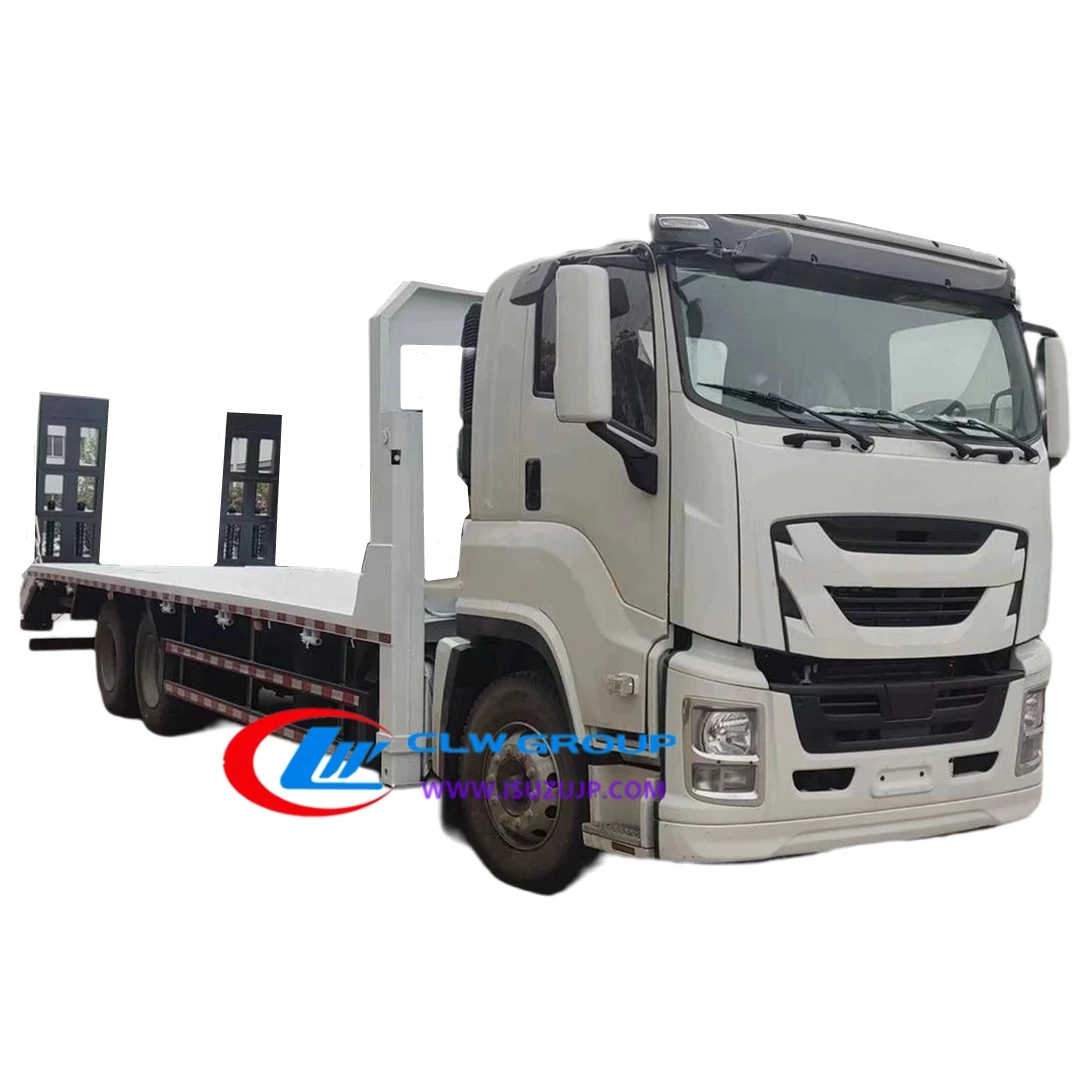

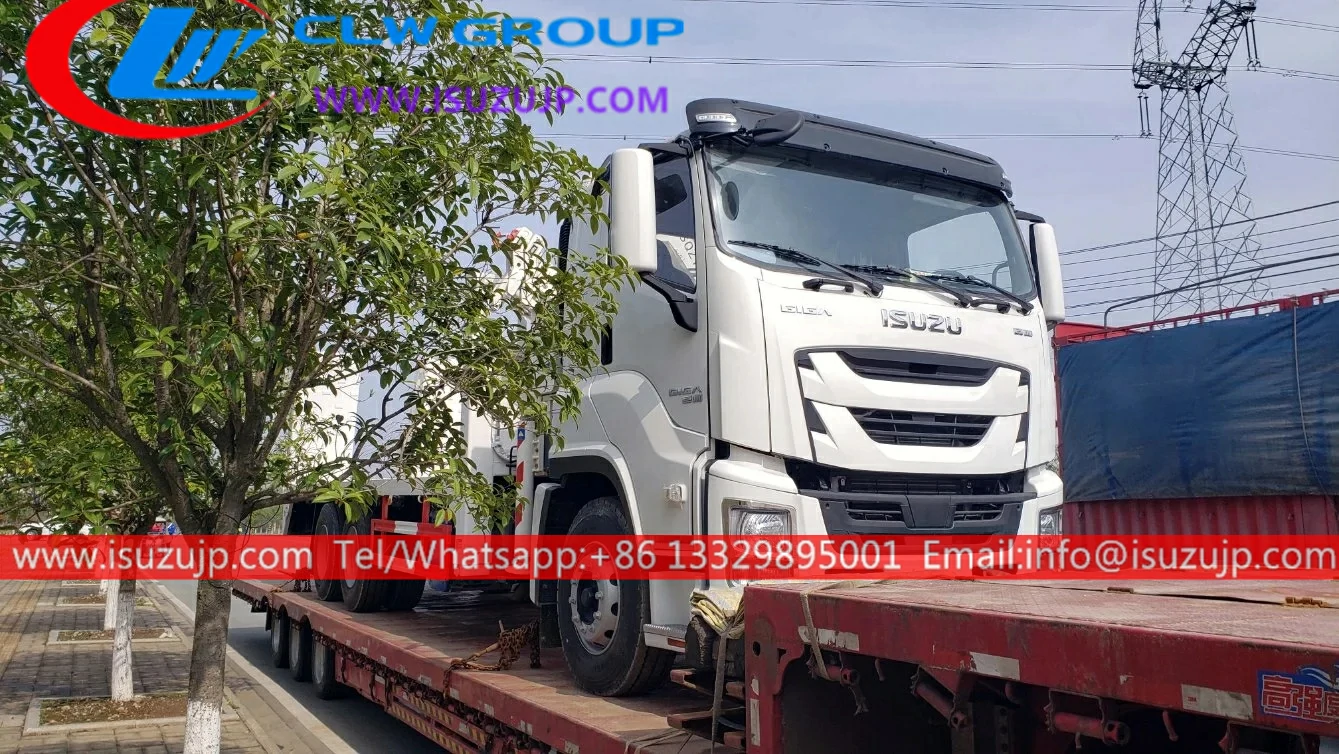

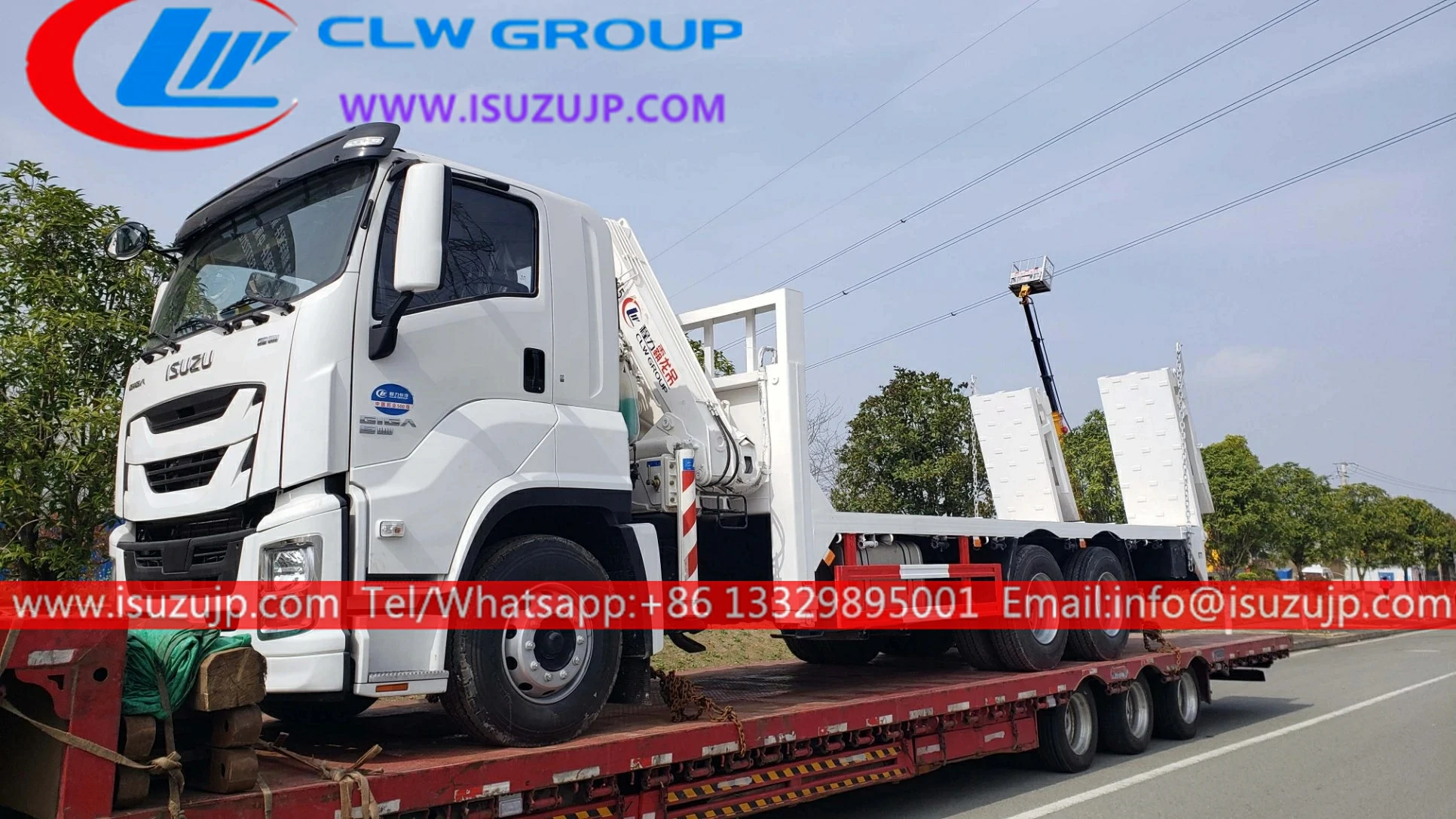

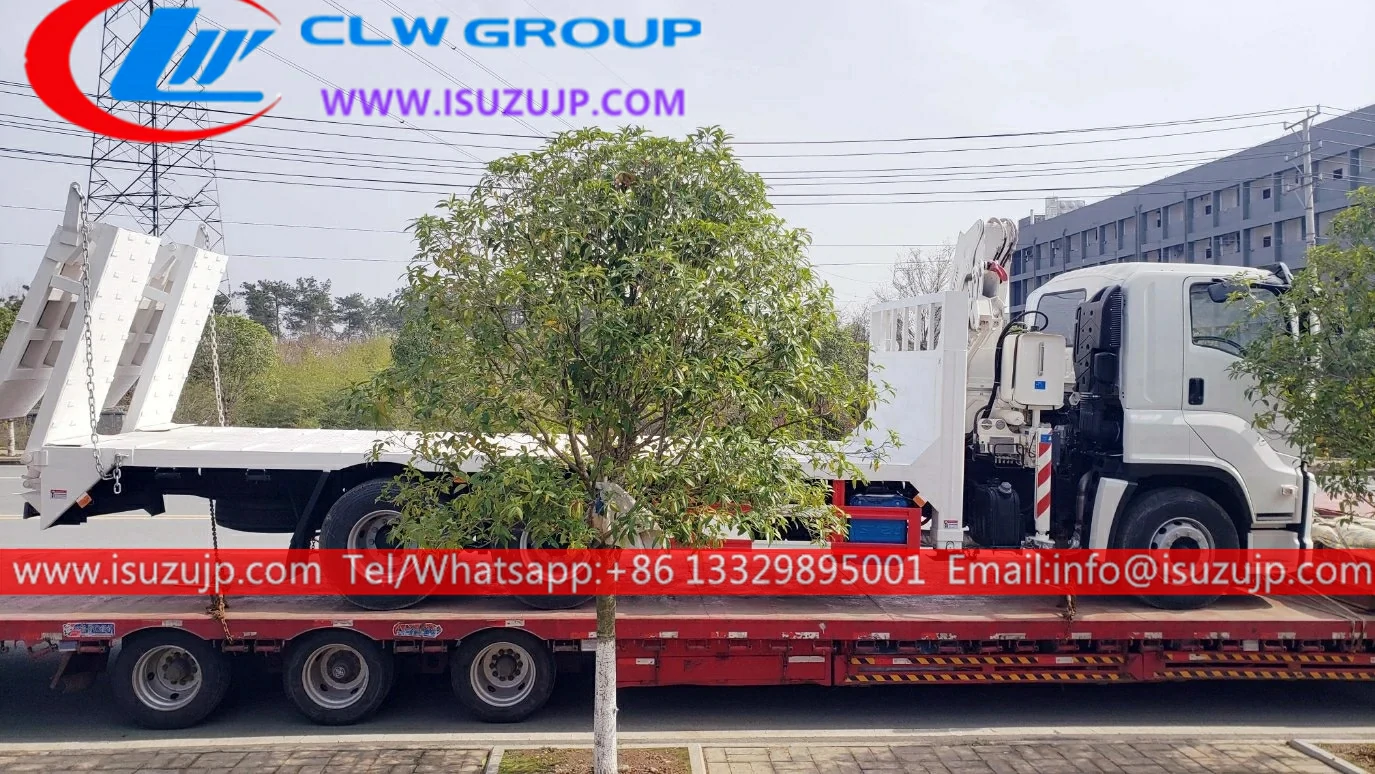

8×4 ISUZU GIGA 30 ton heavy duty Excavator carrier flatbed truck Description:
- ISUZU Excavator carrier flatbed truck also called Low flatbed vehicle, excavator carrier truck, machinery transport vehicle, excavator transport truck, lorry carrier truck, excavator dump truck, etc
- is used for transporting machine that is non-removable or machinery that can’t be driven on road, such as excavator, loader, harvester, machine equipment, etc. It’s widely used in the construction, agriculture fields.

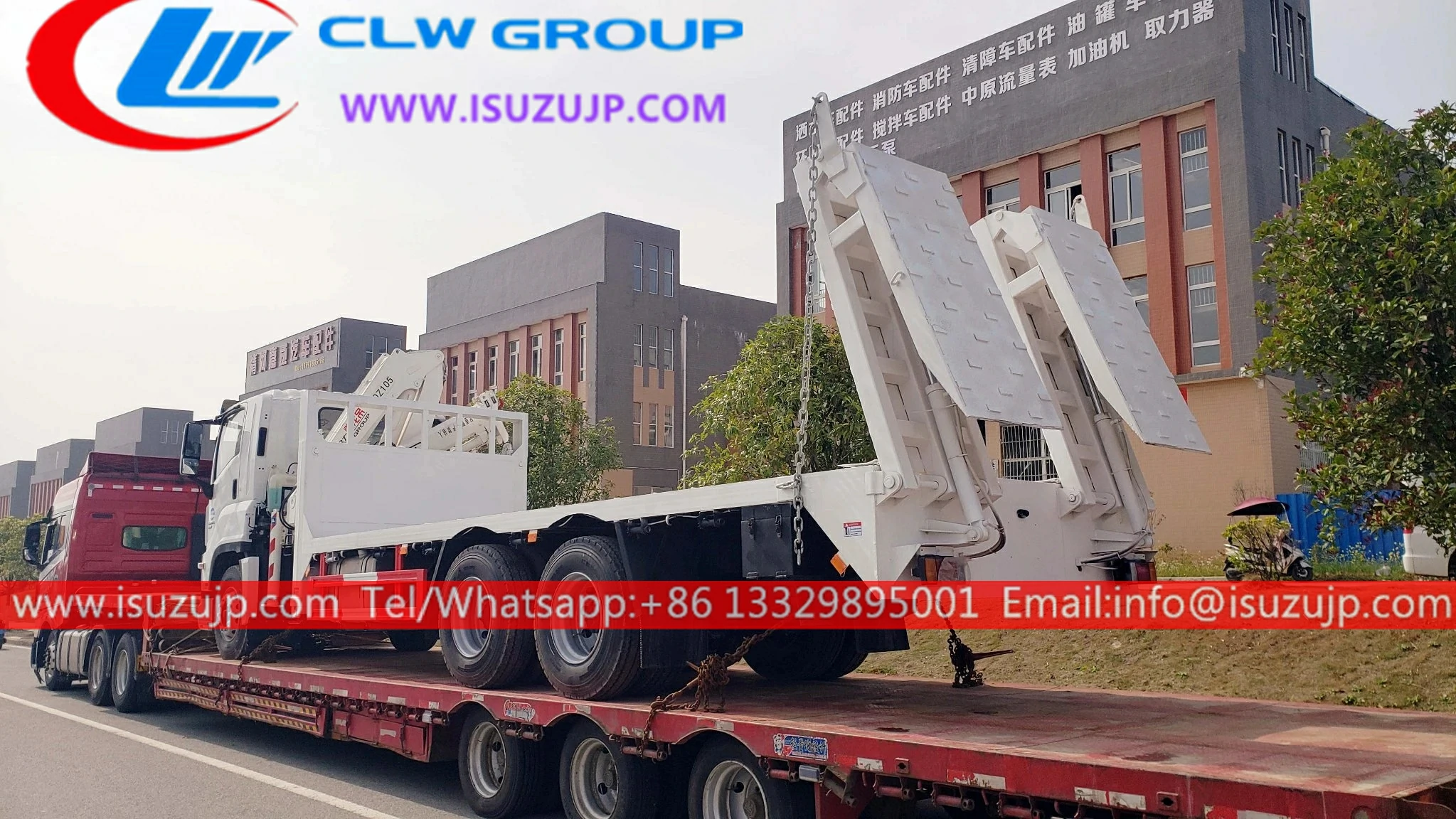

- Chengli Company produced excavator carrier trucks that are easy to load machinery, there is a hydraulic ladder at the rear of the platform.
- As for the flatbed carrier trucks, the driving type could be 4×2. 4×4, 6×4, 6×6, 8×4, etc.
Advantage:
- 100% custom-made
- 15 years of spare parts & Technical support
- ISUZU engine & gearbox, super-powerful, no overhaul within 500,000 km.
- 3 Ton to 40 Tons available
- Short delivery time 7~30 days
- Telescopic boom crane or Knuckle boom crane can be optional.
- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency systems, etc.
- Easy operation & Easy maintenance
Specification:
| 8×4 ISUZU GIGA 30 ton heavy duty Excavator carrier flatbed truck for sale | ||
| General | Vehicle Brand | CHENGLI |
| Chassis Brand | ISUZU GIGA | |
| Overall Dimension | 12000X2500X3000mm | |
| GVW / Kerb Weight | 31,000kg / 11,400kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | Heating/cooling air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU | |
| Power | 380 HP (280 KW) | |
| Displacement | 9839 ml | |
| Emission Standard | Euro V | |
| Chassis | Drive Type | 8X4, (left hand drive) |
| Transmission | Manual ZF 16 speed levers with 1 reverse | |
| Wheelbase/No. of axle | 1850+4575+1370 mm / 4 | |
| Tire Specification | 11.00-20 | |
| Tire Number | 12 tires and 1 spare tire | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure | Flatbed Loading Capacity | ≤25 Tons |
| Flatbed Material | Strengthen checked plate, anti slip | |
| Flatbed Thickness | 5 mm | |
| All standard accessories: Basic tool kit, English manual | ||
| Optional | Hydraulic ladders at rear of the platform. Width extensible manual or hydraulic. Front hydraulic lifting system. | |
Factory Advantage:
- 17 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.

Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
