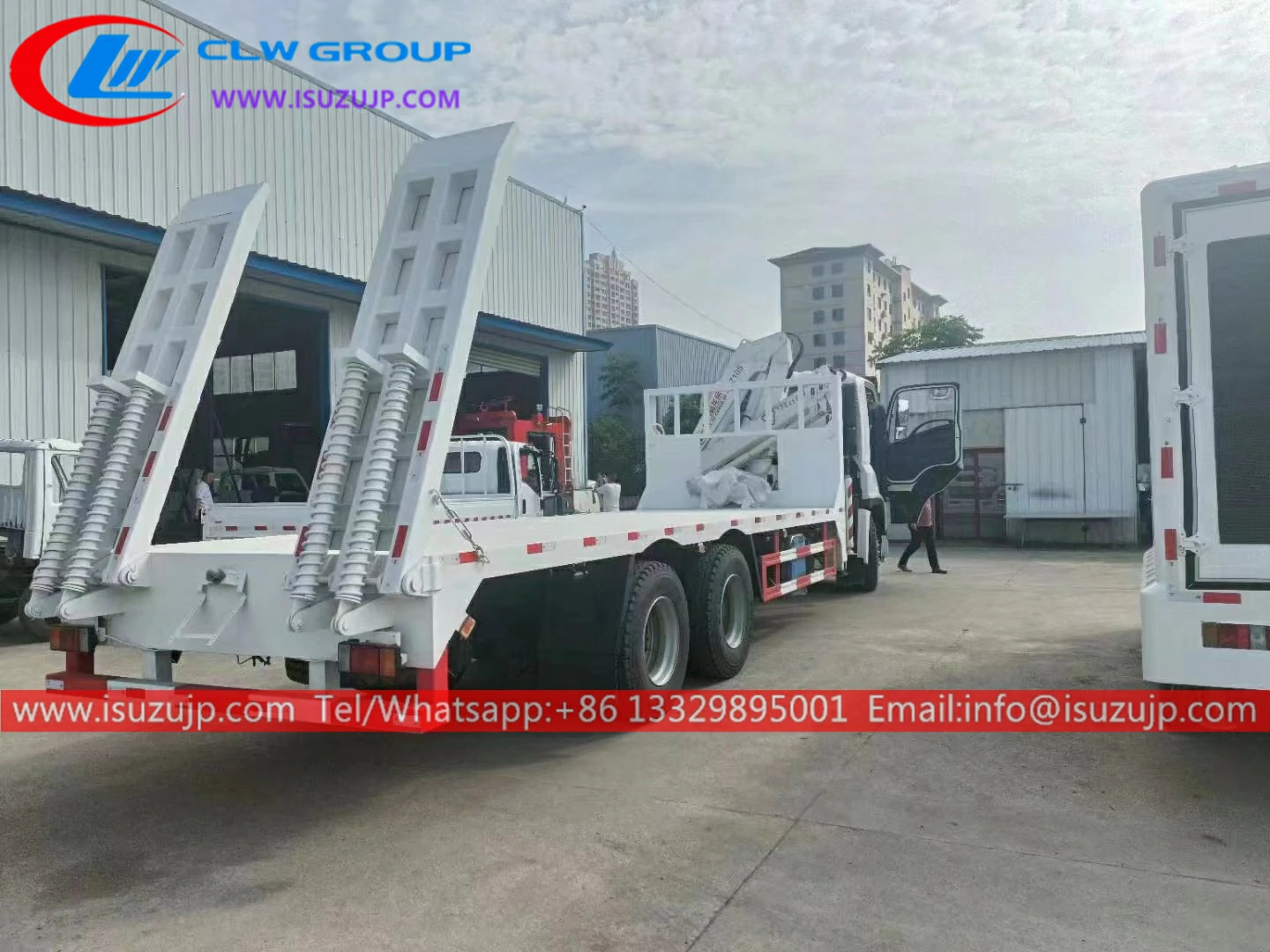

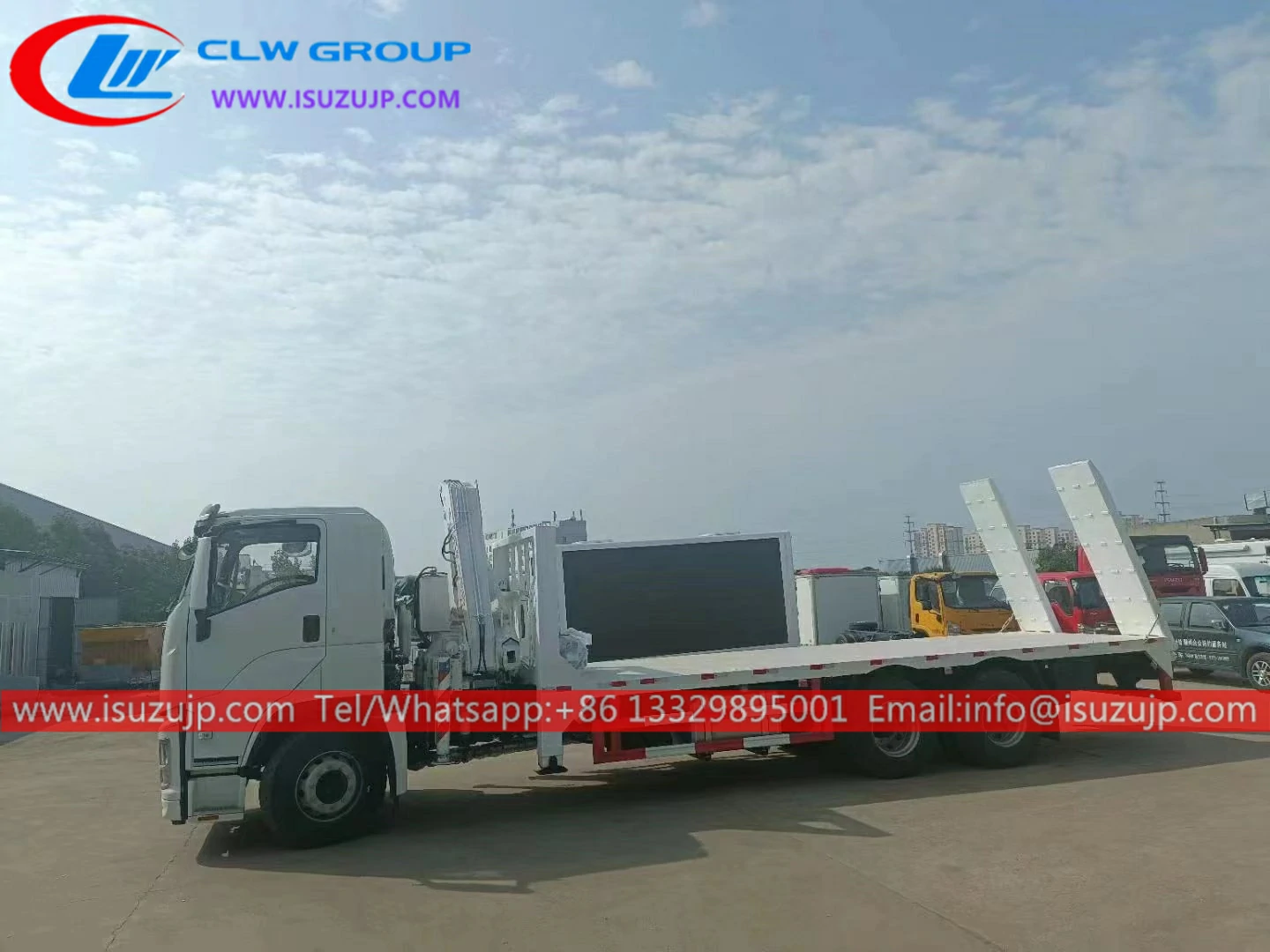

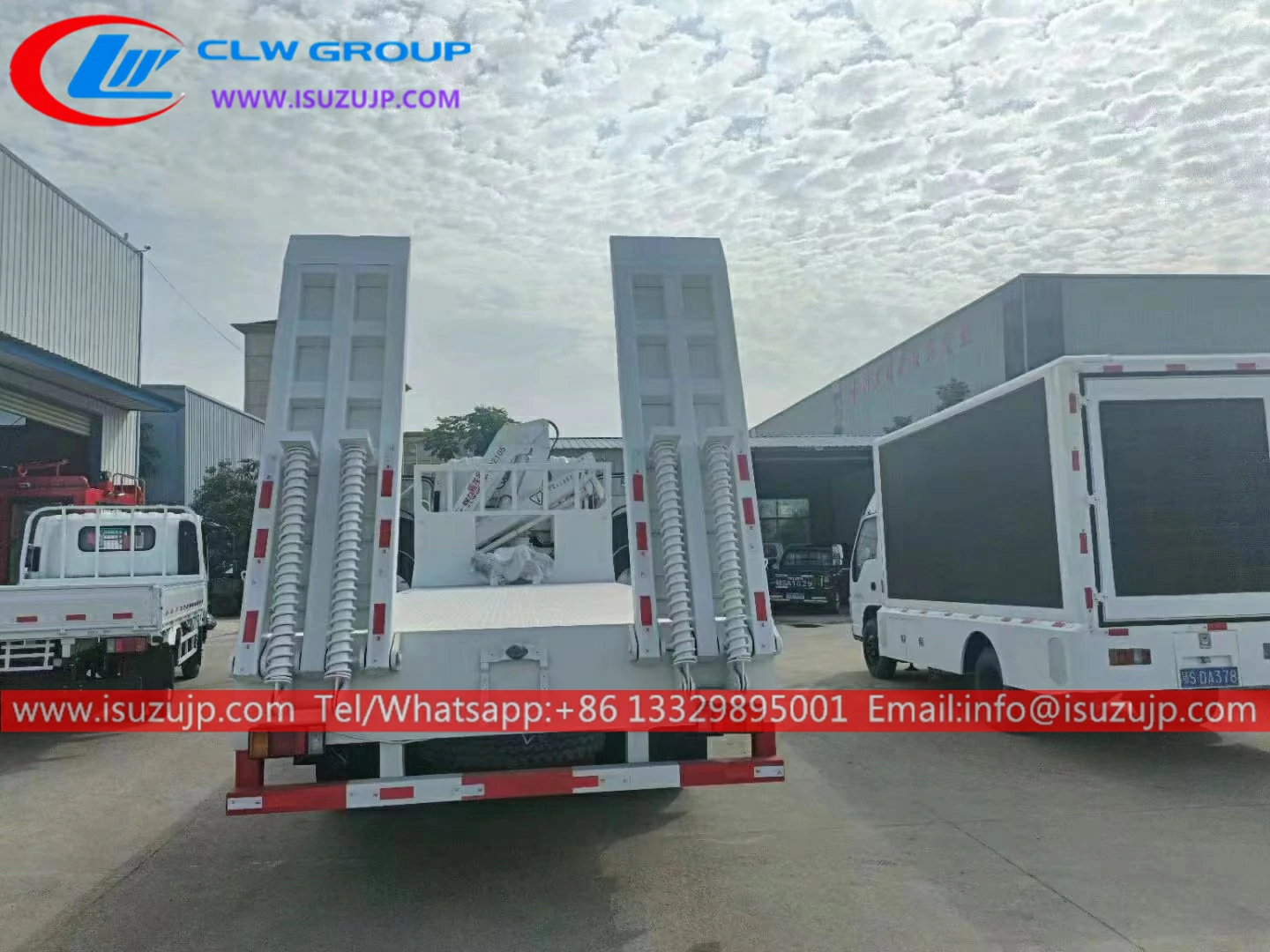

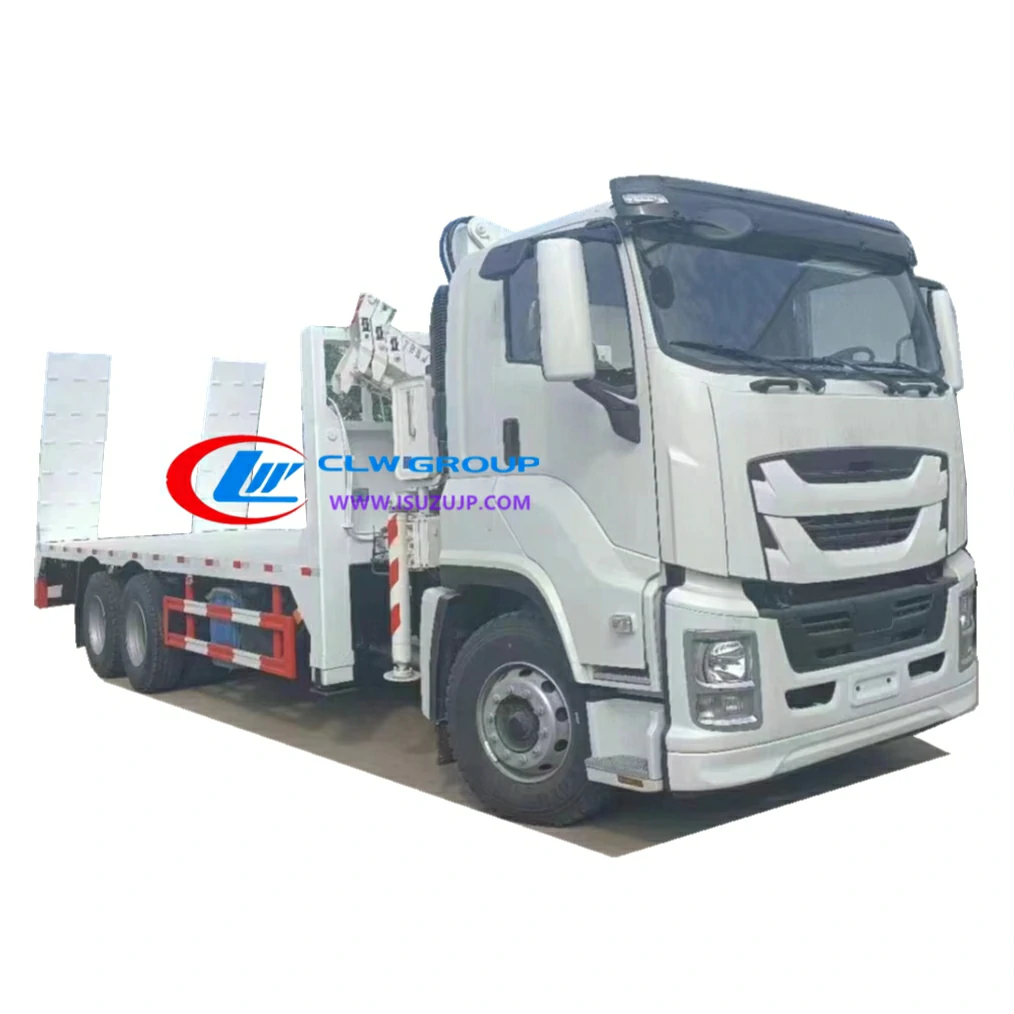

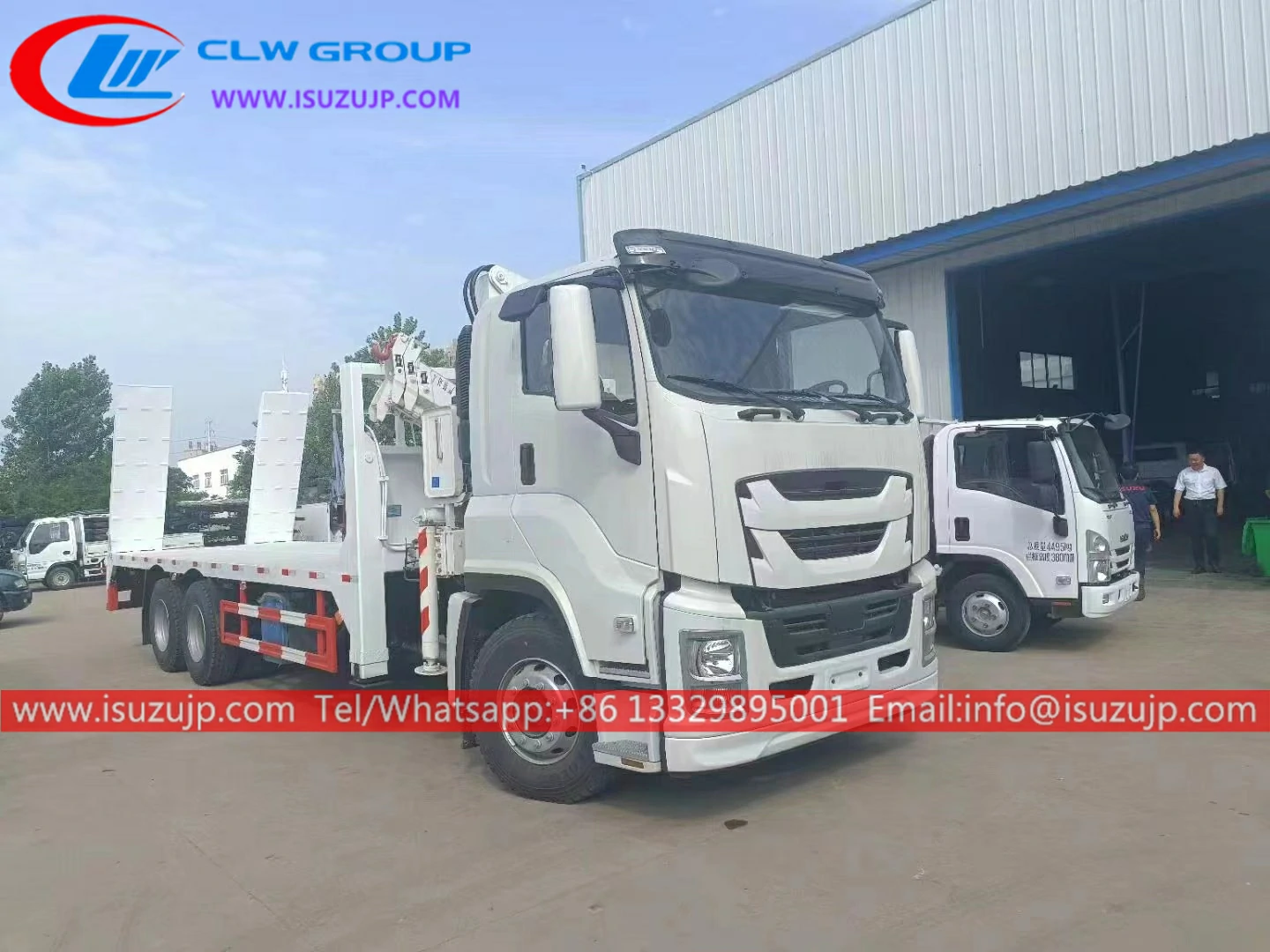

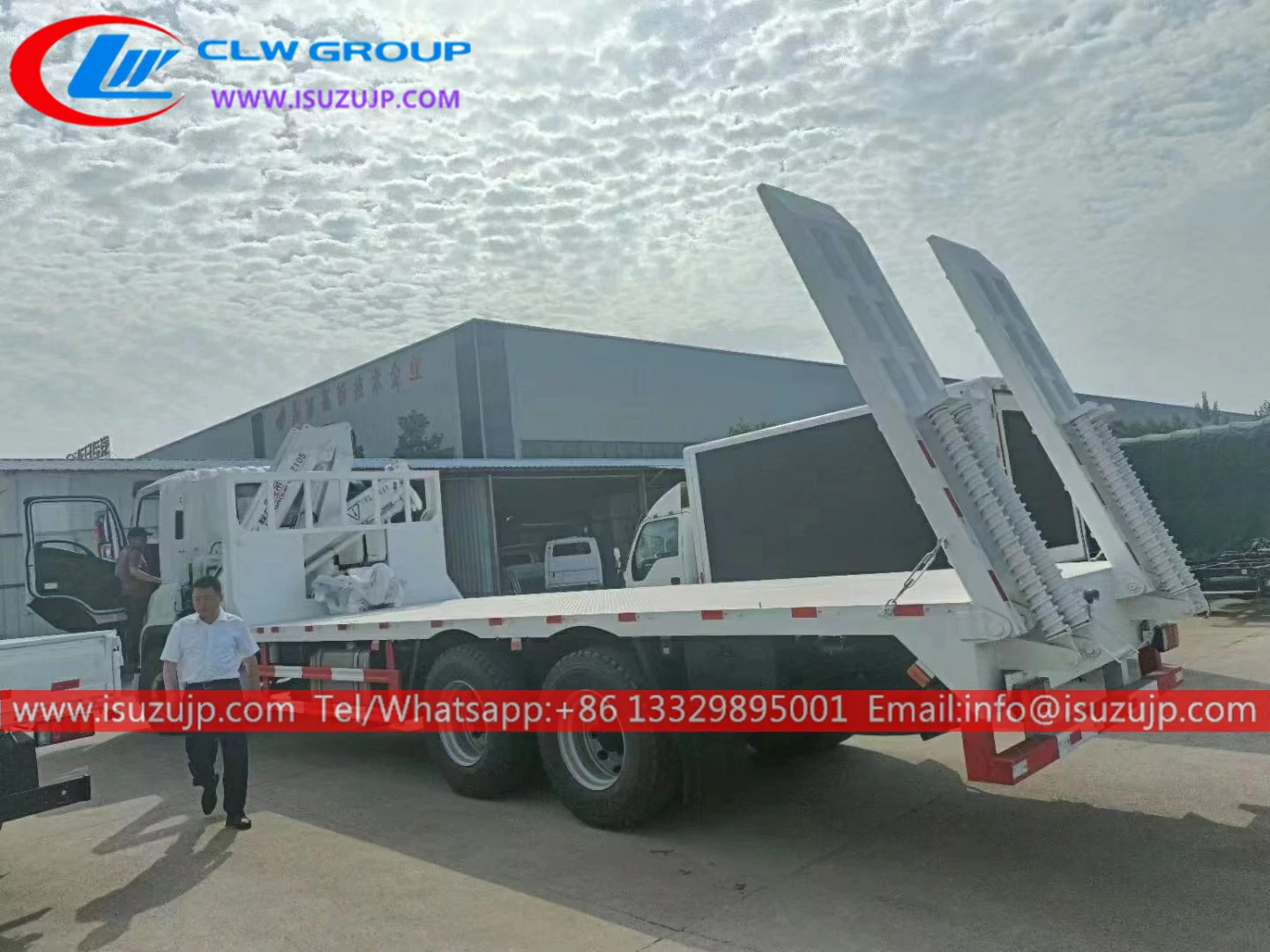

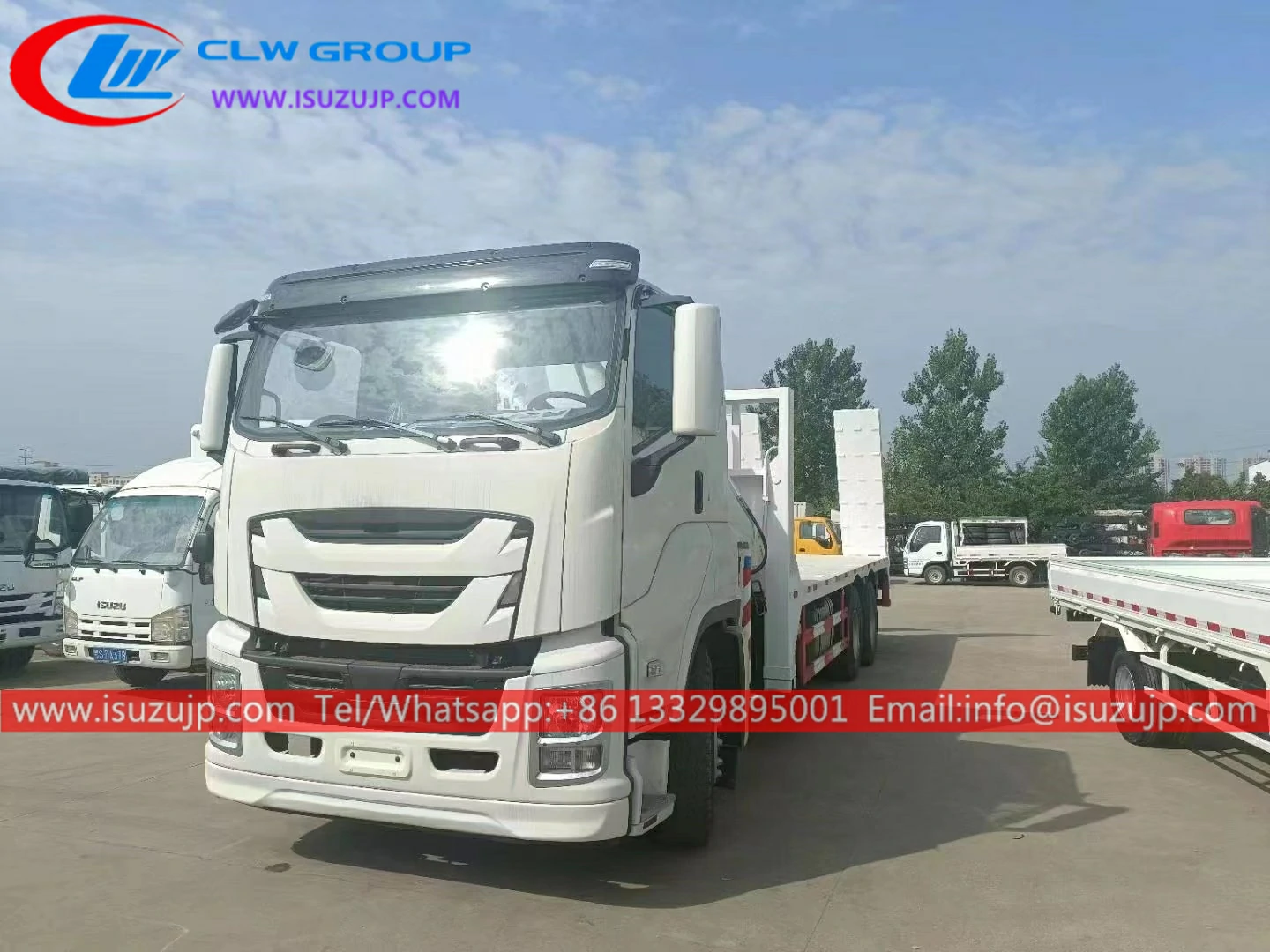

10 wheel Isuzu flatbed truck with knuckle boom Description:
- 10 wheel Isuzu flatbed truck with knuckle boom also called Low flatbed vehicle, excavator carrier truck, machinery transport vehicle, excavator transport truck, lorry carrier truck, excavator dump truck, etc
- is used for transporting machine that is non-removable or machinery that can’t be driven on road, such as excavator, loader, harvester, machine equipment, etc. It’s widely used in the construction, and agriculture fields.
- Chengli Company produced excavator carrier trucks that are easy to load machinery, there is a hydraulic ladder at the rear of the platform.
- As for the flatbed carrier trucks, the driving type could be 4×2. 4×4, 6×4, 6×6, 8×4, etc.
Advantage:
- 100% custom-made
- 15 years of spare parts & Technical support
- ISUZU engine & gearbox, super-powerful, no overhaul within 500,000 km.
- 3 Ton to 40 Tons available
- Short delivery time 7~30 days
- A telescopic boom crane or Knuckle boom crane can be optional.
- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency systems, etc.
- Easy operation & Easy maintenance
Specification:
| Manufacturer | CHENGLI COMPANY | ||
| Product Name | 10 wheel Isuzu flatbed truck with knuckle boom for sale | ||
| Vehicle Brand Series | ISUZU | ||
| Vehicle Model | CLW5456GSSD6 | ||
| Production Time | 25 days | ||
| Chassis parameters | Overall dimensions | mm | 10500X2500X4000 |
| Gross weight | kg | 25,000 | |
| Kerb weight | 11,830 | ||
| Wheelbase | mm | 5,100+1300 | |
| Driving type | 6X4 | ||
| Chassis model | ISUZU VC46 | ||
| Tire size | 11.00-20-16PR | ||
| Number of Tires | 10+1 | ||
| Passengers in cab | 3 | ||
| Engine | Engine model | 6UZ1-TCG51 | |
| Type of fuel | Diesel | ||
| Power | 300HP | ||
| Max speed | Km/h | 95 | |
| Emission standard | EURO 4 | ||
| Cargo Body | Platform | 7000x2300mm | |
| Loading capacity | 20Ton | ||
| Standard | Equipped with double spring ladder | ||
| Equipped with rear landing leg | |||
| Crane | 10-16tons XCMG stiff boom crane | ||
| Color & LOGO | According to wish | ||
| Factory standard | “U” shape Sub Frame, Rotating Lamp, Handholds, Mudguards and rubber flaps | ||
| Documents | English operation manual, Spare parts list, and all necessary export docs. | ||
| Optional equipment | 1, Palfinger, HIAB, XCMG, UNIC or chinese brand 2, Rear vision camera 3, Optional stainless steel toolbox | ||
Factory Advantage:
- 18 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
