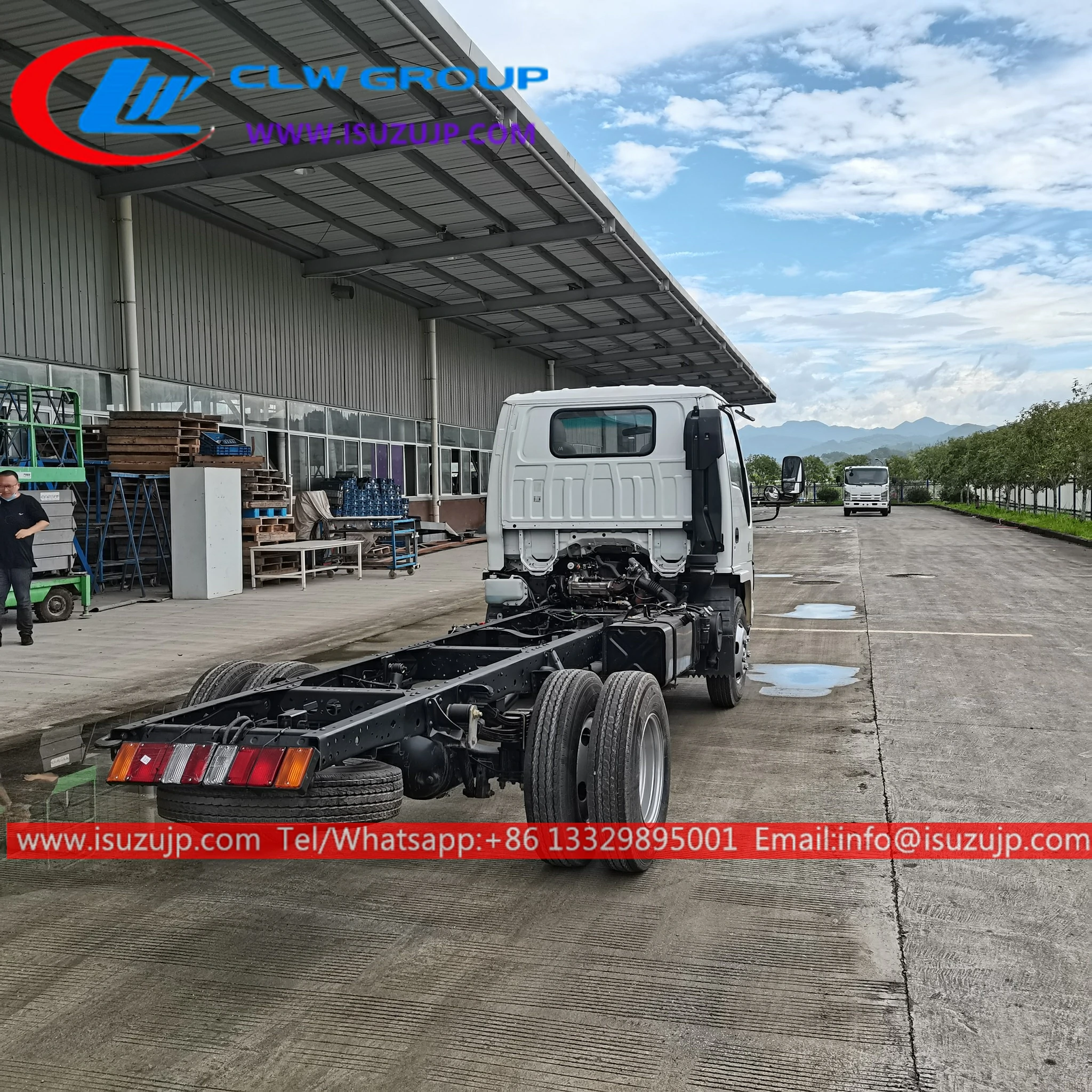

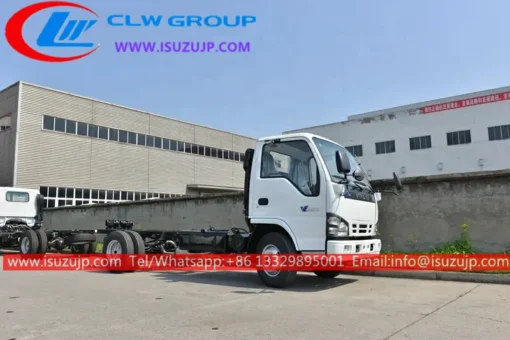

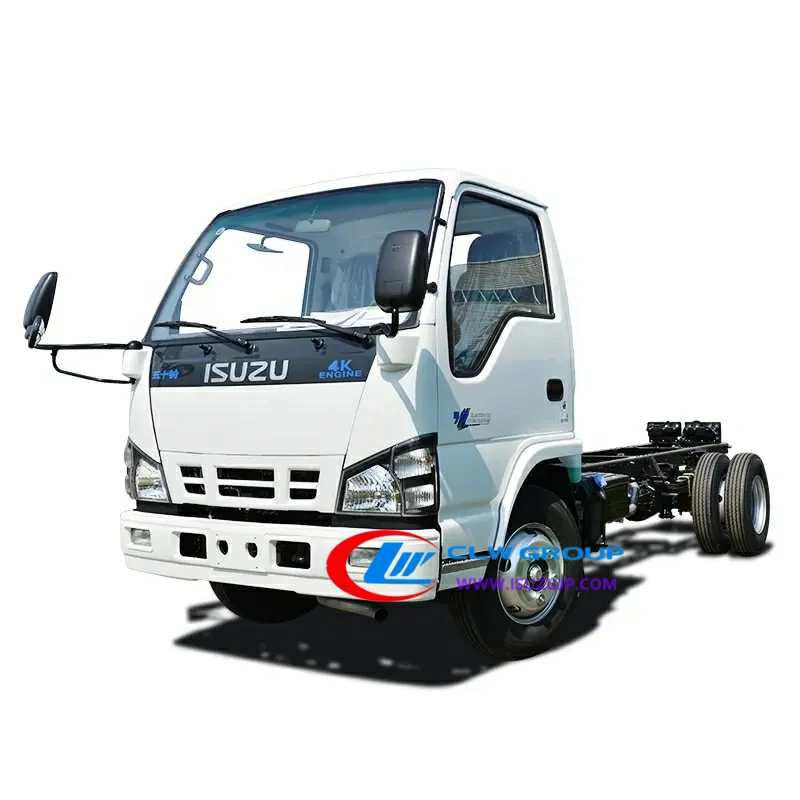

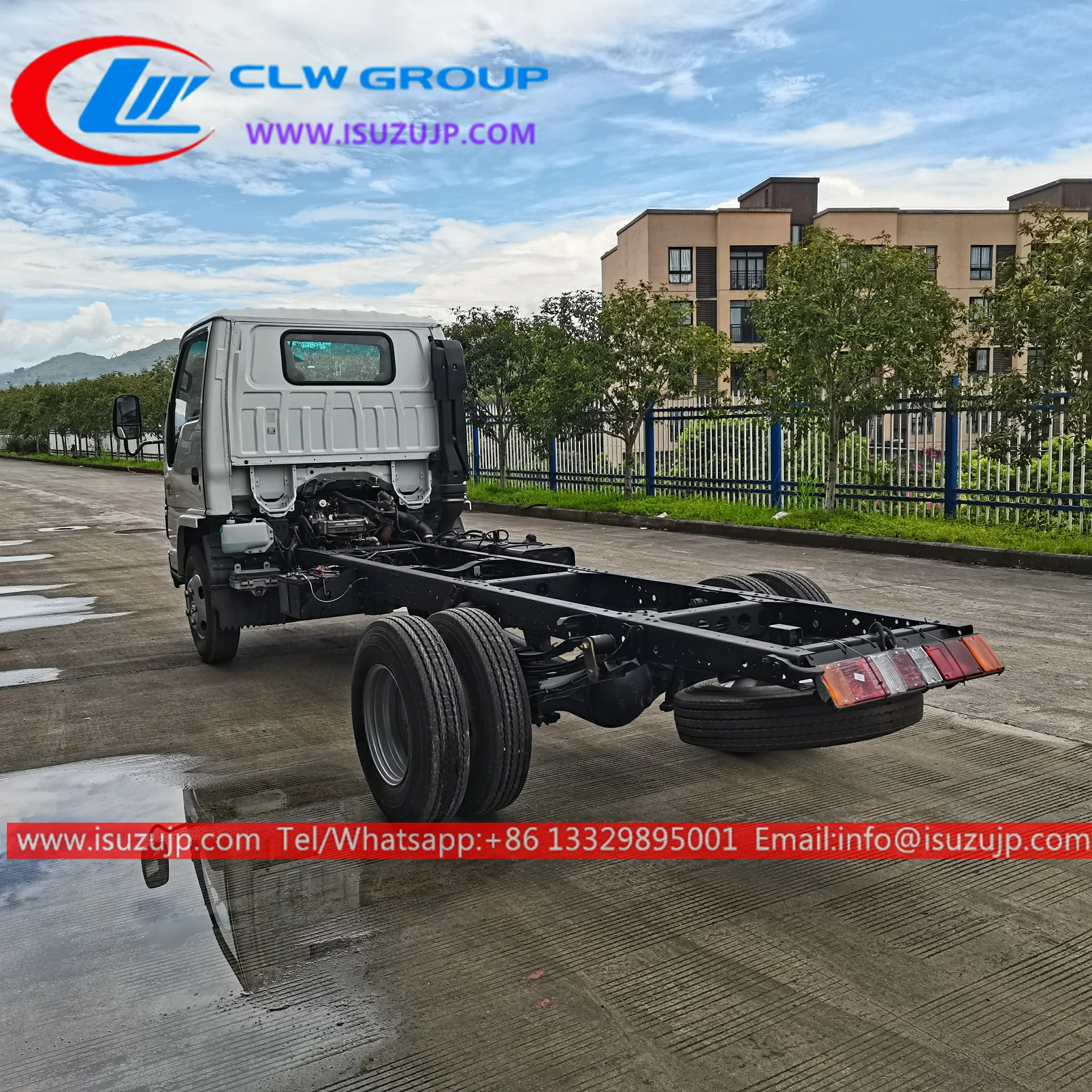

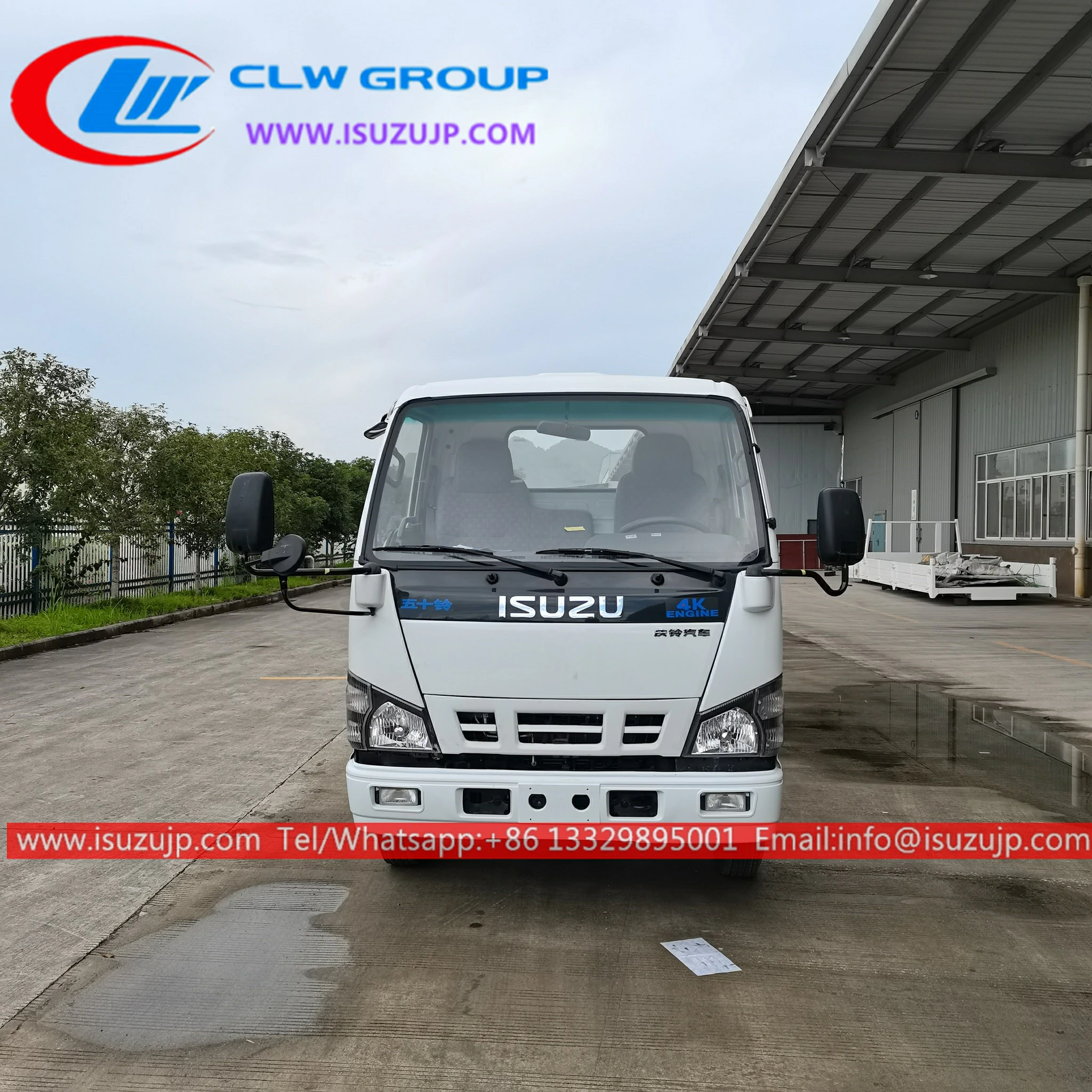

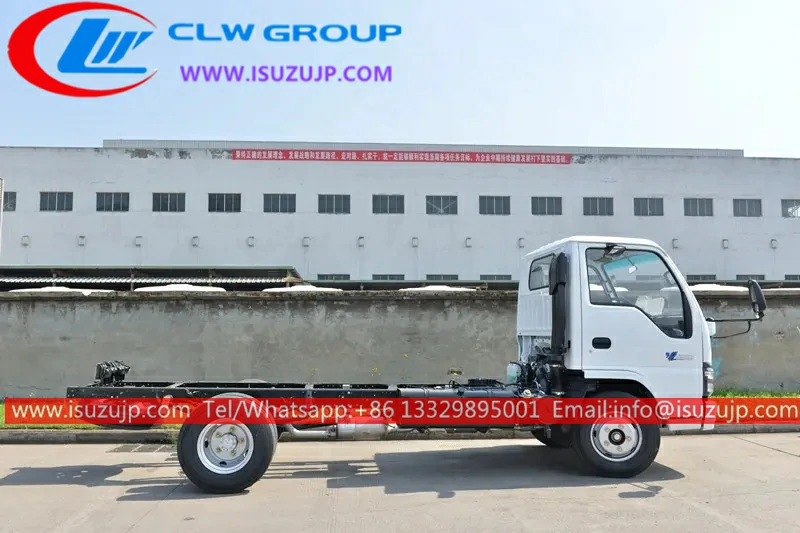

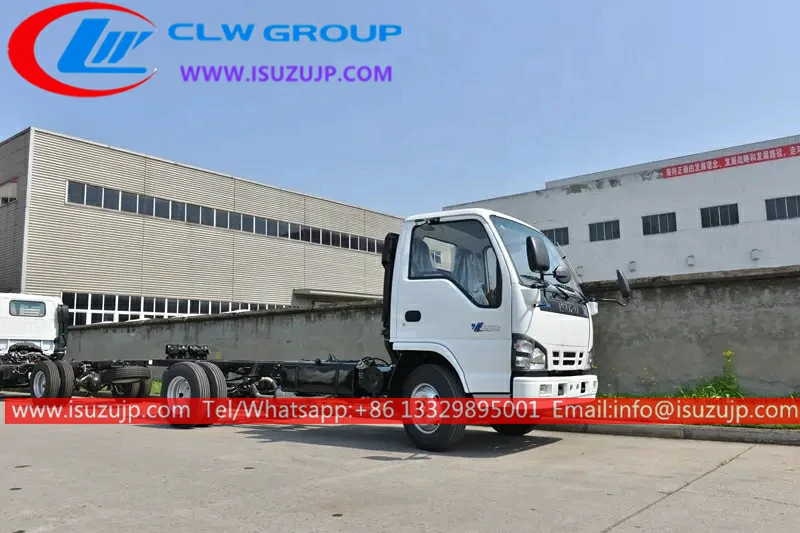

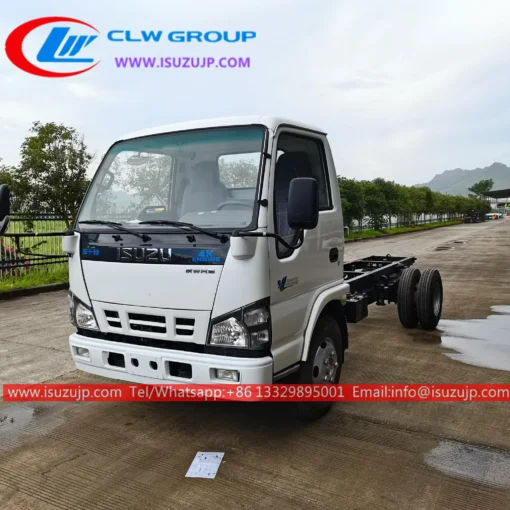

QINGLING ISUZU NKR/600P 6Wheels 5T Commercial Truck Chassis Description:
QINGLING ISUZU NKR/600P 6Wheels 5T Commercial Truck Chassis is from China ISUZU, and its 4KH1 engine is from Japan which is named 600P in China. Horsepower is 130HP. It can payload 5 tons. The transmission is Manual MSB-5, with 5 forward gear and 1 backward gear. It has 6 wheels. Recognized for its outstanding combination of economy, safety, reliability, and durability, it is a very popular light truck in many countries.
Advantage:
- 600P Cabin&Chassis Characteristics:
- Strong power, strong carrying capacity, and fast running speed
- Low fuel consumption, more prominent ultra-low operation cost at the time of high fuel price
- Long service life, reliable durability, and ultra-low maintenance cost
- High safety and unique impact energy-absorption safety system
- Comfortable and service car type riding comfortability
- Environment-friendly and clean emission, harmonious with nature
- Low service life cost, being able to create more value for the customer
- It provides SCR/PF/DPF three kinds of post-processing systems, PF and DPF without the addition of urea. No urea device has better refitting adaptability.
- It has wide cabin space and a big bending rate rearview mirror that can provide a wider field of view. It is provided with a car-type seat, soft steering wheel, curved surface metallization, and high-quality audio system that is refreshing and comfortable so that the driver would not feel fatigued during long-distance driving.
- ISUZU world-leading 4KH1-type brand new diesel engine with fully-electronic precise control and high-pressure common rail with stronger power, lower oil consumption, better oil adaptability, and better low-temperature starting property. The engine has strong power, low fuel consumption, reliable and durable.
Specification:
| Truck Brand | QINGLING ISUZU NKR/600P 6Wheels 5T Commercial Truck Chassis |
| Driving Type | Left-Hand Drive |
| Overall Dimension（L*W*H） | 5900*1880*2200mm |
| GVW | 7300Kg |
| Curb Weight | 2080Kg |
| Axle loading: | 2580/4720 |
| Wheelbase | 3360 |
| F/R Track | 1504/1425 |
| Approaching Angle/Departure Angle(o) | 24/16 |
| Tire No. | 7(Including Spare Tire) |
| Tire | 7.00R16 14PR |
| Color: | Optional |
| Max Speed（Km/h） | 105Km/h |
| Engine | |
| Engine System | 4 Stroke, High-Pressure Common Rail, Inter-cooling Turbo-Charged, 4 Cylinders |
| Emission Route | SCR/PF |
| Model | 4KH1CN5HS/4KH1-TCG51 |
| Fuel Type | Diesel Engine |
| Max output | 94Kw/87Kw |
| Horsepower： | 130HP/120HP |
| Max Torque | 290N.m/1500rpm |
| Emission Standard | Euro V |
| Displacement: | 2999ml |
| Transmission: | |
| Model: | MSB-5SM |
| Type | Manual |
| Forward/Reverse | 5F/1R |
| Brake System: | |
| Service Brake | Vacuum Boosting Hydraulic brake |
| Parking Brake | Drive Shaft Drum Brake |
| Auxiliary System | Engine Exhaust Brake |
| Electrical System | |
| Battery | 2*12V-60Ah |
| Alternator | 14V-60A |
| Starter | 12V/2.5Kw |
| Cab | |
| Single-Row Cab with Air Conditioner（Optional: Double-Row Cab） | |
| Other Equipment: | |
| Power Steering, ABS, Maintenance Free Battery, Retro-reflective marking | |
