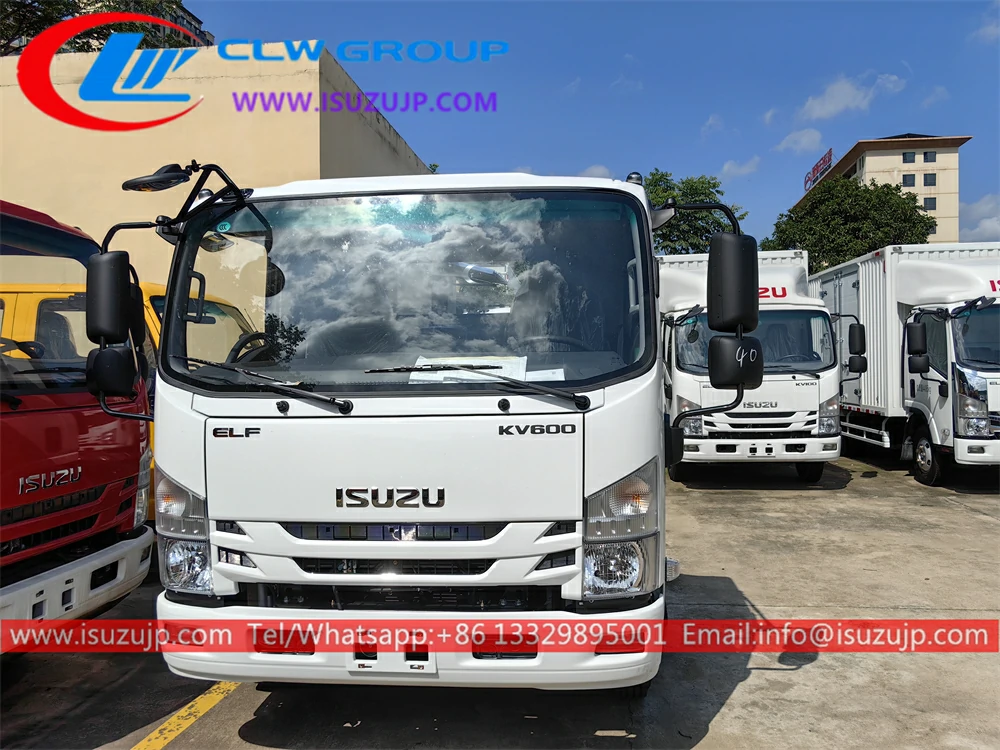

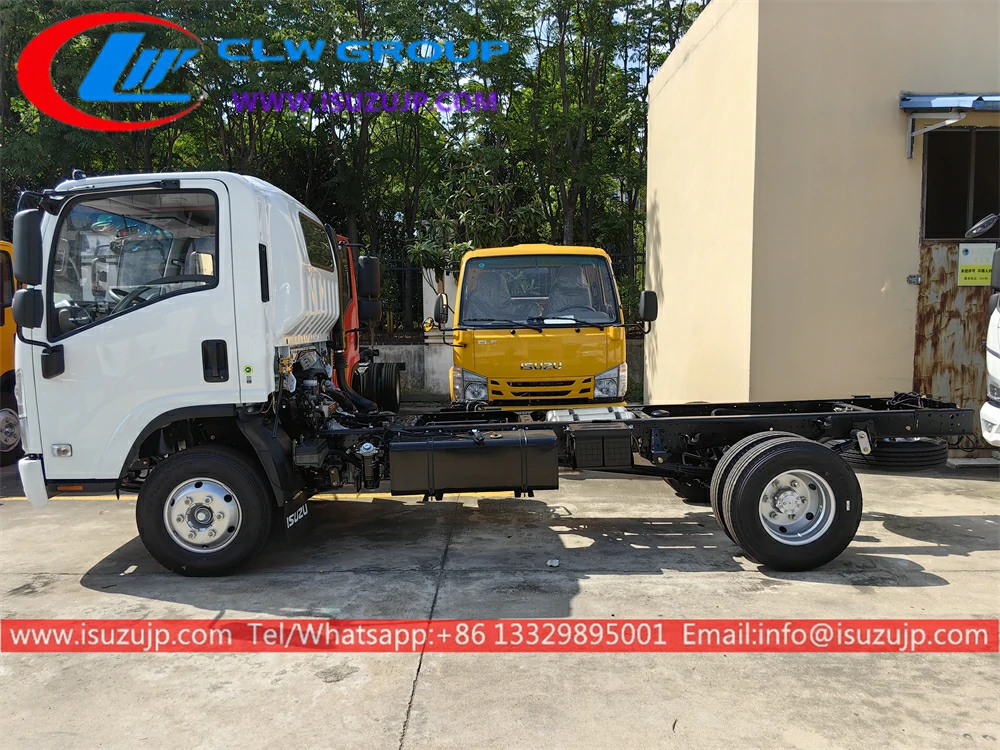

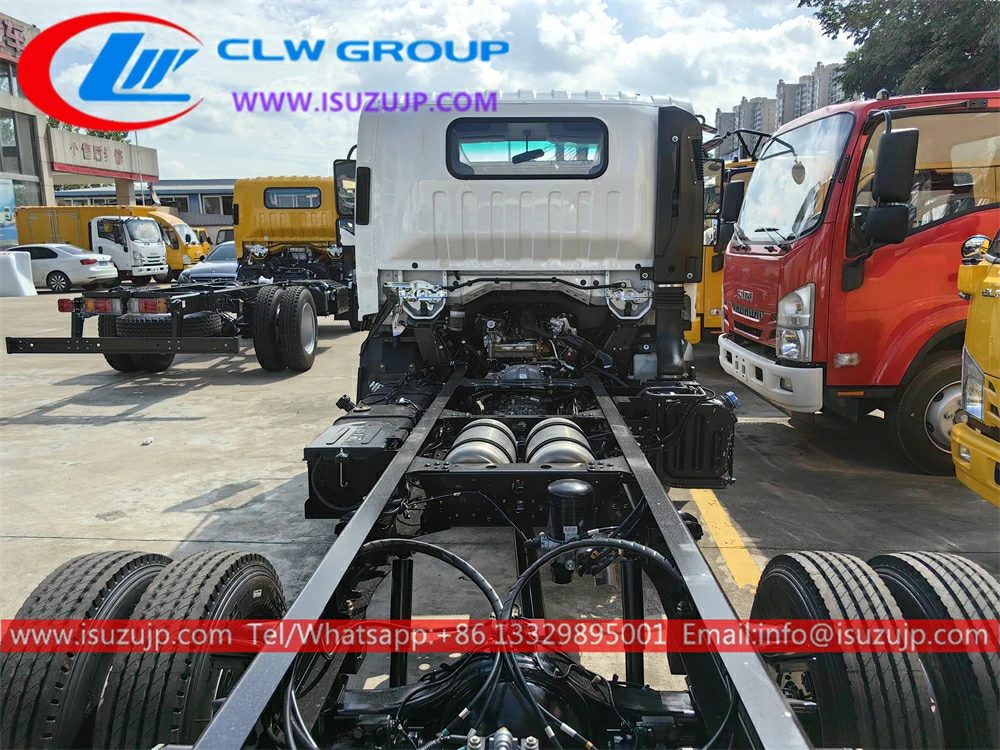

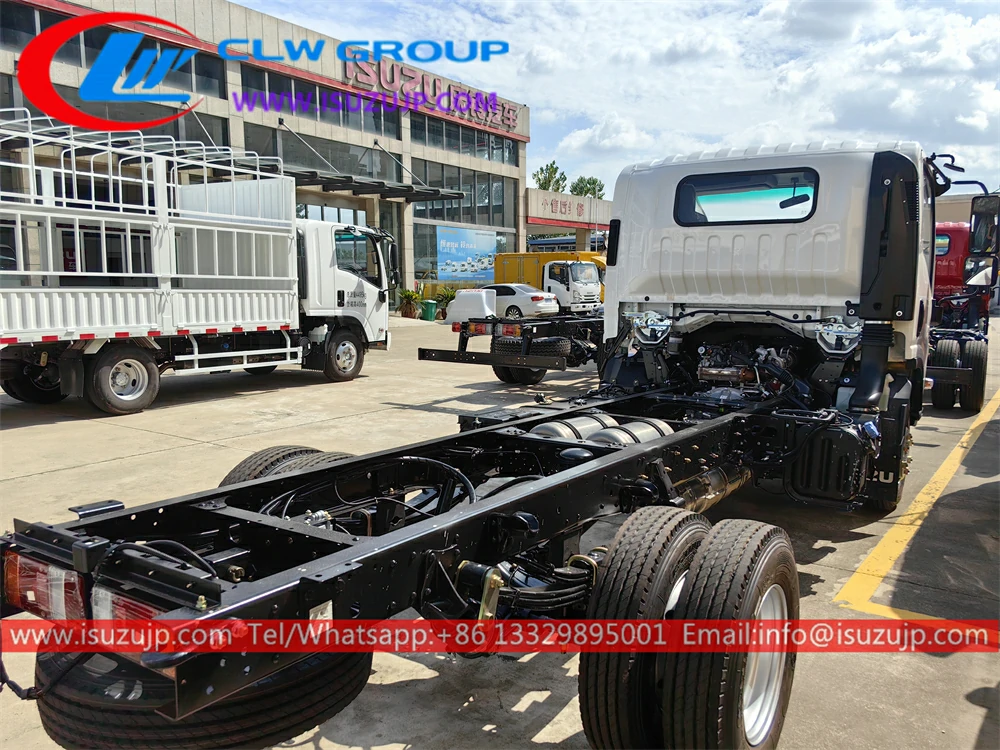

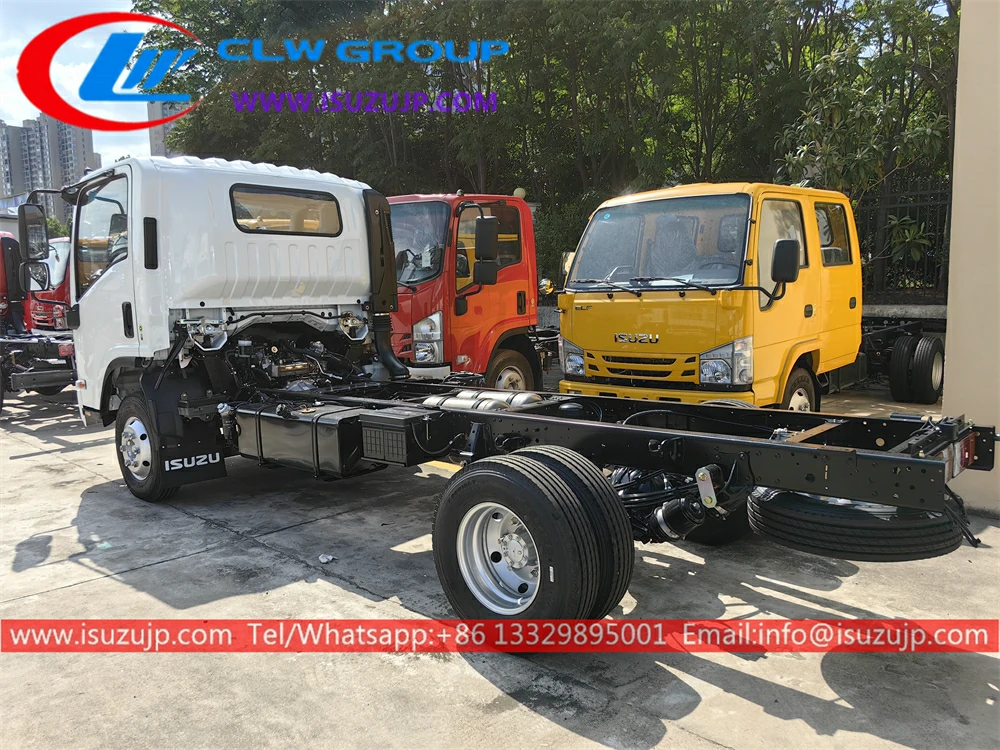

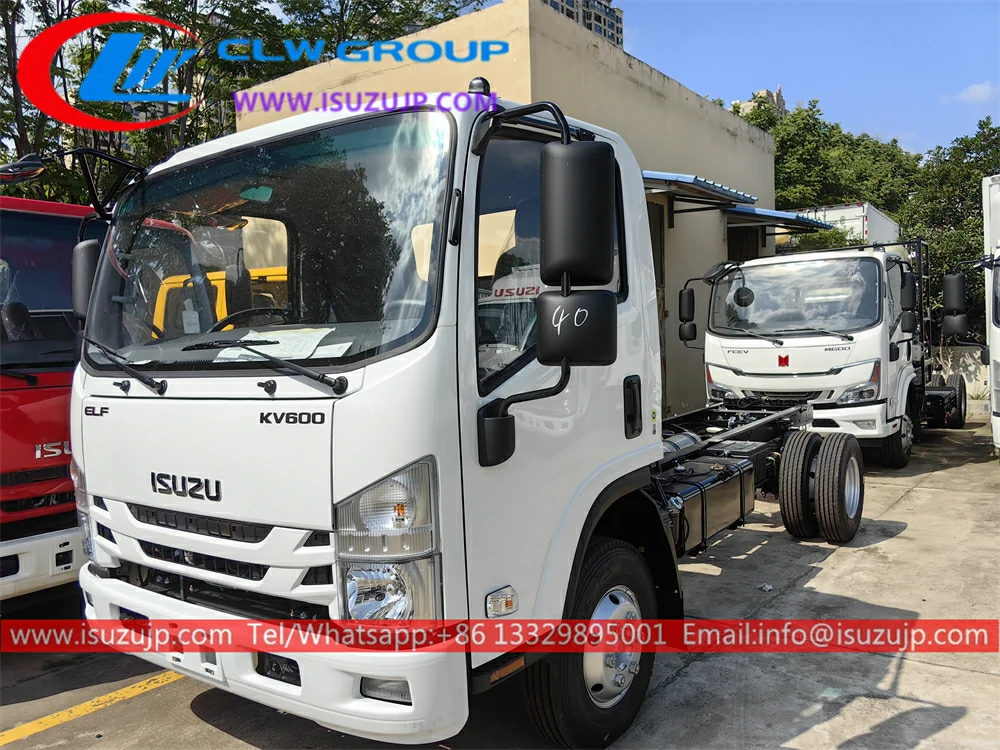

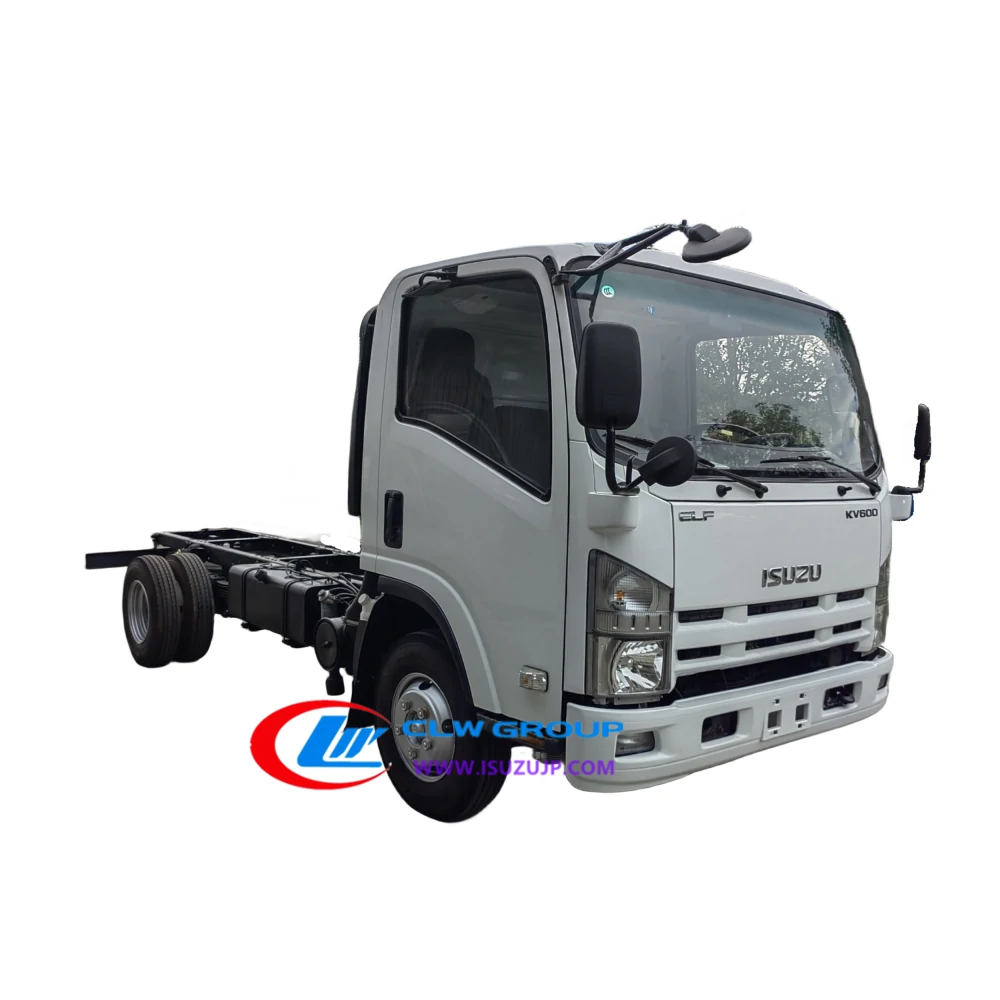

QINGLING ISUZU KV600/NQR 130HP Light Truck Chassis Description:
QINGLING ISUZU KV600/NQR 130HP Light Truck Chassis is from QINGLING, and the engine tech is from Japan which is named 600P in China. It can payload 5/6 tons. The transmission is Manual MSB-5, with 5 froward gears and 1 backward gear.
Advantage:
- Cabin The new N-series Light Duty Truck’s new cabin model is adopted front headlight follow-up steering technology, new NKR cabin is more beautiful, comfortable, and safe. Qingling KV100 has a wider cab compared to 600P, and the front seats have been increased to 3.
- Power The new N-series Light Duty Truck is equipped with the new 4KH1 engine. 4K engine is characterized by an output power of 130 horsepower, electronic injection, intercooled supercharging technology, and a supercharger with a cooling device. The 4KH1CN engine has Supercharged cooling technology and an SCR/PDF Post processing system. The engine has strong power, low fuel consumption, reliable and durable.
- More environmentally friendly Qingling Trucks have achieved low pollution and low fuel consumption throughout the life cycle, and the performance of the whole vehicle is simultaneously improved, the noise is lower, the waggle is smaller, and the vehicle is quieter and more comfortable.
- More economical The fuel consumption of Qingling trucks is low, and the fuel cost is reduced by 10% – 15% compared with other vehicles with the same load capacity. It is high reliability, maintenance costs are low.
- Stronger oil adaptability Qingling is taking full account of users’ conditions of use, matching development, and improving the adaptability of oil products.
Specification:
| Vehicle Model: | QINGLING ISUZU KV600/NQR Light Truck Chassis | |
| Chassis Dimensions and Parameters | Overall Dimension(L x W x H) | 6995×2150×2260mm |
| Wheelbase: | 3815mm | |
| Front/ Rear Wheel Distance: | 1685/1525mm | |
| Front/Rear Suspension | 1110/1525mm | |
| Weights and Capacities | Curb Weight: | 2600kg |
| Payload: | 6000kg | |
| GVW: | 8900kg | |
| Axle Loads: | 3000/6000kg | |
| Engine | Engine Model: | 4KH1CN5LS |
| Max output: | 96Kw | |
| Displacement: | 2999ml | |
| Horsepower: | 130Ps | |
| Exhaust Gas Treatment Technology： | DPF | |
| Transmission | Transmission: | MSB-5MT |
| Forward Gear: | 5 Speed Gear | |
| Backward Gear: | 1 Speed Gear | |
| Brake | Hydraulic Brake | |
| Front Drum Back Drum | ||
| Generator | 12V-60A | |
| Cab | Number of Seats: | 3 |
| Chassis | Drive Type: | 4×2 |
| Tires: | 7(Including Spare Tire) | |
| Tire Model: | 7.50R16 8PR | |
| Fuel Tank
| Number: | 1 |
| Capacity: | 100L | |
| Configurations: | 1 | Power Steering System |
| 2 | Air Conditioning | |
| 3 | ABS | |
| 4 | Tubeless Tire | |
| 5 | Retro-reflective Marking | |
| 6 | Free Maintenance Battery | |
| 7 | Cab Tilting Mechanism | |
