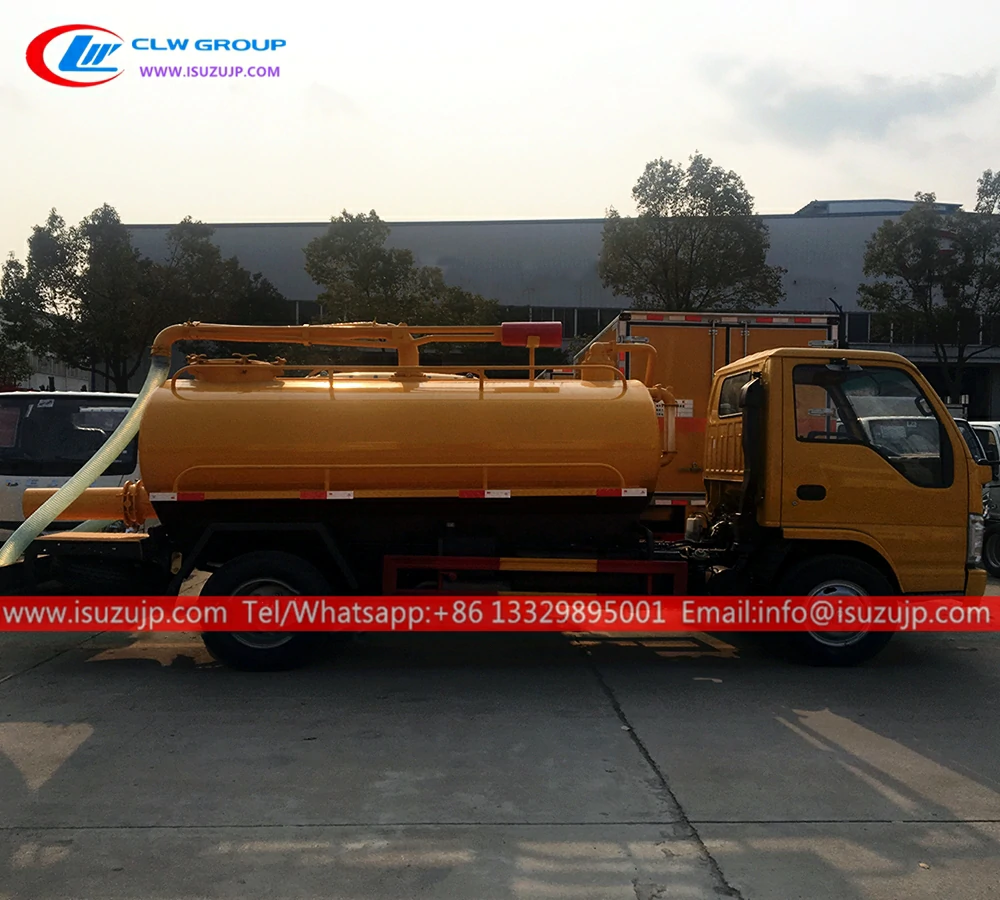

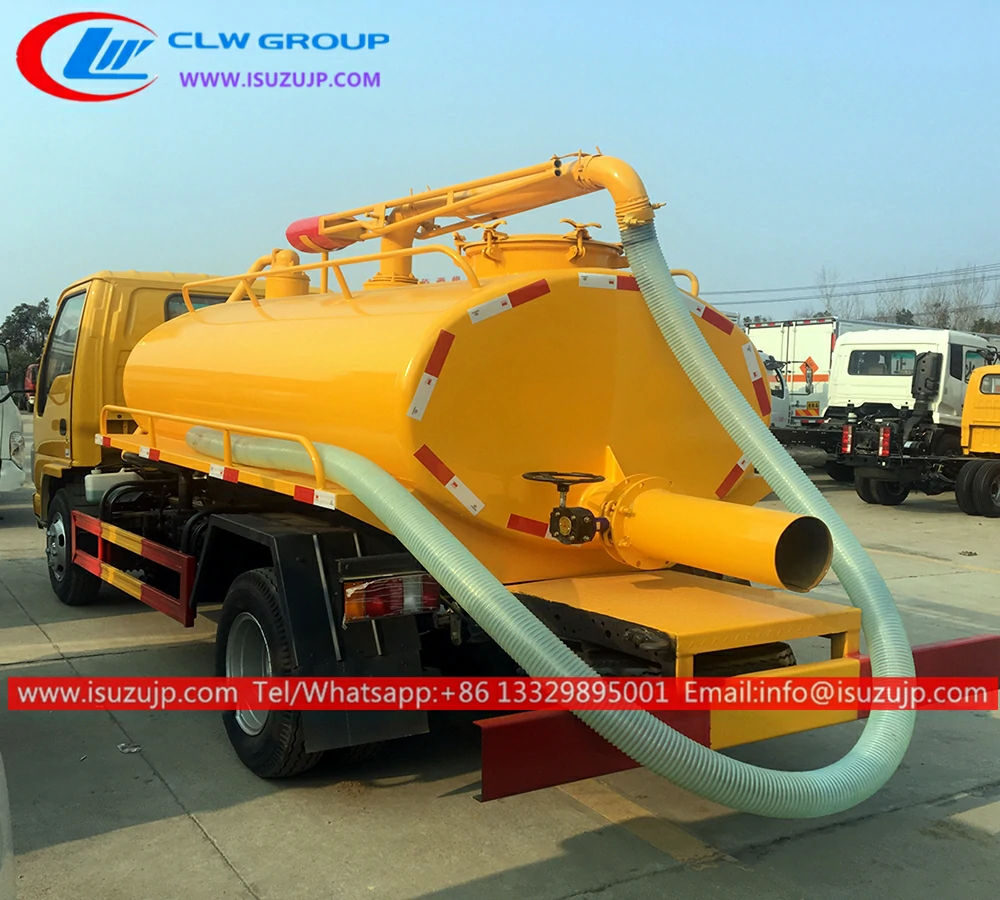

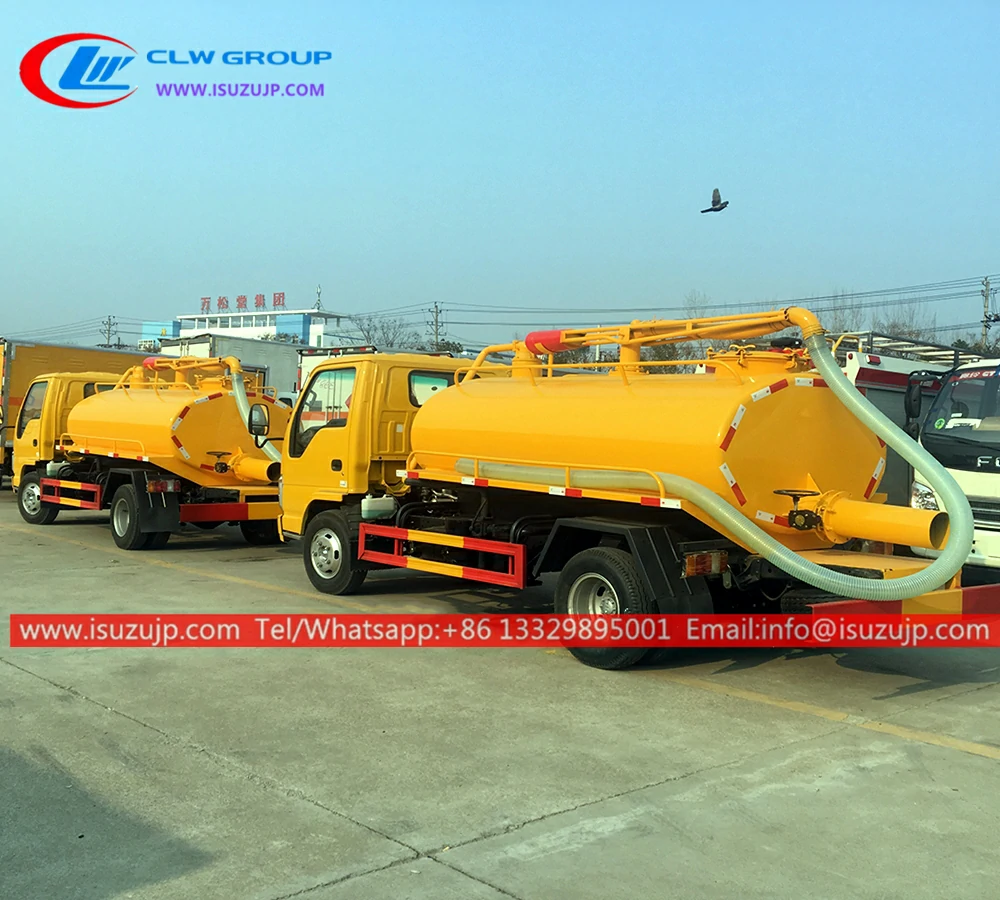

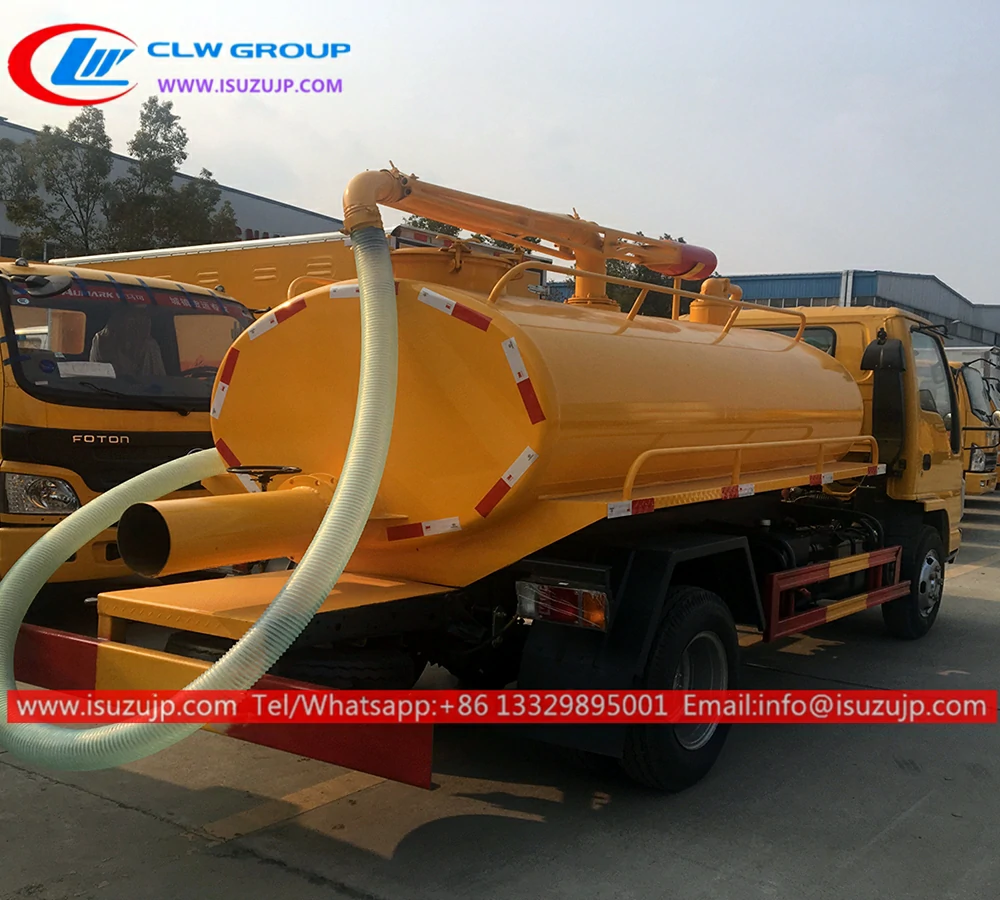

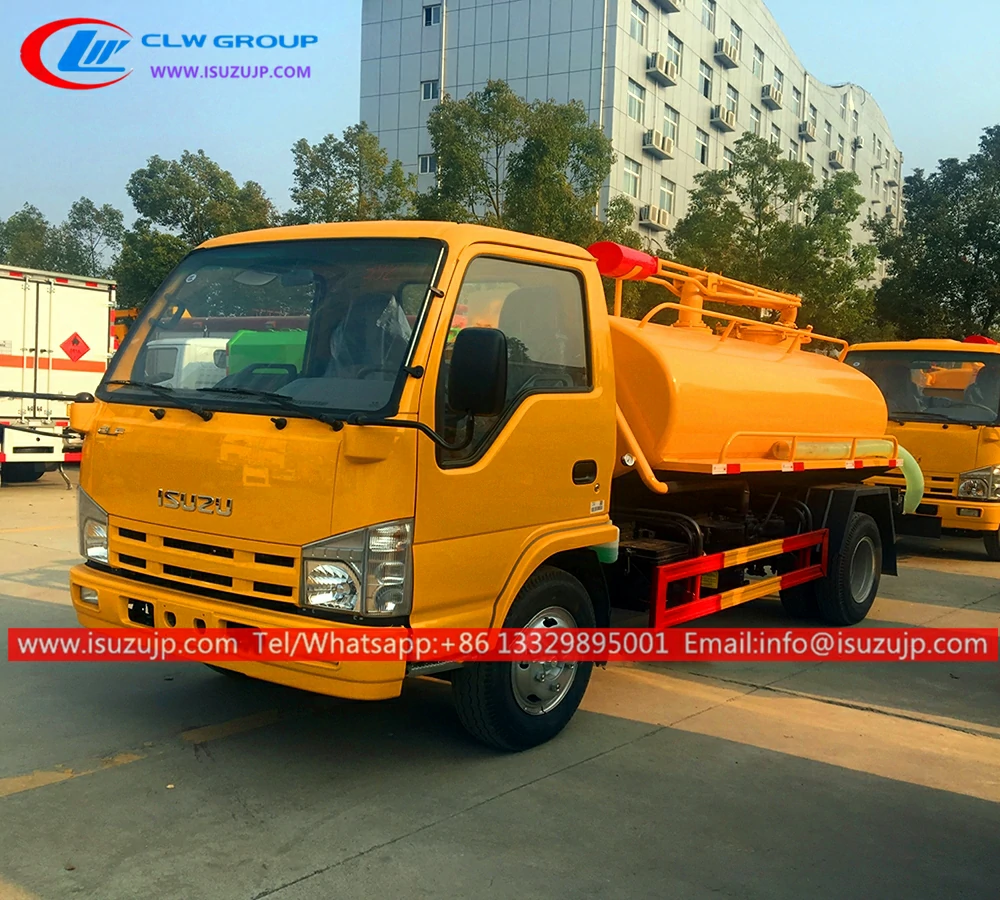

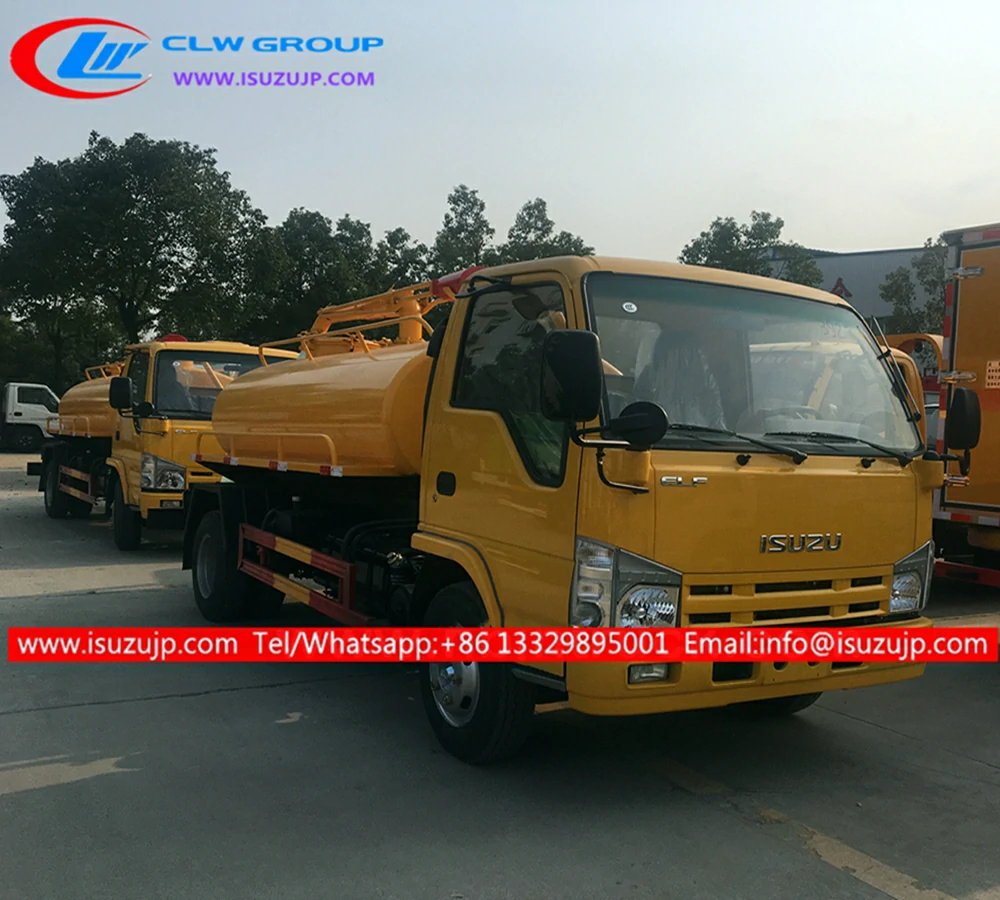

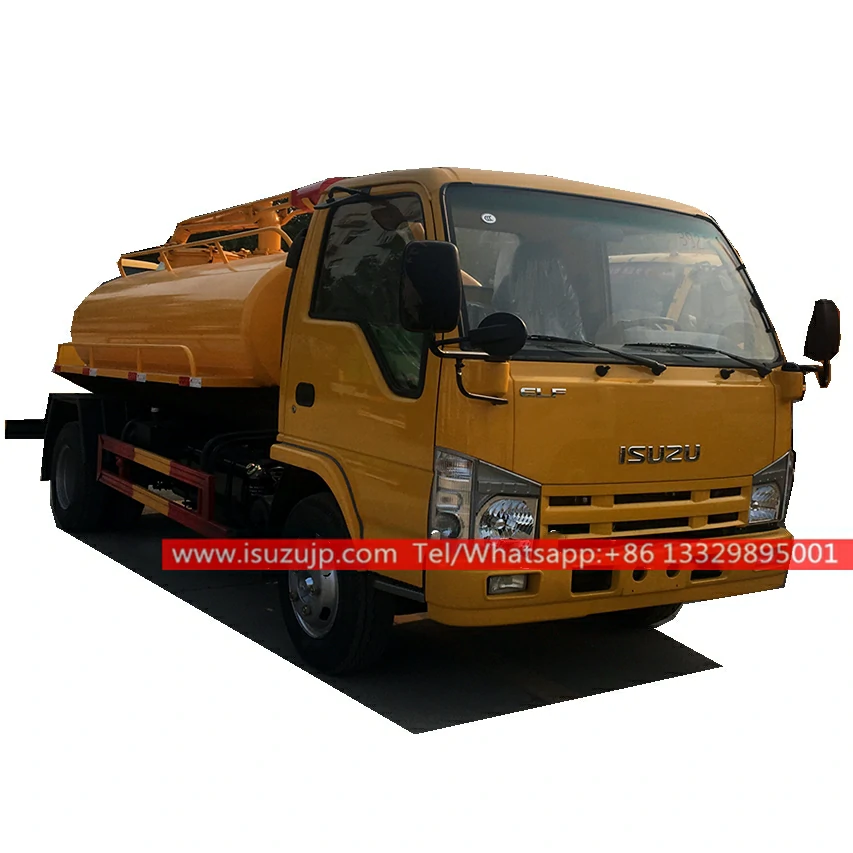

ISUZU Small 5000L septic tank truck Description:
- ISUZU septic tank truck also called cesspit emptier, toilet vacuum truck, toilet liquid tanker vehicle truck, toilet waste trucks, septic tank truck, Septic pump truck.
- Toilet vacuum truck is used to collect, transport and discharge liquid such as dirty water, sludge, septic, crude oil, and solid stuff such as small stones, bricks as well. Used to transport and unclog toilet feces.
Advantage:
- 100% custom-made
- 3,000L to 20,000L available
- Short delivery time 7~30 days
- Easy operation & Easy maintenance
- 15 years spare parts & Technical support
- ISUZU ELF 100P chassis, perfect performance
- ISUZU technology engine option, super powerful, no overhaul within 500,000 km.
Specification:
| ISUZU 5000L septic tank truck | ||
| General | Vehicle Brand | CHENGLI |
| Chassis Brand | ISUZU NKR | |
| Overall Dimension | 5900X2000X2600 mm | |
| GVW / Kerb Weight | 7,300 kg / 3,200 kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | Air conditioner is optional | |
| Engine | Fuel Type | Diesel |
| Engine Brand | 4HK1 | |
| Power | 98HP (72 KW) | |
| Displacement | 2999 ml | |
| Emission Standard | Euro V | |
| Chassis | Drive Type | 4X2, left or right hand drive |
| Transmission | 5-speed front, 1 reverse | |
| Wheelbase/No. of axle | 3360 mm / 2 | |
| Tyre Specification | 7.00-16 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure | Tank Capacity | 5,000 Litres (1,300 gallons) |
| Tank Material | Carbon steel | |
| Vacuum Pump | Highly efficient, vacuum rate 93%, quick suction and discharge, suction lift 6m. | |
| Hose | High quality, wire strengthened hose | |
| All standard accessories: inlet, discharge, anti overflow valve | ||
| Optional | Tank material could be carbon steel, stainless steel Vacuum pump could be of imported brand | |
Working parameter:
| Extraction efficiency | Single full pumping≤5min | Sewage efficiency | After a single row is ≤4min |
| Horizontal suction | 40-60 meters | Vertical suction | ≤8m |
| Control method | Electric control + manual control | Operating position | Cab + front of tank |
New craft:
Optional configuration:
Toilet suction truck composition structure:
Fecal tank truck technical training support:
Vacuum fecal trucks part, tools and instructions：
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Toilet liquid tanker vehicle truck Factory Advantage:
- 16 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Septic tanker Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
Shipping：
- Maximize your hipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
Order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
