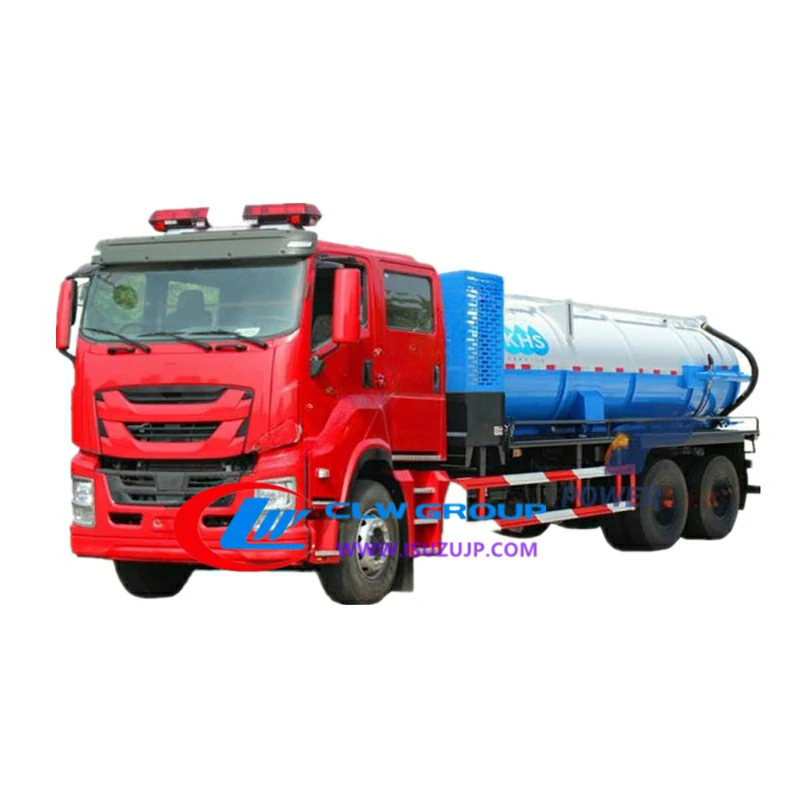

Isuzu FVZ double cabin 20000liters septic pump truckDescription:
- Isuzu FVZ 20000liters septic pump truck also called cesspit emptier, toilet vacuum truck, toilet liquid tanker vehicle truck, toilet waste trucks, septic tank truck, Septic pump truck.
- Fecal suction truck is used to collect, transport and discharge liquid such as dirty water, sludge, septic, crude oil, and solid stuff such as small stones, bricks as well. Used to transport and unclog toilet feces.
Advantage:
- 100% custom-made
- 3,000L to 20,000L available
- Short delivery time 7~30 days
- Easy operation and easy maintenance
- 15 years of spare parts & Technical support
- ISUZU ELF 700P chassis, perfect performance
- ISUZU technology engine option, super powerful, no overhaul within 500,000 km.
Specification:
| Manufacturer | Isuzu Trucks | |
| Item | Isuzu FVZ 20000liters septic pump truck for sale in south africa | |
| Brand | ISUZU | |
| Model | CLW5140GSSD6 | |
| Production Time | 45 days | |
| Truck Chassis | ||
| Specification | Overall dimensions | 9100*2500*3200 mm |
| Gross weight | 25,000 kg | |
| Kerb weight | 12,500 kg | |
| Wheelbase | 4,565+1370 mm | |
| Driving type | 6*4 | |
| Chassis model | Qingling GIGA Heavy-duty | |
| Tire size | 315/80R22.5 | |
| Passengers in cab | 3 | |
| Engine | Engine model | 6WG1-TCG52 |
| Type of fuel | Diesel | |
| Power | 420 HP | |
| Gearbox | FAST 12-shift gearbox | |
| Upper Structure | ||
| Water Tanker performance | Tank Capacity | 20,000L |
| Tank Material | 6mm carbon steel with antiseptic treatment | |
| Vacuum Pump | Original Italy Import famous MORO brand | |
| PM110W model, flow rate 16400Liters/min | ||
| Suction Time | 250 s | |
| Tank lifting angle | ≥45° | |
| Self-suction height | 7 m | |
| Suction hose | 7m length with DN 100 mm | |
| Rear cover | Hydraulic control | |
| Control Panel | English | |
| Discharging system | Gravity discharge or pump out from tank body. | |
| Painting | Two primers, and one final paint coating | |
| Color & LOGO | According to wish | |
| Factory standard | “U” shape Sub Frame, Hydraulic system, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards, and rubber flaps… | |
| Documents | English operation manual, Spare parts list, and all necessary export docs. | |
| Optional equipment | 1, Stainless steel tank, Aluminum alloy tank 2, Wider platform and Fire Cannon 3, Electricity controlled separately sprinkler 4, Spreading salt water Snow-melting agent | |
Working parameter:
| Extraction efficiency | Single full pumping≤5min | Sewage efficiency | After a single row is ≤4min |
| Horizontal suction | 40-60 meters | Vertical suction | ≤8m |
| Control method | Electric control + manual control | Operating position | Cab + front of tank |
New craft:
Optional configuration:
Toilet suction truck composition structure:
Fecal tank truck technical training support:
Vacuum fecal trucks part, tools and instructions：
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Toilet liquid tanker vehicle truck Factory Advantage:
- 16 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Septic tanker Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
Shipping：
- Maximize your hipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
Order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
