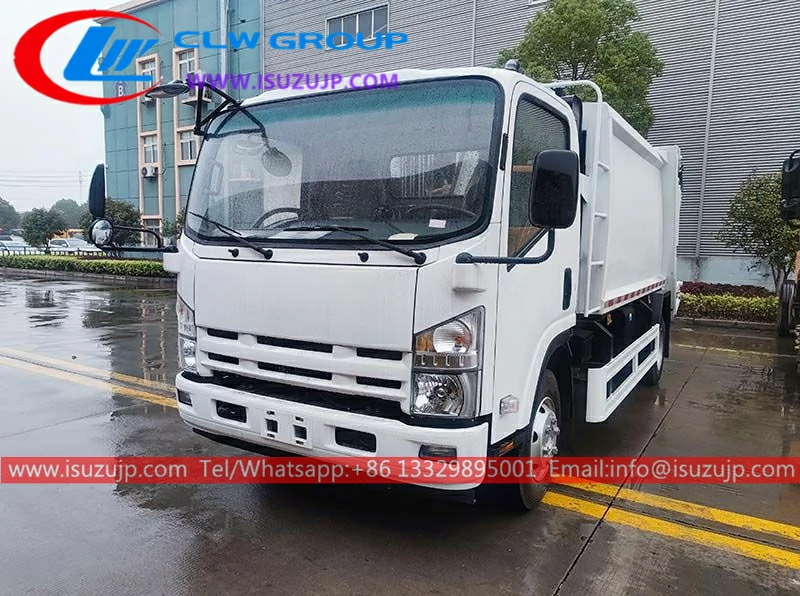

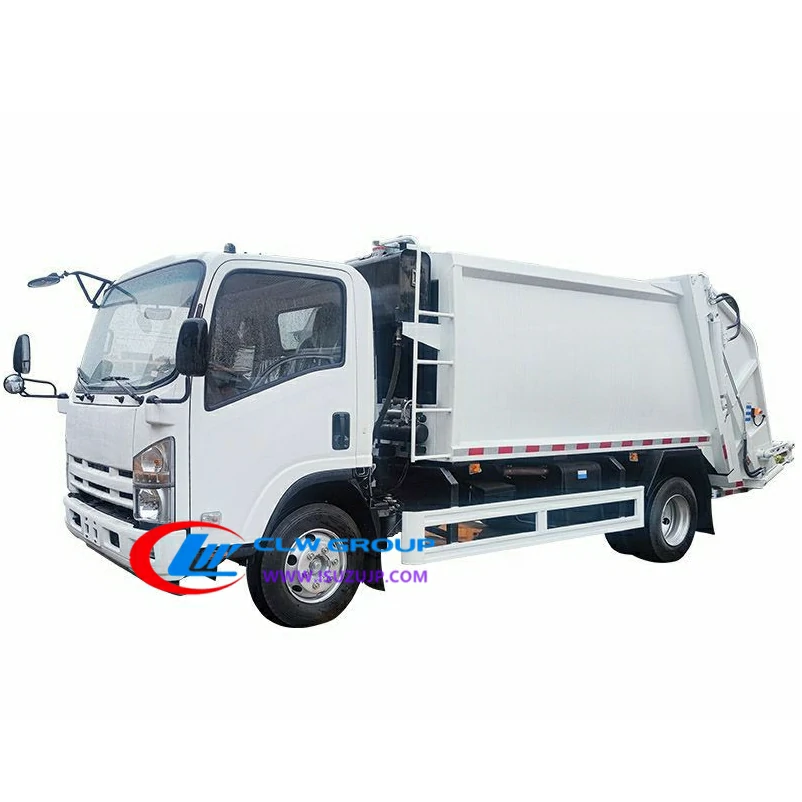

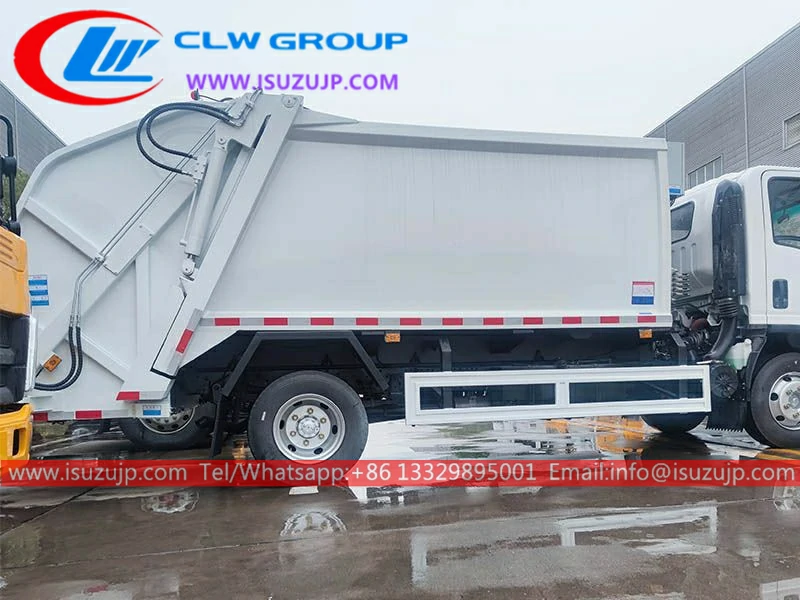

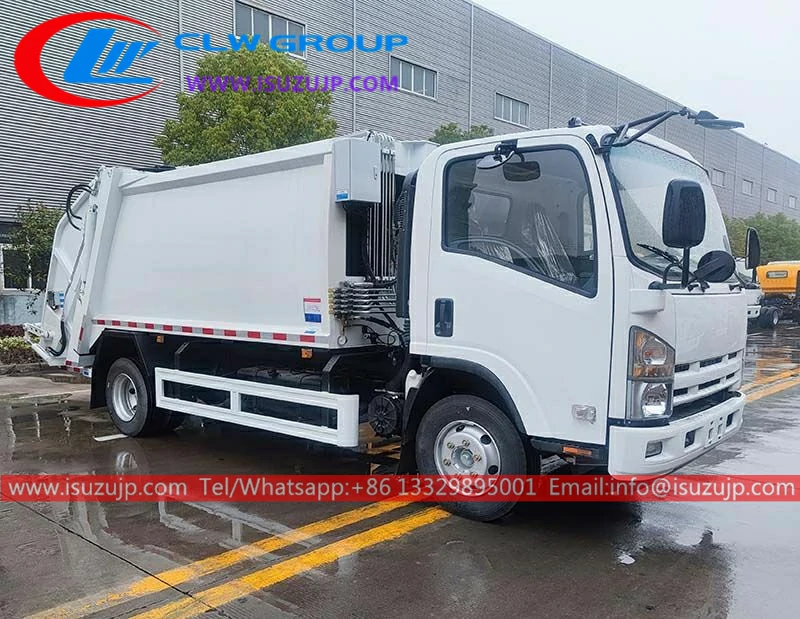

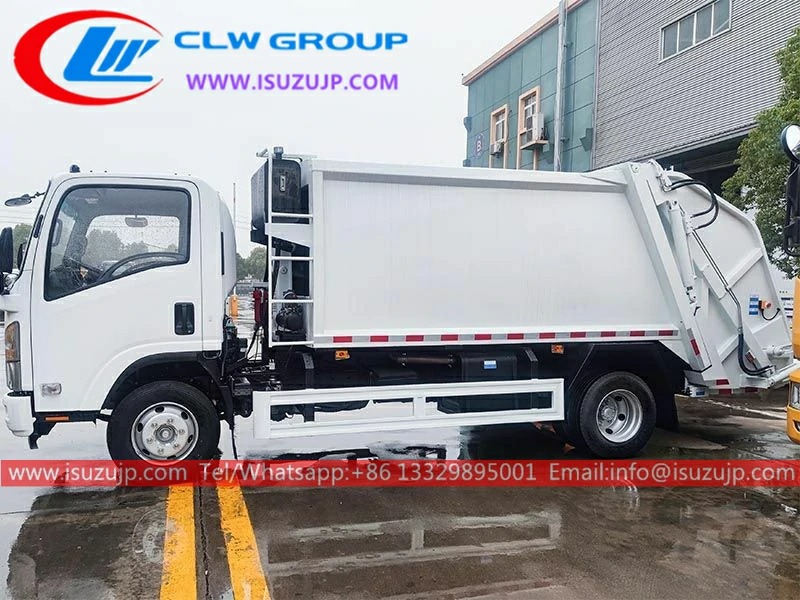

Isuzu NP Foward 190HP 8 cubic meters refuse compactor truck Description:
- Isuzu NP Foward 190HP 8 cubic meters refuse compactor truck also called Truck mounted compactors, sanitation garbage compactors, compressing garbage trucks, waste compactors garbage trucks, and Hydraulic compressor garbage truck.
- The compactor garbage truck is designed for daily rubbish transport in such living areas as all kinds of cities, large stations, ports and wharfs, airports, and densely-populated areas like industrial and mineral enterprises and military units.
- Chengli compactor garbage truck reduces back-and-forth transport times and prevents rubbish and stinks from spreading and avoids second-time pollution produced by polluted water.
- Refuse compactor vehicle tail-gas discharge reaches EUROPEAN V and VI standards. which is safe and environmental-protective.
Advantage:
- ISUZU 700P chassis, perfect performance
- ISUZU engine is super powerful; reliable performance, no overhaul within 100,000 km.
- Compression body capacity from 3 to 20 Cubic Meters.
- Easy operation and easy maintenance.
- Various types of refuse container lifters are available.
Specification:
| Manufacturer | CHENGLI Trucks | |
| Item | Isuzu NP Foward 190HP 8 cubic meters refuse compactor truck for sale | |
| Brand | ISUZU NP FOWARD | |
| Model | CLW5060GSSD6 | |
| Production Time | 35 days | |
| Truck Chassis | ||
| Specification | Overall dimensions | 7200*2000*2650 mm |
| Gross weight | 10,000 kg | |
| Kerb weight | 5,000 kg | |
| Wheelbase | 3,815 mm | |
| Driving type | 4*2 | |
| Chassis model | QINGLING 700P Light-duty | |
| Tire size | 235/75R17.5 | |
| Passengers in cab | 3 | |
| Engine | Engine model | 4HK1-TC51 |
| Type of fuel | Diesel | |
| Power | 190 HP | |
| Gearbox | MLD 6-shift gearbox | |
| Upper Structure | ||
| Compactor Body performance | Tank Capacity | 8 CBM |
| Tank Material | 4mm high strength steel T420, with inside and outside antirust treatment | |
| Rear Hopper | 0.8-1.2 CBM | |
| Waste Water Tanker | 100 + 200 Liters | |
| Body Shape | Arc Shape as standard | |
| Control System | CAN-BUS electric control | |
| Hydraulic Valve control | ||
| Control Panel | English or Your language | |
| Discharge Model | Horizontal Ejection | |
| Tilting Device | Standard 240L * 2 | |
| Customized 360L, 660L, 770L, 1100L bins | ||
| Painting | Two primers, and one final paint coating | |
| Color & LOGO | According to wish | |
| Factory standard | “U” shape Sub Frame, Hydraulic system, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards, and rubber flaps… | |
| Documents | English operation manual, Spare parts list, and all necessary export docs. | |
| Optional equipment | 1, Back Alarm and Camera can be equipped 2, Italy brand multi-way valve can be optional 3, 660L, 770L, 1100L bins lifting device can be optional 4. Front snowing sweeping device can be optional | |
Working parameter:
| Hydraulic pump | Long source large flow 32-80 pump, optional double pump and double valve | Body material | High strength T420 special steel plate |
| Hydraulic cylinder | Xiamen Yinhua, Yantai Future | Box thickness | Lightweight design with 4mm at the bottom and 5 sides |
| Multi-way valve | Jiangsu Zhongmei, Italy imports | Sewage tank | 2 (1 on the side and 1 on the rear) |
| Conversion mode | Photoelectric switch (formerly pressure relay) | Sewage seal | Tail diversion groove + rubber hydraulic lock |
| Automatic control | Standard configuration, Siemens PLC electronic control | Lighting device | Tail night light |
| Electric control box | 3 (1 in the cab and 2 in the rear) | safety devices | Tail lift with hydraulic lock |
| Optional configuration | Hanging plastic buckets (120L, 240L, 360L, 480L, 660L), hanging iron buckets, triangle buckets, fully sealed buckets, swing arm racks, electric hydraulic system | ||
New craft:

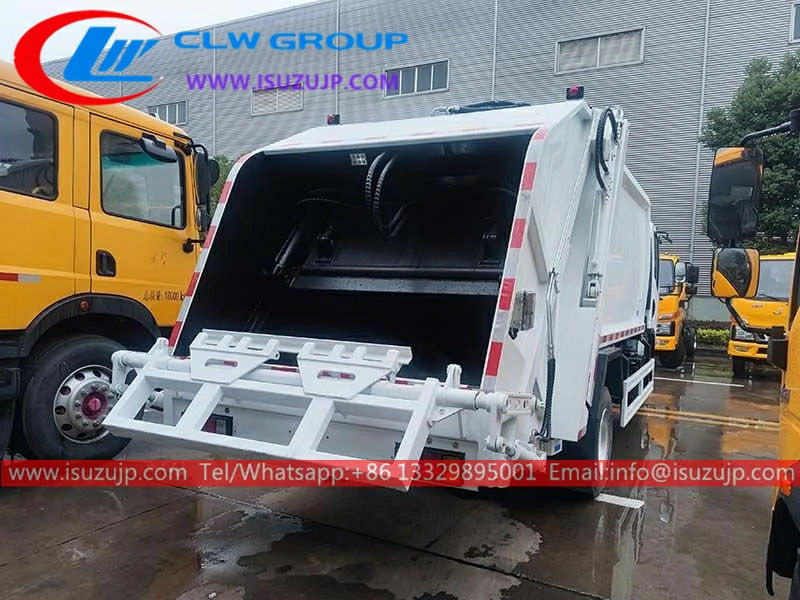

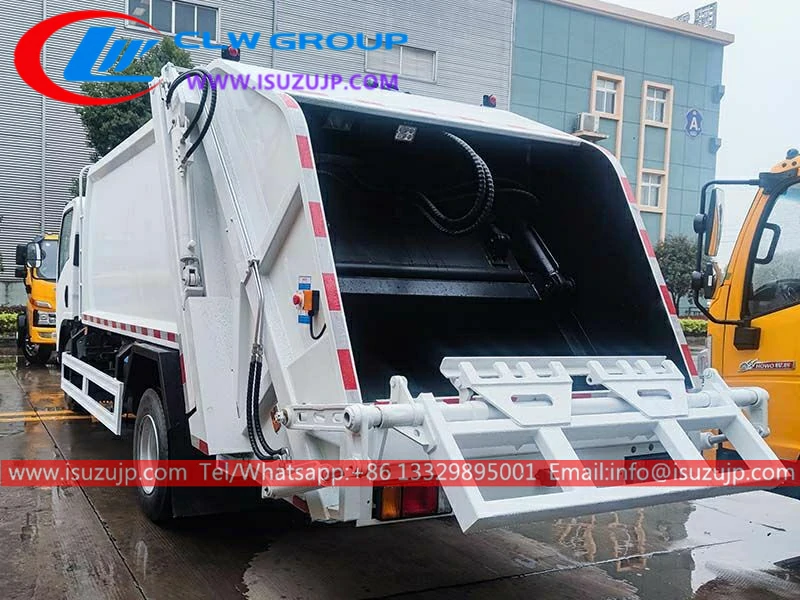

Various rear loading systems:
customized drawing:
Detail drawing:
Common garbage truck style:
trash collection truck technical training support:
Garbage collection vehicle tools and instructions：
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
rubbish collection vehicle Factory Advantage:
- 16 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
refuse transfer truck Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
refuse compactor truck shipping：
- Maximize your shipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
Isuzu Truck order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
