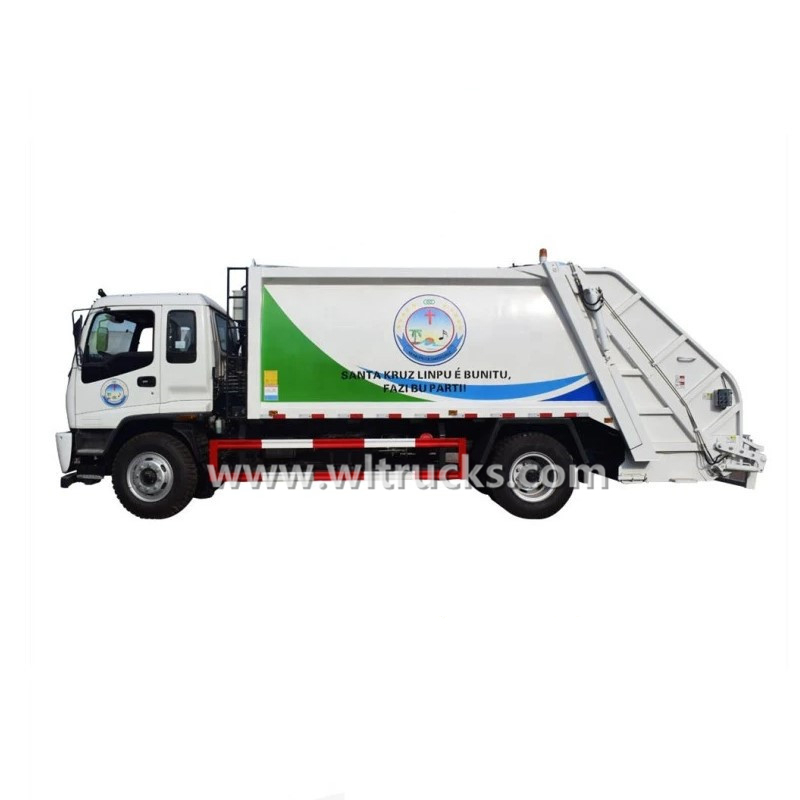

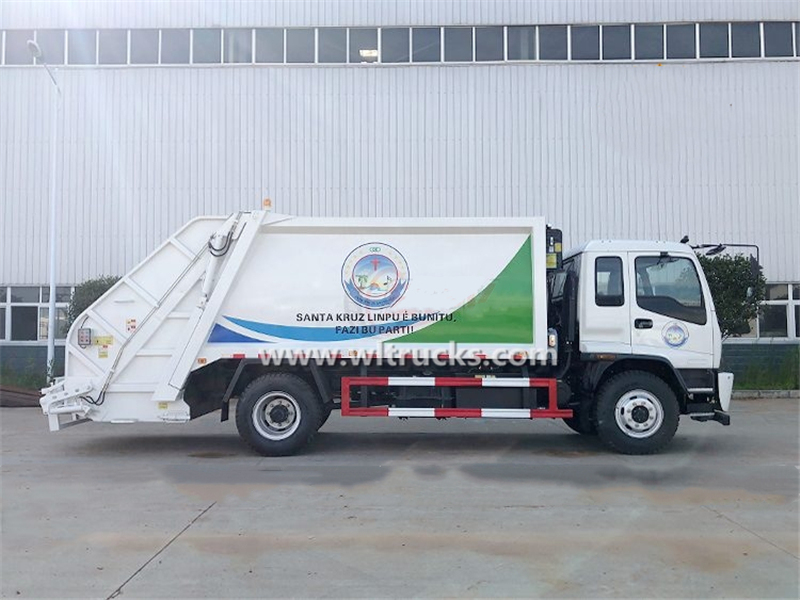

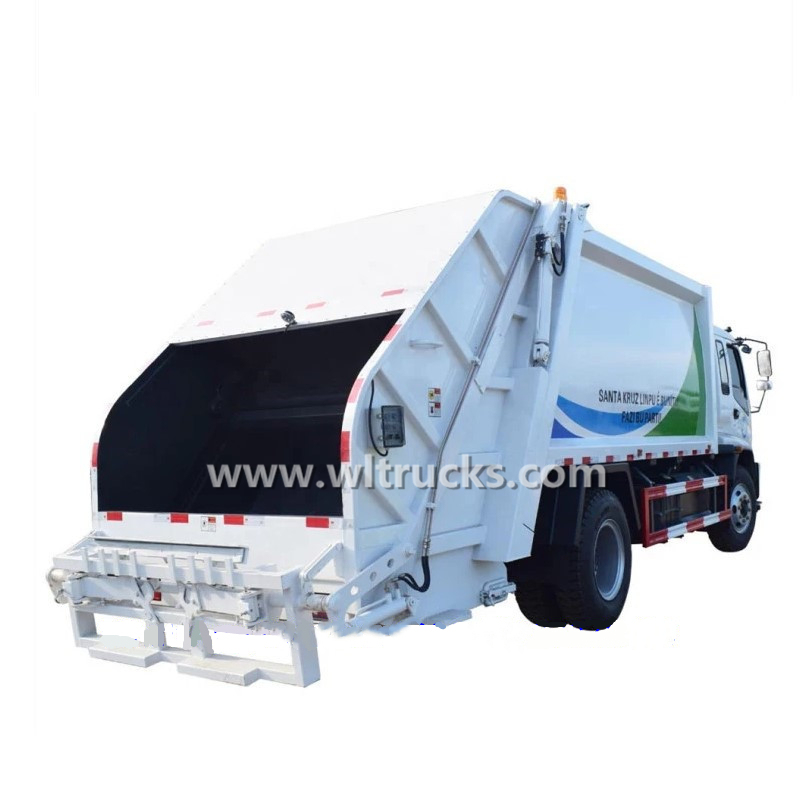

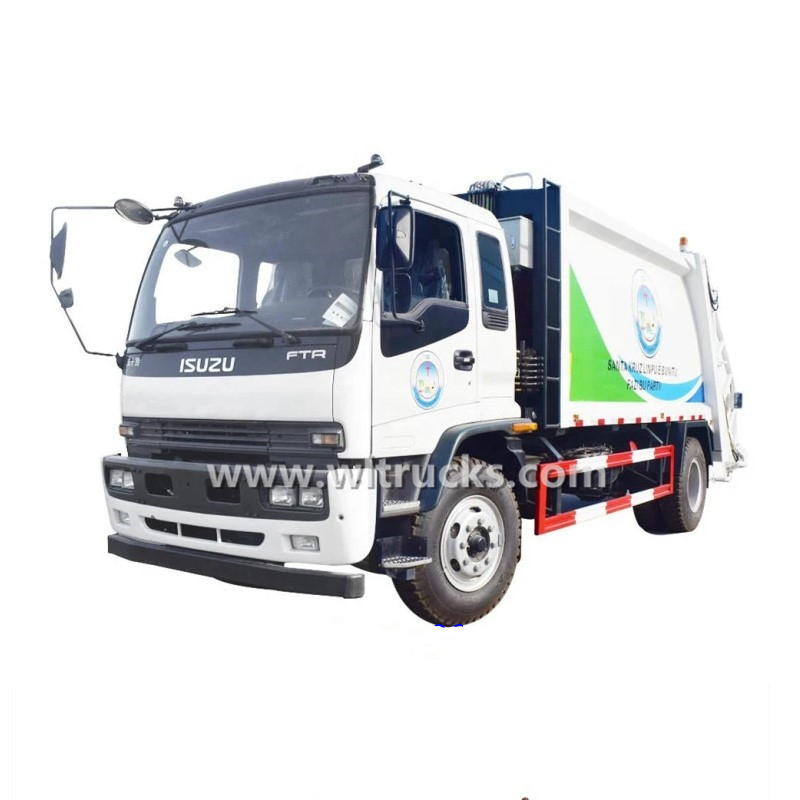

Isuzu 12cbm compactor garbage truck Description:
- Isuzu compactor garbage truck also called Truck mounted compactors, sanitation garbage compactor, compressing garbage trucks, waste compactors garbage truck, Hydraulic compressor garbage truck.
- compactor garbage truck is designed for daily rubbish transport in such living areas as all kinds of cities, large station, port and wharf, airpot, and densely-populated areas like industrial and mineral enterprises and military units.
- Chengli compactor garbage truck reduces back-and-forth transport times and prevents rubbish and stinks from spreading and avoids second-time pollution produced by polluted water.
- Refuse compactor vehicle tail-gas discharge reaches EUROPEAN V and VI standard . which is safe and environmental-protective.
Advantage:
- ISUZU chassis, perfect performance
- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
- Compression body capacity from 3 to 20 Cublic Meter.
- Easy operation and easy maintenance.
- Virious types of refuse container lifter are available.
Specification:
| Isuzu 12cbm compactor garbage truck | ||
| General | Vehicle Brand | CLW |
| Chassis Brand | ISUZU | |
| Overall Dimension | 8530X2500X2970 mm | |
| GVW / Kerb Weight | 16,000kg / 8,750kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | Heating/cooling air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU | |
| Power | 205 HP (150 KW) | |
| Displacement | 5200ml | |
| Emission Standard | Euro V or VI | |
| Chassis | Drive Type | 4X2, (left hand drive) |
| Transmission | ISUZU MLD 6 speed levers with 1 reverse | |
| Wheelbase/No. of axle | 4500 mm / 2 | |
| Tire Specification | 10.00-20 | |
| Tire Number | 6 tires and 1 spare tire | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure | Body capacity | 12 cbm |
| Fill Hopper capacity | 1.3 cbm | |
| Sewage tank | 200 liters | |
| Filling work cycly time | 20~25 s | |
| Discharge model | Horizontal Ejection | |
| Control system | Electrically Hydraulic control Manual hydraulic control | |
| Control panel | English or Your language | |
| All standard accessories: Dust bin lifter,Ladder, warning lights, Emergency stop button, handrail, fire extinguisher, basic tool kit, English manual…… | ||
| Optional | The back alarm and Camera can be equipped. Italy mulit-valve can be choose. 240L (single bin or double bin) or standard 660 L, 1100 L bins with bin lifter can be choose. | |
Working parameter:
| Hydraulic pump | Long source large flow 32-80 pump, optional double pump and double valve | Body material | High strength T420 special steel plate |
| Hydraulic cylinder | Xiamen Yinhua, Yantai Future | Box thickness | Lightweight design with 4mm at the bottom and 5 sides |
| Multi-way valve | Jiangsu Zhongmei, Italy imports | Sewage tank | 2 (1 on the side and 1 on the rear) |
| Conversion mode | Photoelectric switch (formerly pressure relay) | Sewage seal | Tail diversion groove + rubber hydraulic lock |
| Automatic control | Standard configuration, Siemens PLC electronic control | Lighting device | Tail night light |
| Electric control box | 3 (1 in the cab and 2 in the rear) | safety devices | Tail lift with hydraulic lock |
| Optional configuration | Hanging plastic buckets (120L, 240L, 360L, 480L, 660L), hanging iron buckets, triangle buckets, fully sealed buckets, swing arm racks, electric hydraulic system | ||
New craft:
Various rear loading systems:
customized drawing:
Detail drawing:
Common garbage truck style:
trash collection truck technical training support:
Garbage collection vehicle tools and instructions：
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
rubbish collection vehicle Factory Advantage:
- 16 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
refuse transfer truck Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
refuse compactor truck shipping：
- Maximize your shipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
Isuzu Truck order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
